Gillette · PR Series (Prime Gas)

Gillette PR-1800

180 kW standby · Natural Gas · Liquid-cooled

180 kW prime-rated natural gas generator. PSI 11.1L I6 turbocharged, Stamford UCID274J alternator, DSE 7420 MKII. Continuous duty. Made in USA.

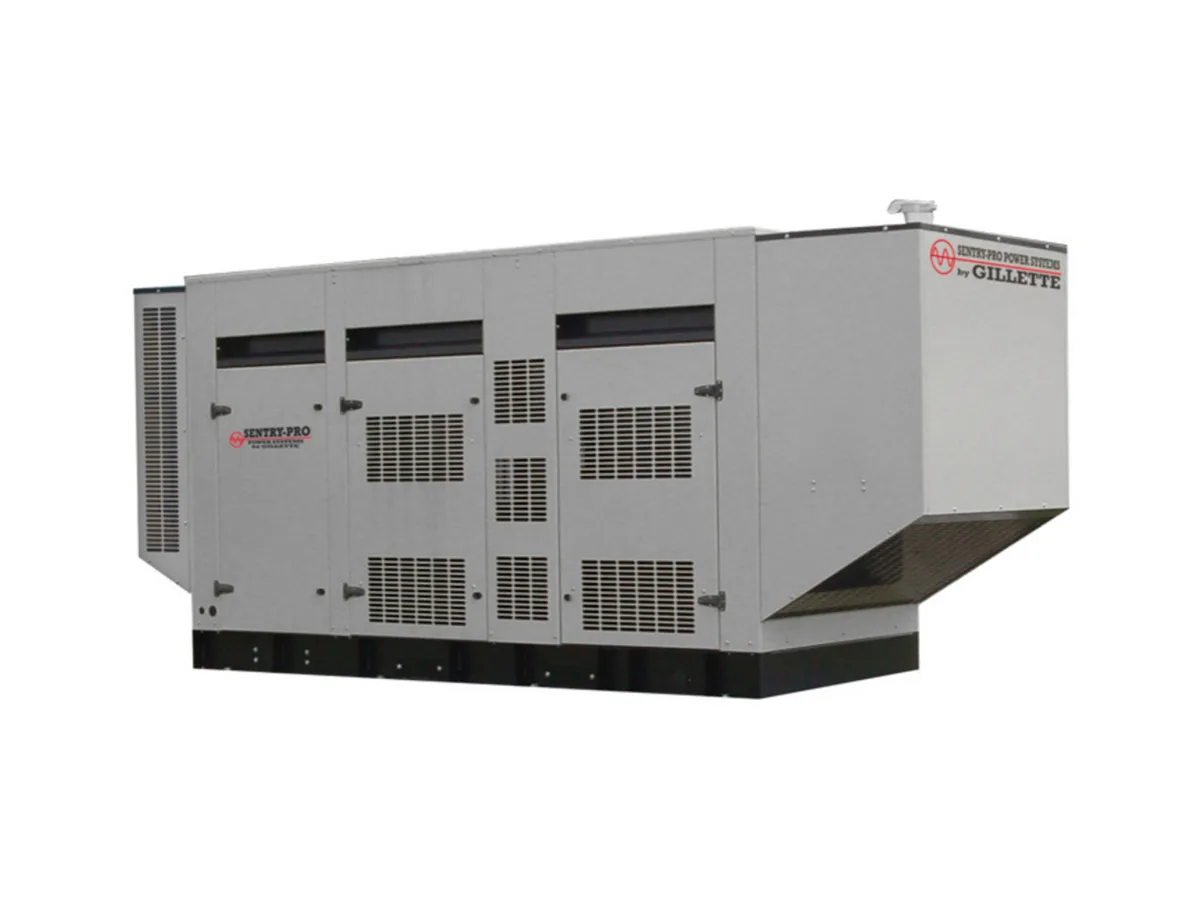

Gillette Gillette PR-1800 generator — specifications and details
Standby power
180 kW / 180 kW prime
Voltage options
120/240V, 120/208V, 277/480V, 346/600V
Frequency / Phase
60 Hz · 1/3-phase
Engine
PSI 11.1L I6 TCAC · 11.1L
EPA / Emissions
EPA Stationary Spark Ignition
Alternator
Stamford UCID274J-311
prime-powerremote-siteminingagriculturalManufacturingoff-grid
Configure & QuoteDownload spec sheet

Overview#

The Gillette PR-1800 is a 180-kilowatt prime-rated natural gas generator on PSI's 11.1L turbocharged inline-6 — a displacement unique to the prime series. This engine sits between the 8.1L (PR-1000/1300) and the 14.6L (PR-2400), delivering 272 bhp at 180 kW prime. Stamford UCID274J alternator, DSE 7420 MKII controller.

The PSI 11.1L — a prime-specific displacement#

The 11.1L inline-6 does not appear in the SP standby series. PSI offers this displacement specifically for continuous-duty applications where the 8.1L is undersized but the 14.6L is over-specified. At 180 kW prime from 11.1L, the engine runs at comfortable specific loading for sustained duty.

Our service experience#

The PSI 11.1L prime gas engine is less common than the 8.8L V8 in our territory but follows the same PSI service protocols. For continuous-duty installations, we establish structured maintenance contracts with defined 250-hour oil change windows.

Engineering specifications

Physical

Length
132 in
Width
52 in
Height
80 in
Wet weight
6,375 lb

Acoustic

Sound @ 7m, full load
75 dBA
Enclosure
Sound-attenuated

Fuel system & runtime

BTU/hr @ full load
1,980,000

Photos

Gillette PR-1800 — product photo

Documents & downloads

Spec sheets & manuals

Ready to order this model?

Configure your Gillette PR-1800

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Configure & Quote →Just request a quoteDownload datasheet

Estimate runtime for the Gillette PR-1800

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Fuel demand at 75% load

1,890,000 BTU/hr≈ 1890.0 cf/min @ 1,000 BTU/cf

On utility natural gas the runtime is generally unlimited provided the supply line and meter can deliver this BTU/hr at the engine's required inlet pressure (typically 5–14" WC residential, up to 5 psi commercial). Confirm against the OEM's published fuel-pressure spec.

Service intervals

Manufacturer-recommended intervals for the Gillette PR-1800 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.

Oil & filter
Every 250 hours or 6 months
Coolant change
Every 4000 hours
Air filter
Every 500 hours
Spark plugs
Every 1000 hours
Major overhaul
≈ 15,000 hours
Load bank test
Every 12 months

Common failure modes

What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.

ComponentSymptomTypical hoursSeverity
TurbochargerPower loss from continuous duty wear10,000+moderate
Spark plugs / ignitionMisfire, rough running1,000+moderate
Charge air coolerElevated intake temps, reduced output8,000+moderate

Frequently Asked Questions

What engine does the PR-1800 use?
PSI 11.1L turbocharged inline-6 — a displacement unique to the PR prime series (not used in the SP standby lineup). At 674 cu in, this sits between the 8.1L I6 (PR-1000/1300) and the 14.6L V8 (PR-2400). The inline-6 architecture provides smooth, balanced operation for sustained continuous duty at 272 bhp.
What fuel consumption at 180 kW prime?
1,980 ft3/hr NG at full load. At 75%: 1,500 ft3/hr. At 50%: 1,075 ft3/hr. Verify gas utility capacity for continuous-duty demand — 180 kW prime draws gas 24/7, not just during outages.

Compatible equipment

Controllers

Transfer switches

More in the PR Series (Prime Gas)

80–540 kW natural gas prime power on PSI engines — continuous duty for remote sites, mining, and off-grid operations.

View all 7models in this series →

Similar models

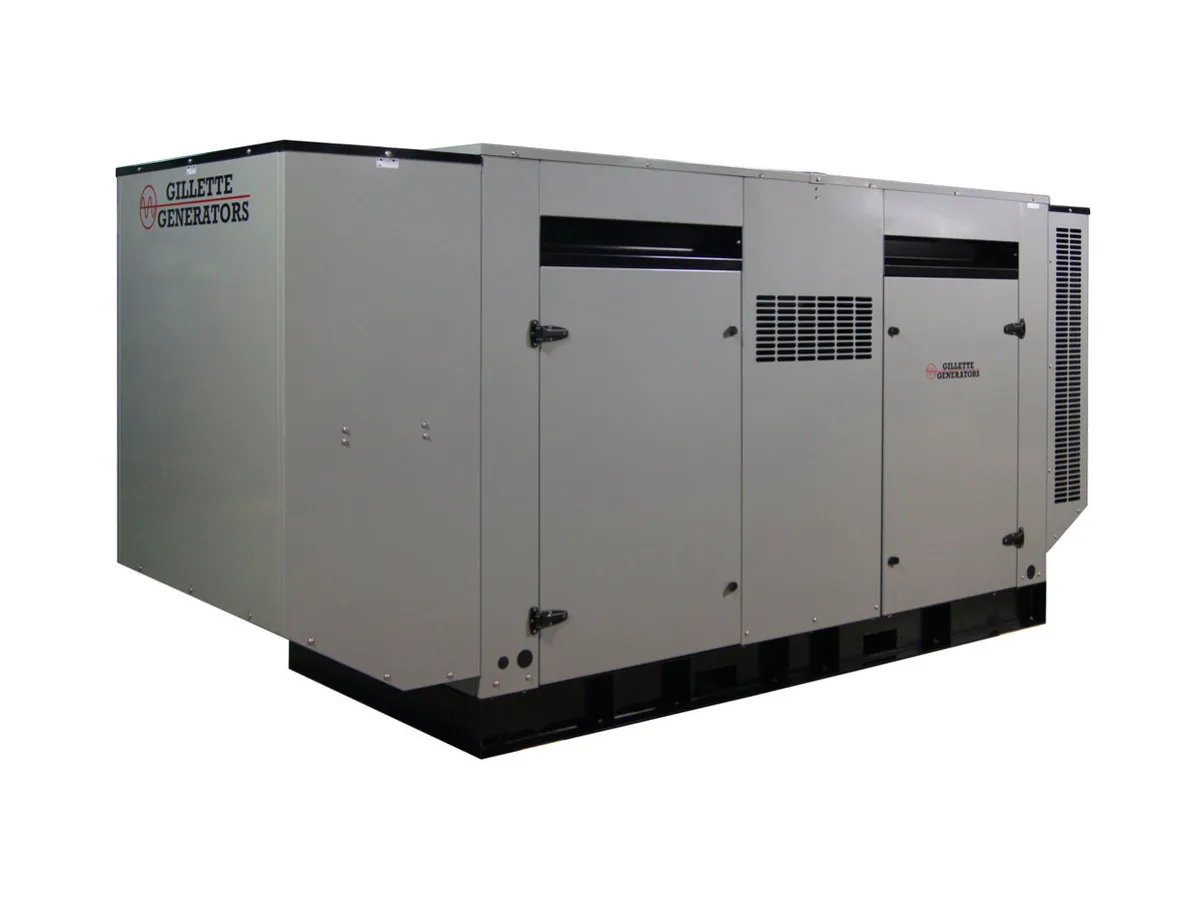

Gillette Gillette PR-1300 130 kW liquid-cooled standby generator

Gillette

Gillette PR-1300

Factory-direct prime-rated gas at 15-30% below major brands. PSI 8.1L I6 engine + DSE controller — continuous duty, no lock-in.

130 kW standby · Natural Gas · Liquid-cooled

130 kW prime-rated natural gas generator. PSI 8.1L I6 turbocharged, Stamford UCI274F alternator, DSE 7420 MKII. Continuous duty. Made in USA.

EPA Stationary Spark Ignition3-phaseprime-powerremote-site
Gillette Gillette PR-2400 240 kW liquid-cooled standby generator

Gillette

Gillette PR-2400

Factory-direct prime-rated gas at 15-30% below major brands. PSI 14.6L V8 engine + DSE controller — continuous duty, no lock-in.

240 kW standby · Natural Gas · Liquid-cooled

240 kW prime-rated natural gas generator. PSI 14.6L V8 turbocharged, Stamford S4L1DD alternator, DSE 7420 MKII. Continuous duty, 3-phase only. Made in USA.

EPA Stationary Spark Ignition3-phaseprime-powerremote-site

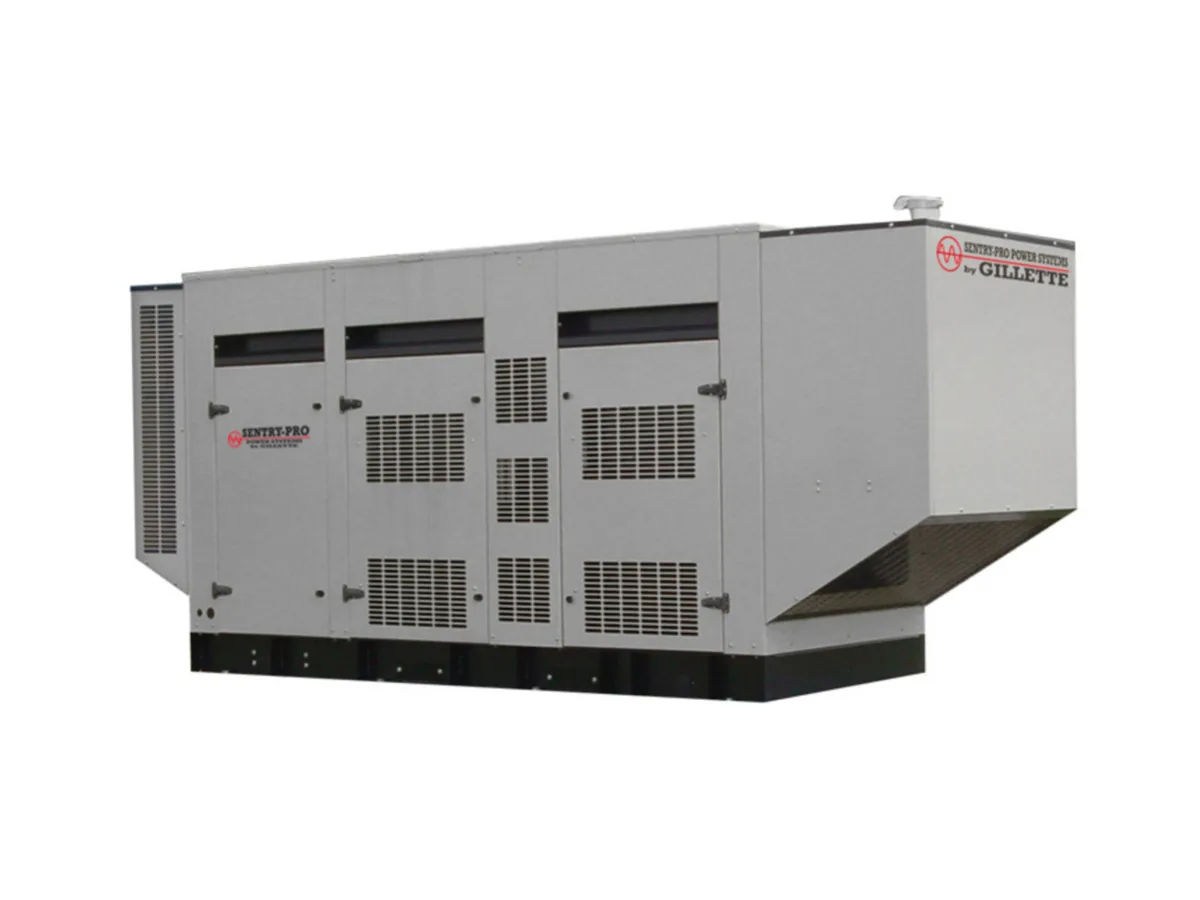

Gillette Gillette SP-2000P 200 kW liquid-cooled standby generator
