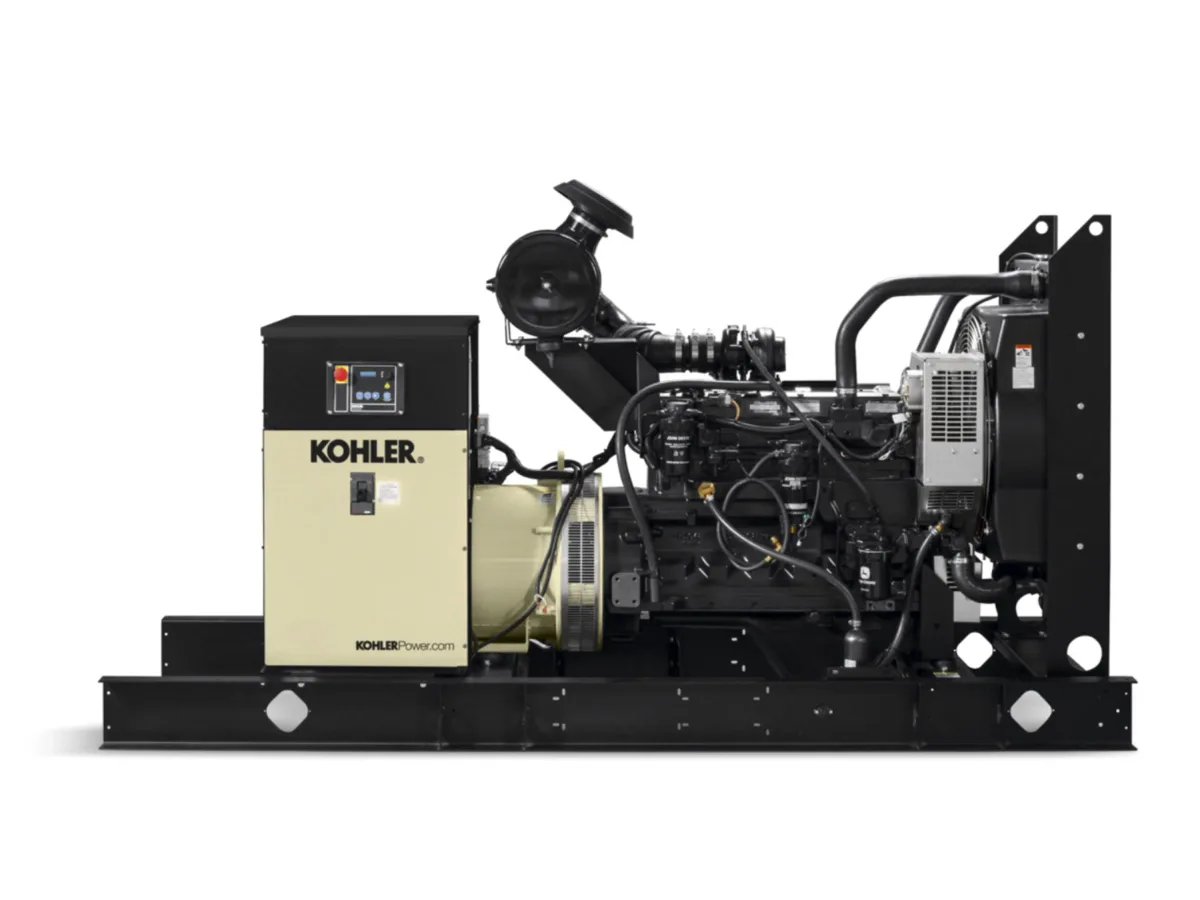

The Kohler 200REOZJF is a 200-kilowatt diesel commercial standby generator built on John Deere's 6.8L inline-6 platform — one of the most proven engine platforms in the standby power industry. At 200 kW, this is the heartland of commercial standby: large enough for hospitals, data centers, and campus power, compact enough for standard mechanical rooms and outdoor pads.
The 6068 series engine is to commercial diesel generators what the small-block Chevy is to cars — ubiquitous, well-understood, and supported by a massive parts ecosystem. Every diesel service technician in North America has worked on this engine family. Parts availability, documentation, and institutional knowledge are unmatched in this size range.
The 200REOZJF is our most-serviced diesel platform in commercial accounts. John Deere 6068 parts are always in stock. Annual service includes comprehensive fluid analysis (oil, coolant, fuel), filter replacement, load bank test, battery load test, and transfer switch exercise. The most common issue across our diesel fleet: fuel degradation from low runtime hours. We include fuel sampling and polishing recommendations in every semi-annual service report.
Service intervals
Manufacturer-recommended intervals for the Kohler 200REOZJF under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.
Oil & filter
Every 500 hours or 12 months
Coolant change
Every 6000 hours
Air filter
Every 1000 hours
Fuel filter
Every 500 hours
Major overhaul
≈ 20,000 hours
Load bank test
Every 12 months
Common failure modes
What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.
Component
Symptom
Typical hours
Severity
Fuel quality (algae/water)
Clogged filters, injector fouling
4,380+
moderate
Starting batteries (24V system)
Slow crank, failed start
8,760+
minor
Turbocharger
Reduced power, oil in intake
15,000+
moderate
Coolant heater (block heater)
Cold starts, slow to reach operating temp
10,000+
minor
Governor / speed control
Frequency hunting, unstable output
15,000+
moderate
Parts cross-reference
oil Filter
Kohler GM50800
fuel Filter
Kohler GM50801
air Filter
Kohler GM50802
starting Battery
Group 31 x2 (series 24V)
Frequently Asked Questions
What engine is in the Kohler 200REOZJF?
A John Deere 6068HFG85A — a 6.8L turbocharged-aftercooled inline-6 diesel at 1800 RPM. This is one of the most widely deployed diesel engines in the standby power industry.
How much fuel does a 200 kW diesel generator use?
At full load: approximately 14-15 gallons per hour. At typical 50-75% loading: 8-11 gallons per hour. For 24-hour runtime at 75% load, plan for approximately 250 gallons. Most installations include a 500-1000 gallon sub-base or day tank.
What size fuel tank for 200 kW?
NFPA 110 requires fuel for the calculated runtime (typically 24-72 hours for Level 1). At 75% load: 72 hours requires ~800 gallons. A 1,000-gallon sub-base tank is the most common configuration. Larger facilities use remote main tanks with day-tank transfer.
Does a 200 kW generator need a block heater?
Yes — block heaters (coolant heaters) are standard on all diesel standby units to ensure reliable cold starting within NFPA 110's 10-second requirement. The heater maintains coolant at 100-120°F for instant oil circulation and combustion.
