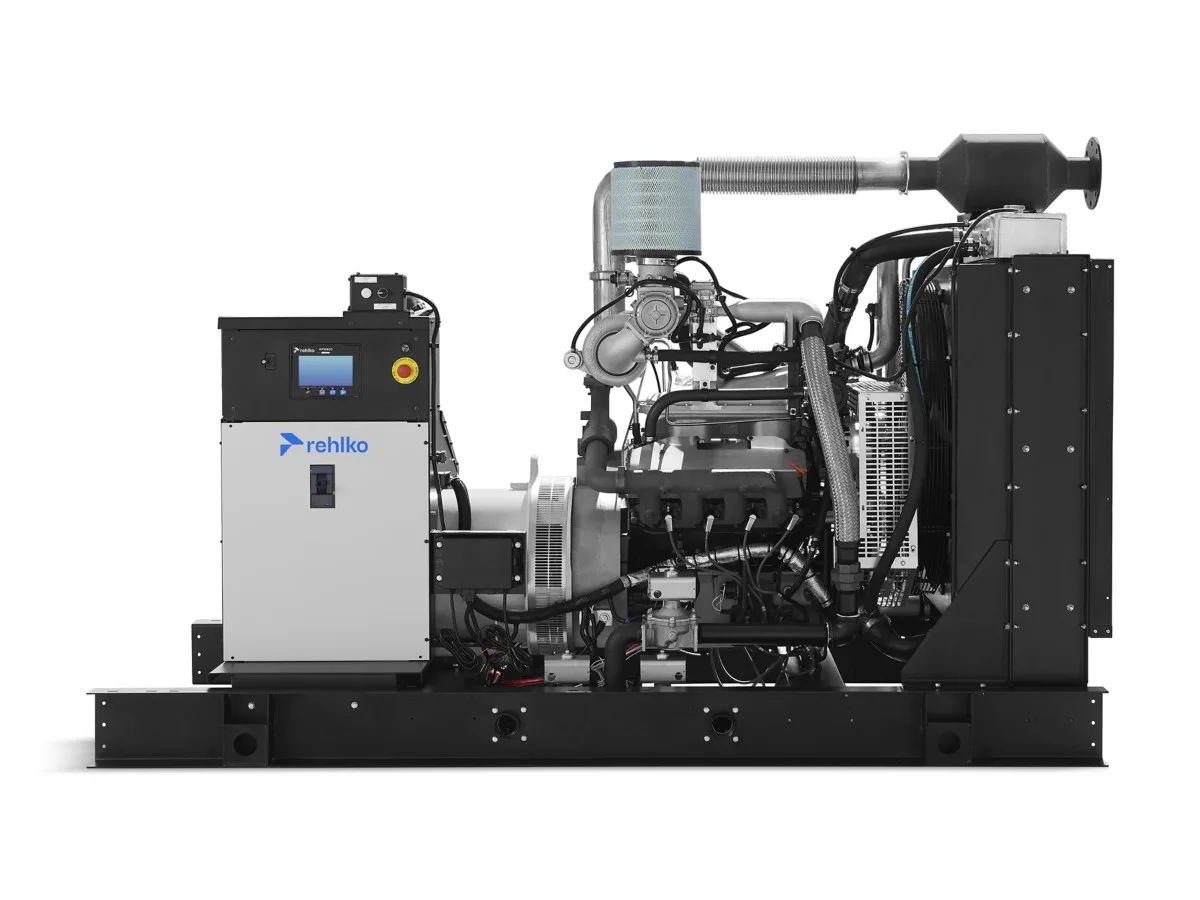

The Kohler KG200 is a 200-kilowatt commercial standby generator and the first unit in the KG line's large-frame platform. At this size, the architecture transitions from automotive-derived engines to purpose-built stationary power platforms: a turbocharged 14.6L V8 with heavier rotating assembly, larger bearings, and a longer service life expectancy.
This is the capacity range where gaseous gensets compete directly with small diesel units for institutional applications — hospitals (non-life-safety loads), government buildings, large hotels, campus distribution, and edge data centers where air quality regulations or site constraints favor gas over diesel.
Common pairing: two KG200 units paralleled for 400 kW with redundancy
The KG200 is frequently specified where the total load is 120-160 kW but the owner wants significant headroom, or where paralleling two 200 kW units provides both capacity and N+1 redundancy more cost-effectively than a single larger unit.
The KG200 large-frame platform requires more physical space for service access — the walk-in enclosure option exists for a reason. Spark plug count doubles to 16 (V8), meaning ignition service is more labor-intensive. We recommend the walk-in enclosure for any site where the KG200 will be serviced on a regular schedule. The turbo V8 is mechanically robust but demands attention to the intercooler system and turbo oil drain lines.
Service intervals
Manufacturer-recommended intervals for the Kohler KG200 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.
Oil & filter
Every 500 hours or 12 months
Coolant change
Every 4000 hours
Air filter
Every 1000 hours
Spark plugs
Every 2000 hours
Major overhaul
≈ 24,000 hours
Load bank test
Every 12 months
Common failure modes
What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.
Component
Symptom
Typical hours
Severity
Turbocharger bearings / seals
Oil in intake, blue smoke, reduced power
12,000+
moderate
Spark plugs (16 total)
Misfire under load, individual cylinder dropout
2,000+
minor
Intercooler system
Boost leak, reduced power
8,000+
minor
Coolant pump / water pump
Coolant weeping from weep hole, bearing noise
15,000+
moderate
Exhaust manifold / turbo gaskets
Exhaust leak, soot staining
8,000+
moderate
Parts cross-reference
oil Filter
Kohler GM62511
air Filter
Kohler GM62256
spark Plug
Champion RN14YC
starting Battery
Group 31 x2 (parallel)
Frequently Asked Questions
What is the standby power rating of the Kohler KG200?
The KG200 is rated 200 kW standby (180 kW prime) at 60 Hz. It's the entry point to Kohler's large-frame gaseous platform, using a turbocharged 14.6L V8.
What engine is in the KG200?
A turbocharged 14.6L V8 at 1800 RPM. This is a purpose-built stationary engine platform — significantly larger than the automotive-derived engines in the KG40-KG80 range.
Can the KG200 be paralleled?
Yes, with the Kohler APM603 paralleling controller and appropriate switchgear. Paralleling two KG200 units provides 400 kW with N+1 redundancy capability.
What ATS for 200 kW?
At 480V three-phase: 300-400A ATS. ASCO 7000 Series or Kohler KCS are standard at this capacity. For critical facilities, consider bypass-isolation configuration.
