Blue Star Power Systems · Volvo Penta Diesel Standby

Blue Star VD550-04FT4

550 kW standby / 500 kW prime · Diesel · Liquid-cooled

550 kW standby / 500 kW prime Tier 4 Final diesel generator from Blue Star Power Systems. Volvo Penta TWD1682GE 16.12L inline-six with SCR/DPF/DOC, DSE DCP7310 controller, three-phase 208-600V.

Blue Star Power Systems Blue Star VD550-04FT4 generator — specifications and details
Standby power
550 kW / 500 kW prime
Voltage options
120/208V, 277/480V, 347/600V
Frequency / Phase
60 Hz · 3-phase
Engine
Volvo Penta TWD1682GE · 16.12L
EPA / Emissions
Tier 4 Final
Alternator
Stamford HCI534E
CommercialHealthcareGovernmentlight-industrialManufacturing
Configure & QuoteDownload spec sheet

Overview#

The Blue Star VD550-04FT4 is a 550-kilowatt standby / 500-kilowatt prime EPA Tier 4 Final / EU Stage 5 diesel generator built around the Volvo Penta TWD1682GE — a 16.12-liter inline-six with water-cooled charge-air cooling. This is the first model in the Blue Star Tier 4 Final lineup where standby and prime ratings diverge, and the first to use the large TWD engine platform.

The jump from the 12.8L TAD engines (VD250-300) to the 16.12L TWD platform represents a fundamental change in engine architecture — the water-cooled charge-air cooler (H2O-to-Air CAC) replaces the air-to-air aftercooler used on all smaller T4F models. The physical package is correspondingly larger: 160 x 84 x 118 in versus 120 x 66 x 91 in for the VD300.

The Volvo Penta TWD1682GE platform#

The TWD1682GE defines the large-displacement Tier 4 Final category:

  • 16.12L inline-six with water-cooled charge-air cooler — the TWD designation indicates H2O-to-Air CAC, versus air-to-air on the TAD models
  • SCR/DPF/DOC triple aftertreatment with 52.8-gallon DEF tank — nearly three times the capacity of VD100-300 DEF tanks
  • 6.60% DEF consumption — highest absolute DEF throughput in the T4F lineup
  • 550 kWe standby / 500 kWe prime — divergent ratings unlike the smaller T4F models
  • Stamford HCI534E/HCI534F alternator with ±0.50% voltage regulation
  • EPA Tier 4 Final + EU Stage 5 dual certification
  • 4,921 ft altitude ceiling
  • 160 x 84 x 118 in enclosure — significantly larger than VD100-300 models

Variant selection guide#

  • VD300-04FT4 (300 kW standby/prime, Volvo TAD1383VE 12.8L I-6, Tier 4 Final) — smaller platform, 120 x 66 x 91 in. Choose if 300 kW meets the load study and the smaller footprint is required.
  • VD600-04FT4 (600 kW standby / 570 kW prime, Volvo TWD1683GE 16.12L I-6, Tier 4 Final) — same engine family, higher output, structural steel base. Choose for loads above 550 kW standby or 500 kW prime.

When to spec the VD550-04FT4#

  • 400-550 kW emergency standby loads, or 400-500 kW prime power loads on diesel
  • Jurisdictions requiring Tier 4 Final or EU Stage 5 emissions compliance
  • Large industrial, municipal, and healthcare facilities
  • Sites at any elevation up to 4,921 ft with adequate space for the 160 x 84 in footprint

Our service experience#

The TWD1682GE introduces a distinct service platform from the 12.8L TAD engines: different oil capacity, coolant volume, filter cross-references, and a water-cooled charge-air cooler requiring its own coolant circuit maintenance. The 52.8-gallon DEF tank significantly reduces DEF refill frequency versus the 18.5-gallon tanks, but the 6.60% consumption rate means approximately 2.53 gph DEF at full standby load — prime power applications running extended hours will need a DEF supply plan. The DSE DCP7310 controller monitors DEF level, aftertreatment temperatures, and DPF regeneration status. DPF ash cleaning intervals will be shorter than on lower-output models due to higher exhaust mass flow.#

Engineering specifications

Physical

Length
160 in
Width
84 in
Height
118 in
Dry weight
13,100 lb

Acoustic

Sound @ 7m, full load
93 dBA
Enclosure
Open

Fuel system & runtime

Fuel use @ full load
38.3 GPH
Fuel use @ 75% load
29.1 GPH
Fuel use @ 50% load
20.6 GPH
DEF tank
52.8 gal

Thermal & ventilation

Heat to coolant
713,160 BTU/hr
Heat radiated
688,500 BTU/hr
Exhaust flow
4,347 CFM
Exhaust temp
826 °F
Combustion air
1,667 CFM

Documents & downloads

Spec sheets & manuals

Ready to order this model?

Configure your Blue Star VD550-04FT4

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Configure & Quote →Just request a quoteDownload datasheet

Estimate runtime for the Blue Star VD550-04FT4

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

6.8 hours(0.3 days)

Fuel consumption ≈ 29.55 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Service intervals

Manufacturer-recommended intervals for the Blue Star VD550-04FT4 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.

Oil & filter
Every 500 hours or 12 months
Coolant change
Every 6000 hours
Air filter
Every 1000 hours
Fuel filter
Every 500 hours
Major overhaul
≈ 20,000 hours
Load bank test
Every 12 months

Common failure modes

What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.

ComponentSymptomTypical hoursSeverity
DEF system (SCR catalyst)Derate warning, NOx fault, DEF quality alert4,380+moderate
Turbocharger(s)Major power loss, heavy exhaust smoke12,000+severe
Fuel quality / degradationInjector fouling, hard starting4,380+moderate
Battery bank (24V)Failed start, slow cranking8,760+minor

Frequently Asked Questions

What engine is in the VD550-04FT4?
The Volvo Penta TWD1682GE — a 16.12-liter inline-six turbocharged diesel with water-cooled charge-air cooler (H2O-to-Air CAC). The 'TWD' prefix distinguishes water-cooled charge-air cooling from the air-to-air 'TAD' engines used in the smaller T4F models. EPA Tier 4 Final and EU Stage 5 certified with SCR/DPF/DOC triple aftertreatment.
Why is standby 550 kW but prime only 500 kW?
The VD550-04FT4 is the first model in the Blue Star T4F lineup where standby and prime ratings diverge. Standby (550 kW) is the peak rating for emergency applications with typical 80% load factors and limited annual run hours. Prime (500 kW) is the sustained continuous output for high-load-factor or unlimited-hour applications. Size loads against 500 kW for any prime power application.
Does the VD550-04FT4 require DEF?
Yes. DEF consumption is approximately 6.60% of fuel consumption — the highest rate in the Blue Star T4F lineup. The 52.8-gallon integrated DEF tank is approximately 2.85 times the capacity of the 18.5-gallon tanks on VD100-300 models. At full standby load (38.3 gph fuel), DEF consumption is approximately 2.53 gph.
How does the VD550-04FT4 compare to the VD300-04FT4?
The VD550 and VD300 are on entirely different engine platforms. The VD300 uses the 12.8L TAD1383VE in a 120 x 66 x 91 in package at 8,900 lbs. The VD550 uses the 16.12L TWD1682GE with water-cooled charge-air cooling in a 160 x 84 x 118 in package at 13,100 lbs. The footprint jump is substantial — verify site dimensions, floor loading, and access clearances before specifying the VD550.

Compatible equipment

Engine

Transfer switches

More in the Volvo Penta Diesel Standby

100–700 kW Volvo Penta diesel standby across Tier 4 Final, Tier 3, and Tier 2 — 22 models, one and three-phase.

View all 22models in this series →

Similar models

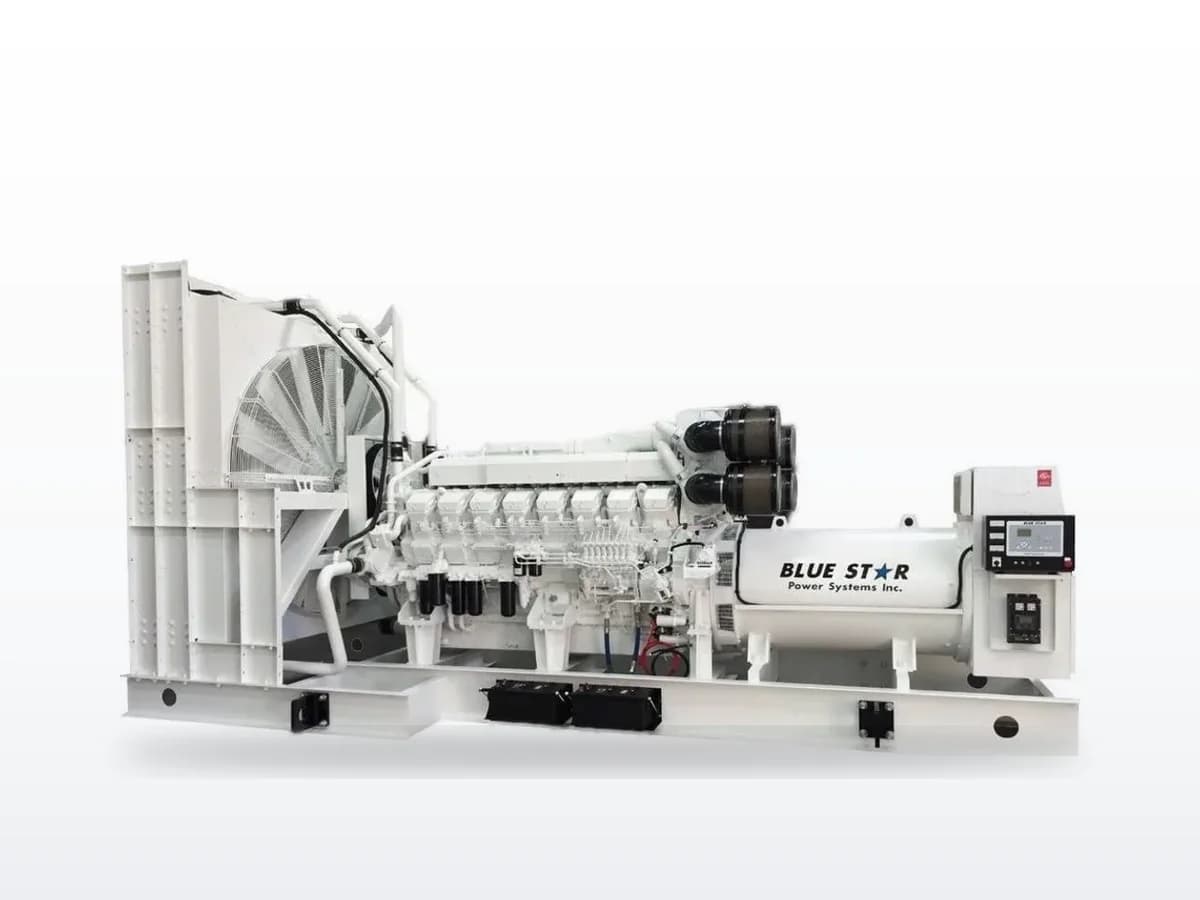

Blue Star Power Systems Blue Star VD550-04FT4MP 550 kW liquid-cooled standby generator

Blue Star Power Systems

Blue Star VD550-04FT4MP

Open Basler controller + Volvo Penta engine + Leroy-Somer alternator — trailer-mounted, no proprietary lock-in. Serviceable by any qualified tech.

550 kW standby · Diesel · Liquid-cooled

550 kW standby / 500 kW prime Tier 4 Final / EU Stage 5 mobile trailer diesel generator built by Blue Star Power Systems. Volvo Penta TWD1682GE six-cylinder engine, 572RSL6429 alternator, DSE DCP7310 controller, 550-gallon integrated fuel tank.

Tier 4 Final3-phaseconstructiontemporary-power

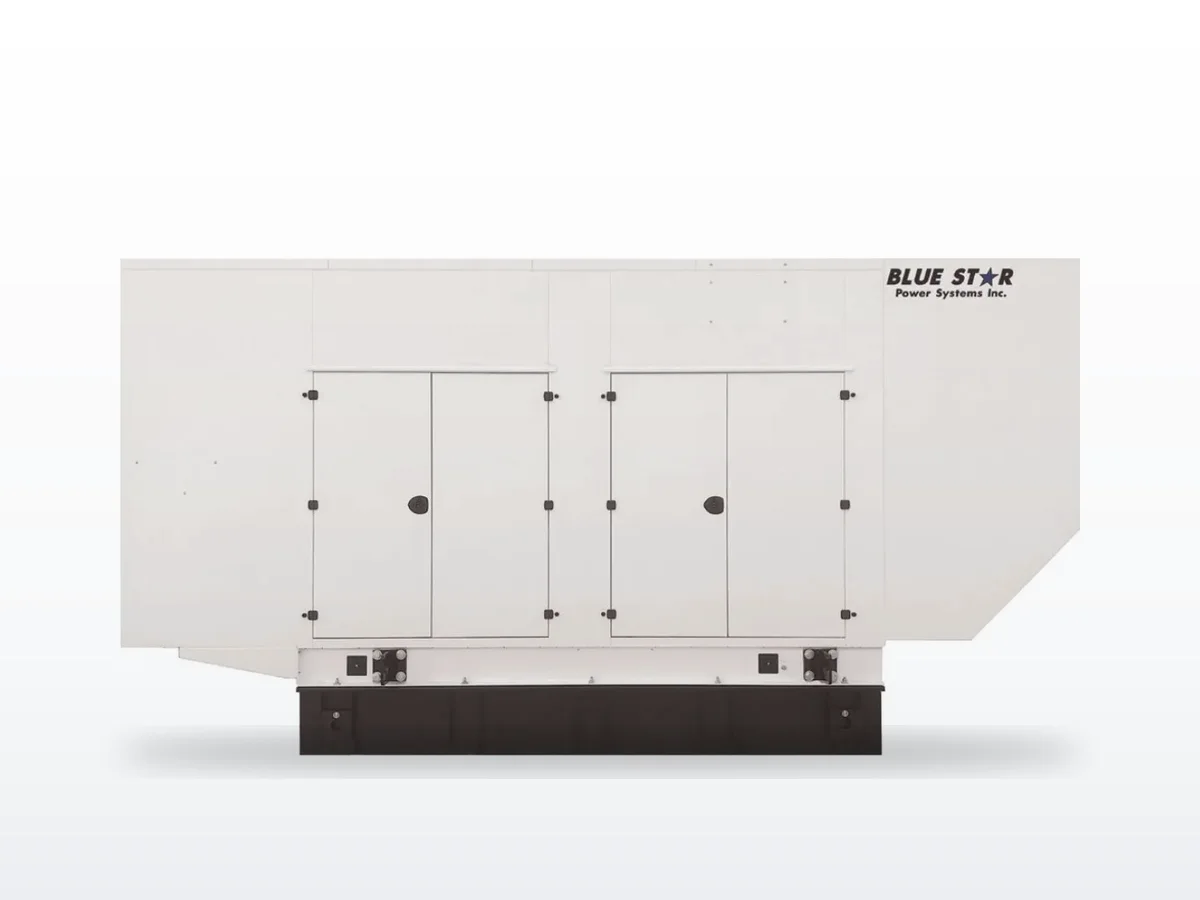

Blue Star Power Systems Blue Star VD550-01 550 kW liquid-cooled standby generator
