What engine is in the VD550-01?

The Volvo Penta TAD1642GE-B — a 16.1-liter inline-six turbocharged-aftercooled diesel rated 821 HP (612 kWm) at 1800 RPM. It is the highest-output variant of the TAD1640/1641/1642GE-B engine family, sharing the same block (5.67 in bore, 6.50 in stroke, 16.8:1 compression) as the TAD1641GE-B used in the VD500-01. EPA Tier 2 certified with Volvo Penta EMS 2.4 electronic management.

How does the VD550-01 compare to the VD500-01?

Both use the same 16.1L Volvo Penta block and share the same physical dimensions (140 x 72 x 98 in). The TAD1642GE-B (VD550-01) produces 821 HP versus 768 HP for the TAD1641GE-B (VD500-01). The VD550-01 is 350 lbs heavier (10,225 vs 9,875 lbs) and has a lower altitude deration: 4,920 ft (1,500 m) versus 6,562 ft (2,000 m) for the VD500-01. Both are rated at 94 dBA at full load.

What controller does the VD550-01 use?

The DSE DCP7310 — the same controller used across Blue Star's current diesel lineup. It features CAN bus J1939 communications, RS-485 interface, IP 65 front panel rating, and remote communications via DSE2548 annunciator. cULus Listed and NFPA 110 Level 1 compatible.

What is the altitude deration for the VD550-01?

Rated power is available up to 4,920 ft (1,500 m) at ambient temperatures to 122F (50C). This is lower than the VD500-01's 6,562 ft ceiling because the TAD1642GE-B is tuned closer to the 16.1L block's peak output. For sites above 4,920 ft, the VD500-01 with its 6,562 ft ceiling is the safer specification if 500 kW is sufficient.

Blue Star Power Systems · Volvo Penta Diesel Standby

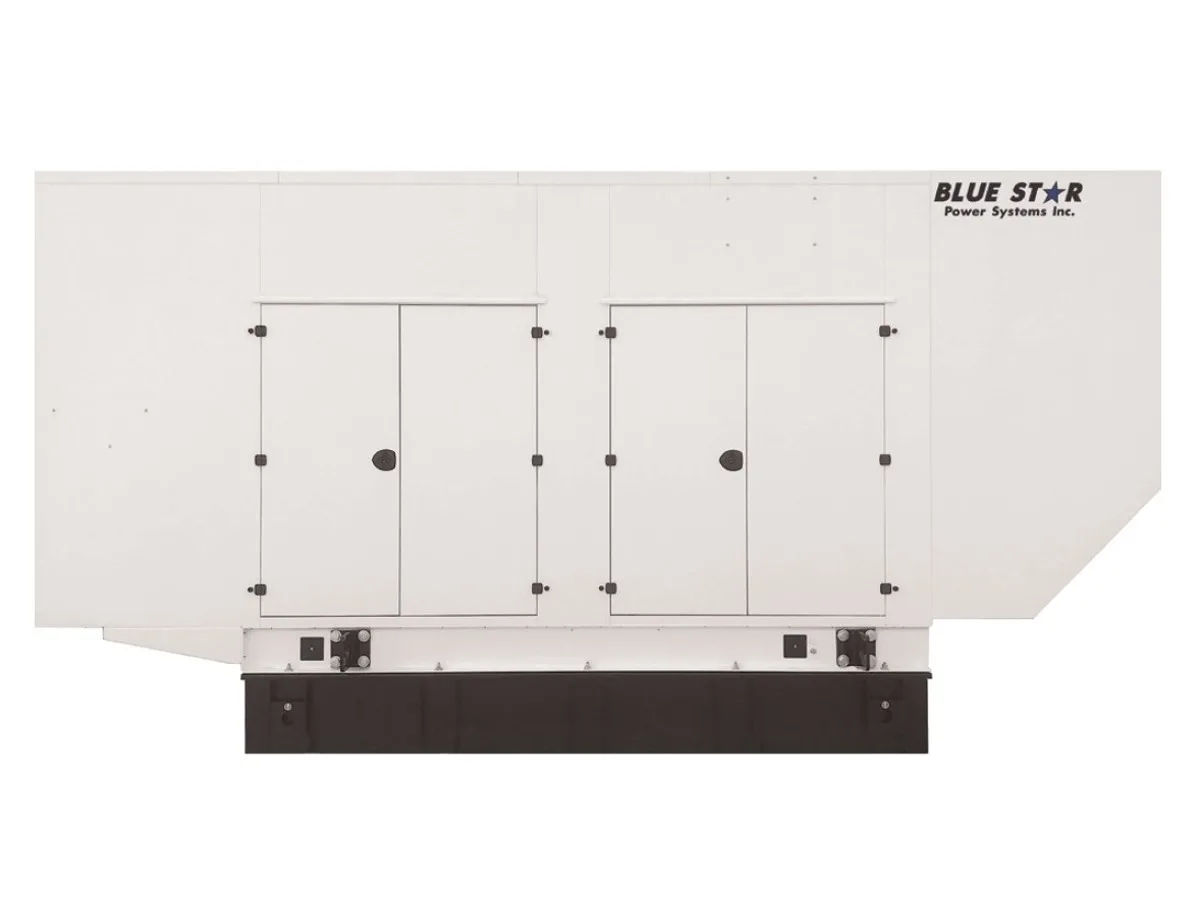

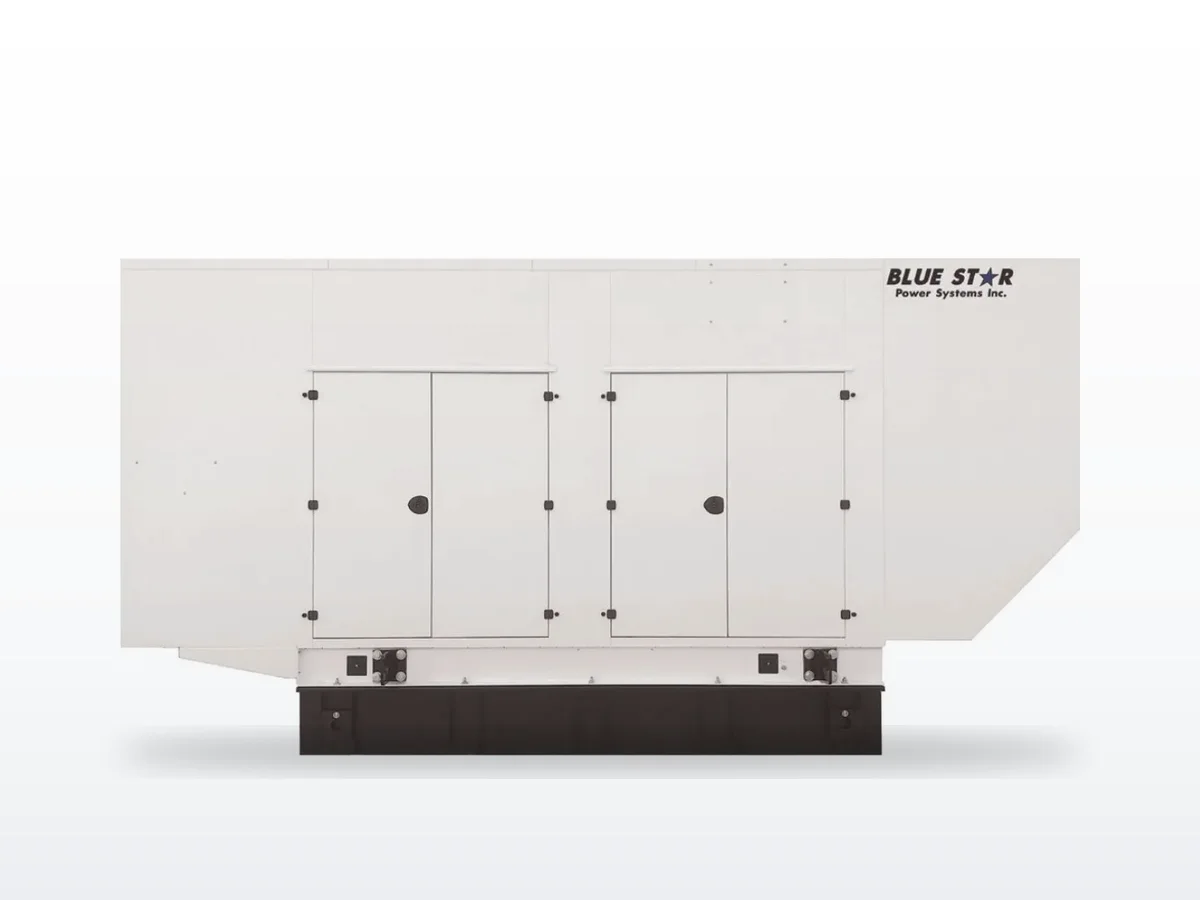

Blue Star VD550-01

Name: Blue Star VD550-01
Brand: Blue Star Power Systems
Availability: PreOrder

550 kW standby · Diesel · Liquid-cooled

550 kW Tier 2 diesel standby generator from Blue Star Power Systems. Volvo Penta TAD1642GE-B 16.1L inline-six with DSE DCP7310 controller, 208-600V output.

Standby power: 550 kW
Voltage options: 120/208V, 120/240V, 277/480V, 347/600V
Frequency / Phase: 60 Hz · 1/3-phase
Engine: Volvo Penta TAD1642GE-B · 16.1L
EPA / Emissions: Tier 2
Alternator: Stamford HCI534E

Commercial Healthcare Hospitality Government Manufacturingdata-center-edgeData Centers

Configure & Quote Download spec sheet

Overview#

The Blue Star VD550-01 is a 550-kilowatt EPA Tier 2 diesel standby generator built around the Volvo Penta TAD1642GE-B — the highest-output variant of the TAD1640/1641/1642GE-B engine family. At 821 HP, it extracts the maximum from the 16.1L platform. This is a current-production active model.

The VD550-01 shares its physical footprint with the VD500-01 (140 x 72 x 98 in), making it a drop-in upgrade when 500 kW is marginal for the load study.

The Volvo Penta TAD1642GE-B platform#

The TAD1642GE-B tops the updated 16.1L engine family:

Same 16.1L displacement as the TAD1641GE-B (VD500-01) — identical bore (5.67 in), stroke (6.50 in), and compression ratio (16.8:1)
Peak output — 821 HP (612 kWm gross) at 1800 RPM, the highest of the three TAD164xGE-B variants
Air-to-air charge-air cooling — noted specifically on the VD550-01 spec sheet
4,920 ft altitude ceiling — lower than the VD500-01's 6,562 ft due to the higher output tuning, but still adequate for most Northern California installations
Dual-frequency switching — 1500/1800 RPM via EMS 2.4

Variant selection guide#

The VD550-01 is the top of the TAD1640/1641/1642GE-B range:

VD500-01 (500 kW, Volvo TAD1641GE-B 16.1L) — same physical footprint, 50 kW less, but with a superior 6,562 ft altitude ceiling. Choose this for high-altitude sites or when 500 kW meets the load study.
VD600-03 (600 kW, Volvo Penta) — the next step up, moving to a larger Volvo Penta engine platform for sites needing more than 550 kW.
VD450-01 (450 kW, Volvo TAD1650GE 16.1L) — different 16.1L design, EPA Tier 3, lower kW class.

When to spec the VD550-01#

440-550 kW continuous emergency standby loads on diesel fuel at sites below 4,920 ft elevation
Large commercial and industrial facilities: hospitals, data centers, large manufacturing plants, campus power systems
Applications where EPA Tier 2 is permitted for stationary emergency standby
Load studies where 500 kW (VD500-01) is marginal but 600 kW (VD600-03) is oversized

Our service experience#

The TAD1642GE-B shares all service procedures, fluid capacities (12.7 gal oil, 15.9 gal coolant), and filter cross-references with the TAD1641GE-B (VD500-01). The self de-aerating fuel system and fuel shut-off valve are service advantages shared across the TAD164xGE-B family. The 94 dBA open-skid sound level requires enclosed installation for all but the most remote sites. The DSE DCP7310 controller and Stamford HCI534 alternator maintain parts commonality across the Blue Star lineup.#

Engineering specifications

Physical

Length: 140 in
Width: 72 in
Height: 98 in
Dry weight: 10,225 lb

Acoustic

Sound @ 7m, full load: 94 dBA
Enclosure: Open

Fuel system & runtime

Fuel use @ full load: 37.4 GPH
Fuel use @ 75% load: 28.1 GPH
Fuel use @ 50% load: 18.8 GPH

Thermal & ventilation

Heat to coolant: 846,240 BTU/hr
Heat radiated: 643,440 BTU/hr
Exhaust flow: 4,153 CFM
Exhaust temp: 954 °F
Combustion air: 1,603 CFM

Documents & downloads

Spec sheets & manuals

Spec sheet (datasheet)

Ready to order this model?

Configure your Blue Star VD550-01

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Configure & Quote →Just request a quote Download datasheet

Estimate runtime for the Blue Star VD550-01

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Generator size

Fuel

Fuel tank capacity

gal

Load

Override full-load GPH (optional)

GPH

Estimated runtime

6.9 hours(0.3 days)

Fuel consumption ≈ 28.85 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Service intervals

Manufacturer-recommended intervals for the Blue Star VD550-01 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.

Oil & filter: Every 500 hours or 12 months
Coolant change: Every 6000 hours
Air filter: Every 1000 hours
Fuel filter: Every 500 hours
Major overhaul: ≈ 20,000 hours
Load bank test: Every 12 months

Common failure modes

What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.

Component	Symptom	Typical hours	Severity
Turbocharger(s)	Major power loss, heavy exhaust smoke	12,000+	severe
Fuel quality / degradation	Injector fouling, hard starting	4,380+	moderate
Battery bank (24V)	Failed start, slow cranking	8,760+	minor

Frequently Asked Questions

What engine is in the VD550-01?: The Volvo Penta TAD1642GE-B — a 16.1-liter inline-six turbocharged-aftercooled diesel rated 821 HP (612 kWm) at 1800 RPM. It is the highest-output variant of the TAD1640/1641/1642GE-B engine family, sharing the same block (5.67 in bore, 6.50 in stroke, 16.8:1 compression) as the TAD1641GE-B used in the VD500-01. EPA Tier 2 certified with Volvo Penta EMS 2.4 electronic management.
How does the VD550-01 compare to the VD500-01?: Both use the same 16.1L Volvo Penta block and share the same physical dimensions (140 x 72 x 98 in). The TAD1642GE-B (VD550-01) produces 821 HP versus 768 HP for the TAD1641GE-B (VD500-01). The VD550-01 is 350 lbs heavier (10,225 vs 9,875 lbs) and has a lower altitude deration: 4,920 ft (1,500 m) versus 6,562 ft (2,000 m) for the VD500-01. Both are rated at 94 dBA at full load.
What controller does the VD550-01 use?: The DSE DCP7310 — the same controller used across Blue Star's current diesel lineup. It features CAN bus J1939 communications, RS-485 interface, IP 65 front panel rating, and remote communications via DSE2548 annunciator. cULus Listed and NFPA 110 Level 1 compatible.
What is the altitude deration for the VD550-01?: Rated power is available up to 4,920 ft (1,500 m) at ambient temperatures to 122F (50C). This is lower than the VD500-01's 6,562 ft ceiling because the TAD1642GE-B is tuned closer to the 16.1L block's peak output. For sites above 4,920 ft, the VD500-01 with its 6,562 ft ceiling is the safer specification if 500 kW is sufficient.

Compatible equipment

Transfer switches

More in the Volvo Penta Diesel Standby

100–700 kW Volvo Penta diesel standby across Tier 4 Final, Tier 3, and Tier 2 — 22 models, one and three-phase.

View all 22models in this series →

Similar models

Blue Star Power Systems

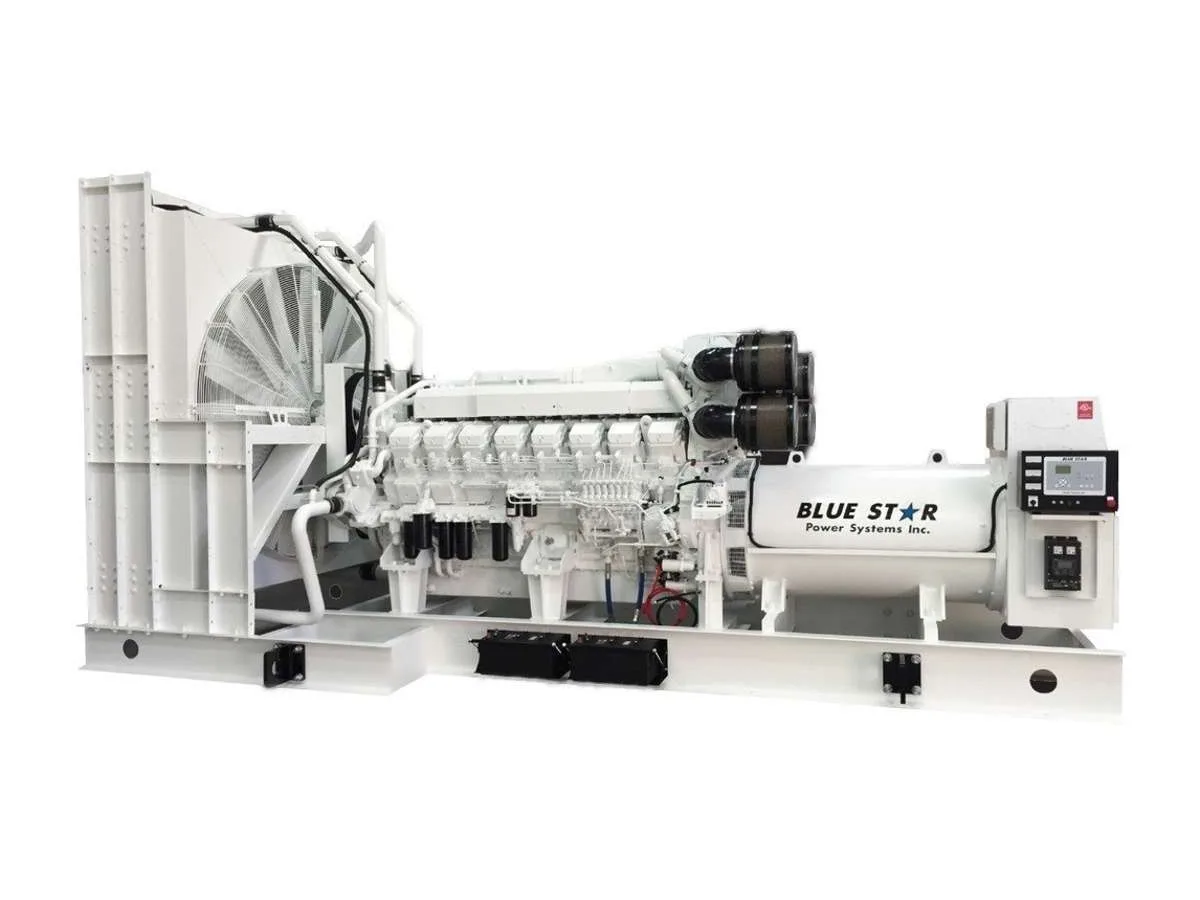

Blue Star VD550-04FT4

Open Basler controller + Volvo Penta engine + Stamford alternator — Tier 4 Final compliant, no proprietary lock-in. Serviceable by any qualified tech.

550 kW standby · Diesel · Liquid-cooled

550 kW Tier 4 Final diesel standby for industrial, data center, and campus facilities requiring current emissions and component independence.

550 kW standby / 500 kW prime Tier 4 Final diesel generator from Blue Star Power Systems. Volvo Penta TWD1682GE 16.12L inline-six with SCR/DPF/DOC, DSE DCP7310 controller, three-phase 208-600V.

Tier 4 Final3-phaselarge-commercialhospital-non-critical

Blue Star Power Systems

Blue Star VD550-04FT4MP

Open Basler controller + Volvo Penta engine + Leroy-Somer alternator — trailer-mounted, no proprietary lock-in. Serviceable by any qualified tech.

550 kW standby · Diesel · Liquid-cooled

550 kW Tier 4 Final mobile diesel for industrial temporary power, planned outage support, and large-scale construction with clean emissions.

550 kW standby / 500 kW prime Tier 4 Final / EU Stage 5 mobile trailer diesel generator built by Blue Star Power Systems. Volvo Penta TWD1682GE six-cylinder engine, 572RSL6429 alternator, DSE DCP7310 controller, 550-gallon integrated fuel tank.

Tier 4 Final3-phaseconstructiontemporary-power

Blue Star Power Systems

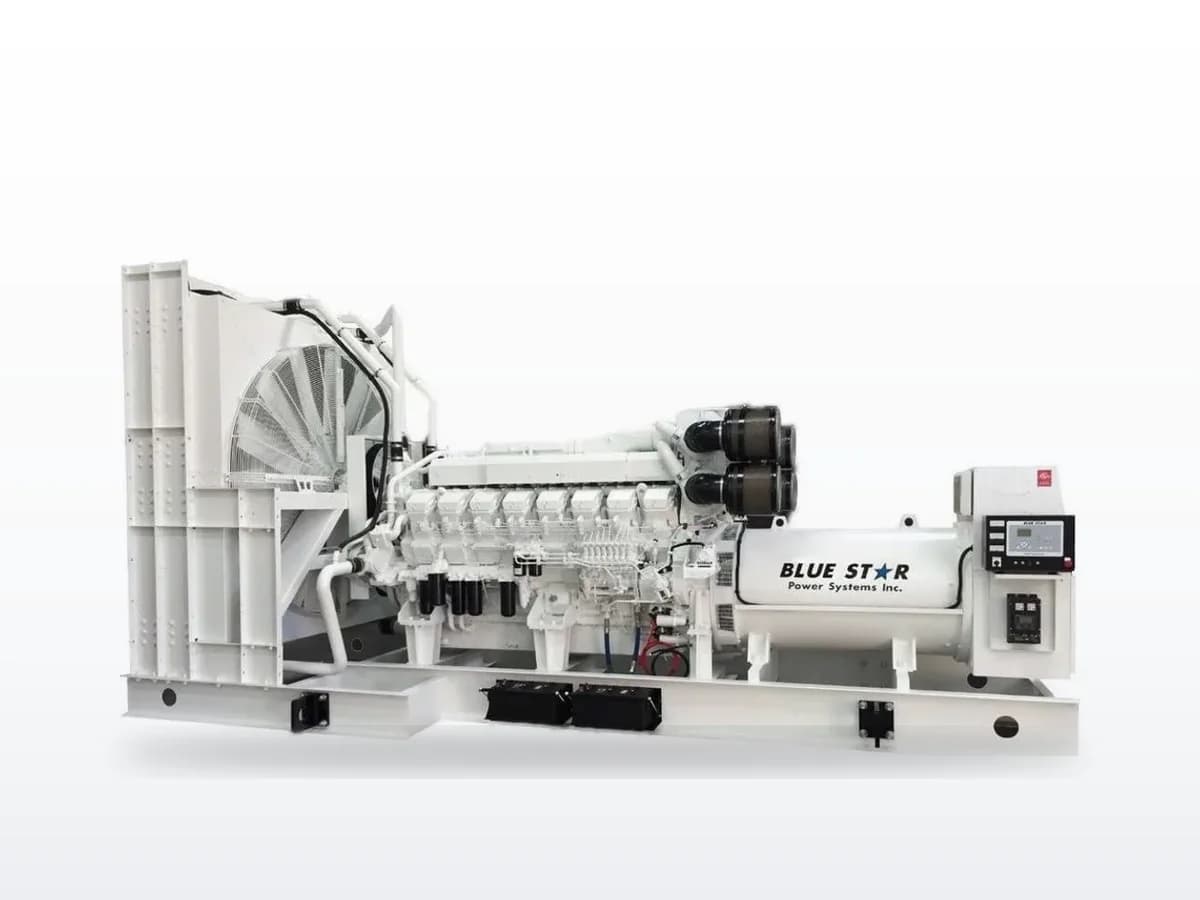

Blue Star VD500-01
