Blue Star Power Systems · Volvo Penta Diesel Standby

Blue Star VD600-04FT4

600 kW standby / 570 kW prime · Diesel · Liquid-cooled

600 kW standby / 570 kW prime Tier 4 Final diesel generator from Blue Star Power Systems. Volvo Penta TWD1683GE 16.12L inline-six with SCR/DPF/DOC, DSE DCP7310 controller, three-phase 208-600V.

Blue Star Power Systems Blue Star VD600-04FT4 generator — specifications and details
Standby power
600 kW / 570 kW prime
Voltage options
120/208V, 277/480V, 347/600V
Frequency / Phase
60 Hz · 3-phase
Engine
Volvo Penta TWD1683GE · 16.12L
EPA / Emissions
Tier 4 Final
Alternator
Stamford HCI534F
CommercialHealthcareGovernmentManufacturing
Configure & QuoteDownload spec sheet

Overview#

The Blue Star VD600-04FT4 is a 600-kilowatt standby / 570-kilowatt prime EPA Tier 4 Final / EU Stage 5 diesel generator — the highest-output model in the Blue Star Tier 4 Final lineup. It is built around the Volvo Penta TWD1683GE, a 16.12-liter inline-six with water-cooled charge-air cooling rated 932 HP at 1800 RPM. This is a current-production active model.

The VD600-04FT4 shares its footprint and basic architecture with the VD550-04FT4, with key distinctions: structural steel base frame (vs formed steel), voltage-dependent alternator selection, and a 5,000W 240V jacket water heater (the largest in the T4F lineup).

The Volvo Penta TWD1683GE platform#

The TWD1683GE is the top of the Blue Star Tier 4 Final engine lineup:

  • 16.12L inline-six with water-cooled charge-air cooler — 932 HP (695 kWm) at 1800 RPM
  • SCR/DPF/DOC triple aftertreatment with 52.8-gallon DEF tank
  • 6.00% DEF consumption — lower rate than the VD550 (6.60%) despite higher output, reflecting combustion optimization at this displacement
  • 600 kWe standby / 570 kWe prime — 30 kW spread between ratings
  • Voltage-dependent alternator: Stamford HCI534F (480V/600V) or Stamford S6L1D-C (208V/240V)
  • Structural steel base frame — upgraded from the formed steel base on VD100-550 models
  • 5,000W 240V jacket water heater — the largest JWH in the lineup, reflecting the increased coolant mass of the 16.12L engine
  • Maximum exhaust back-pressure post-catalyst: 40.0 in H2O — critical installation specification
  • EPA Tier 4 Final + EU Stage 5 dual certification
  • 4,921 ft altitude ceiling

Variant selection guide#

  • VD550-04FT4 (550 kW standby / 500 kW prime, Volvo TWD1682GE 16.12L I-6, Tier 4 Final) — same platform, formed steel base, 325 lbs lighter. Choose if loads fall within 500 kW prime.
  • For loads above 600 kW standby, multiple-unit paralleling is required — consult with Blue Star for paralleling configurations.

When to spec the VD600-04FT4#

  • 450-600 kW emergency standby loads, or 450-570 kW prime power loads on diesel
  • Applications requiring structural steel base frame for seismic or mounting requirements
  • Sites where 277/480V or 347/600V three-phase is the primary distribution voltage
  • Jurisdictions requiring Tier 4 Final or EU Stage 5 emissions compliance
  • Sites at any elevation up to 4,921 ft with adequate space for the 160 x 84 in footprint and 13,425 lb floor loading

Our service experience#

The TWD1683GE shares its service platform with the TWD1682GE (VD550): same engine family, similar fluid capacities and filter cross-references, with the primary differences being output calibration and the structural steel base requiring different lifting and mounting procedures. The 5,000W jacket water heater requires 240V facility power for cold-weather standby readiness — verify the electrical supply plan during site design. The voltage-dependent alternator selection (HCI534F vs S6L1D-C) must be confirmed at order time; alternator changes post-delivery are impractical. The 40.0 in H2O maximum exhaust back-pressure post-catalyst is the tightest restriction in the T4F lineup — verify the exhaust system design early in the project.#

Engineering specifications

Physical

Length
160 in
Width
84 in
Height
118 in
Dry weight
13,425 lb

Acoustic

Sound @ 7m, full load
94 dBA
Enclosure
Open

Fuel system & runtime

Fuel use @ full load
39.6 GPH
Fuel use @ 75% load
29.9 GPH
Fuel use @ 50% load
21.6 GPH
DEF tank
52.8 gal

Thermal & ventilation

Heat to coolant
743,820 BTU/hr
Heat radiated
716,880 BTU/hr
Exhaust flow
3,991 CFM
Exhaust temp
862 °F
Combustion air
1,801 CFM

Documents & downloads

Spec sheets & manuals

Ready to order this model?

Configure your Blue Star VD600-04FT4

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Configure & Quote →Just request a quoteDownload datasheet

Estimate runtime for the Blue Star VD600-04FT4

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

6.5 hours(0.3 days)

Fuel consumption ≈ 30.55 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Service intervals

Manufacturer-recommended intervals for the Blue Star VD600-04FT4 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.

Oil & filter
Every 500 hours or 12 months
Coolant change
Every 6000 hours
Air filter
Every 1000 hours
Fuel filter
Every 500 hours
Major overhaul
≈ 20,000 hours
Load bank test
Every 12 months

Common failure modes

What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.

ComponentSymptomTypical hoursSeverity
DEF system (SCR catalyst)Derate warning, NOx fault, DEF quality alert4,380+moderate
Turbocharger(s)Major power loss, heavy exhaust smoke12,000+severe
Fuel quality / degradationInjector fouling, hard starting4,380+moderate
Battery bank (24V)Failed start, slow cranking8,760+minor

Frequently Asked Questions

What engine is in the VD600-04FT4?
The Volvo Penta TWD1683GE — a 16.12-liter inline-six turbocharged diesel with water-cooled charge-air cooler (H2O-to-Air CAC), rated 932 HP (695 kWm) at 1800 RPM. It is the higher-output variant of the TWD1682GE used in the VD550-04FT4, sharing the same 16.12L displacement. EPA Tier 4 Final and EU Stage 5 certified with SCR/DPF/DOC triple aftertreatment.
What alternator does the VD600-04FT4 use?
The alternator selection is voltage-dependent. The Stamford HCI534F is used for 480V and 600V configurations. The Stamford S6L1D-C is used for 120/208V three-phase configurations. Both provide ±0.50% voltage regulation. Confirm the required alternator with Blue Star at order time based on the site voltage requirement.
Does the VD600-04FT4 require DEF?
Yes. DEF consumption is approximately 6.00% of fuel consumption. The 52.8-gallon integrated DEF tank provides extended runtime — at full standby load (39.6 gph fuel), DEF consumption is approximately 2.38 gph, giving approximately 22 hours of full-load operation before DEF refill.
How does the VD600-04FT4 differ from the VD550-04FT4?
Both use the same 16.12L Volvo Penta TWD platform and share the same 160 x 84 x 118 in footprint. The TWD1683GE (VD600) is the higher-output variant producing 600 kWe standby / 570 kWe prime versus 550/500 for the VD550's TWD1682GE. The VD600 is 325 lbs heavier (13,425 vs 13,100 lbs), uses a structural steel base frame (vs formed steel on the VD550), and requires a voltage-dependent alternator selection between HCI534F and S6L1D-C.
What is the exhaust restriction specification for the VD600-04FT4?
The maximum allowable exhaust back-pressure post-catalyst is 40.0 in H2O. This is a critical installation parameter — exceeding this restriction affects engine performance and aftertreatment function. Verify exhaust system design against this limit before finalizing the installation.

Compatible equipment

Engine

Transfer switches

More in the Volvo Penta Diesel Standby

100–700 kW Volvo Penta diesel standby across Tier 4 Final, Tier 3, and Tier 2 — 22 models, one and three-phase.

View all 22models in this series →

Similar models

Blue Star Power Systems Blue Star VD600-04FT4MP 600 kW liquid-cooled standby generator

Blue Star Power Systems

Blue Star VD600-04FT4MP

Open Basler controller + Volvo Penta engine + Leroy-Somer alternator — trailer-mounted, no proprietary lock-in. Serviceable by any qualified tech.

600 kW standby · Diesel · Liquid-cooled

600 kW standby / 570 kW prime Tier 4 Final / EU Stage 5 mobile trailer diesel generator built by Blue Star Power Systems. Volvo Penta TWD1683GE six-cylinder engine, 572RSL6431 alternator, DSE DCP7310 controller, 550-gallon integrated fuel tank.

Tier 4 Final3-phaseconstructiontemporary-power

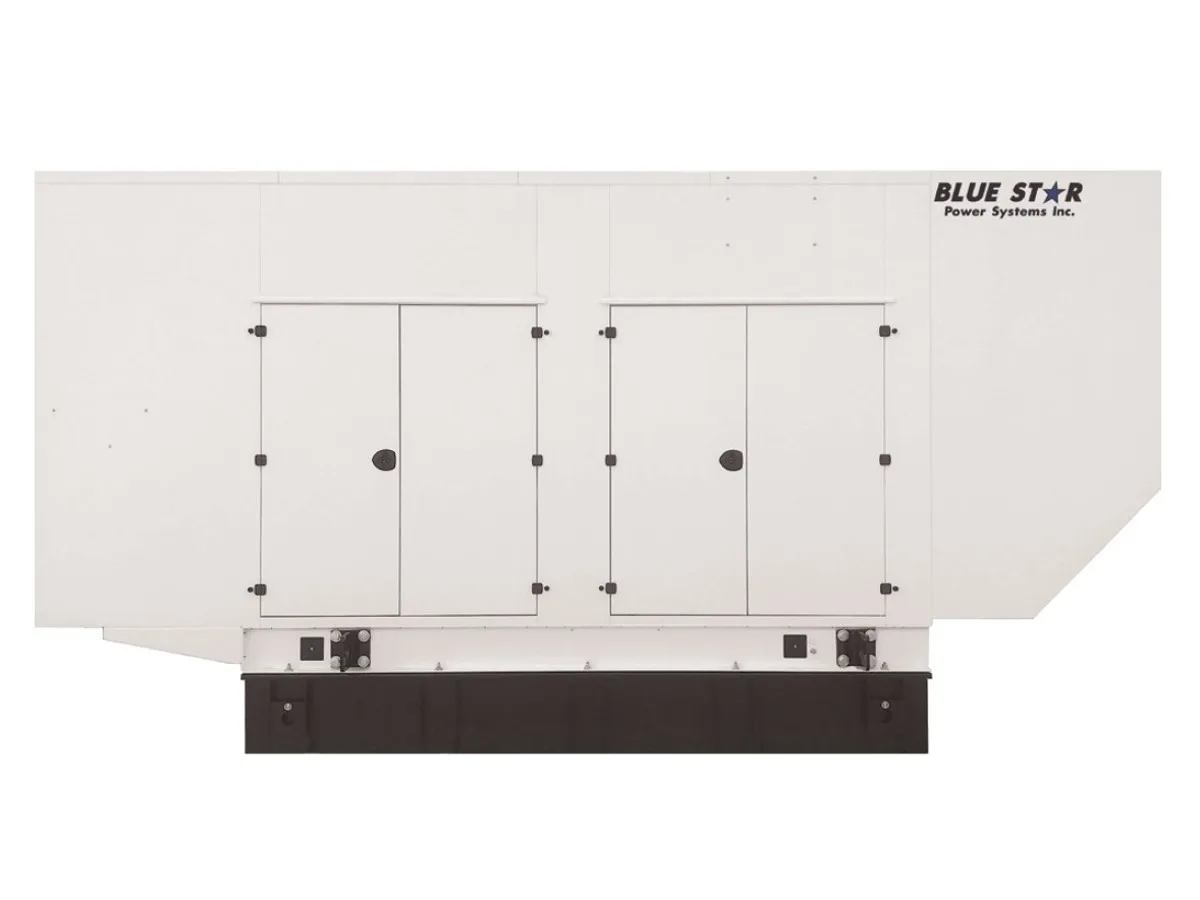

Blue Star Power Systems Blue Star VD600-01 600 kW liquid-cooled standby generator
