Blue Star Power Systems · PSI Industrial Gaseous (500-1250 kW)

Blue Star NG800-01P

Standby: see spec sheet / 660 kW prime · Natural Gas / LPG · Liquid-cooled

660 kW prime-rated natural gas / LP generator from Blue Star Power Systems. PSI 40L V12 turbocharged-aftercooled, DCP7310 controller, three-phase 208-4160V.

Blue Star Power Systems Blue Star NG800-01P generator — specifications and details
Standby power
See spec sheet / 660 kW prime
Voltage options
120/208V, 240V, 277/480V, 347/600V, 4160V
Frequency / Phase
60 Hz · 3-phase
Engine
PSI 40L · 39.2L
Alternator
S6L1D-C

Overview#

The Blue Star NG800-01P is rated 660 kWe prime on natural gas (400 kWe on LP) and uses the PSI 40L V12. Three-phase only — no single-phase option. The NG800-01P carries a 1-year / 1,500-hour prime warranty. UL 2200 & cUL Listed through 600VAC.

Alternator configurations#

VoltagePhaseAlternatorConnection
120/208V3S6L1D-D12-lead WYE
240V3S6L1D-D12-lead DELTA
277/480V3S6L1D-C12-lead WYE
347/600V3S6L1D-C4-lead WYE
4160V3MVWI734E6-lead WYE

All carry 105°C prime temperature rise and ±0.5% voltage regulation.

UL listing: UL 2200 & cUL Listed and CSA Certified through 600VAC.

Fuel pressure requirement#

The NG800-01P requires 30 in. water column inlet fuel pressure. Verify site gas infrastructure capacity before specifying.

When to spec the NG800-01P#

  • Sites with 4160V distribution where prime-rated gaseous generation is needed

Our service experience#

The system coolant capacity is 45.0 gal and the oil system capacity is 38.6 gal.

Engineering specifications

Physical

Length
210 in
Width
96 in
Height
103 in
Dry weight
16,975 lb

Acoustic

Sound @ 7m, full load
90 dBA
Enclosure
Open

Fuel system & runtime

NG required pressure
30 in WC

Thermal & ventilation

Heat to coolant
2,437,020 BTU/hr
Heat radiated
798,960 BTU/hr
Exhaust flow
4,547 CFM
Exhaust temp
1206 °F
Combustion air
1,515 CFM
Ventilation air
52,000 CFM

Documents & downloads

Spec sheets & manuals

Ready to order this model?

Configure your Blue Star NG800-01P

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Estimate runtime for the Blue Star NG800-01P

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Fuel demand at 75% load

6,930,000 BTU/hr≈ 6930.0 cf/min @ 1,000 BTU/cf

On utility natural gas the runtime is generally unlimited provided the supply line and meter can deliver this BTU/hr at the engine's required inlet pressure (typically 5–14" WC residential, up to 5 psi commercial). Confirm against the OEM's published fuel-pressure spec.

Frequently Asked Questions

What is the prime rating of the NG800-01P?
The Blue Star NG800-01P is rated 660 kWe prime on natural gas and 400 kWe prime on LP at 60 Hz / 1800 RPM, backed by a 1-year / 1,500-hour prime warranty.
What are the deration thresholds for the NG800-01P?
The NG800-01P prime derates 1.5% per 5°F above 87°F inlet air and 6% per 1,000 ft above 5,000 ft altitude.
Is the 4160V configuration on the NG800-01P UL-listed?
The NG800-01P is UL 2200 & cUL Listed and CSA Certified through 600VAC. The 4160V configuration uses an MVWI734E alternator.
Is single-phase output available on the NG800-01P?
No. The NG800-01P is three-phase only in 208V, 240V, 480V, 600V, and 4160V configurations.

Compatible equipment

More in the PSI Industrial Gaseous (500-1250 kW)

500–1250 kW natural gas and LP standby power on PSI V12 and V16 spark-ignition platforms.

Similar models

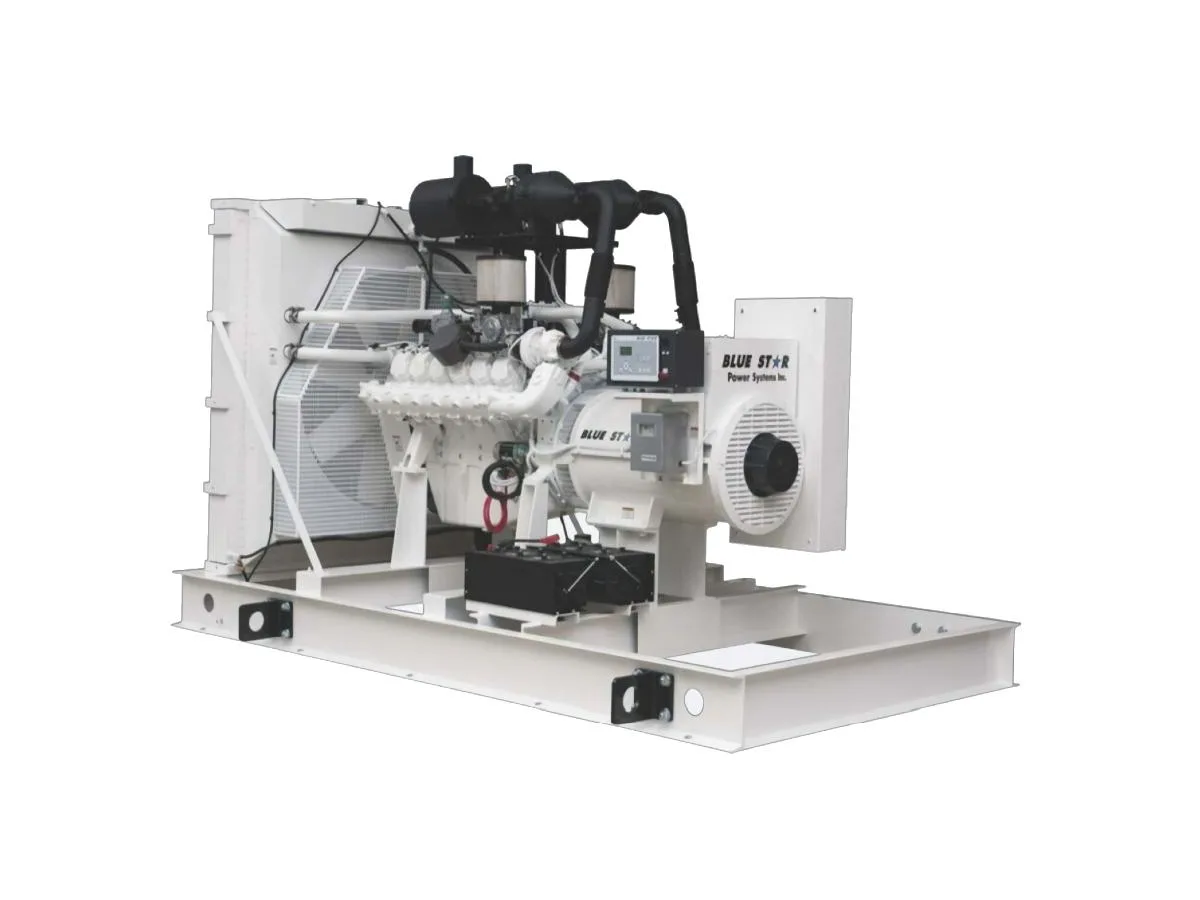

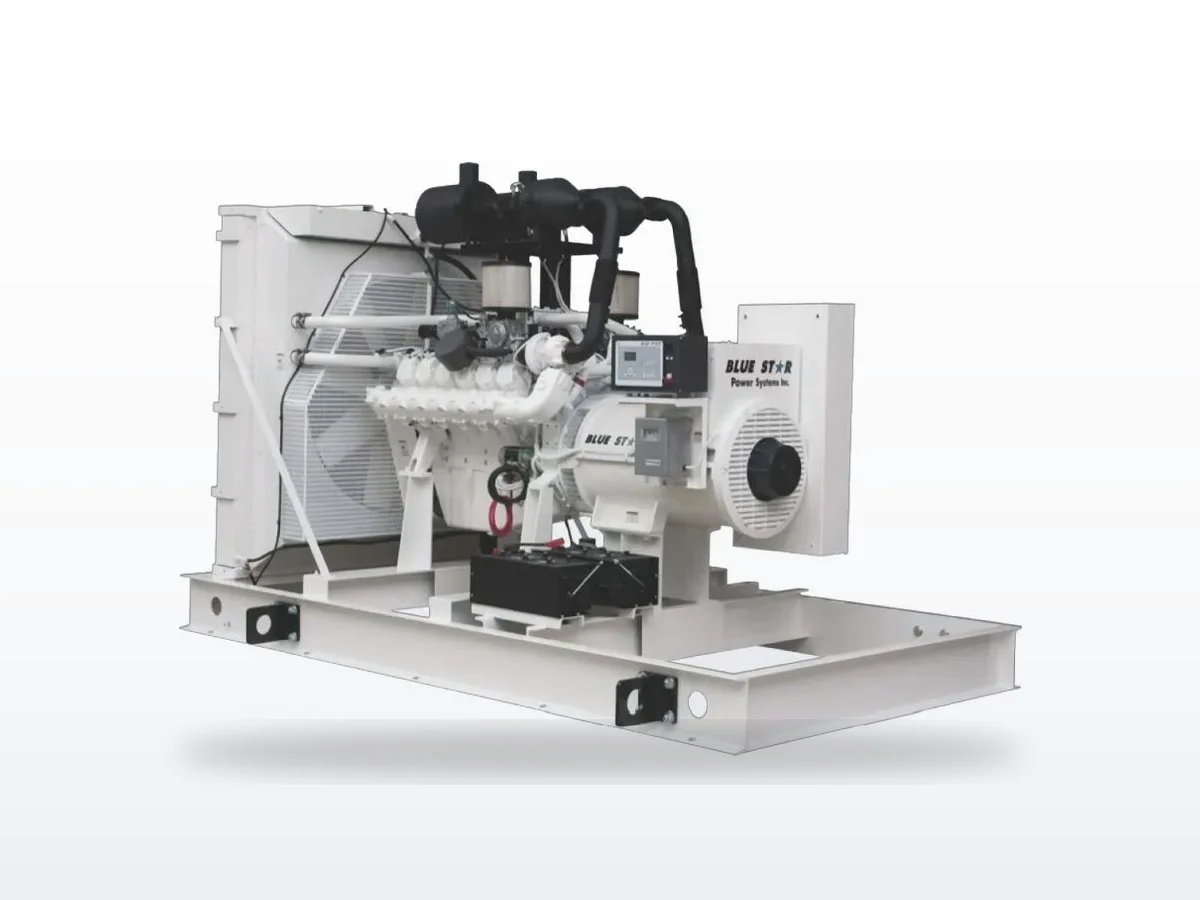

Blue Star Power Systems Blue Star NG800-01 800 kW liquid-cooled standby generator

Blue Star Power Systems

Blue Star NG800-01

800 kW standby · Natural Gas / LPG · Liquid-cooled

800 kW natural gas / LP standby generator from Blue Star Power Systems. PSI 40L V12 turbocharged-aftercooled, DCP7310 controller, three-phase 208-4160V.

3-phaselarge-commercialdata-center

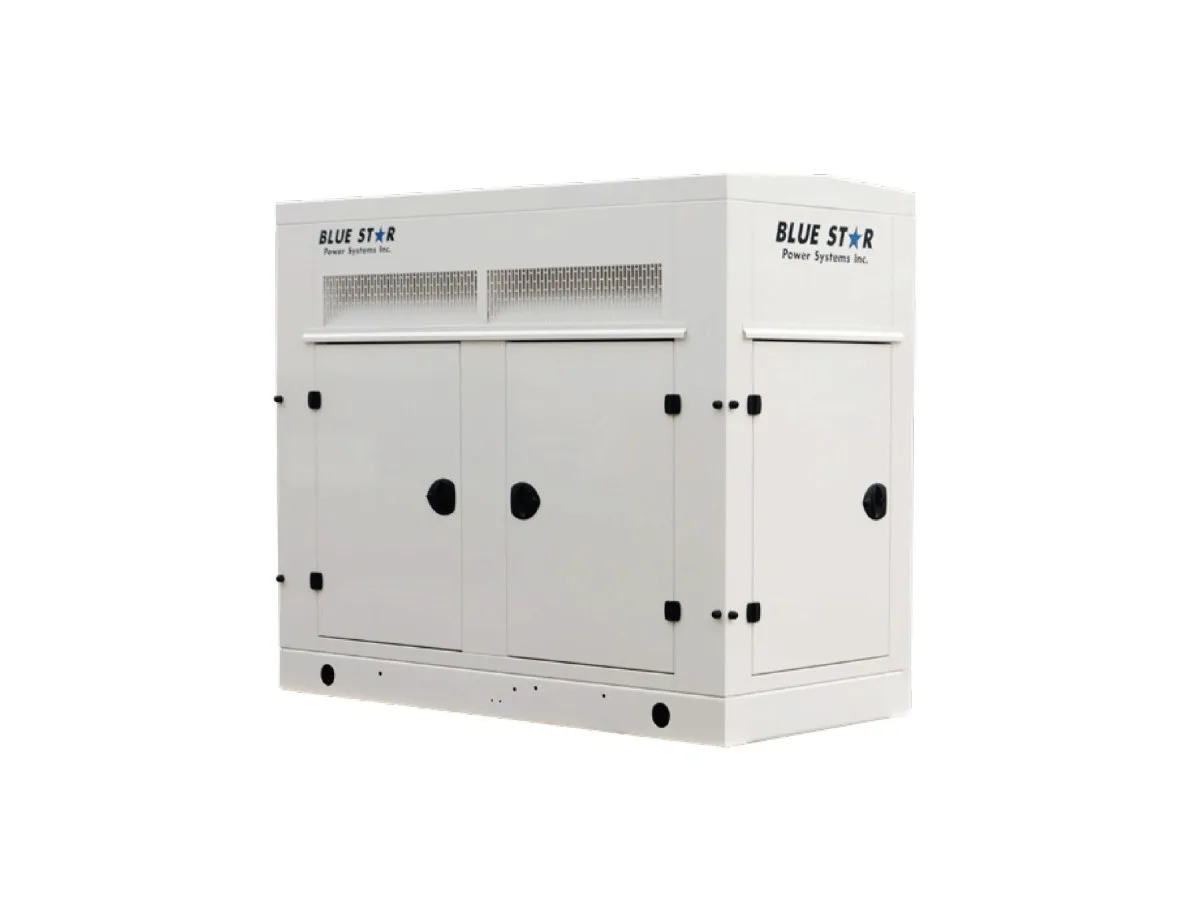

Blue Star Power Systems Blue Star NG650-01P liquid-cooled standby generator
