Blue Star Power Systems · PSI Large Gaseous (265-500 kW)

Blue Star NG350-02

350 kW standby · Natural Gas · Liquid-cooled

350 kW natural gas standby generator from Blue Star Power Systems. PSI 14.6LHO high-output V8, DCP7310 controller, structural steel base, three-phase 208-600V. Natural gas only — no LP rating.

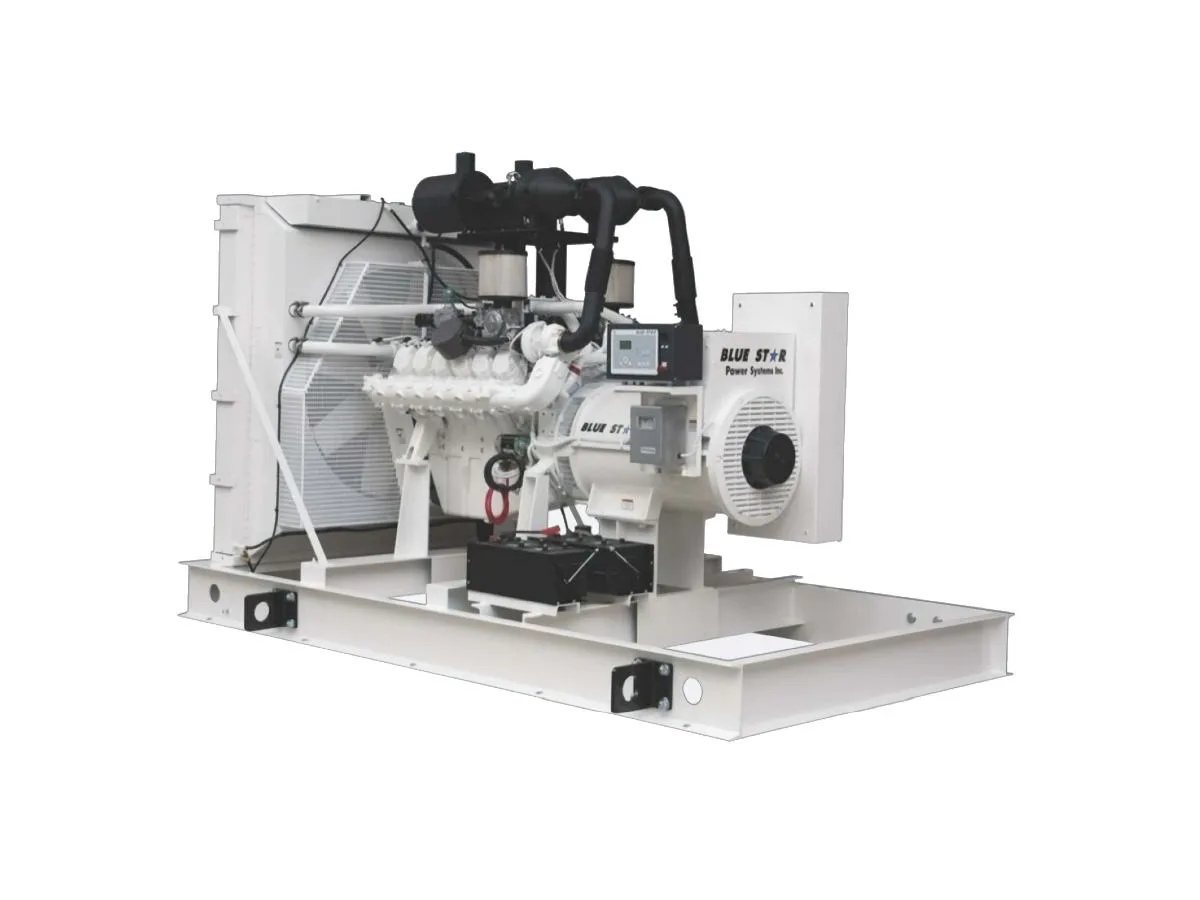

Blue Star Power Systems Blue Star NG350-02 generator — specifications and details
Standby power
350 kW
Voltage options
120/208V, 240V, 277/480V, 347/600V
Frequency / Phase
60 Hz · 3-phase
Engine
PSI 14.6LHO · 14.6L
Alternator
S4L1D-E41

Overview#

The Blue Star NG350-02 is a 350-kilowatt natural gas standby generator built around the PSI 14.6LHO. The NG350-02 is a natural-gas-only model; no LP rating is published.

The PSI 14.6LHO high-output engine#

14.6LHO engine data:

  • 891 cu in (14.6L) — 5.04-inch bore × 5.59-inch stroke, 10.5:1 compression
  • 536 bHp (400 kWm) at 1800 RPM standby
  • Natural gas only — LP rating is N/A
  • Structural steel base, pad-type vibration isolation, 4,000W jacket water heater standard

Deration factors: 1.5% per 10°F above 77°F inlet air temperature; 2.5% per 1,000 ft above 1,200 ft altitude.

Alternator configurations#

The NG350-02 is three-phase only:

VoltagePhaseAlternatorConnection
120/208V3S4L1D-F4112-lead WYE
240V3S4L1D-F4112-lead DELTA
277/480V3S4L1D-E4112-lead WYE
347/600V3S4L1S-E44-lead WYE

When to spec the NG350-02#

  • 350 kW standby loads on utility natural gas only (no LP option)
  • Sites where NG supply is confirmed and LP is not a fallback fuel

Our service experience#

Heat radiated to ambient is 7,000 BTU/min; ventilation airflow for a radiator-cooled OPU installation is 29,970 CFM.

Engineering specifications

Physical

Length
140 in
Width
78 in
Height
90 in
Dry weight
9,425 lb

Acoustic

Sound @ 7m, full load
86 dBA
Enclosure
Open

Fuel system & runtime

NG required pressure
11 in WC

Thermal & ventilation

Heat to coolant
1,132,620 BTU/hr
Heat radiated
420,000 BTU/hr
Exhaust flow
1,315 CFM
Exhaust temp
993 °F
Combustion air
635 CFM
Ventilation air
29,970 CFM

Documents & downloads

Spec sheets & manuals

Ready to order this model?

Configure your Blue Star NG350-02

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Estimate runtime for the Blue Star NG350-02

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Fuel demand at 75% load

3,675,000 BTU/hr≈ 3675.0 cf/min @ 1,000 BTU/cf

On utility natural gas the runtime is generally unlimited provided the supply line and meter can deliver this BTU/hr at the engine's required inlet pressure (typically 5–14" WC residential, up to 5 psi commercial). Confirm against the OEM's published fuel-pressure spec.

Frequently Asked Questions

What is the standby rating of the NG350-02?
The Blue Star NG350-02 is rated 350 kWe standby on natural gas at 60 Hz / 1800 RPM. The PSI 14.6LHO (high-output) V8 produces 536 bHp (400 kWm) at standby. There is no LP rating — the NG350-02 is a natural-gas-only model.
What alternators does the NG350-02 use?
For 208V and 240V three-phase, the S4L1D-F41 (WYE and DELTA respectively). For 480V three-phase, the S4L1D-E41. For 600V three-phase, the S4L1S-E4. All carry 125°C standby temperature rise and ±0.5% voltage regulation.
What are the dimensions of the NG350-02?
The OPU measures 140 x 78 x 90 in (L x W x H) and weighs 9,425 lbs. Level 1 and 2 enclosures are 140 x 78 x 96 in (10,850 and 10,925 lbs). Level 3 sound-attenuated enclosure is 200 x 78 x 96 in at 11,775 lbs.

Compatible equipment

More in the PSI Large Gaseous (265-500 kW)

265–500 kW natural gas and LP standby on PSI V8 and V12 platforms — structural steel base, prime and standby variants.

Similar models

Blue Star Power Systems Blue Star NG300-01 300 kW liquid-cooled standby generator

Blue Star Power Systems

Blue Star NG300-01

300 kW standby · Natural Gas / LPG · Liquid-cooled

300 kW natural gas / LP standby generator from Blue Star Power Systems. PSI 14.6L turbocharged V8, DCP7310 controller, structural steel base, three-phase 208-600V.

3-phaselarge-commercialhotel

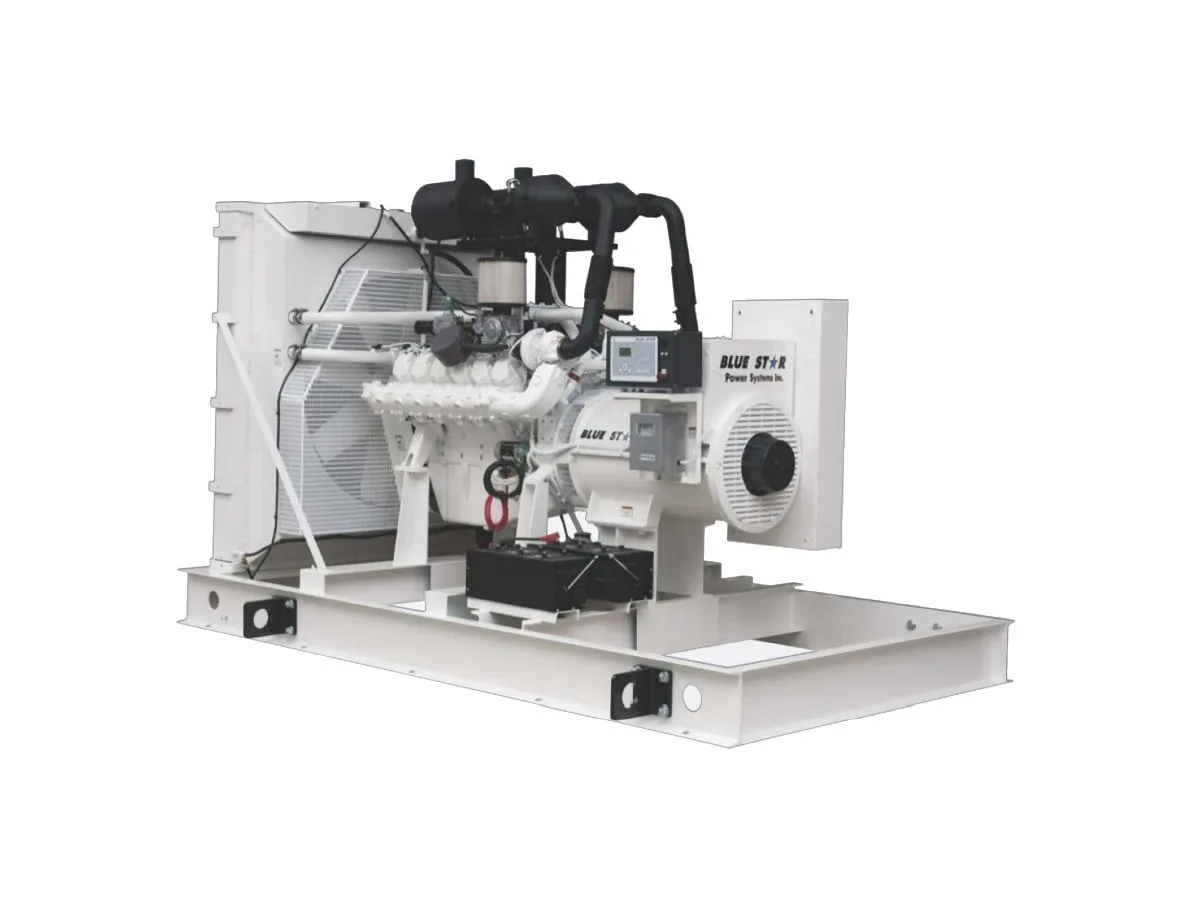

Blue Star Power Systems Blue Star NG300-01P 300 kW liquid-cooled standby generator

Blue Star Power Systems

Blue Star NG300-01P

300 kW standby · Natural Gas / LPG · Liquid-cooled

260 kW prime-rated natural gas / LP generator from Blue Star Power Systems. PSI 14.6L V8, DCP7310 controller, structural steel base, three-phase 208-600V.

3-phaselarge-commercialhotel

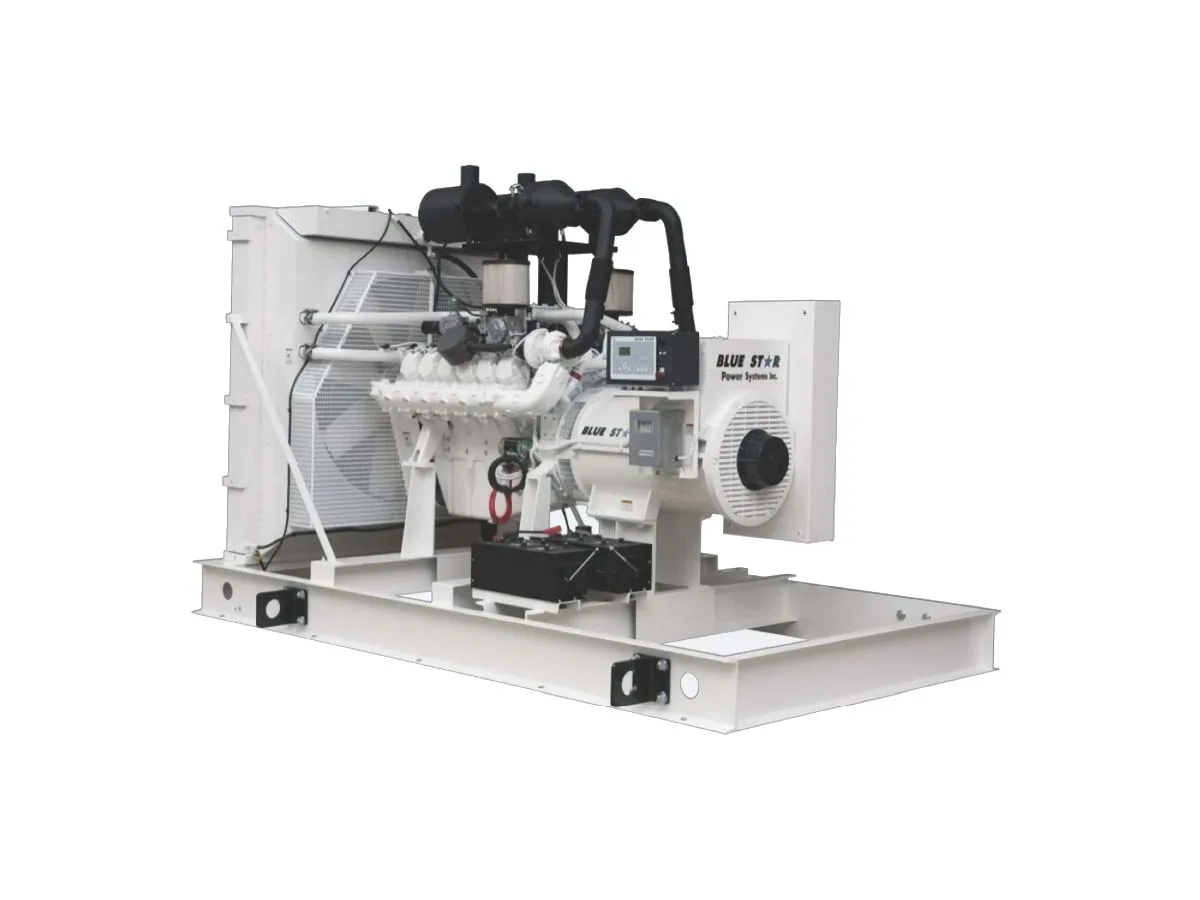

Blue Star Power Systems Blue Star NG400-01 400 kW liquid-cooled standby generator
