Blue Star Power Systems · PSI Large Gaseous (265-500 kW)

Blue Star NG400-01

400 kW standby · Natural Gas / LPG · Liquid-cooled

400 kW natural gas / LP standby generator from Blue Star Power Systems. PSI 21.9L turbocharged V12, DCP7310 controller, structural steel base, three-phase 208-600V.

Blue Star Power Systems Blue Star NG400-01 generator — specifications and details
Standby power
400 kW
Voltage options
120/208V, 240V, 277/480V, 347/600V
Frequency / Phase
60 Hz · 3-phase
Engine
PSI 21.9L · 21.9L
Alternator
S4L1D-F41

Overview#

The Blue Star NG400-01 is a 400-kilowatt natural gas / LP standby generator powered by the PSI 21.9L V12. It is rated 400 kWe standby on natural gas (300 kWe standby on LP).

The PSI 21.9L V12#

The PSI 21.9L V12 engine:

  • V12 configuration — 1,338 cu in (21.9L) displacement, 5.04-inch bore × 5.59-inch stroke, 10.5:1 compression ratio
  • 684 bHp (510 kWm) at 1800 RPM standby
  • Heat rejection — 29,345 BTU/min to coolant; 39,995 CFM ventilation airflow for OPU installation

Deration: 1.5% per 10°F above 97°F inlet air temperature; 2.5% per 1,000 ft above 3,200 ft altitude.

Alternator configurations#

The NG400-01 is three-phase only:

VoltagePhaseAlternatorConnection
120/208V3HCI534C12-lead WYE
240V3HCI534C12-lead DELTA
277/480V3S4L1D-F4112-lead WYE
347/600V3HCI534C4-lead WYE

All configurations carry 125°C standby temperature rise and ±0.5% voltage regulation.

When to spec the NG400-01#

  • Applications where LP at 300 kWe standby is the backup fuel strategy
  • Large commercial, hospitality, hospital, or data center facilities requiring 400 kW gaseous standby

Planning considerations#

  • Footprint: 156 × 86 in OPU
  • Ventilation: 39,995 CFM required
  • Exhaust: 2,529 CFM at 1,136°F stack temperature — confirm duct sizing
  • Fuel: 3-inch NPT inlet, 4,521 ft³/hr NG at 100% standby load

Our service experience#

The system coolant capacity is 51.0 gal and the oil system capacity is 10.6 gal.

Engineering specifications

Physical

Length
156 in
Width
86 in
Height
98 in
Dry weight
10,850 lb

Acoustic

Sound @ 7m, full load
87 dBA
Enclosure
Open

Fuel system & runtime

NG required pressure
11 in WC

Thermal & ventilation

Heat to coolant
1,760,700 BTU/hr
Heat radiated
495,060 BTU/hr
Exhaust flow
2,529 CFM
Exhaust temp
1136 °F
Combustion air
829 CFM
Ventilation air
39,995 CFM

Documents & downloads

Spec sheets & manuals

Ready to order this model?

Configure your Blue Star NG400-01

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Estimate runtime for the Blue Star NG400-01

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Fuel demand at 75% load

4,200,000 BTU/hr≈ 4200.0 cf/min @ 1,000 BTU/cf

On utility natural gas the runtime is generally unlimited provided the supply line and meter can deliver this BTU/hr at the engine's required inlet pressure (typically 5–14" WC residential, up to 5 psi commercial). Confirm against the OEM's published fuel-pressure spec.

Frequently Asked Questions

What is the standby rating of the NG400-01?
The Blue Star NG400-01 is rated 400 kWe standby on natural gas (300 kWe on LP) at 60 Hz / 1800 RPM. The PSI 21.9L V12 produces 684 bHp (510 kWm) at standby.
What engine powers the NG400-01?
The PSI 21.9L V12 — a 21.9-liter twelve-cylinder turbocharged-aftercooled engine (1,338 cu in, 5.04-inch bore x 5.59-inch stroke, 10.5:1 compression) rated 684 bHp (510 kWm) at 1800 RPM.
What are the deration factors for the NG400-01?
Derate 1.5% per 10°F above 97°F inlet air temperature, and 2.5% per 1,000 ft above 3,200 ft altitude.
What alternators does the NG400-01 use?
For 208V and 240V three-phase, the HCI534C (WYE and DELTA respectively). For 480V three-phase, the S4L1D-F41. For 600V three-phase, the HCI534C. All carry 125°C standby temperature rise and ±0.5% voltage regulation.
What are the dimensions of the NG400-01?
The OPU measures 156 x 86 x 98 in (L x W x H) and weighs 10,850 lbs. Level 1 and 2 enclosures are 156 x 86 x 110 in (12,500 and 12,625 lbs). Level 3 sound-attenuated enclosure is 228 x 86 x 110 in at 13,325 lbs.
What are the ventilation requirements for the NG400-01?
A radiator-cooled OPU installation requires 39,995 CFM of ventilation airflow. Heat rejection to coolant is 29,345 BTU/min and heat radiated to ambient is 8,251 BTU/min.

Compatible equipment

More in the PSI Large Gaseous (265-500 kW)

265–500 kW natural gas and LP standby on PSI V8 and V12 platforms — structural steel base, prime and standby variants.

Similar models

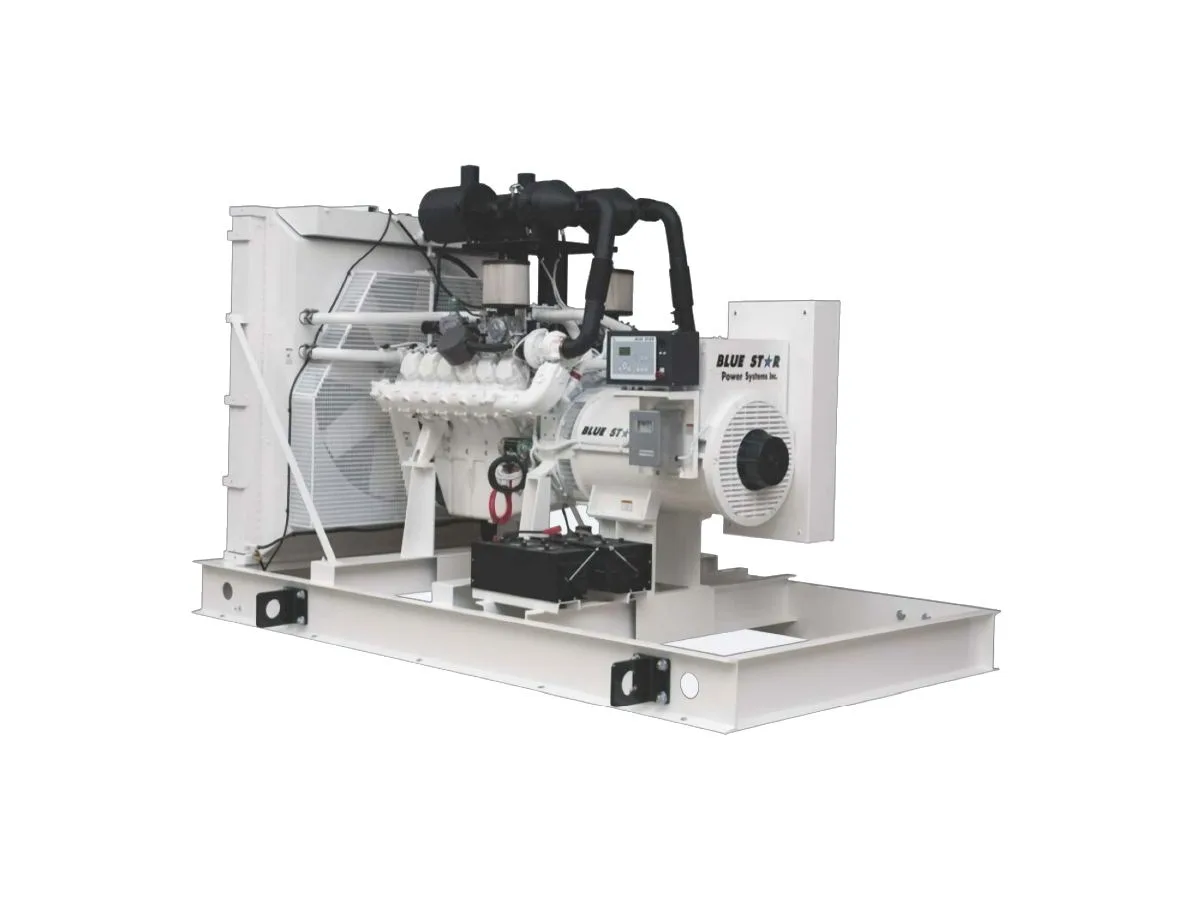

Blue Star Power Systems Blue Star NG400-01P liquid-cooled standby generator

Blue Star Power Systems

Blue Star NG400-01P

Standby: see spec sheet · Natural Gas / LPG · Liquid-cooled

375 kW prime-rated natural gas / LP generator from Blue Star Power Systems. PSI 21.9L V12, DCP7310 controller, structural steel base, three-phase 208-600V.

3-phaselarge-commercialhotel

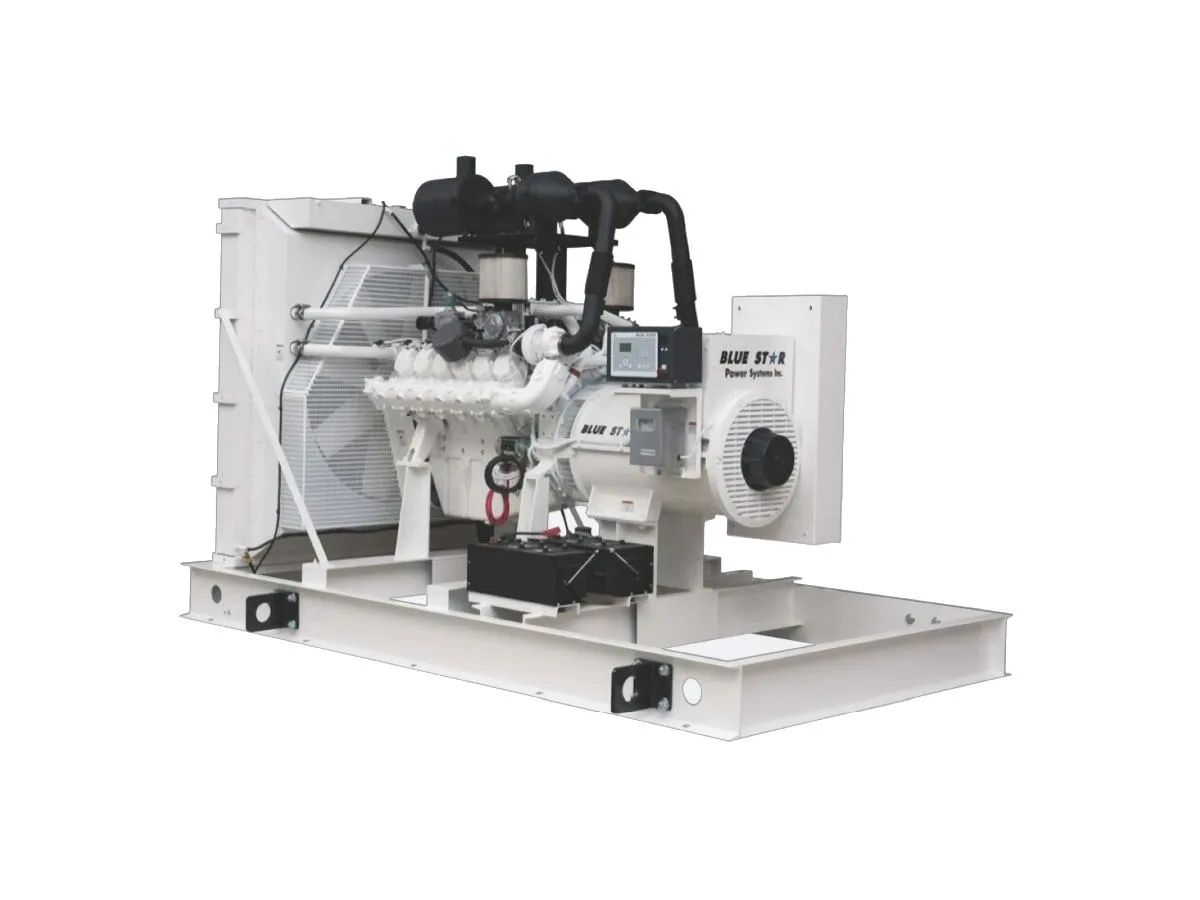

Blue Star Power Systems Blue Star NG425-01 425 kW liquid-cooled standby generator

Blue Star Power Systems

Blue Star NG425-01

425 kW standby · Natural Gas / LPG · Liquid-cooled

425 kW natural gas / LP standby generator from Blue Star Power Systems. PSI 21.9L V12 turbocharged-aftercooled, DCP7310 controller, three-phase 208-600V.

3-phaselarge-commercialdata-center

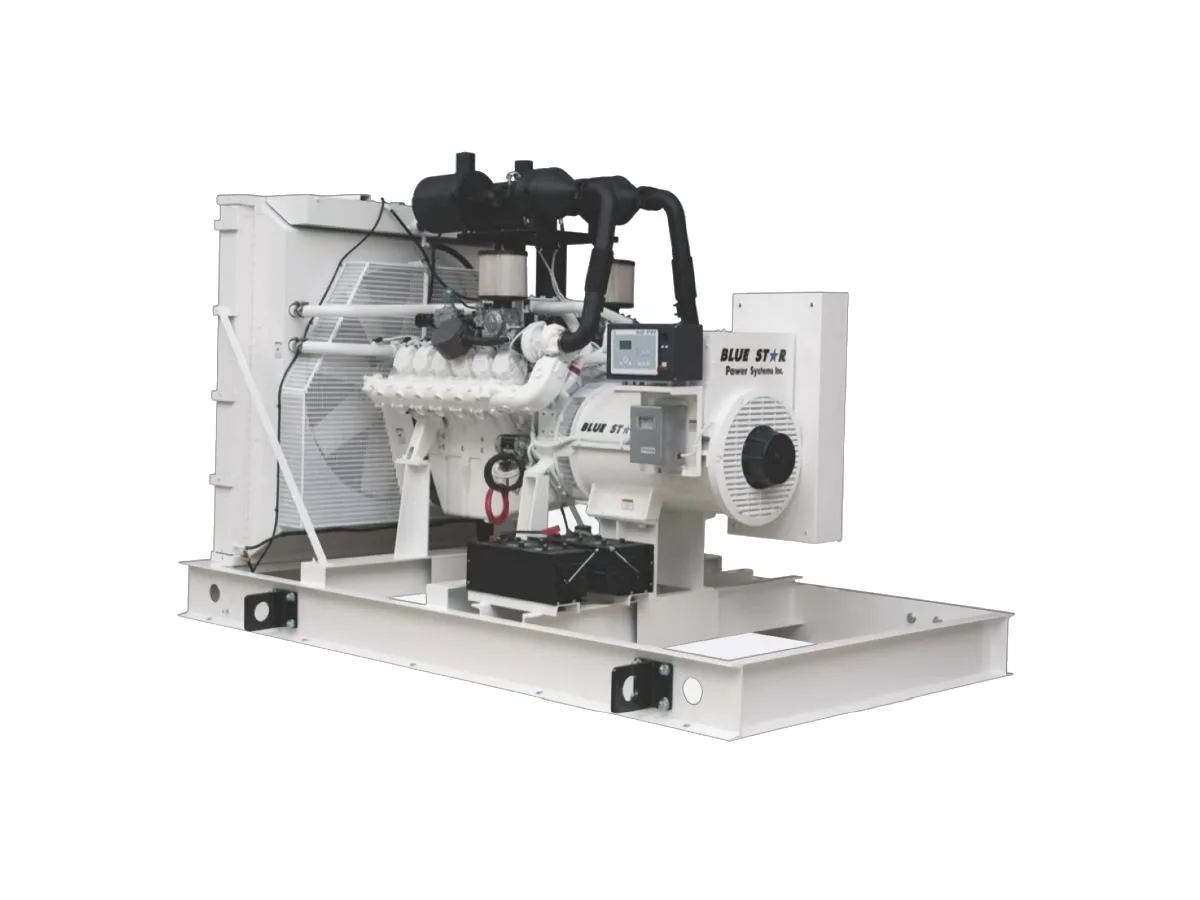

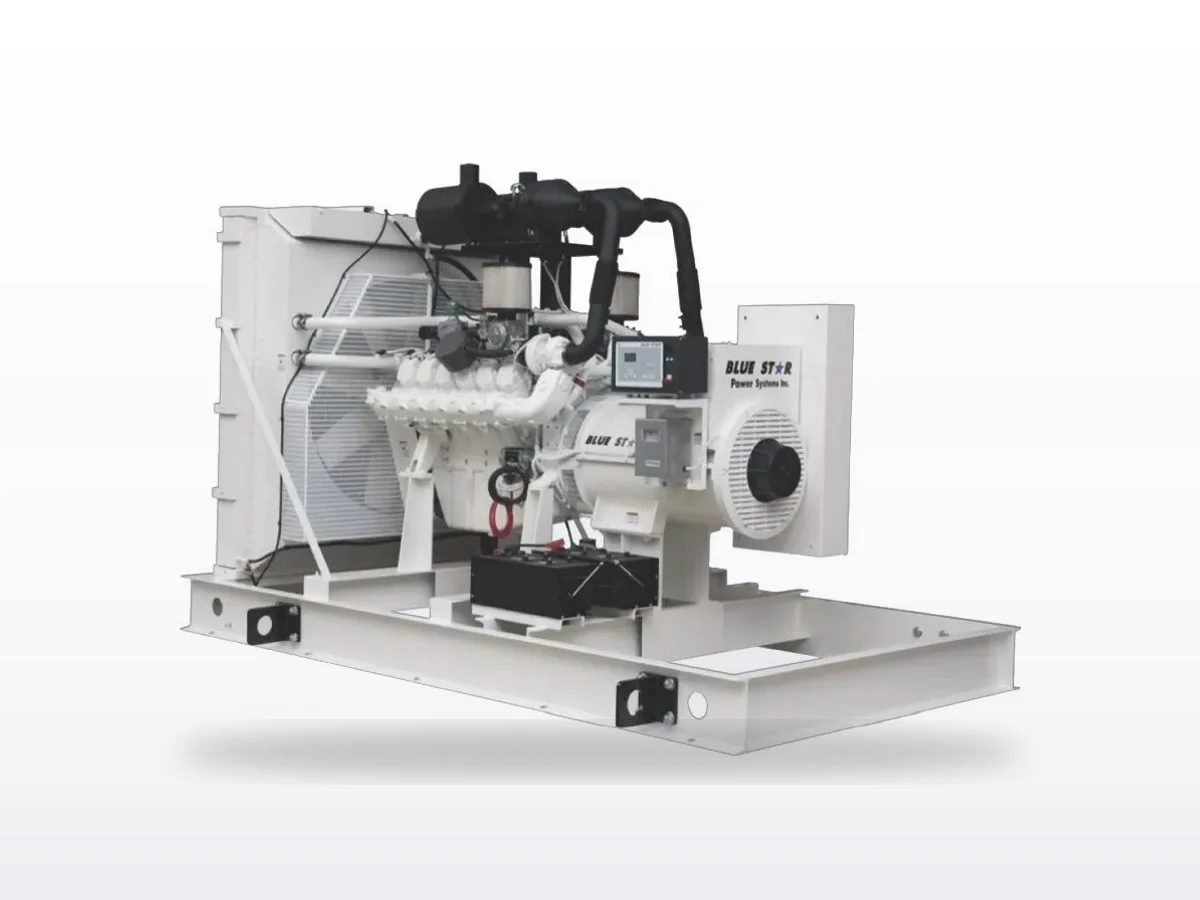

Blue Star Power Systems Blue Star NG350-02 350 kW liquid-cooled standby generator
