Blue Star Power Systems · PSI Large Gaseous (265-500 kW)

Blue Star NG300-01P

300 kW standby / 260 kW prime · Natural Gas / LPG · Liquid-cooled

260 kW prime-rated natural gas / LP generator from Blue Star Power Systems. PSI 14.6L V8, DCP7310 controller, structural steel base, three-phase 208-600V.

Blue Star Power Systems Blue Star NG300-01P generator — specifications and details
Standby power
300 kW / 260 kW prime
Voltage options
120/208V, 240V, 277/480V, 347/600V
Frequency / Phase
60 Hz · 3-phase
Engine
PSI 14.6L · 14.6L
Alternator
S4L1D-D41

Overview#

The Blue Star NG300-01P is a 260 kWe Prime natural gas generator with a Power Solutions International 14.6L engine. Three-phase only — no single-phase option.

When to spec the NG300-01P#

  • 200–260 kW continuous or prime duty on natural gas or LP (three-phase only)
  • Large commercial or campus facilities operating the generator in prime or peak-shaving service
  • Projects where continuous operation certification is required and 260 kW fits the load profile

Our service experience#

Gas supply infrastructure must support the 3-inch NPT fuel connection.

Engineering specifications

Physical

Length
140 in
Width
78 in
Height
90 in
Dry weight
9,200 lb

Acoustic

Sound @ 7m, full load
85 dBA
Enclosure
Open

Fuel system & runtime

NG required pressure
11 in WC

Thermal & ventilation

Heat to coolant
826,980 BTU/hr
Heat radiated
309,600 BTU/hr
Exhaust flow
1,315 CFM
Exhaust temp
993 °F
Combustion air
474 CFM
Ventilation air
29,970 CFM

Documents & downloads

Spec sheets & manuals

Ready to order this model?

Configure your Blue Star NG300-01P

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Estimate runtime for the Blue Star NG300-01P

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Fuel demand at 75% load

3,150,000 BTU/hr≈ 3150.0 cf/min @ 1,000 BTU/cf

On utility natural gas the runtime is generally unlimited provided the supply line and meter can deliver this BTU/hr at the engine's required inlet pressure (typically 5–14" WC residential, up to 5 psi commercial). Confirm against the OEM's published fuel-pressure spec.

Frequently Asked Questions

What is the prime rating of the NG300-01P?
The Blue Star NG300-01P is rated 260 kWe prime on natural gas (175 kWe on LP) at 60 Hz / 1800 RPM, backed by a 1-year / 1,500-hour prime warranty.
Is single-phase output available on the NG300-01P?
No. The NG300-01P is three-phase only, in 208V, 240V, 480V, and 600V configurations. Single-phase 240V is not offered at this power level.
What alternators does the NG300-01P use?
S4L1D-E41 for 208V and 240V three-phase; S4L1D-D41 for 480V; S4L1S-D4 for 600V. All carry 105°C prime temperature rise and ±0.5% voltage regulation.

Compatible equipment

More in the PSI Large Gaseous (265-500 kW)

265–500 kW natural gas and LP standby on PSI V8 and V12 platforms — structural steel base, prime and standby variants.

Similar models

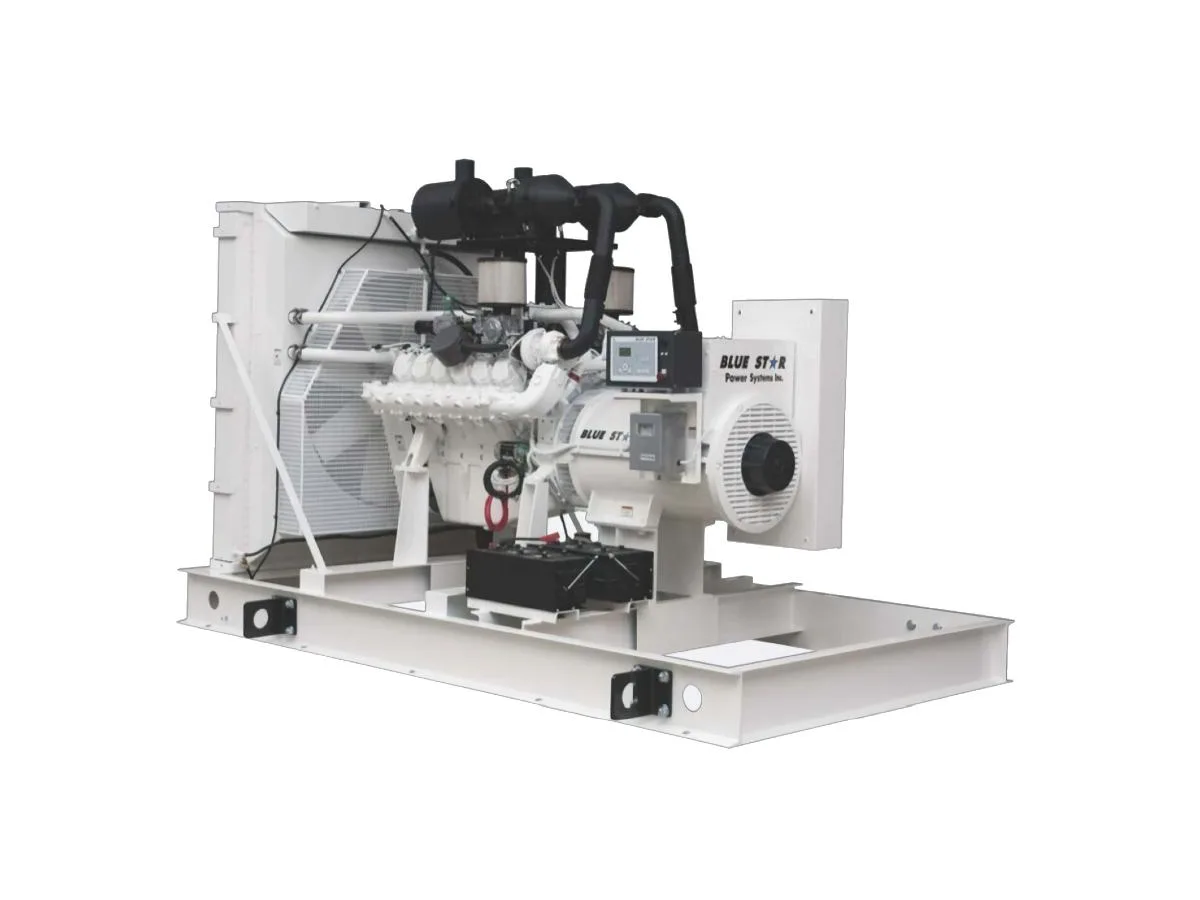

Blue Star Power Systems Blue Star NG300-01 300 kW liquid-cooled standby generator

Blue Star Power Systems

Blue Star NG300-01

300 kW standby · Natural Gas / LPG · Liquid-cooled

300 kW natural gas / LP standby generator from Blue Star Power Systems. PSI 14.6L turbocharged V8, DCP7310 controller, structural steel base, three-phase 208-600V.

3-phaselarge-commercialhotel
Blue Star Power Systems Blue Star NG265-01P 265 kW liquid-cooled standby generator

Blue Star Power Systems

Blue Star NG265-01P

265 kW standby · Natural Gas / LPG · Liquid-cooled

250 kW prime-rated natural gas / LP generator from Blue Star Power Systems. PSI 14.6L V8, DCP7310 controller, structural steel base, continuous prime duty.

3-phaselarge-commercialhotel

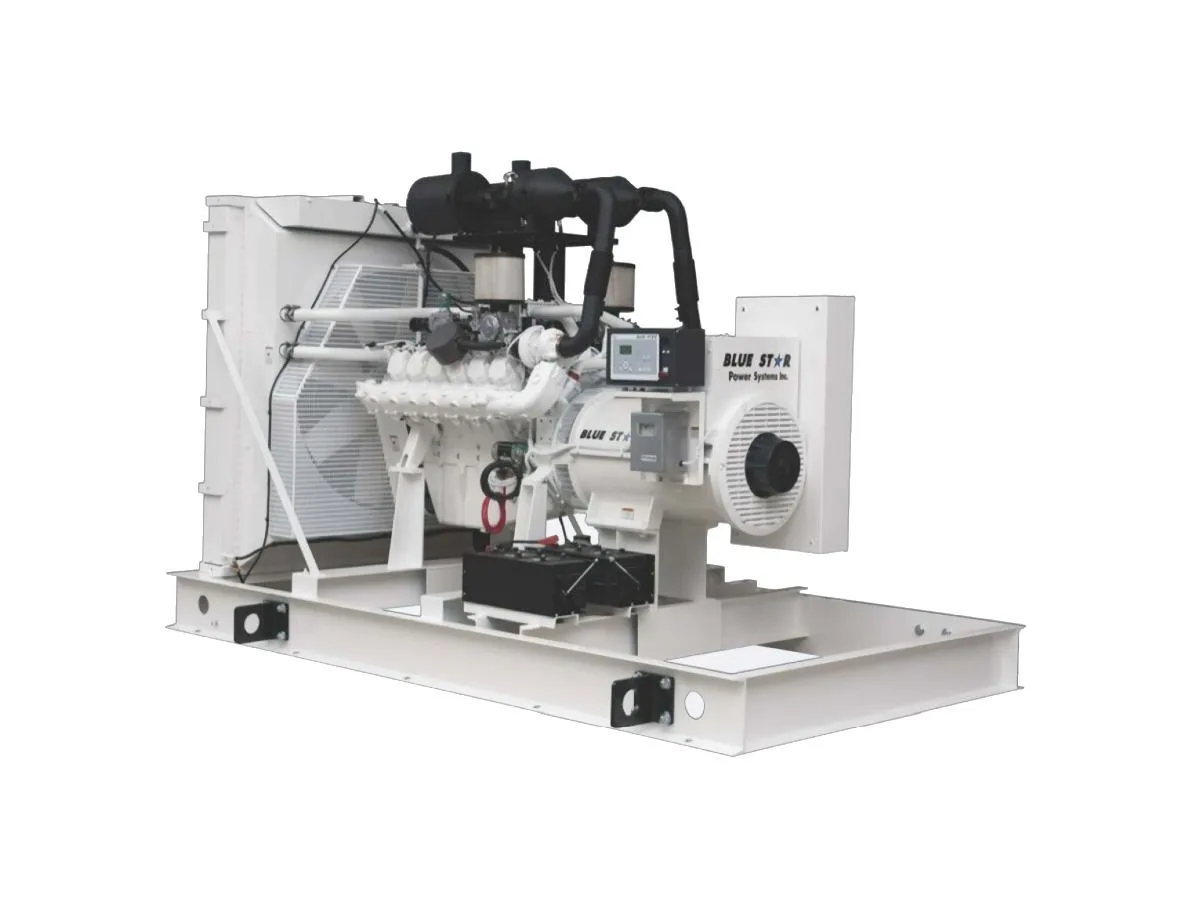

Blue Star Power Systems Blue Star NG265-01 265 kW liquid-cooled standby generator
