Blue Star Power Systems · PSI Large Gaseous (265-500 kW)

Blue Star NG265-01

265 kW standby · Natural Gas / LPG · Liquid-cooled

265 kW natural gas / LP standby generator from Blue Star Power Systems. PSI 14.6L turbocharged V8, DCP7310 controller, structural steel base, 208-600V.

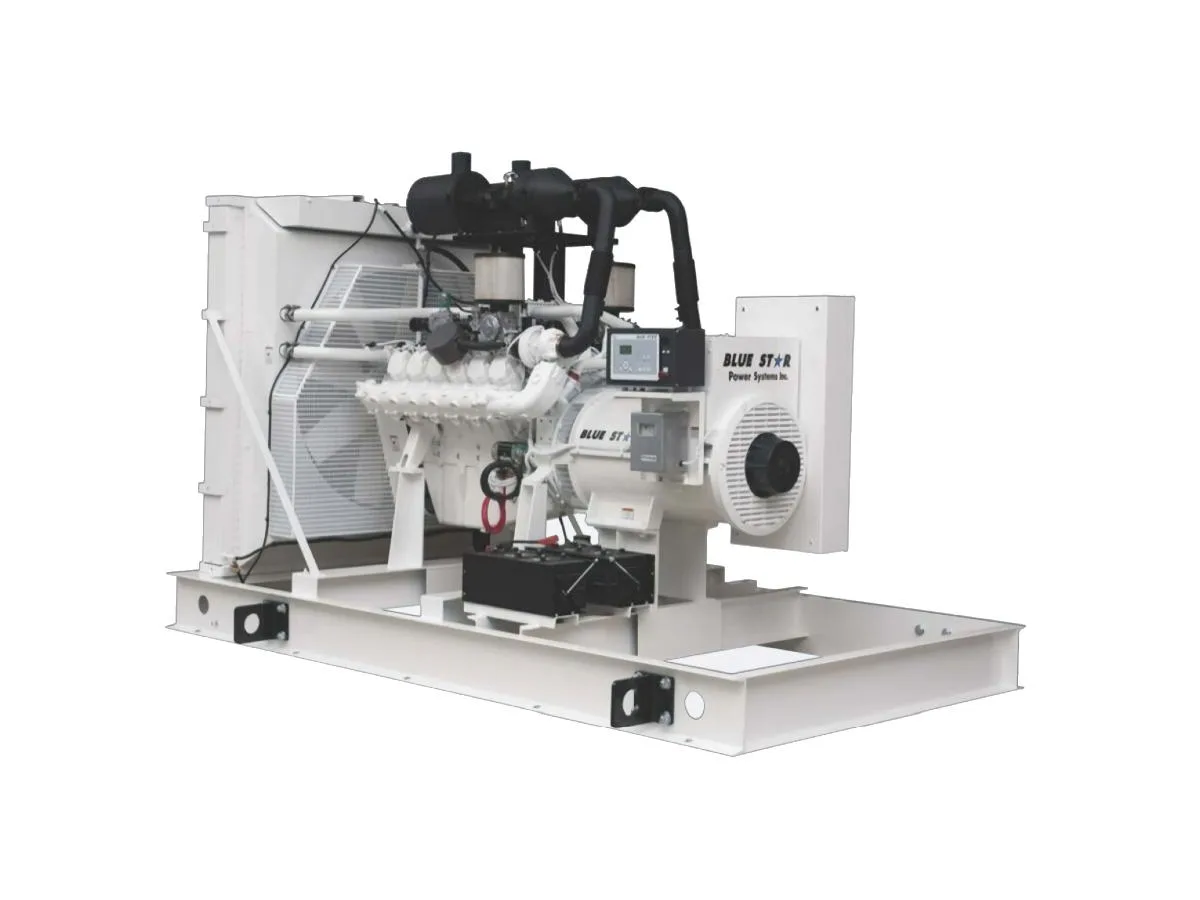

Blue Star Power Systems Blue Star NG265-01 generator — specifications and details
Standby power
265 kW
Voltage options
120/240V, 120/208V, 240V, 277/480V, 347/600V
Frequency / Phase
60 Hz · 1/3-phase
Engine
PSI 14.6L · 14.6L
Alternator
S4L1D-D41

Overview#

The Blue Star NG265-01 is a 265-kilowatt natural gas / LP standby generator powered by the PSI 14.6L V8. It is rated 265 kWe standby on natural gas (200 kWe standby on LP). The NG265-01 has a structural steel base and pad-type vibration isolation mounts.

The PSI 14.6L V8#

The PSI 14.6L is an eight-cylinder turbocharged-aftercooled spark-ignition engine:

  • V8 configuration — 5.04-inch bore × 5.59-inch stroke, 891 cu in displacement, 10.5:1 compression ratio
  • 456 bHp (340 kWm) at 1800 RPM standby
  • Structural steel base
  • 4,000W jacket water heater
  • ±0.5% voltage regulation

Deration factors: 1.5% per 10°F above 77°F inlet air temperature; 2.5% per 1,000 ft above 1,200 ft altitude.

Alternator configurations#

VoltagePhaseAlternatorConnection
120/240V1HCI534E12-lead DD
120/208V3S4L1D-D4112-lead WYE
240V3S4L1D-D4112-lead DELTA
277/480V3S4L1D-D4112-lead WYE
347/600V3S4L1S-D44-lead WYE

When to spec the NG265-01#

  • 265 kW sustained standby loads on utility natural gas or LP
  • Applications where the LP rating of 200 kWe is the design basis (useful when NG supply reliability is uncertain)
  • Sites requiring structural steel base construction for seismic or code compliance

Our service experience#

Water pump, thermostat, and charge-air cooler hoses are critical service items on the V8 platform. The 3-inch NPT fuel inlet requires confirmation of adequate gas supply infrastructure before installation.

Engineering specifications

Physical

Length
140 in
Width
78 in
Height
90 in
Dry weight
9,275 lb

Acoustic

Sound @ 7m, full load
85 dBA
Enclosure
Open

Fuel system & runtime

NG required pressure
11 in WC

Thermal & ventilation

Heat to coolant
965,940 BTU/hr
Heat radiated
324,840 BTU/hr
Exhaust flow
1,731 CFM
Exhaust temp
1005 °F
Combustion air
547 CFM
Ventilation air
29,970 CFM

Documents & downloads

Spec sheets & manuals

Ready to order this model?

Configure your Blue Star NG265-01

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Estimate runtime for the Blue Star NG265-01

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Fuel demand at 75% load

2,782,500 BTU/hr≈ 2782.5 cf/min @ 1,000 BTU/cf

On utility natural gas the runtime is generally unlimited provided the supply line and meter can deliver this BTU/hr at the engine's required inlet pressure (typically 5–14" WC residential, up to 5 psi commercial). Confirm against the OEM's published fuel-pressure spec.

Frequently Asked Questions

What is the standby rating of the NG265-01?
The Blue Star NG265-01 is rated 265 kWe standby on natural gas (200 kWe on LP) at 60 Hz / 1800 RPM. The PSI 14.6L V8 engine produces 456 bHp (340 kWm) at standby.
What engine powers the NG265-01?
The PSI 14.6L V8 — a 14.6-liter eight-cylinder turbocharged-aftercooled spark-ignition engine (5.04-inch bore x 5.59-inch stroke, 891 cu in, 10.5:1 compression) rated 456 bHp (340 kWm) at 1800 RPM.
What alternators does the NG265-01 use?
The single-phase 240V configuration uses the HCI534E. The three-phase configurations at 208V, 240V, and 480V all use the S4L1D-D41; the 600V configuration uses the S4L1S-D4. All are 125°C standby temperature rise, ±0.5% voltage regulation.
Can the NG265-01 run on LP propane?
Yes. The NG265-01 supports both natural gas and LP propane. LP standby rating is 200 kWe. Required fuel inlet pressure is 11 in. water column; fuel inlet is 3-inch NPT. LP consumption at full standby load is 933 ft³/hr.

Compatible equipment

More in the PSI Large Gaseous (265-500 kW)

265–500 kW natural gas and LP standby on PSI V8 and V12 platforms — structural steel base, prime and standby variants.

Similar models

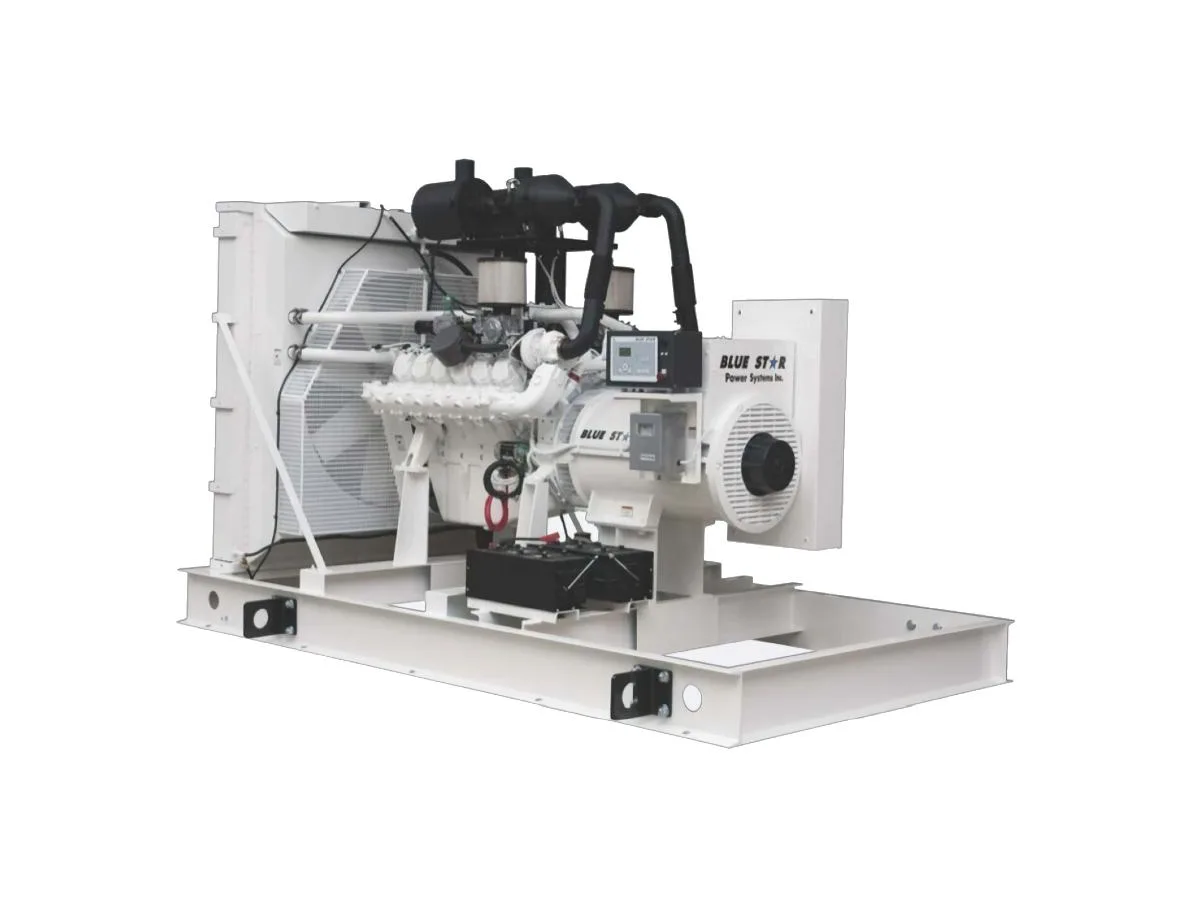

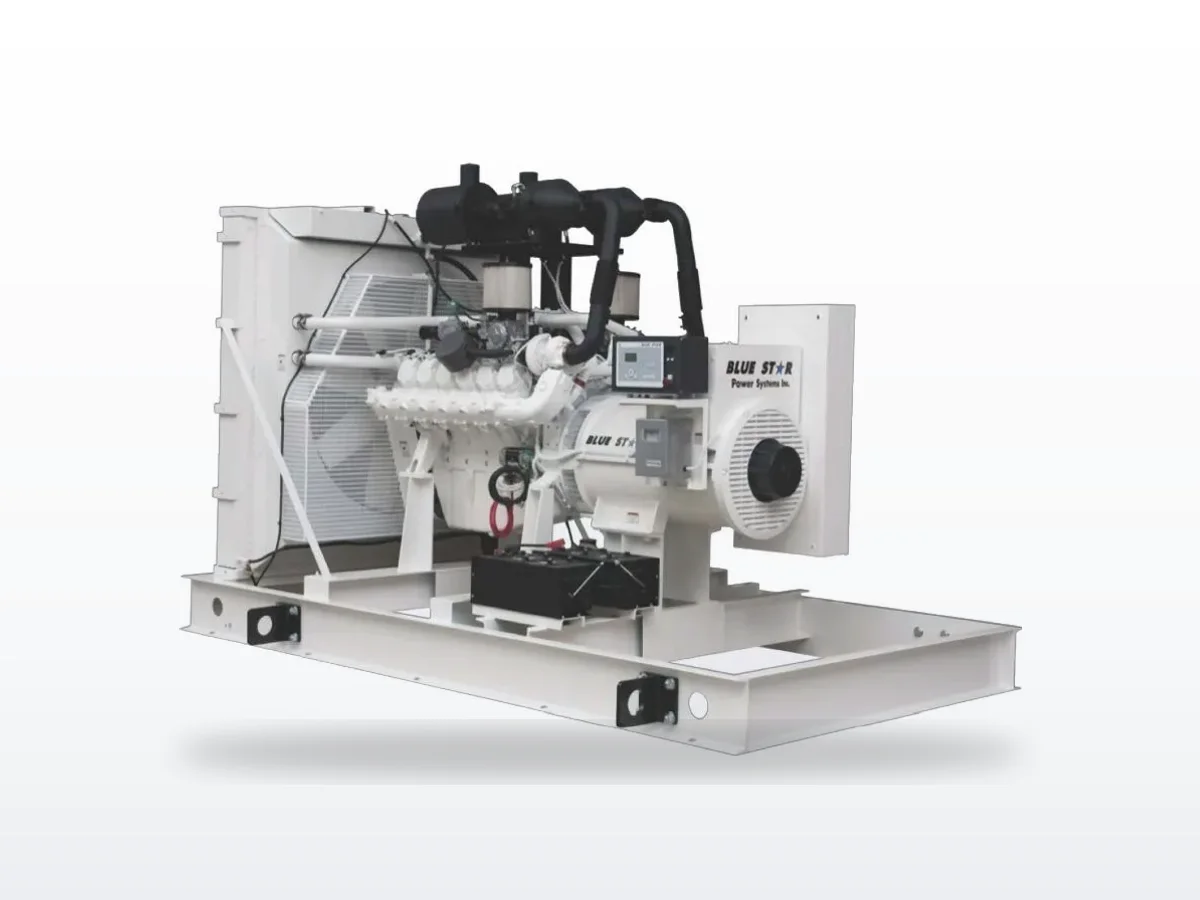

Blue Star Power Systems Blue Star NG265-01P 265 kW liquid-cooled standby generator
