Overview#

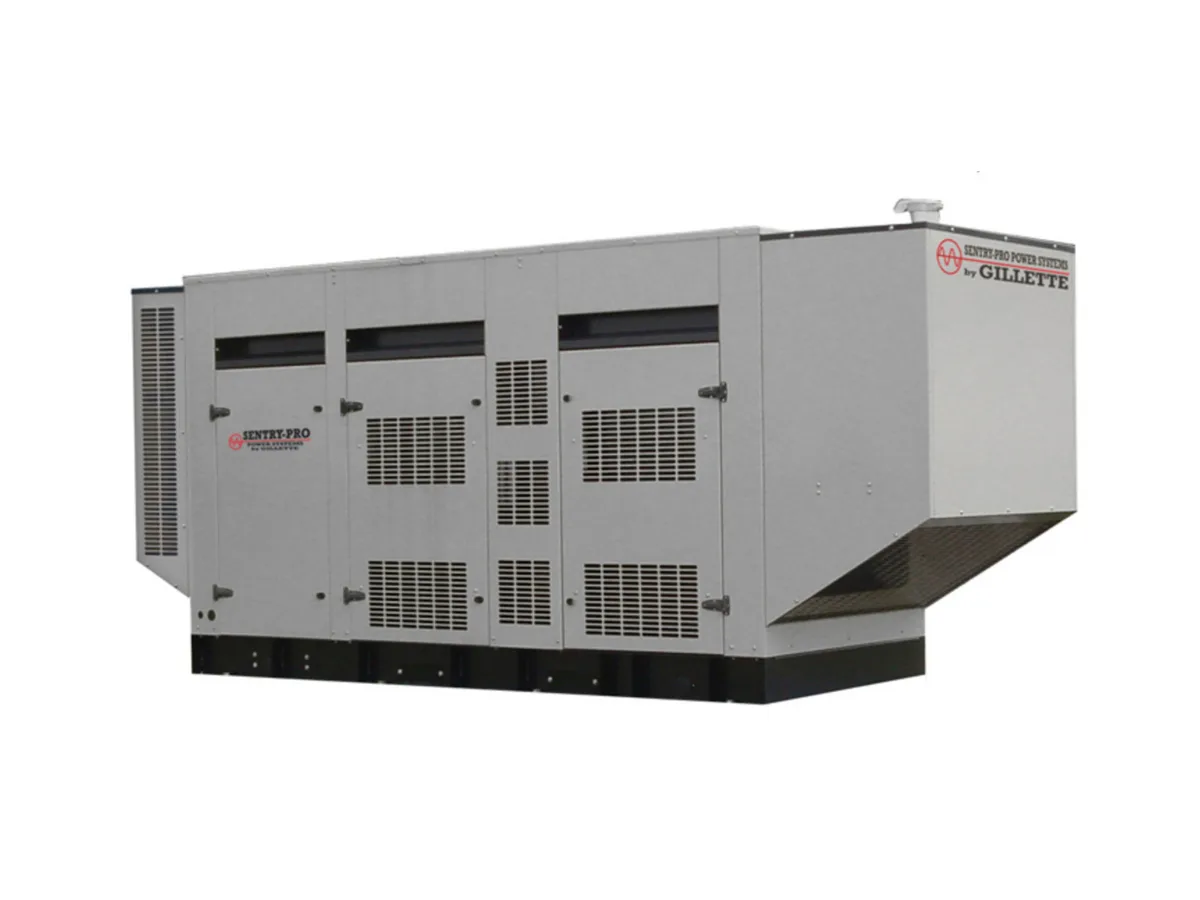

The Gillette T4D-6000 is a 600-kilowatt standby / 570-kilowatt prime Tier 4 Final / Stage V diesel generator — the largest in the T4D series. Volvo's TWD1683GE 16.1L inline-6 with water-to-air aftercooling and SCR aftertreatment. Stamford HCI534F alternator, Basler DGC-2020 controller.
This is the only T4D model with different standby and prime ratings — all smaller T4D models are rated identically for both duty types. The 5% prime derating at 600 kW reflects the engine operating closer to its thermal ceiling.
The TWD1683GE — Tier 4 Final at 16.1L#
The T4D-6000's TWD1683GE is the Tier 4 Final counterpart to the SPVD-6000's TWD1644GE (Tier II). Both are 16.1L inline-6 with water-to-air aftercooling. The Tier 4 Final version adds:
- SCR catalyst and DEF injection for NOx reduction
- Onboard emissions diagnostics and derate capability
- EU Stage V dual certification
- Improved fuel efficiency vs. the Tier II variant (37.2 vs 40.8 gal/hr at 600 kW)
Our service experience#
The T4D-6000 is the most complex diesel service in the Gillette T4D lineup: 16.1L engine, water-to-air aftercooler, SCR catalyst, and DEF system. We approach each service as four subsystems: engine, cooling (dual circuits), fuel, and aftertreatment. Annual full-load testing with emissions verification is standard protocol.
