Gillette · T4D Series (Tier 4 Final Prime Diesel)

Gillette T4D-3000

300 kW standby · Diesel · Liquid-cooled

300 kW Tier 4 Final / Stage 5 diesel generator with Volvo Penta TAD1383VE 12.8L engine. Water-to-air aftercooled, SCR+DEF, Basler DGC-2020. Made in USA.

Gillette Gillette T4D-3000 generator — specifications and details
Standby power
300 kW / 300 kW prime
Voltage options
120/208V, 120/240V, 277/480V, 346/600V
Frequency / Phase
60 Hz · 3-phase
Engine
Volvo Penta TAD1383VE · 12.8L
EPA / Emissions
Tier 4 Final
Alternator
Stamford S4L1D-E311
CommercialHealthcareprime-powerGovernmentData CentersManufacturing
Configure & QuoteDownload spec sheet

Overview#

The Gillette T4D-3000 is a 300-kilowatt Tier 4 Final / Stage V diesel generator on Volvo's TAD1383VE — a 12.8L inline-6 with water-to-air aftercooling and SCR aftertreatment. This is the T4D lineup's transition to H2O-to-air cooling (the T4D-2500 uses air-to-air). Rated at 300 kW for both standby and prime. Basler DGC-2020 controller.

Water-to-air at 300 kW — managing heat with SCR#

The T4D-3000 combines two heat sources: the turbocharged 12.8L at 469 bhp AND the SCR catalyst system's exothermic reaction. Water-to-air aftercooling provides better charge cooling consistency under this combined thermal load. The Tier III SPVD-3000 (same 12.8L at 300 kW) uses air-to-air because it doesn't have the SCR heat contribution.

Our service experience#

At 300 kW Tier 4 Final, the T4D-3000 requires both standard diesel service and DEF/SCR maintenance. The water-to-air aftercooler adds an additional coolant circuit to monitor. We treat every T4D service visit as three systems: engine, cooling, and aftertreatment.

Engineering specifications

Physical

Length
132 in
Width
52 in
Height
65 in
Wet weight
6,327 lb

Acoustic

Sound @ 7m, full load
83 dBA
Enclosure
Sound-attenuated

Fuel system & runtime

Fuel use @ full load
22 GPH

Documents & downloads

Spec sheets & manuals

Ready to order this model?

Configure your Gillette T4D-3000

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Configure & Quote →Just request a quoteDownload datasheet

Estimate runtime for the Gillette T4D-3000

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

11.8 hours(0.5 days)

Fuel consumption ≈ 16.97 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Service intervals

Manufacturer-recommended intervals for the Gillette T4D-3000 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.

Oil & filter
Every 500 hours or 12 months
Coolant change
Every 6000 hours
Air filter
Every 1000 hours
Fuel filter
Every 500 hours
Major overhaul
≈ 20,000 hours
Load bank test
Every 12 months

Common failure modes

What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.

ComponentSymptomTypical hoursSeverity
DEF system (SCR catalyst)Derate warning, NOx fault, DEF quality alert4,380+moderate
Fuel qualityInjector fouling, hard starting4,380+moderate
BatteryFailed to start, slow crank8,760+minor

Frequently Asked Questions

Why does the T4D-3000 switch to water-to-air aftercooling?
At 300 kW from 12.8L (469 bhp, same as the Tier III SPVD-3000's TAD1351GE), the T4D-3000 uses H2O-to-air aftercooling for more effective charge cooling at high output with the additional heat from SCR aftertreatment. The T4D-2500 uses air-to-air; the T4D-3000 and T4D-3500 switch to water-to-air.
DEF consumption at 300 kW?
Approximately 6.3% of diesel. At 22.0 gal/hr diesel at full load, expect ~1.4 gal/hr DEF.

Compatible equipment

Engine

Transfer switches

More in the T4D Series (Tier 4 Final Prime Diesel)

100–600 kW Tier 4 Final diesel with equal standby and prime ratings — Volvo VE-series with SCR.

View all 7models in this series →

Similar models

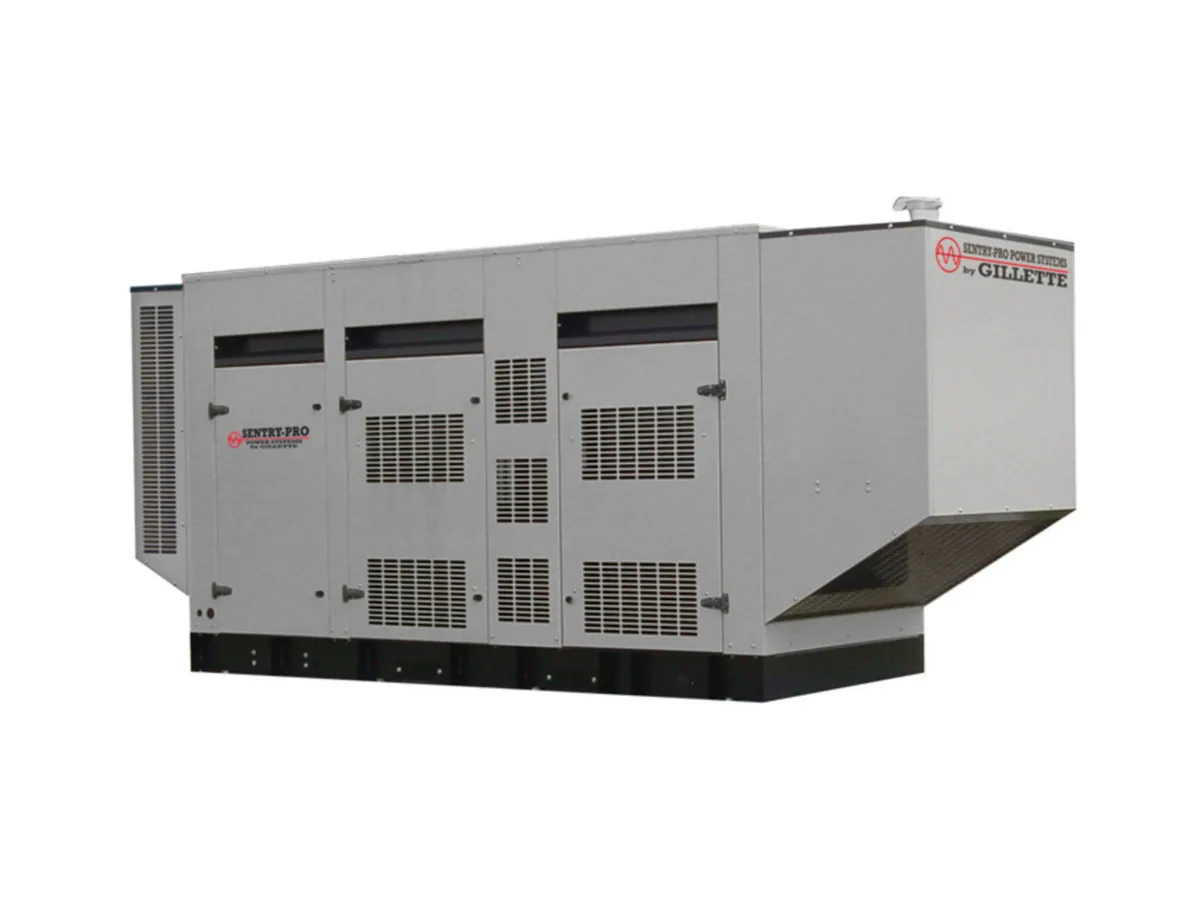

Gillette Gillette T4D-2500 250 kW liquid-cooled standby generator

Gillette

Gillette T4D-2500

Factory-direct Tier 4 Final at 15-30% below major brands. Volvo Penta 12.8L engine + Basler controller — EPA/CARB compliant, no lock-in.

250 kW standby · Diesel · Liquid-cooled

250 kW Tier 4 Final / Stage 5 diesel generator with Volvo Penta TAD1381VE 12.8L engine. SCR aftertreatment, DEF, Basler DGC-2020 controller. Made in USA.

Tier 4 Final3-phasecommercialhospital

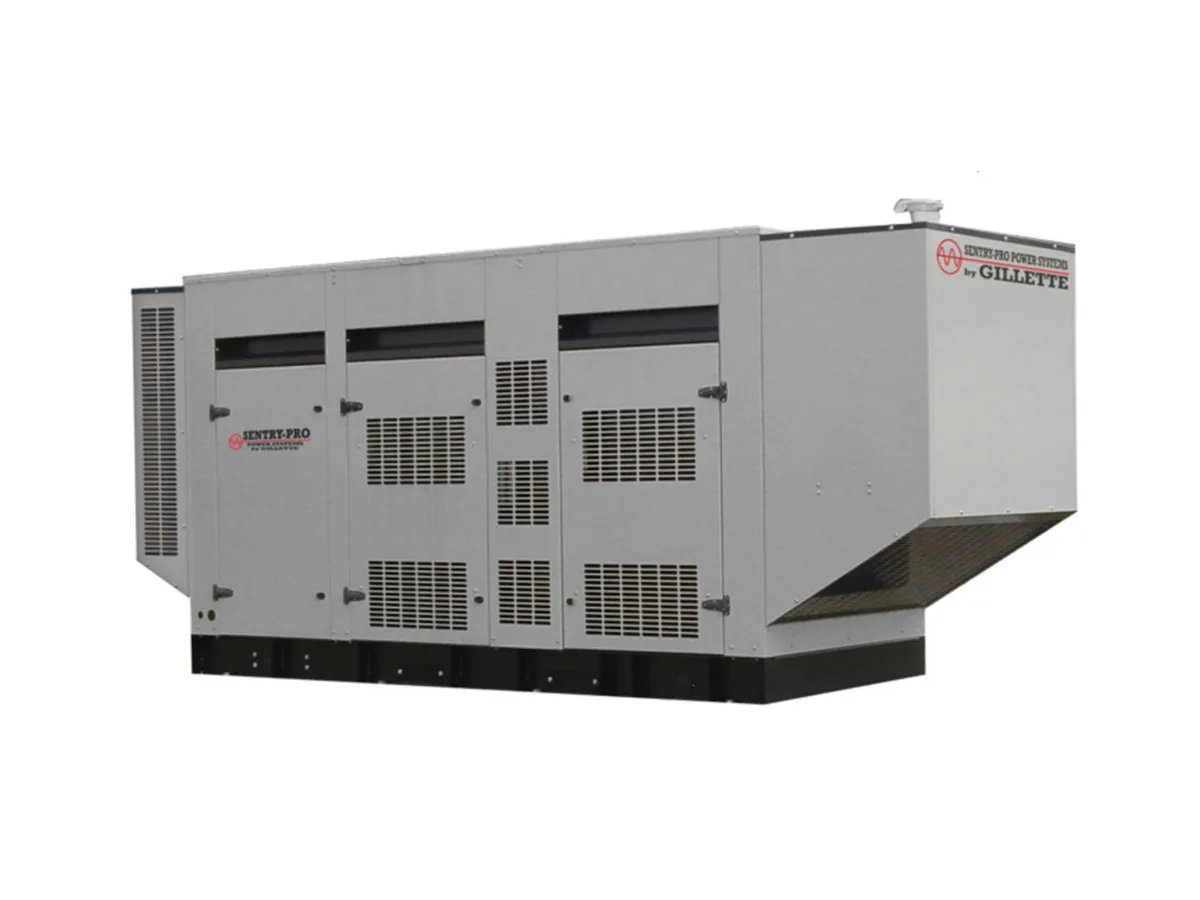

Gillette Gillette T4D-3500 350 kW liquid-cooled standby generator

Gillette

Gillette T4D-3500

Factory-direct Tier 4 Final at 15-30% below major brands. Volvo Penta 12.8L engine + Basler controller — EPA/CARB compliant, no lock-in.

350 kW standby · Diesel · Liquid-cooled

350 kW Tier 4 Final / Stage 5 diesel generator with Volvo Penta TAD1385VE 12.8L engine. Water-to-air aftercooled, SCR+DEF, Basler DGC-2020. Made in USA.

Tier 4 Final3-phasecommercialhospital

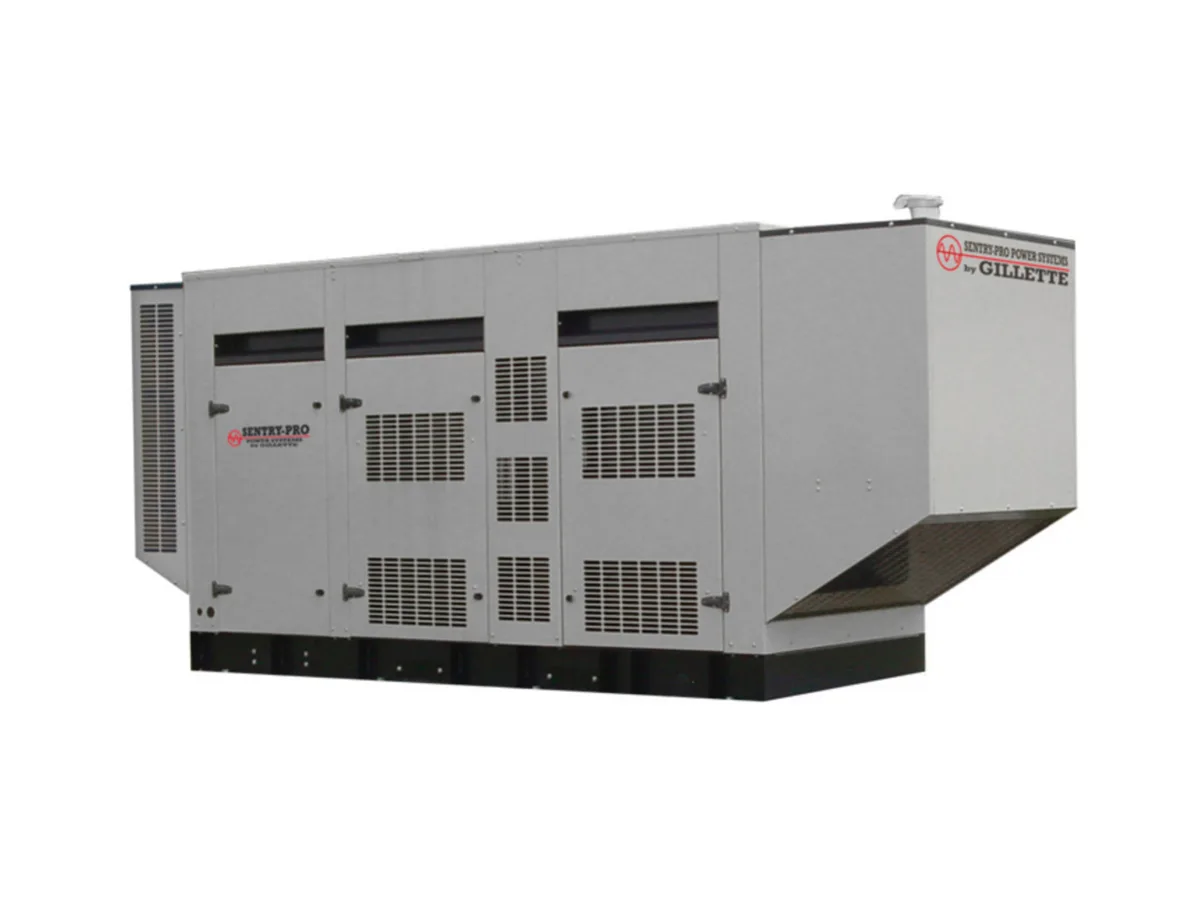

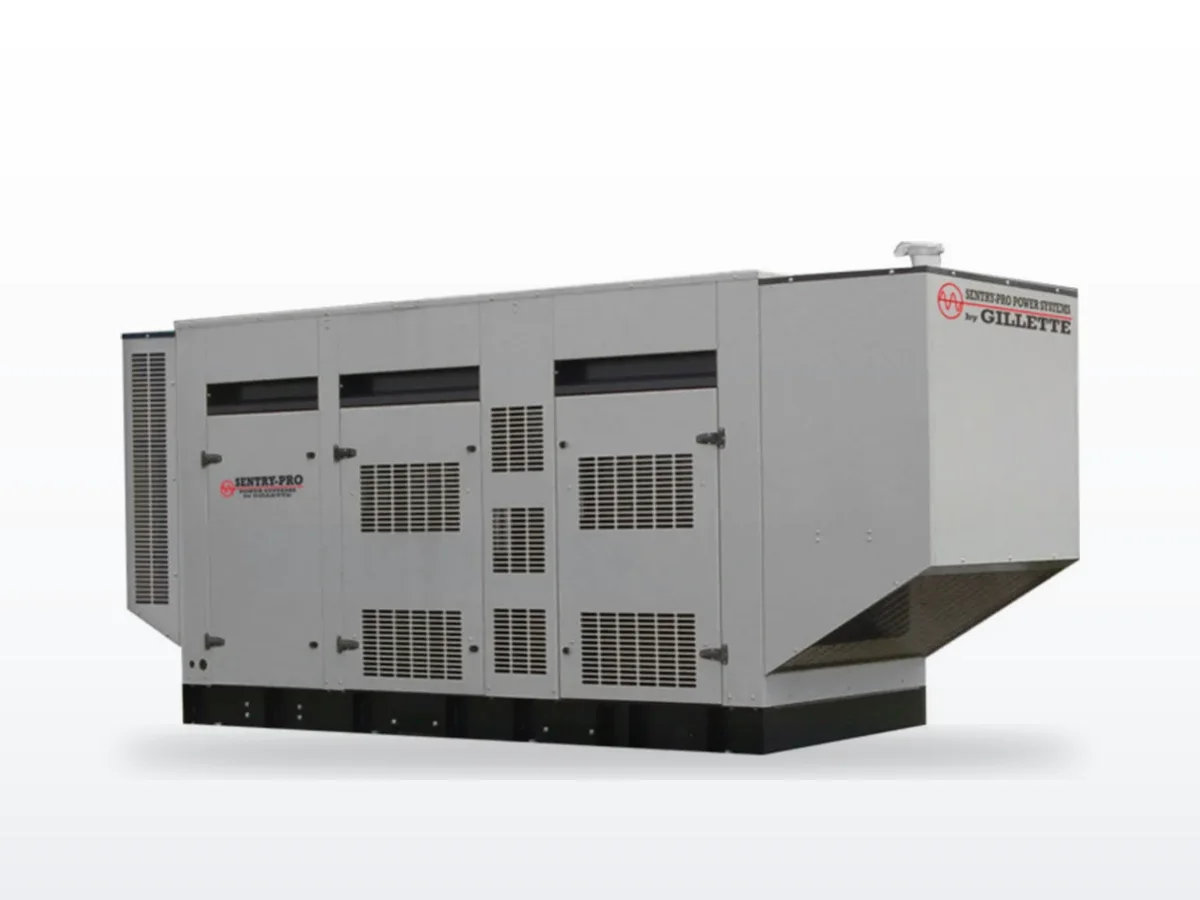

Gillette Gillette SPVD-3000 300 kW liquid-cooled standby generator
