Cummins · Cummins D5 Small Diesel

Cummins C25 D6

25 kW standby / 22.7 kW prime · Diesel · Liquid-cooled

25 kW standby, 22.7 kW prime EPA Tier 3 diesel generator set at 60 Hz with a Cummins 4BT3.3-G5 engine, PC 1.1 control and an optional sound enclosure, for small commercial standby applications.

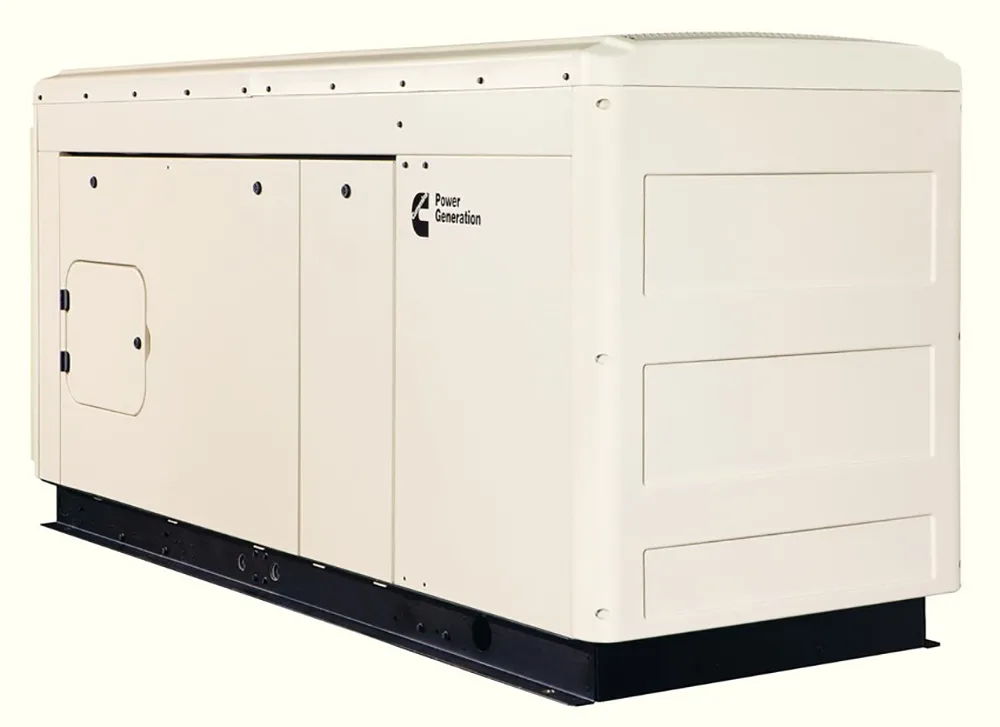

Cummins Cummins C25 D6 generator — specifications and details
Standby power
25 kW / 22.7 kW prime
Voltage options
120/240V, 120/208V
Frequency / Phase
60 Hz · 1/3-phase
Engine
Cummins 4BT3.3-G5
EPA / Emissions
Tier 3

Overview#

The Cummins C25 D6 (model designation C25D6) is a 25 kW standby diesel generator set powered by the Cummins 4BT3.3-G5 engine, rated 31.2 kVA standby and 22.7 kW (28.3 kVA) prime at 60 Hz.

Standard equipment includes the PC 1.1 controller and a CA115-L14 alternator; a sound enclosure is available. The unit is EPA Tier 3 certified.

The C25D6 is designed for small commercial standby applications including retail stores, small offices, and branch facilities where natural gas may not be available or where diesel fuel storage is preferred.

Documents & downloads

Spec sheets & manuals

Ready to order this model?

Configure your Cummins C25 D6

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Estimate runtime for the Cummins C25 D6

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

148.1 hours(6.2 days)

Fuel consumption ≈ 1.35 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Frequently Asked Questions

What engine does the Cummins C25 D6 use?
The C25D6 uses the Cummins 4BT3.3-G5 engine. Cummins' 2025 North America rating card lists it with EPA Tier 3 emissions certification, a CA115-L14 standard alternator and a PC 1.1 standard controller.
What are the standby and prime ratings of the C25 D6?
Standby rating is 25 kW (31.2 kVA) at 60 Hz. Prime rating is 22.7 kW (28.3 kVA).
Can PowerGen service the C25 D6 in Northern California?
Yes. PowerGen serves the San Francisco Bay Area, Silicon Valley, and broader Northern California with generator service.
