Cummins C20 D6

20 kW standby / 18 kW prime · Diesel · Liquid-cooled

20 kW EPA Tier 4 Interim diesel standby generator with Kubota V2203M engine and PowerCommand 1.1 control. Sound-attenuated enclosure, liquid-cooled, for small commercial and residential standby applications.

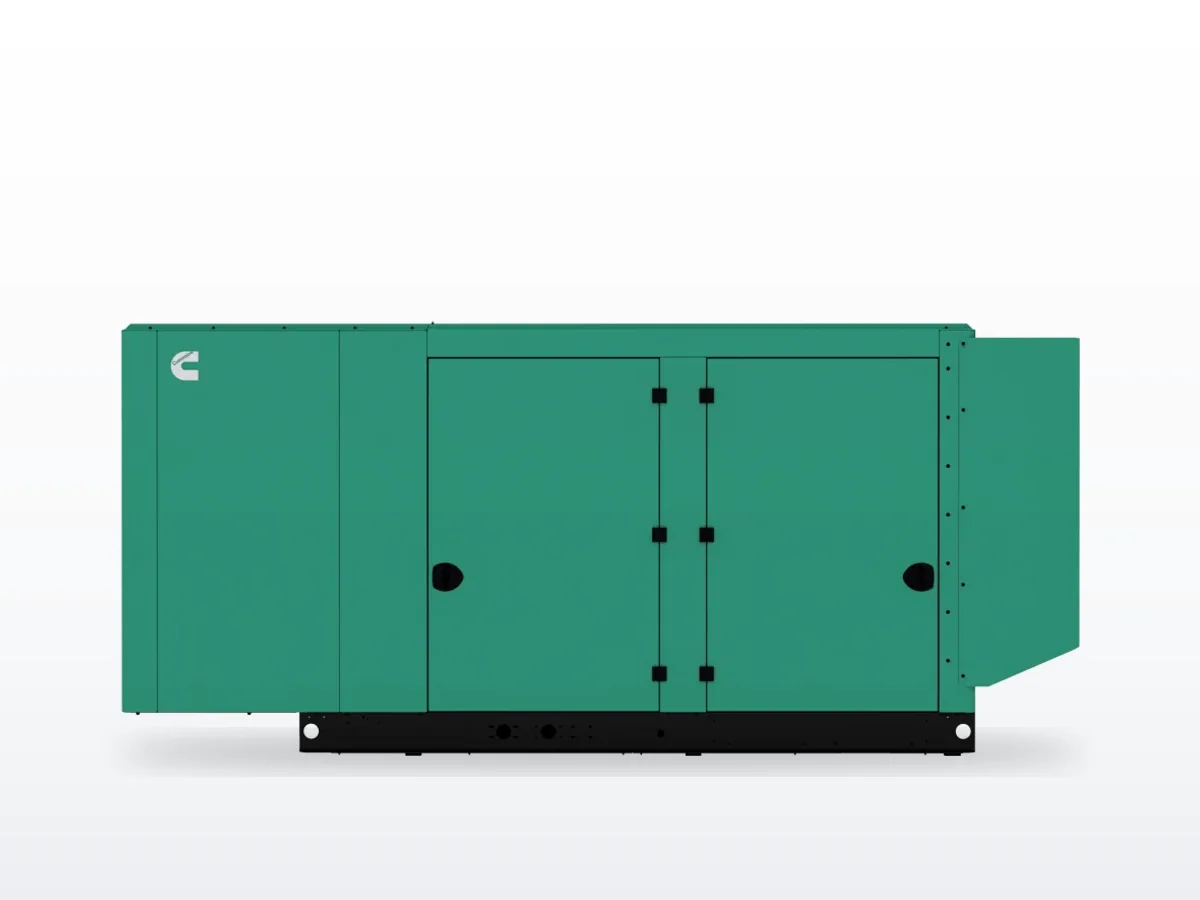

Cummins Cummins C20 D6 generator — specifications and details
Standby power
20 kW / 18 kW prime
Voltage options
120/240V, 120/208V
Frequency / Phase
60 Hz · 1/3-phase
Engine
Kubota V2203M · 2.2L
EPA / Emissions
Tier 4 Interim
CommercialResidential
Configure & QuoteDownload spec sheet

Overview#

The Cummins C20 D6 (model designation C20D6) is a 20 kW standby diesel generator set built on the Kubota V2203M engine -- a compact, naturally aspirated 2.2-liter, 4-cylinder diesel running at 1800 rpm. Rated at 25 kVA standby and 22.8 kVA prime at 60 Hz, the C20D6 is one of the smallest units in Cummins' North American diesel lineup and is designed for light commercial and residential standby applications where diesel fuel is preferred over natural gas.

Standard equipment includes the PowerCommand 1.1 control with integrated voltage regulation, a sound-attenuated enclosure for quiet operation, and a liquid-cooled radiator system. The unit is EPA Tier 4 Interim certified for stationary emergency standby applications.

The C20D6 is well-suited for small office buildings, retail locations, and residential properties where the total connected load falls within the 20 kW range. Its compact footprint allows placement in tight mechanical yards or rooftop pads.

Our Service Experience#

The C20D6 uses the Kubota V2203M rather than a Cummins-block engine, which means service technicians should be familiar with Kubota parts cross-references for filters and gaskets. The glow plug system on the V2203M is the most common cold-weather issue we see -- test glow plug resistance annually during preventive maintenance visits. Battery condition is critical on small diesel units that may sit idle for weeks between exercise cycles.

Frequently Asked Questions#

What is the difference between the C20 D6 and the C25 D6? The C20D6 and C25D6 both use compact 4-cylinder engines but at different output levels. The C20D6 uses the Kubota V2203M at 2.2L displacement and 20 kW standby, while the C25D6 steps up to the Cummins 4BT3.3-G5 at 3.3L and 25 kW standby. The C25D6 also moves to EPA Tier 3 certification.

What fuel tank options are available? The C20D6 is typically configured with a sub-base fuel tank integrated into the enclosure. Tank capacity varies by configuration. Contact your Cummins distributor for specific tank size options.

Is the C20 D6 suitable for residential standby? Yes. The C20D6 is designed for residential and light commercial standby with its sound-attenuated enclosure and compact footprint. At 20 kW it can support a typical home's critical circuits including HVAC, refrigeration, and lighting.

Engineering specifications

Physical

Length
77 in
Width
36 in
Height
46 in
Dry weight
1,200 lb

Fuel system & runtime

Fuel use @ full load
1.8 GPH
Fuel use @ 50% load
1.1 GPH

Documents & downloads

Spec sheets & manuals

Ready to order this model?

Configure your Cummins C20 D6

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Configure & Quote →Just request a quoteDownload datasheet

Estimate runtime for the Cummins C20 D6

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

144.0 hours(6.0 days)

Fuel consumption ≈ 1.39 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Service intervals

Manufacturer-recommended intervals for the Cummins C20 D6 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.

Oil & filter
Every 500 hours or 12 months
Air filter
Every 500 hours
Fuel filter
Every 500 hours
Major overhaul
≈ 15,000 hours

Common failure modes

What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.

ComponentSymptomTypical hoursSeverity
V2203M glow plug systemHard starting in cold weather, extended crank time, white smoke—moderate
PowerCommand 1.1 battery chargerWeak battery warning, failed auto-start, low DC voltage alarm—moderate
Coolant thermostatEngine overcooling or overheating, erratic temperature gauge—minor

Frequently Asked Questions

What engine does the Cummins C20 D6 use?
The C20D6 uses the Kubota V2203M, a 2.2-liter, naturally aspirated, inline-4-cylinder diesel engine rated at 1800 rpm. It is EPA Tier 4 Interim certified for stationary emergency standby applications. Kubota engines are used in the smaller Cummins generator sets where the compact displacement matches the power requirement.
What are the standby and prime ratings of the C20 D6?
Standby rating is 20 kW (25 kVA) at 60 Hz, 0.8 power factor. Prime rating is 18 kW (22.8 kVA). Both at 1800 rpm.
What are the service intervals for the C20 D6?
Oil and filter changes are due at 500 hours or 12 months, whichever comes first. Air filter and fuel filter replacement at 500-hour intervals. Coolant flush at 3,000 hours or 24 months.
Can PowerGen service the C20 D6 in Northern California?
Yes. PowerGen serves the San Francisco Bay Area, Silicon Valley, and broader Northern California with generator service. We carry parts for the V2203M engine platform and provide annual maintenance, load bank testing, and emergency response for C20 D6 installations.

Compatible equipment

Transfer switches

Similar models

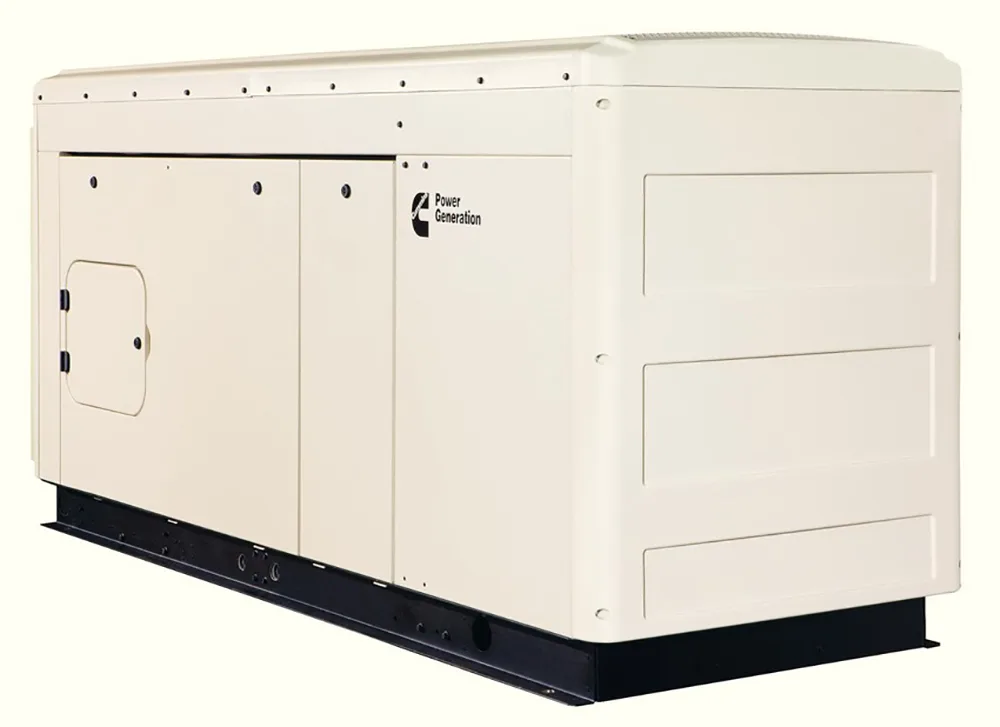

Cummins Cummins C25 D6 25 kW liquid-cooled standby generator

Cummins

Cummins C25 D6

25 kW diesel with Cummins 4BT3.3 engine and integrated controls. Compact enclosure for tight installations. Single-source warranty.

25 kW standby · Diesel · Liquid-cooled

25 kW EPA Tier 3 diesel standby generator with Cummins 4BT3.3-G5 engine and PowerCommand 1.1 control. Sound-attenuated enclosure, liquid-cooled, for small commercial standby applications.

Tier 33-phasecommercial-standbysmall-office

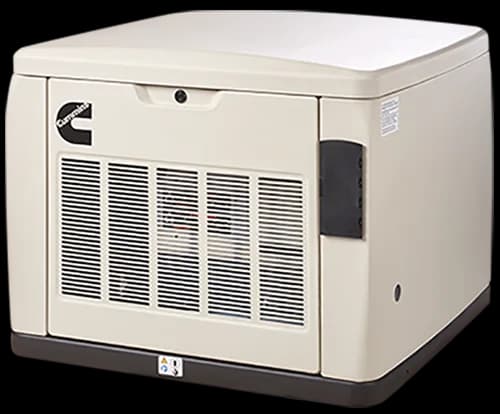

Cummins Cummins RS20A 20 kW air-cooled standby generator
