Cummins · Cummins D5 International Diesel

Cummins C33 D5

26 kW standby / 24 kW prime · Diesel · Liquid-cooled

26 kW / 33 kVA standby diesel generator from Cummins' international 50 Hz model range, with the Cummins X3.3-G1 engine, for commercial standby applications.

Standby power
26 kW / 24 kW prime
Voltage options
230/400V, 240/415V
Frequency / Phase
50 Hz · 3-phase
Engine
Cummins X3.3-G1
Alternator
S0L2-P1

Overview#

The Cummins C33 D5 is a 26 kW / 33 kVA standby diesel generator set from Cummins' international 50 Hz model range. It is also rated at 24 kW / 30 kVA prime.

The C33 D5 uses the Cummins X3.3-G1 engine, with the S0L2-P1 as its standard alternator and the PS0600 as its standard controller. A sound enclosure is offered for this model.

Technical Specifications#

Power Ratings (50 Hz)

RatingkWkVA
Standby (ESP)2633
Prime (PRP)2430

Standard Components

ComponentModel
EngineCummins X3.3-G1
Standard alternatorS0L2-P1
Standard controllerPS0600

Operating Frequency The C33 D5 is listed in Cummins' international 50 Hz model range, and its rating card gives 50 Hz ratings only.

Our Service Experience#

Wet-stacking (carbon buildup from light or no-load operation) is a common problem with diesel generators in standby service, and small diesel sets like the C33 D5 benefit from regular exercise under load.

Frequently Asked Questions#

Is the C33 D5 available for use in the United States? The C33 D5 is listed in Cummins' international 50 Hz model range, and its rating card gives 50 Hz ratings only.

What engine does the C33 D5 use? The C33 D5 uses the Cummins X3.3-G1 engine.

What alternator does the C33 D5 use? The Cummins rating card lists the S0L2-P1 as the standard alternator for the C33 D5.

FAQ#

What is the standby rating of the Cummins C33 D5?#

The C33 D5 is rated for 26 kW / 33 kVA standby output at 50 Hz.

What engine does the Cummins C33 D5 use?#

The C33 D5 uses the Cummins X3.3-G1 engine.

What fuel type does the Cummins C33 D5 use?#

The C33 D5 runs on diesel fuel.

Documents & downloads

Spec sheets & manuals

Ready to order this model?

Configure your Cummins C33 D5

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Estimate runtime for the Cummins C33 D5

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

142.5 hours(5.9 days)

Fuel consumption ≈ 1.40 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Frequently Asked Questions

What engine does the Cummins C33 D5 use?
The C33 D5 uses the Cummins X3.3-G1 engine, as listed on the Cummins international 50 Hz rating card.
What are the standby and prime ratings of the C33 D5?
The C33 D5 is rated for 26 kW / 33 kVA standby and 24 kW / 30 kVA prime at 50 Hz.
Is the C33 D5 available for 60 Hz North American use?
The C33 D5 is listed in Cummins' international 50 Hz model range, and its rating card gives 50 Hz ratings only.
Can PowerGen service the C33 D5 in Northern California?
Yes. PowerGen serves the San Francisco Bay Area and Northern California. While the C33 D5 is an international 50 Hz model not common in North American installs, our technicians are familiar with Cummins diesel platforms. Contact us to confirm parts availability for your specific unit before scheduling service.

Compatible equipment

Similar models

Cummins

Cummins C55 D5

44 kW / 55 kVA standby and 40 kW / 50 kVA prime at 50 Hz, with the Cummins 4BTAA3.3-G13 engine, UCI224C alternator and PS0600 controller as standard.

44 kW standby · Diesel · Liquid-cooled

44 kW / 55 kVA standby (40 kW / 50 kVA prime) 50 Hz diesel generator set from Cummins' international model range, with the Cummins 4BTAA3.3-G13 engine, for commercial applications.

3-phasecommercial-standbyinternational-export

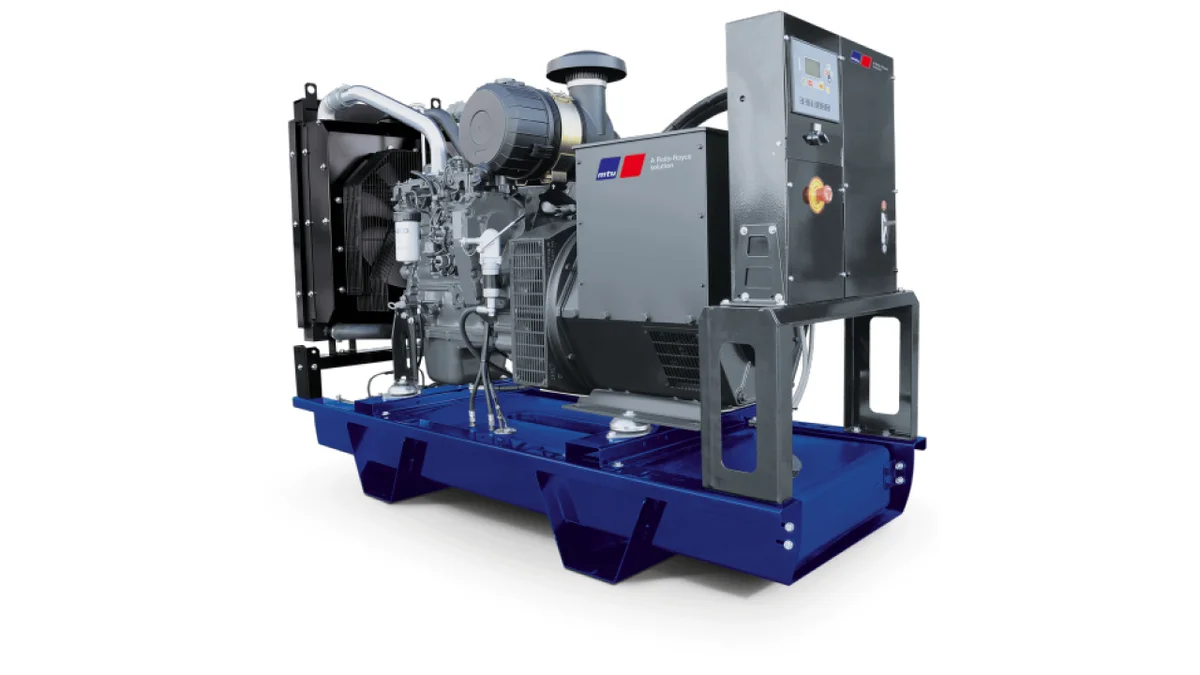

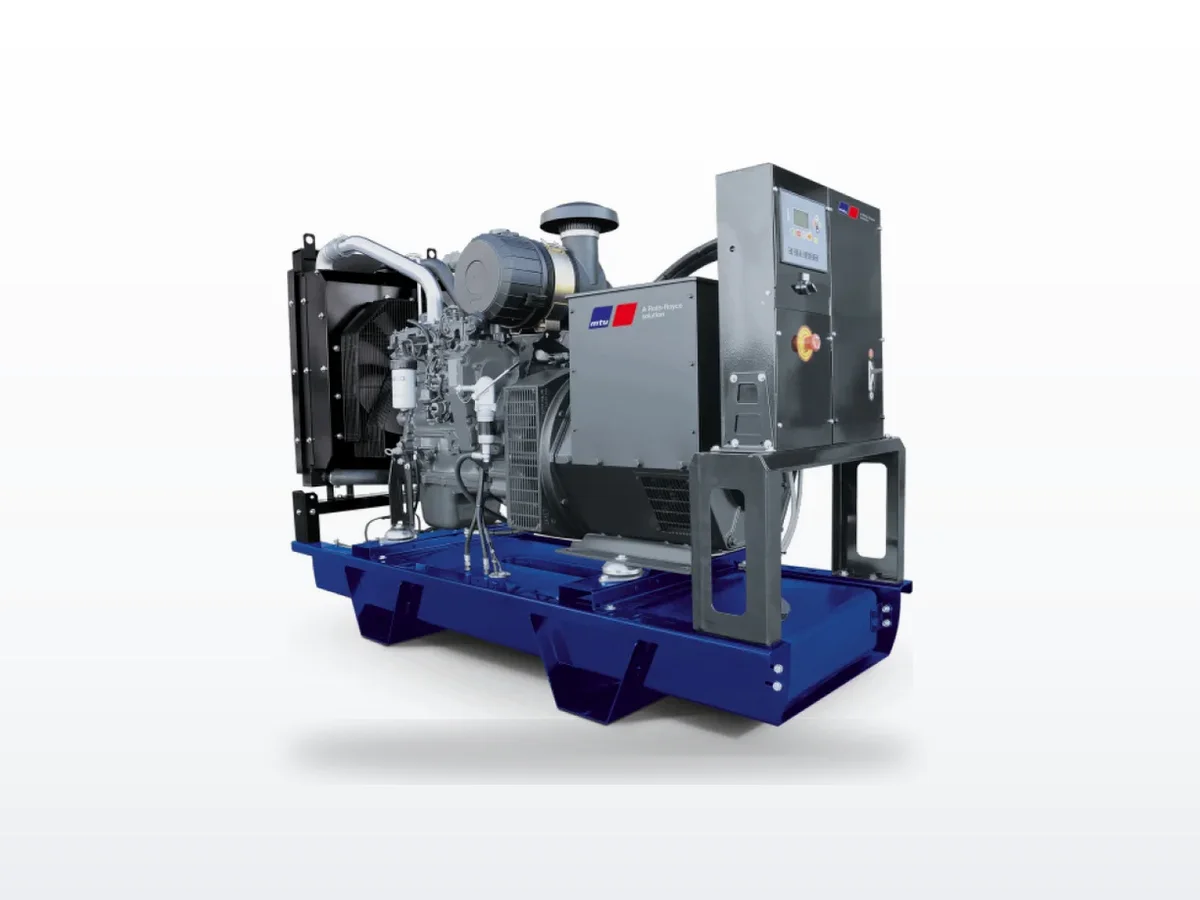

MTU MTU 3R0096 DS30 30 kW liquid-cooled standby generator

MTU

MTU 3R0096 DS30

Compact 30 kW diesel standby on John Deere 3029 platform. 2.6 gph full load, 50°C radiator, NFPA 110 single-step load acceptance.

30 kW standby · Diesel · Liquid-cooled

30 kW EPA Tier 3 diesel standby generator with John Deere 3029TFG89 engine, 2.9 L 3-cylinder, 1800 rpm. Unit-mounted radiator rated for 50°C ambient. UL 2200 offered.

Tier 33-phasecommercial-standbylight-industrial

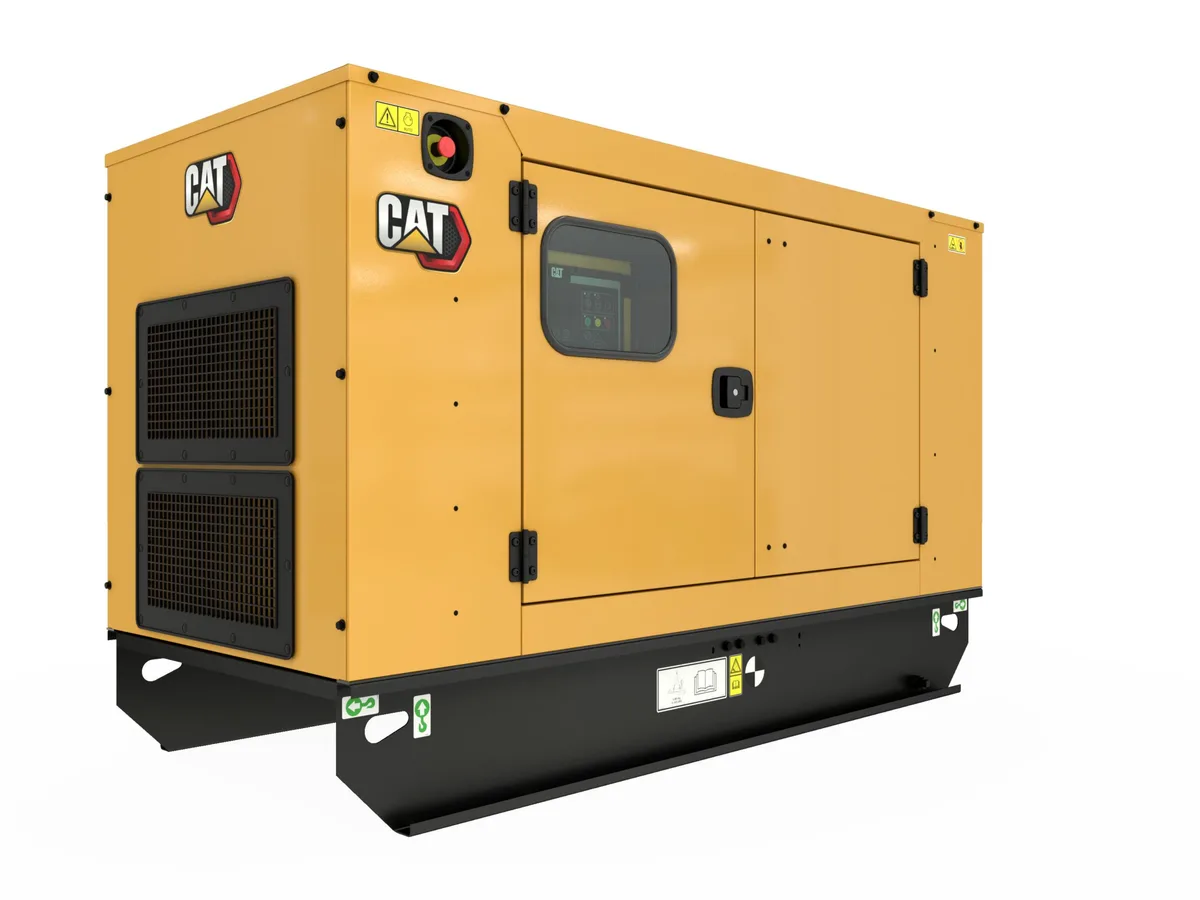

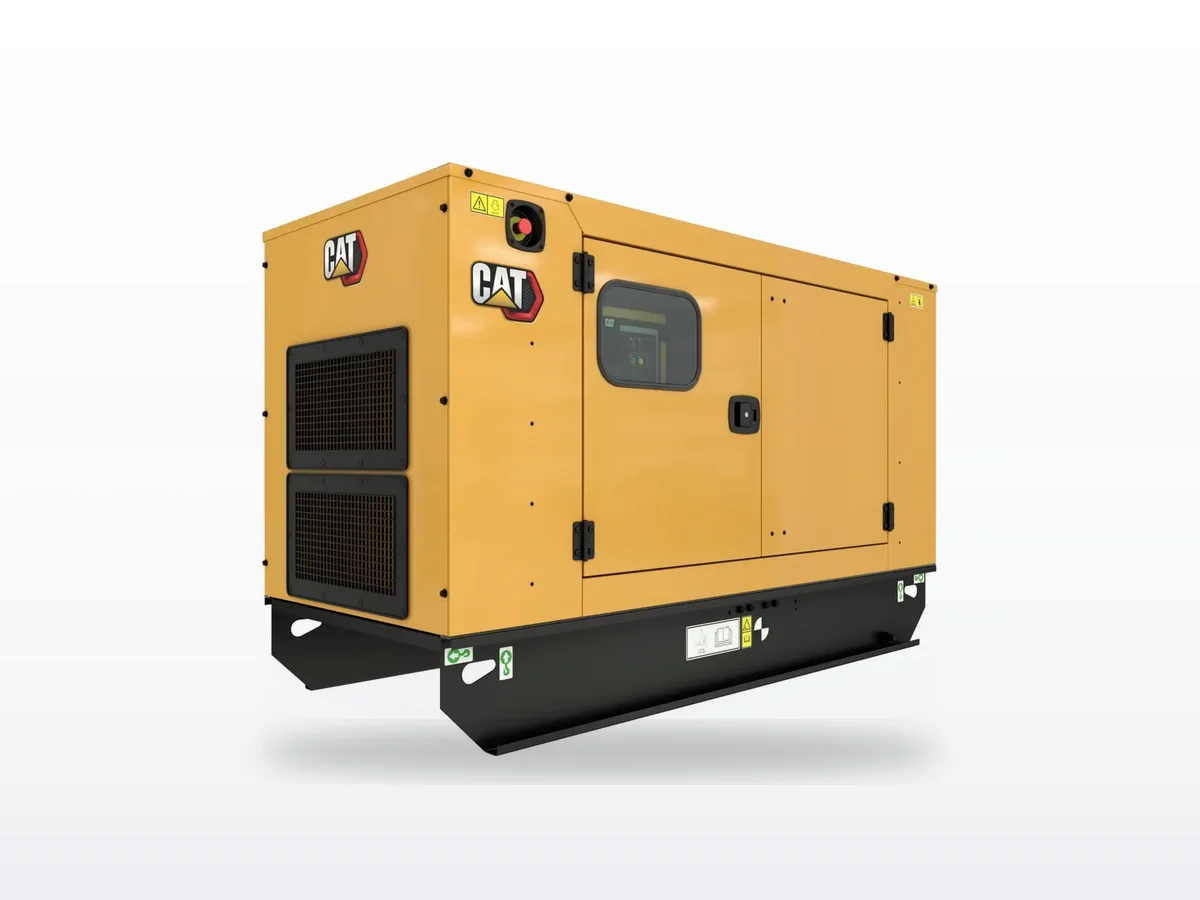

Caterpillar Cat C2.2 20 kW liquid-cooled standby generator
