Blue Star Power Systems · PSI Small Gaseous (20-100 kW)

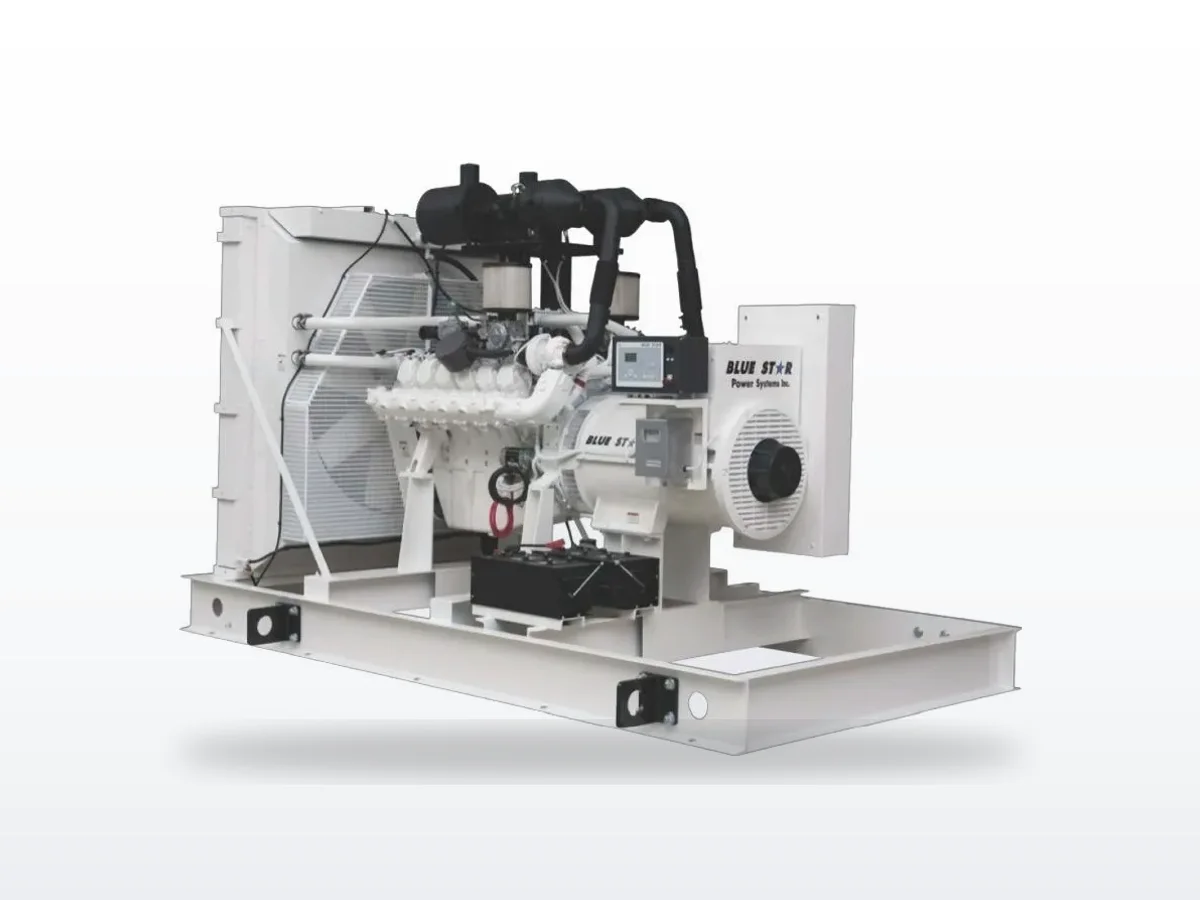

Blue Star GM60-02

60 kW standby · Natural Gas / LPG · Liquid-cooled

60 kW natural gas / LP standby generator from Blue Star Power Systems. PSI 5.7L eight-cylinder naturally aspirated V8 engine, UCI224E alternator, DCP7310 controller, 208-600V output.

Blue Star Power Systems Blue Star GM60-02 generator — specifications and details
Standby power
60 kW
Voltage options
120/240V, 120/208V, 240V, 277/480V, 347/600V
Frequency / Phase
60 Hz · 1/3-phase
Engine
PSI 5.7L NA · 5.7L
Alternator
UCI224E

Overview#

The Blue Star GM60-02 is a 60-kilowatt natural gas and LP standby generator powered by the PSI 5.7L NA — an eight-cylinder V8 naturally aspirated engine from Power Solutions International. It is rated at 60 kWe standby on both natural gas and LP across all voltage configurations from 120/240V single-phase through 347/600V three-phase.

Blue Star Power Systems pairs the 5.7L engine with a UCI224E alternator and DCP7310 controller on a formed steel base. The OPU footprint is 80 × 38 × 52 in at 1,900 lbs. Level 1, 2, and 3 enclosures are available with sound levels from 79 dBA (OPU full load) down to 64 dBA (Level 3).

When to specify the GM60-02#

  • 55–60 kW natural gas or LP standby at commercial, medium commercial, school, multi-family, or light industrial sites
  • Sites at or below 1,200 ft elevation at ambient temperatures at or below 77°F (derate at higher conditions)
  • Applications requiring 208-600V single- or three-phase output on both fuel types with equal output

Our service experience#

At 773 ft³/hr NG at 11.0 in. W.C., the supply regulator and meter sizing must be confirmed before startup. Temperature and altitude deration applies starting at 77°F and 1,200 ft — sites in warm climates or at moderate elevation should calculate derated output. Full-load testing and spark plug inspection remain the top maintenance priorities for naturally aspirated gaseous standby units of this type.

Engineering specifications

Physical

Length
80 in
Width
38 in
Height
52 in
Dry weight
1,900 lb

Acoustic

Sound @ 7m, full load
79 dBA
Enclosure
Open

Fuel system & runtime

NG required pressure
11 in WC

Thermal & ventilation

Heat to coolant
187,200 BTU/hr
Heat radiated
48,120 BTU/hr
Exhaust flow
553 CFM
Exhaust temp
1350 °F
Combustion air
173 CFM
Ventilation air
7,400 CFM

Documents & downloads

Spec sheets & manuals

Ready to order this model?

Configure your Blue Star GM60-02

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Estimate runtime for the Blue Star GM60-02

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Fuel demand at 75% load

630,000 BTU/hr≈ 630.0 cf/min @ 1,000 BTU/cf

On utility natural gas the runtime is generally unlimited provided the supply line and meter can deliver this BTU/hr at the engine's required inlet pressure (typically 5–14" WC residential, up to 5 psi commercial). Confirm against the OEM's published fuel-pressure spec.

Frequently Asked Questions

What engine does the GM60-02 use?
The PSI 5.7L NA — an eight-cylinder V8 naturally aspirated engine from Power Solutions International, displacing 350 cubic inches (5.70 liters). At 1800 RPM, it produces 113 hp (84.3 kWm) standby. Both natural gas and LP outputs are equal at 60 kWe across all voltage configurations. Deration applies at 1% per 10°F above 77°F inlet air temperature and 3% per 1,000 ft above 1,200 ft altitude.
What are the fuel consumption rates for the GM60-02?
At 100% standby load, the GM60-02 consumes 773 ft³/hr of natural gas or 339 ft³/hr of LP. At 75% load: 663 ft³/hr NG or 258 ft³/hr LP. At 50% load: 545 ft³/hr NG or 213 ft³/hr LP. Required inlet pressure is 11.0 in. W.C. at a 1.0-inch NPT connection. Heat rejected to the coolant circuit at full load is 3,120 BTU/min; heat radiated to the enclosure or room is 802 BTU/min. Combustion air draw is 173 CFM; ventilation air requirement is 7,400 CFM for a radiator-cooled installation.

Compatible equipment

More in the PSI Small Gaseous (20-100 kW)

20–100 kW natural gas and LP standby on PSI inline-four, V6, and V8 platforms — single and three-phase.

Similar models

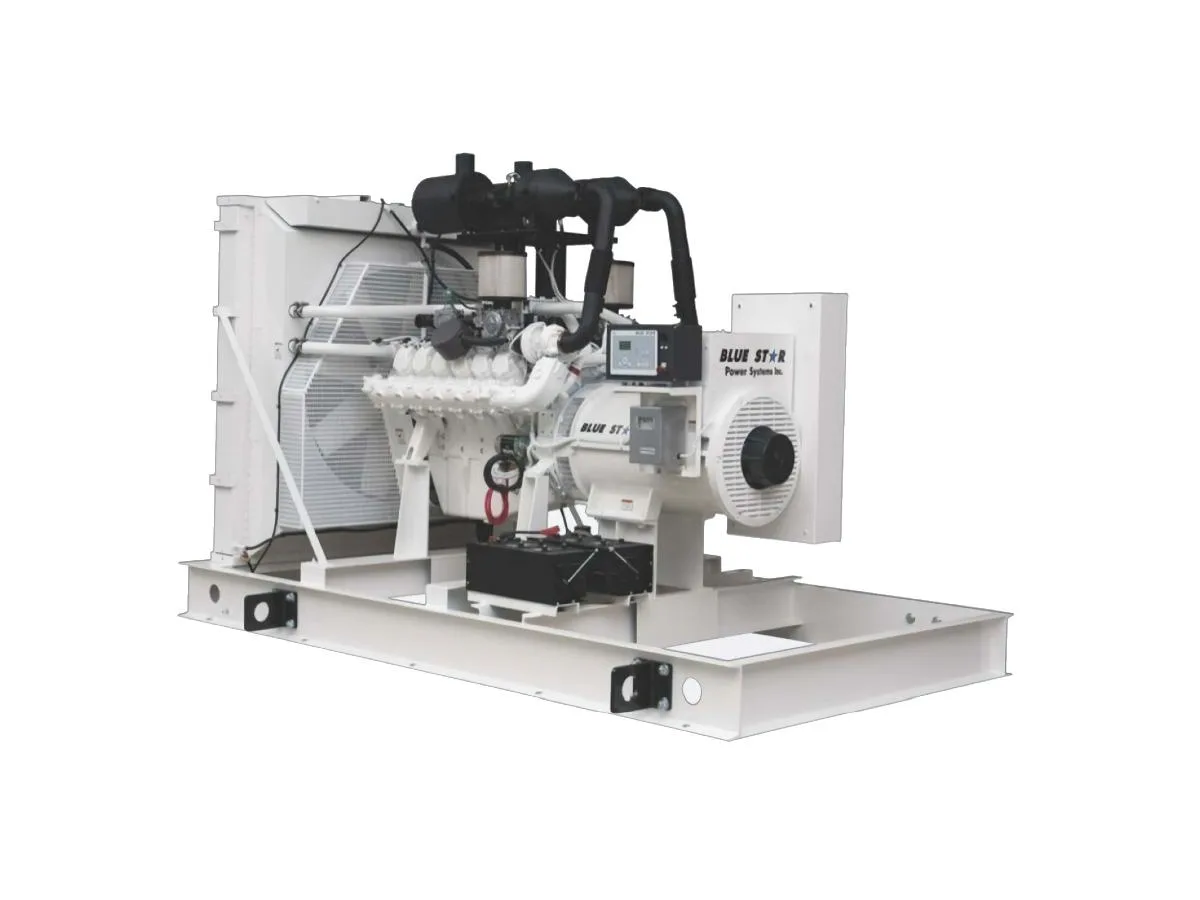

Blue Star Power Systems Blue Star GM60-02P liquid-cooled standby generator
