What engine does the SPVD-7000 use?

Volvo Penta TWD1744GE — a 17.26L turbocharged inline-6 with water-to-air aftercooling, producing 1,020 bhp at standby. This is a larger bore (5.87" vs 5.67") than the 16.1L TWD1644 at the same stroke (6.50"), adding 7% displacement for 700 kW. The highest BMEP in the SPVD series at 439 psi.

Is the SPVD-7000 the largest Volvo model Gillette offers?

Yes — the SPVD-7000 at 700 kW is the ceiling of the Volvo diesel lineup. Above 700 kW, Gillette transitions to Mitsubishi engines (SPMI-8000 at 800 kW). The Volvo-to-Mitsubishi transition is a significant platform change: different engine architecture, parts ecosystem, and service infrastructure.

What physical change occurs at 700 kW?

The SPVD-7000 moves to a larger enclosure (168 x 82 x 92 in open) compared to the 152 x 72 x 80 in footprint shared by the SPVD-5000 through 6000. The 17.26L engine and larger Stamford S6DC alternator frame require additional space.

What fuel consumption at 700 kW?

45.92 gal/hr at full load. At 75%: 34.26 gal/hr. At 50%: 23.3 gal/hr. A 1,000-gallon tank at 75% load provides approximately 29 hours.

How does this compare to the Blue Star VD700?

Same Volvo TWD1744GE engine platform. Parts, service procedures, and Volvo Penta documentation transfer directly between Gillette and Blue Star implementations. We service both brands with identical tooling and consumables.

Gillette · SPVD Series (Industrial Diesel - Volvo)

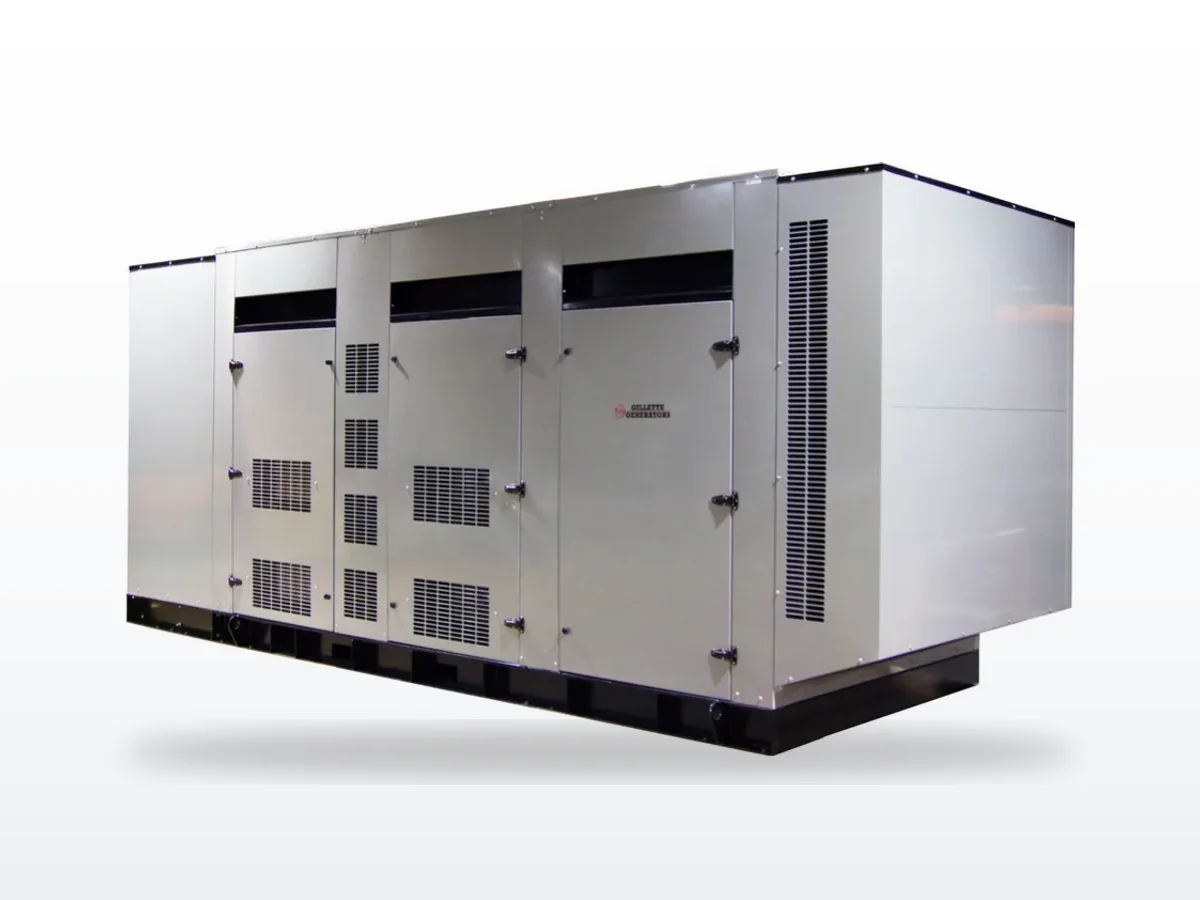

Gillette SPVD-7000

700 kW standby · Diesel · Liquid-cooled

700 kW stationary diesel standby generator with Volvo Penta TWD1744GE 17.26L engine. Stamford S6DC311 alternator, Basler DGC-2020 controller. Gillette's largest Volvo unit.

Standby power: 700 kW
Voltage options: 120/208V, 120/240V, 277/480V, 346/600V
Frequency / Phase: 60 Hz · 3-phase
Engine: Volvo Penta TWD1744GE · 17.26L
EPA / Emissions: Tier 2
Alternator: Stamford S6DC311-014

Data Centers Healthcare Manufacturing Commercial Government

Overview#

The Gillette SPVD-7000 is a 700-kilowatt stationary diesel standby generator — Gillette's largest Volvo-powered unit and the ceiling of the SPVD series. The TWD1744GE is a 17.26L turbocharged inline-6 with water-to-air aftercooling, producing 1,020 bhp at 439 psi BMEP. Stamford S6DC311 alternator, Basler DGC-2020 controller.

Above 700 kW, Gillette transitions to Mitsubishi engines (SPMI series starting at 800 kW).

The Volvo-to-Mitsubishi transition at 700 kW#

The SPVD-7000 is the boundary between Volvo and Mitsubishi in the Gillette lineup:

Spec	SPVD-7000 (Volvo)	SPMI-8000 (Mitsubishi)
Standby kW	700	800
Engine	TWD1744GE I6	S12A2 V12
Displacement	17.26L	33.9L
Architecture	Inline-6	V12
Open weight	11,718 lbs	18,950 lbs
Controller	Basler DGC-2020	DSE 7420 MKII

The Volvo achieves 700 kW from 17.26L in 6 cylinders — remarkable specific output. The Mitsubishi at 800 kW uses nearly double the displacement in a V12 configuration, running at much lower specific loading (less stressed per liter). For facilities growing beyond 700 kW, the Mitsubishi platform offers more headroom within the engine's design envelope.

Our service experience#

The TWD1744GE at 700 kW is the highest specific loading Volvo inline-6 we service (439 psi BMEP). At this output, turbocharger condition and water-to-air aftercooler performance are mission-critical service items. The engine does not forgive deferred maintenance at this calibration — annual full-load testing and semi-annual fuel system service are non-negotiable. We service this same Volvo platform on Blue Star VD700 generators with identical procedures.

Engineering specifications

Physical

Length: 168 in
Width: 82 in
Height: 92 in
Wet weight: 11,718 lb

Acoustic

Sound @ 7m, full load: 83 dBA
Enclosure: Sound-attenuated

Fuel system & runtime

Fuel use @ full load: 45.92 GPH

Photos

Documents & downloads

Spec sheets & manuals

Spec sheet (datasheet)

Ready to order this model?

Configure your Gillette SPVD-7000

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Configure & Quote →Just request a quote Download datasheet

Estimate runtime for the Gillette SPVD-7000

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Generator size

Fuel

Fuel tank capacity

gal

Load

Override full-load GPH (optional)

GPH

Estimated runtime

5.6 hours(0.2 days)

Fuel consumption ≈ 35.42 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Service intervals

Manufacturer-recommended intervals for the Gillette SPVD-7000 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.

Oil & filter: Every 500 hours or 12 months
Coolant change: Every 6000 hours
Air filter: Every 1000 hours
Fuel filter: Every 500 hours
Major overhaul: ≈ 20,000 hours
Load bank test: Every 12 months

Common failure modes

What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.

Component	Symptom	Typical hours	Severity
Water-to-air aftercooler	Reduced output, elevated intake temps	10,000+	moderate
Turbocharger	Major power loss, heavy smoke	12,000+	severe
Fuel quality	Injector fouling, hard starting	4,380+	moderate

Frequently Asked Questions

What engine does the SPVD-7000 use?: Volvo Penta TWD1744GE — a 17.26L turbocharged inline-6 with water-to-air aftercooling, producing 1,020 bhp at standby. This is a larger bore (5.87" vs 5.67") than the 16.1L TWD1644 at the same stroke (6.50"), adding 7% displacement for 700 kW. The highest BMEP in the SPVD series at 439 psi.
Is the SPVD-7000 the largest Volvo model Gillette offers?: Yes — the SPVD-7000 at 700 kW is the ceiling of the Volvo diesel lineup. Above 700 kW, Gillette transitions to Mitsubishi engines (SPMI-8000 at 800 kW). The Volvo-to-Mitsubishi transition is a significant platform change: different engine architecture, parts ecosystem, and service infrastructure.
What physical change occurs at 700 kW?: The SPVD-7000 moves to a larger enclosure (168 x 82 x 92 in open) compared to the 152 x 72 x 80 in footprint shared by the SPVD-5000 through 6000. The 17.26L engine and larger Stamford S6DC alternator frame require additional space.
What fuel consumption at 700 kW?: 45.92 gal/hr at full load. At 75%: 34.26 gal/hr. At 50%: 23.3 gal/hr. A 1,000-gallon tank at 75% load provides approximately 29 hours.
How does this compare to the Blue Star VD700?: Same Volvo TWD1744GE engine platform. Parts, service procedures, and Volvo Penta documentation transfer directly between Gillette and Blue Star implementations. We service both brands with identical tooling and consumables.

Compatible equipment

Transfer switches

More in the SPVD Series (Industrial Diesel - Volvo)

250–700 kW Volvo Penta diesel standby — Tier 3 and Tier 2, four voltage options, open-architecture components.

View all 8models in this series →

Similar models

Gillette

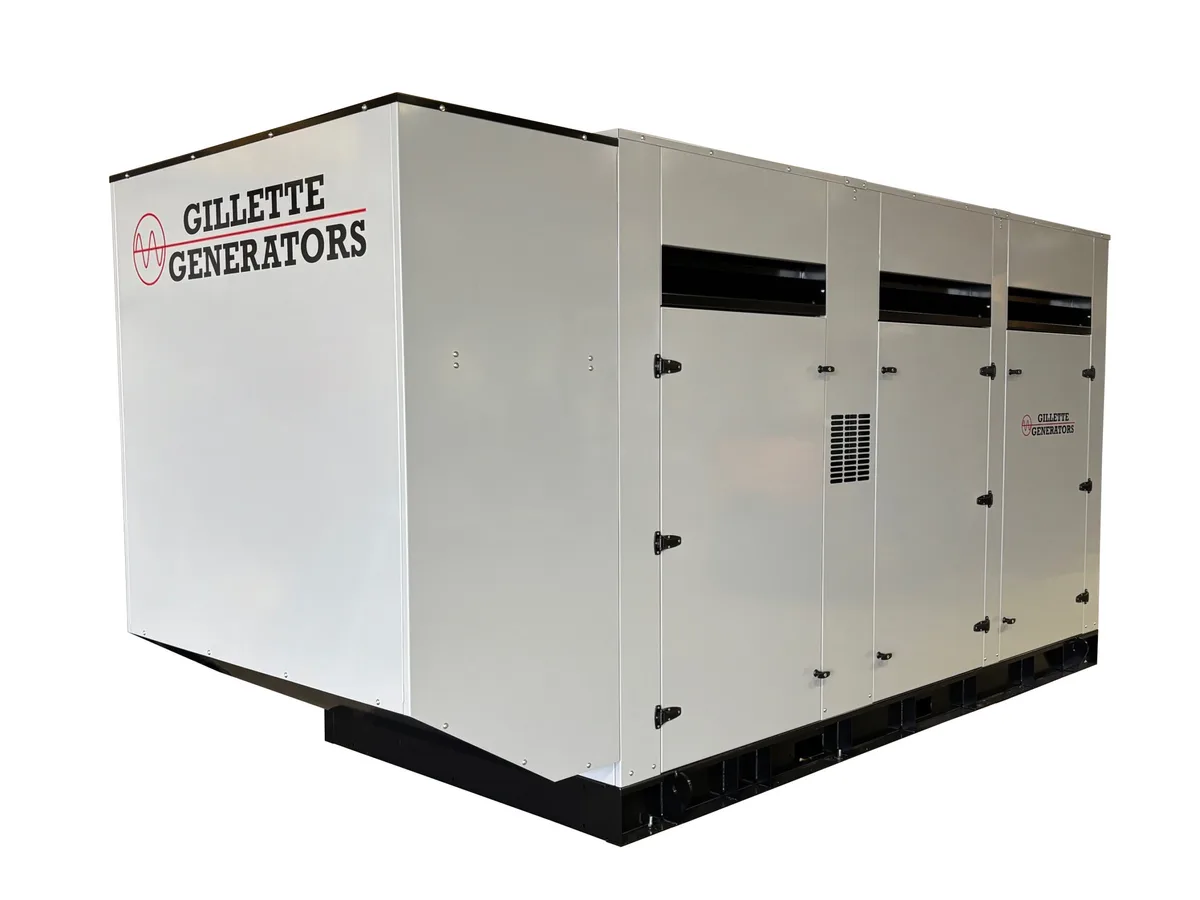

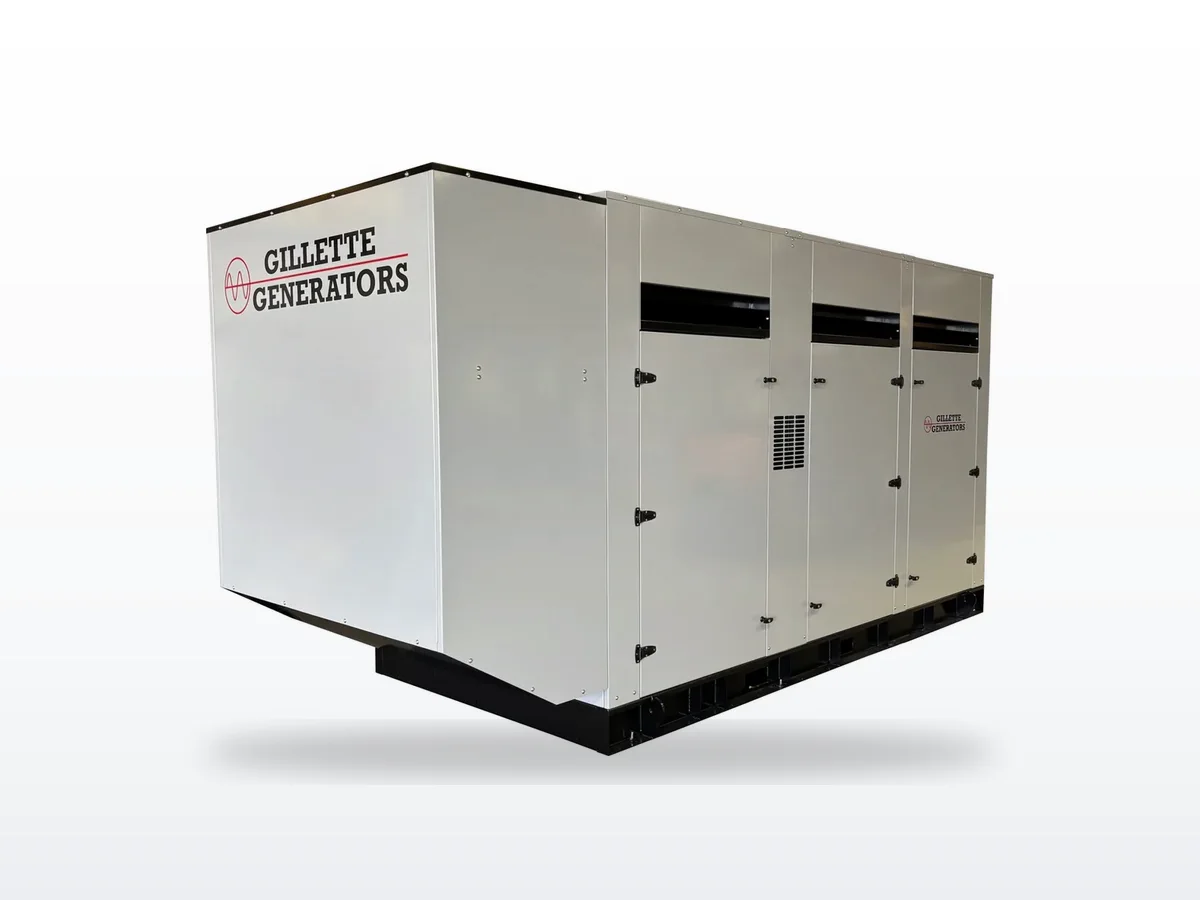

Gillette SPVD-6000

Factory-direct at 15-30% below major brands. Volvo Penta 16.1L engine + Basler controller — no proprietary lock-in. 3-7 day lead times.

600 kW standby · Diesel · Liquid-cooled

600 kW diesel standby for data centers, hospitals, industrial campuses, and large-scale commercial emergency backup.

600 kW stationary diesel standby generator with Volvo Penta TWD1644GE 16.1L engine. Water-to-air aftercooling. Stamford HCI634G alternator, Basler DGC-2020.

Tier 23-phasedata-centerhospital

Gillette

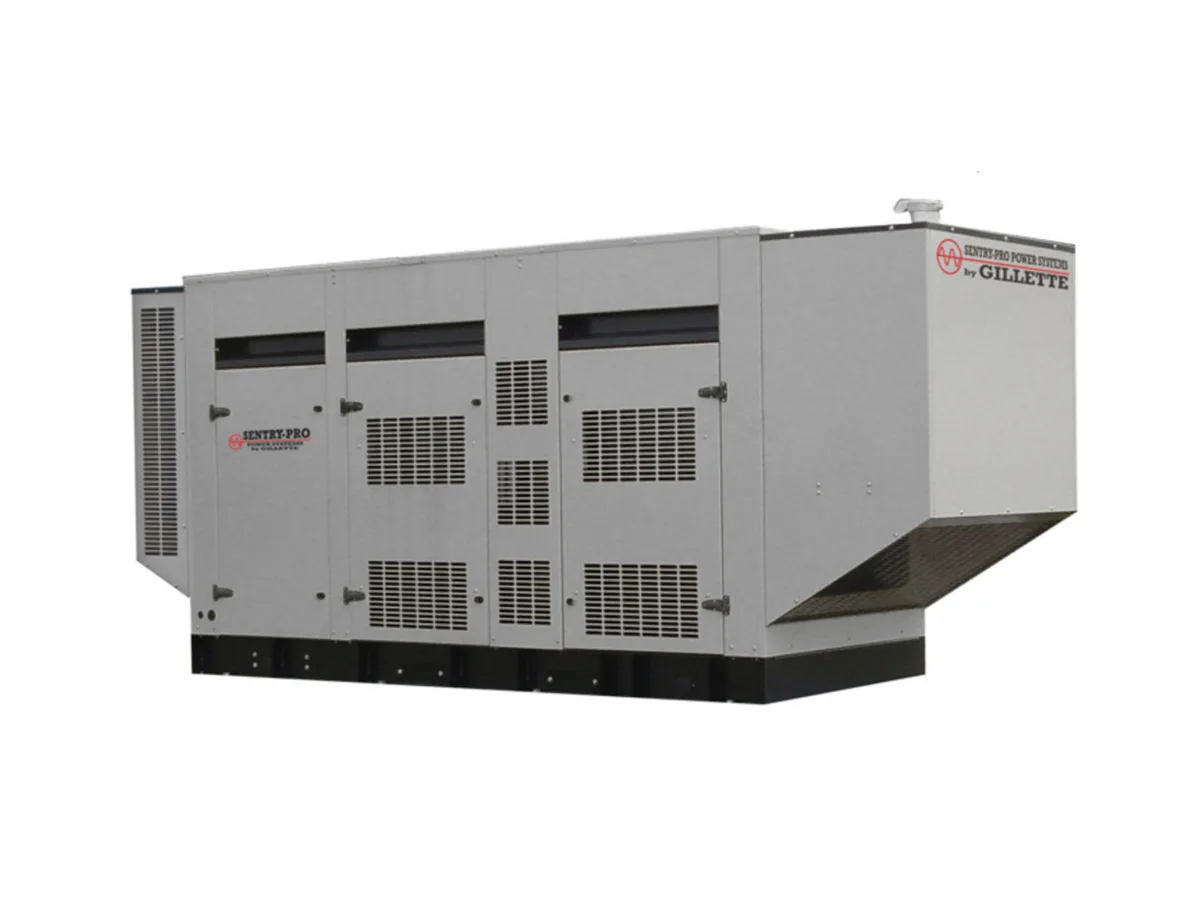

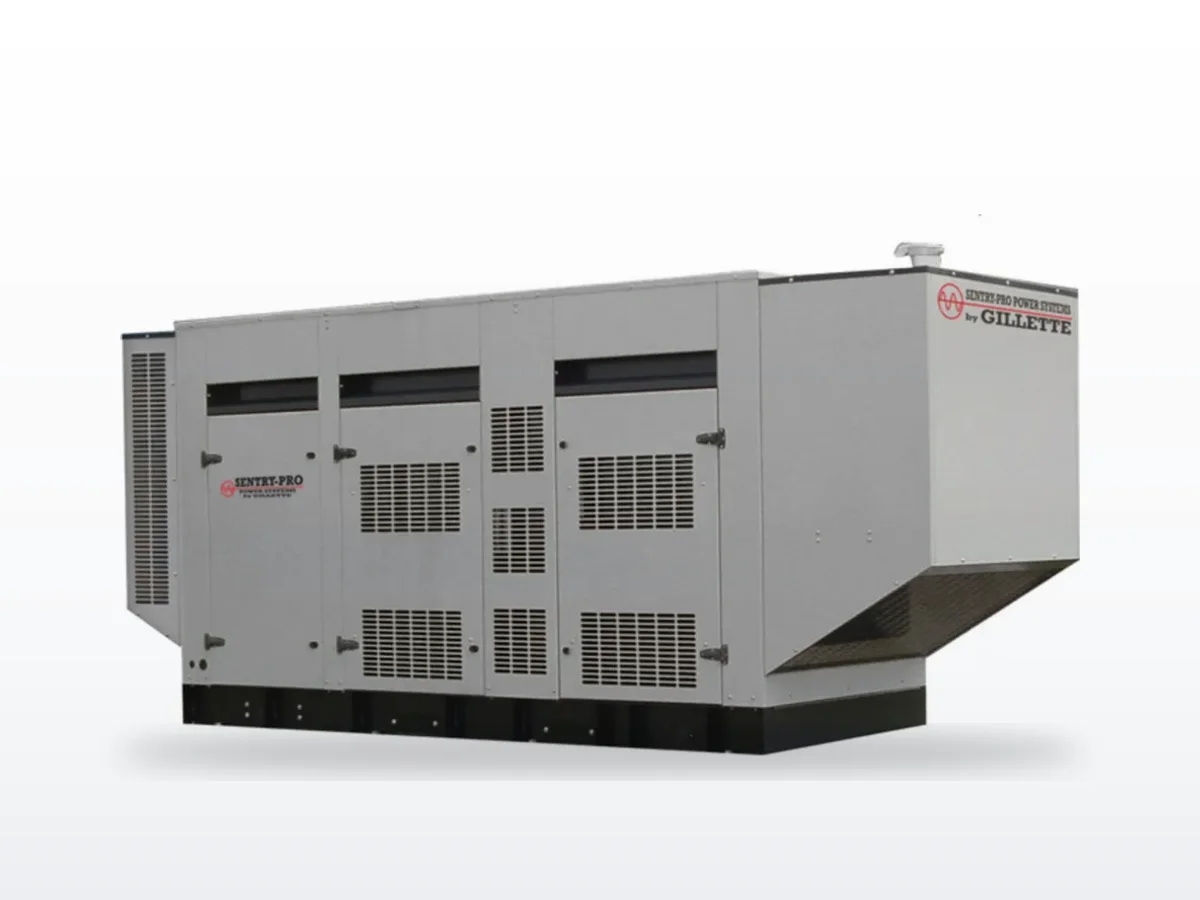

Gillette T4D-6000
