Cummins · Cummins D6 Commercial Diesel

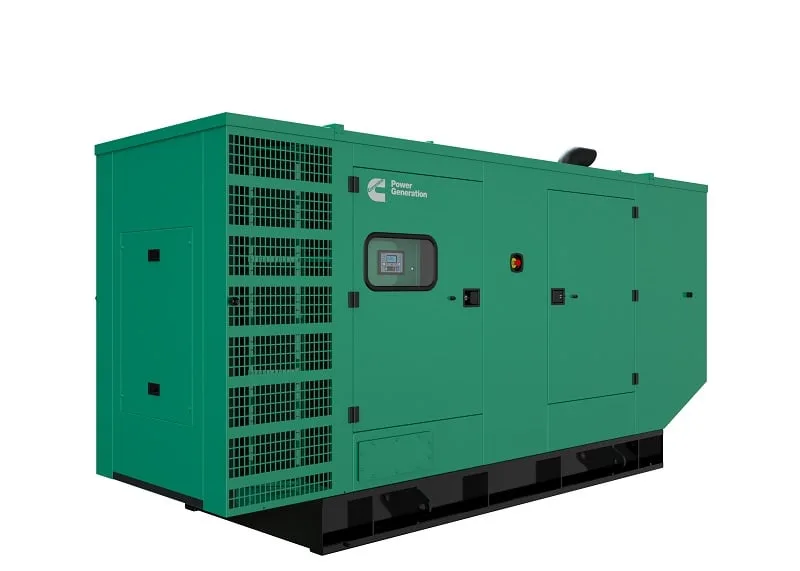

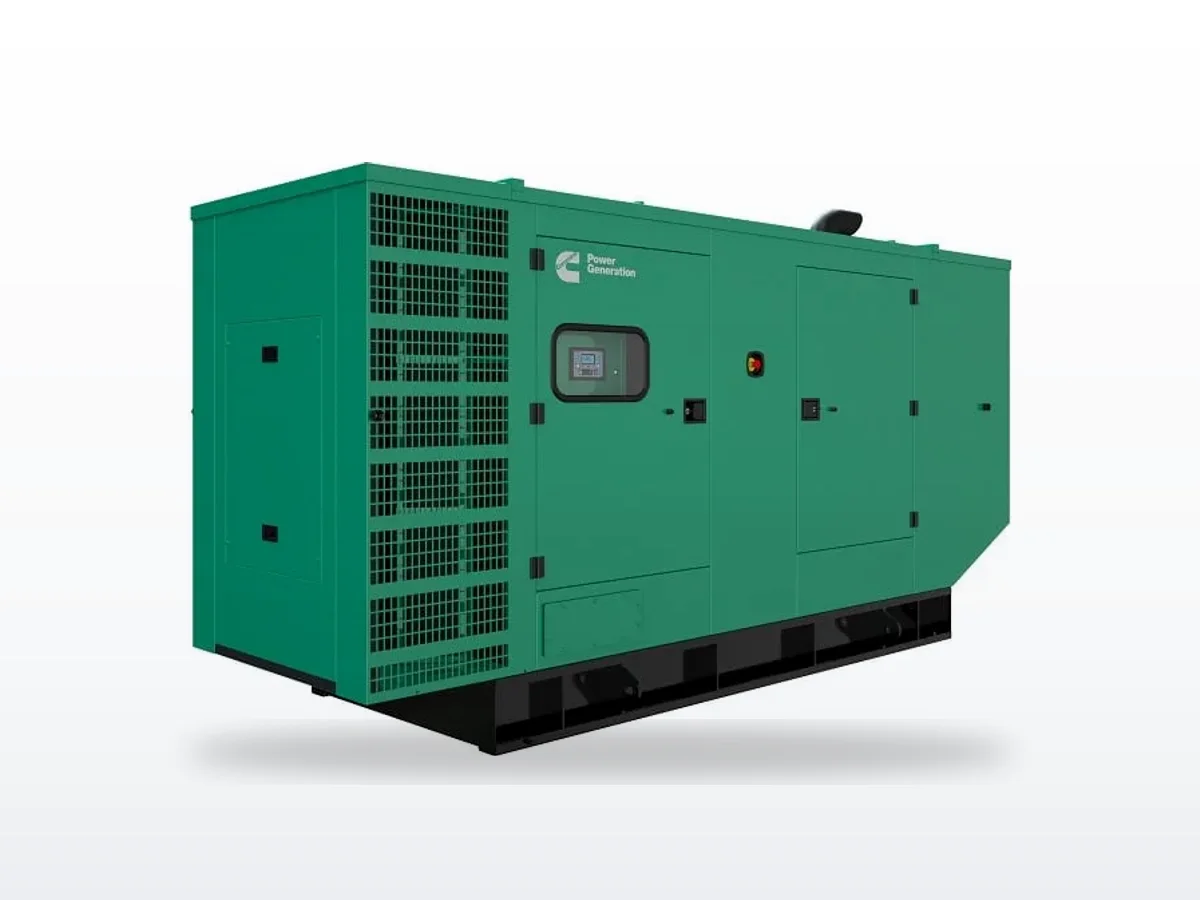

Cummins C300 D6

300 kW standby · Diesel · Liquid-cooled

300 kW EPA Tier 3 diesel standby generator with the Cummins QSL9-G7 inline-6 engine and Bosch HPCR fuel system, for large commercial and industrial standby applications.

Cummins Cummins C300 D6 generator — specifications and details
Standby power
300 kW
Voltage options
120/208V, 277/480V, 347/600V
Frequency / Phase
60 Hz · 3-phase
Engine
Cummins QSL9-G7 · 8.8L
EPA / Emissions
Tier 3

Overview#

The Cummins C300 D6 is a 300 kW standby diesel generator set built on the QSL9-G7 engine -- an 8.8-liter, inline-6-cylinder turbocharged industrial diesel with air-air charge cooling, running at 1800 rpm. The QSL9-G7 specification sheet gives typical generator set output at 60 Hz of 300 kWe (375 kVA) standby and 275 kWe (344 kVA) prime.

The engine features Bosch high-pressure common rail (HPCR) fuel injection, a Holset HX40 wastegated turbocharger, and a 24-valve cylinder head design. It is EPA Tier 3 certified.

The C300 D6 is used for large commercial, healthcare, and data center standby applications.

Our Service Experience#

The QSL9-G7 uses a Bosch high-pressure common rail (HPCR) fuel system, so fuel quality is paramount: fuel contamination shows up as injector faults and rough running.

Frequently Asked Questions#

What fuel consumption should I expect from the C300 D6? Based on the QSL9-G7 engine spec sheet, standby fuel consumption at full 300 kW load is approximately 23.5 gallons per hour (89 L/hr). At 50% of prime power, consumption is approximately 12.6 gallons per hour (48 L/hr).

Engineering specifications

Fuel system & runtime

Fuel use @ full load
23.5 GPH

Ready to order this model?

Configure your Cummins C300 D6

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Estimate runtime for the Cummins C300 D6

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

11.0 hours(0.5 days)

Fuel consumption ≈ 18.13 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Frequently Asked Questions

What engine does the Cummins C300 D6 use?
The C300 D6 uses the Cummins QSL9-G7, an 8.8-liter, inline-6-cylinder, turbocharged diesel with air-air charge cooling, rated at 1800 rpm for 60 Hz. Its specification sheet lists EPA Tier 3, Bosch high-pressure common rail (HPCR) fuel injection, a Holset HX40 wastegated turbocharger, and a 24-valve cylinder head.
What are the standby and prime ratings of the C300 D6?
Standby rating is 300 kWe (375 kVA) and prime rating is 275 kWe (344 kVA) at 1800 rpm (60 Hz), per the typical generator set output on the Cummins QSL9-G7 specification sheet.
Can PowerGen service the C300 D6 in Northern California?
Yes. PowerGen serves the San Francisco Bay Area, Silicon Valley, and broader Northern California with authorized Cummins service.

Compatible equipment

Similar models

Cummins Cummins C275 D6 275 kW liquid-cooled standby generator

Cummins

Cummins C275 D6

275 kW standby diesel generator set with a Cummins QSL9-G9 engine, PCC 3300 control and EPA Tier 4 emissions certification.

275 kW standby · Diesel · Liquid-cooled

275 kW standby, 250 kW prime diesel generator set at 60 Hz with a Cummins QSL9-G9 engine, PCC 3300 control and EPA Tier 4 emissions certification, for commercial and industrial standby applications.

3-phasecommercial-standbylight-industrial

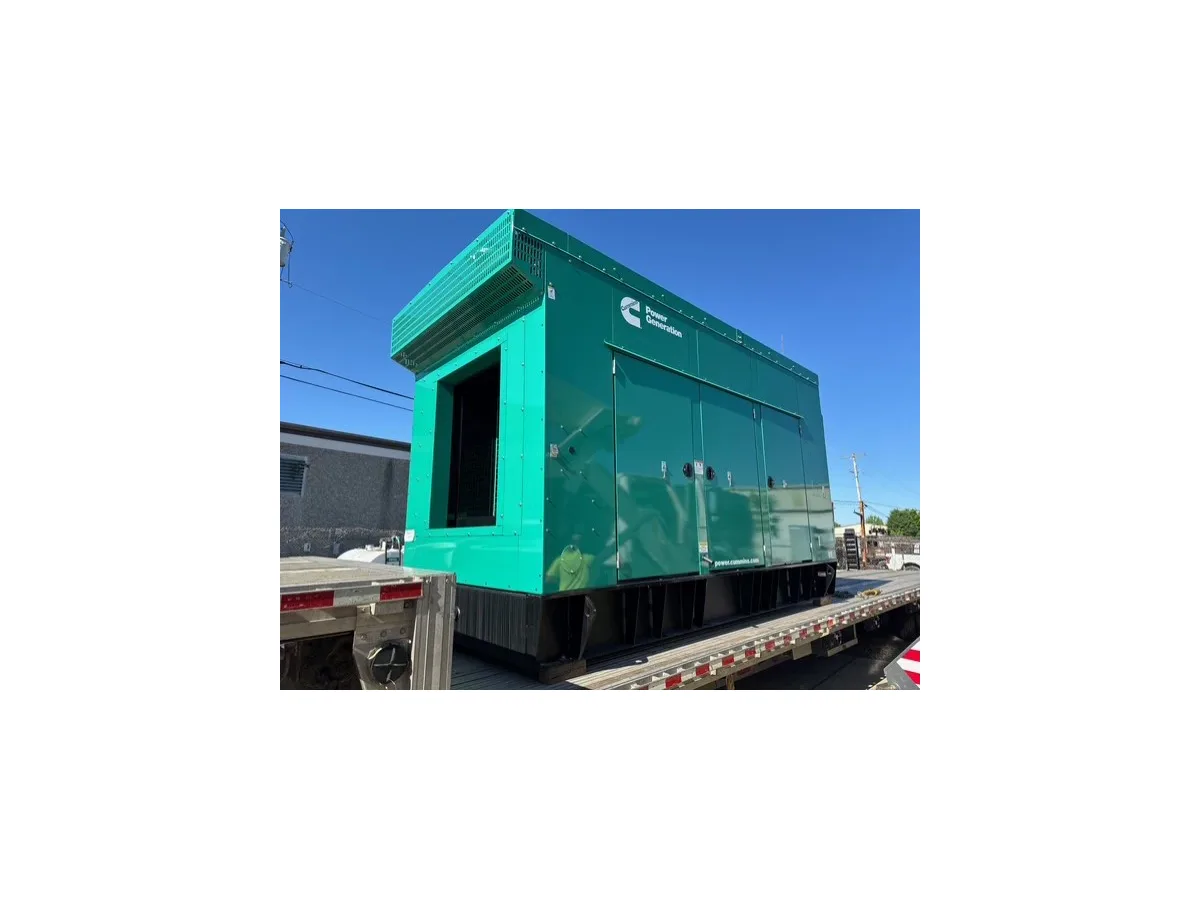

Cummins Cummins C350 D6 350 kW liquid-cooled standby generator

Cummins

Cummins C350 D6

Diesel standby built on the Cummins QSG12-G1: 11.8 L, in-line 6-cylinder, turbocharged, with the Cummins High Pressure Common Rail fuel system.

350 kW standby · Diesel · Liquid-cooled

Diesel standby generator with the Cummins QSG12-G1 in-line 6-cylinder engine and High Pressure Common Rail (HPCR) fuel system, for large commercial and industrial standby applications.

3-phasecommercial-standbylarge-commercial

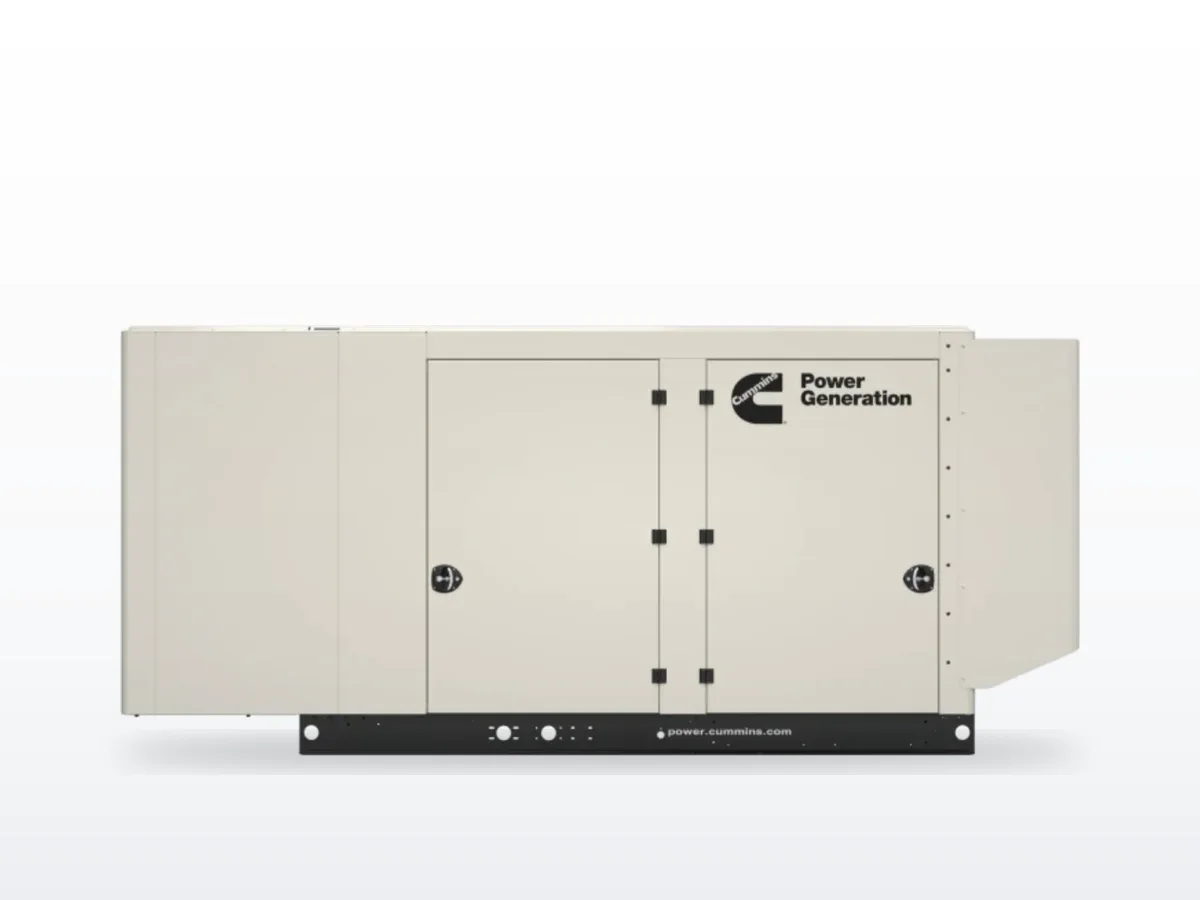

Cummins Cummins C300 N6 300 kW liquid-cooled standby generator
