Overview#

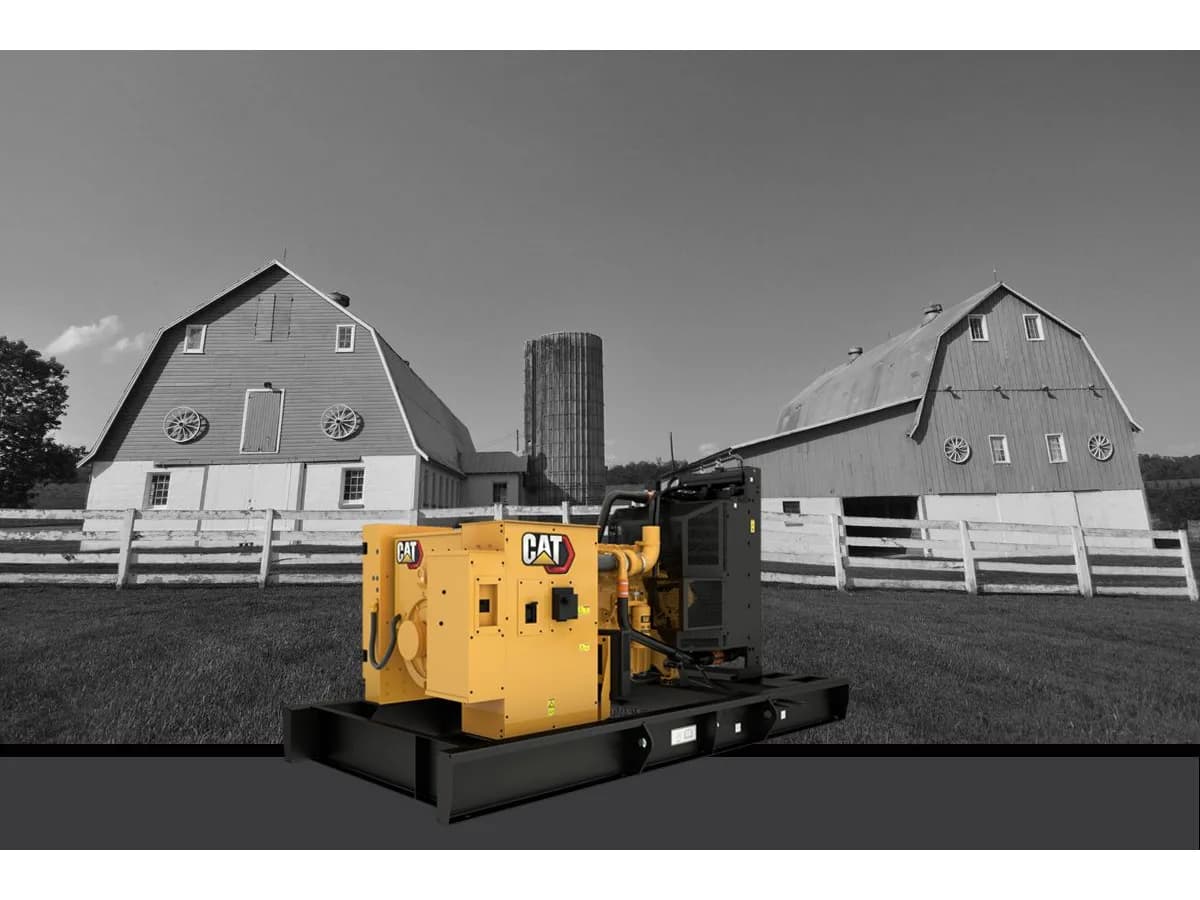

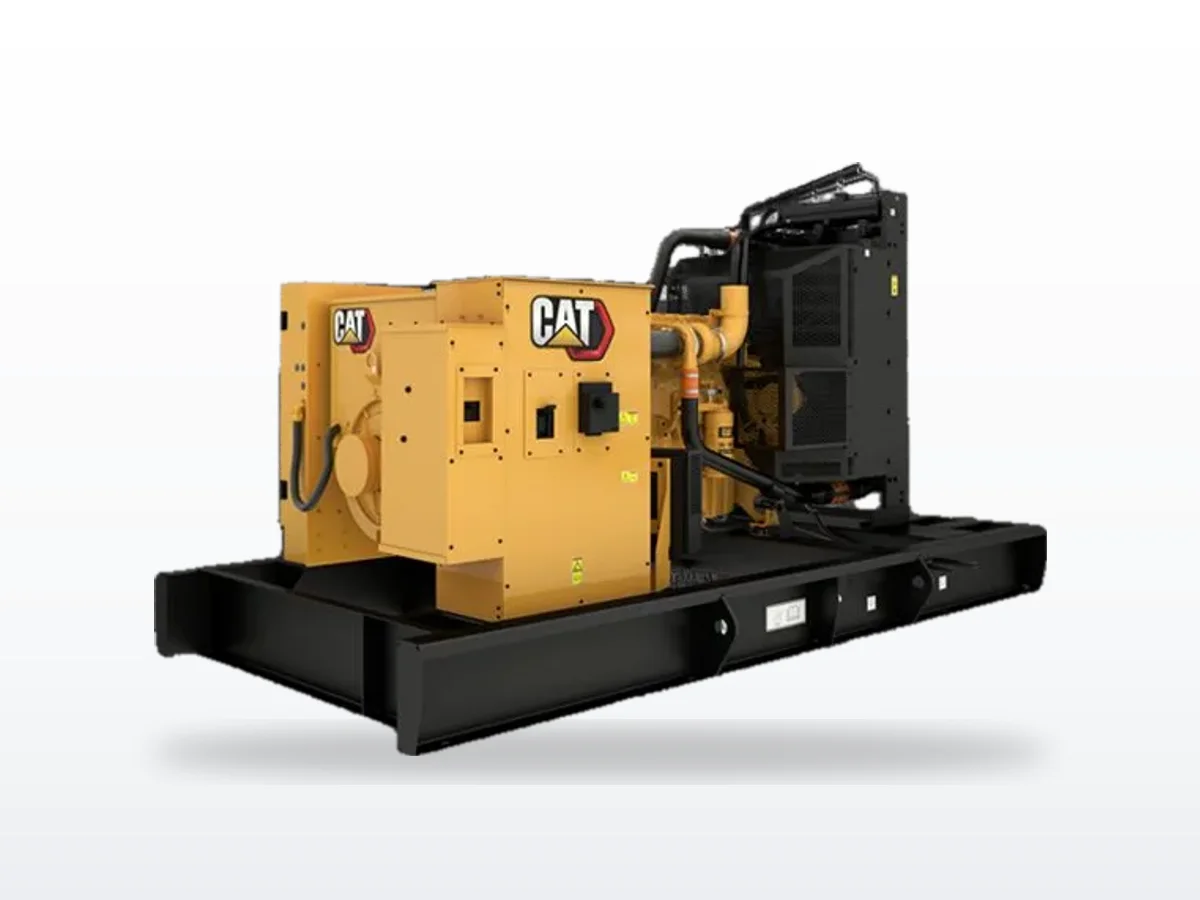

The Caterpillar C9 ACERT is a 250 kW standby diesel generator built on Cat's 8.8-liter inline-6 ACERT engine. The C9 platform supports 200, 250, and 300 ekW standby configurations all using the same engine, giving facility managers flexibility to right-size the system for their load profile without changing the maintenance program. Compact and fuel-efficient relative to its output class, the C9 is a practical choice for retail properties, municipal buildings, light-industrial facilities, and telecom central offices.
As an active product in Cat's ACERT lineup, the C9 benefits from full factory support, a wide dealer service network, and strong parts availability. The generator set meets NFPA 110 Level 1 requirements and is designed to accept 100% rated load in one step per NFPA 110, conforming to ISO 8528-5 transient response requirements. Standard controller is the EMCP 4.2, with EMCP 4.4 available for applications requiring more advanced communication and I/O capabilities.
The C9's four-voltage offering -- 480V, 600V, 208V, and 240V -- makes it compatible with both legacy three-phase electrical distributions and modern 480V distributions, providing installation flexibility across a broad range of existing buildings.
Technical Specifications#
| Parameter | Value |
|---|---|
| Standby rating | 250 ekW |
| Prime rating | 225 ekW |
| Other ratings available | 200 ekW standby / 300 ekW standby |
| Frequency | 60 Hz |
| Speed | 1800 rpm |
| Engine model | Cat C9 ACERT |
| Displacement | 8.8 L (538 in³) |
| Bore x stroke | 112 mm x 149 mm (4.4 in x 5.9 in) |
| Compression ratio | 16.1:1 |
| Aspiration | Turbocharged Air-to-Air Aftercooled |
| Fuel injection | MEUI |
| Governor | ADEM A4 |
| Emissions | EPA Tier 3 (Stationary Emergency) |
| Length (open set) | 122 in (3,091 mm) |
| Width (open set) | 64 in (1,622 mm) |
| Height (open set) | 82 in (2,066 mm) |
| Dry weight (250 kW) | approx. 4,956 lb (2,248 kg) |
| Controller | EMCP 4.2 standard / EMCP 4.4 optional |
| Alternator insulation | Class H |
Our Service Experience#
We service C9 units across a broad range of commercial and telecom accounts in the Bay Area. The 8.8-liter ACERT engine is well-understood by Cat dealers and independent technicians alike, and parts are consistently in stock. The MEUI fuel injection system is reliable in standby service but demands clean, conditioned fuel -- we recommend quarterly fuel polishing and biocide treatment for units that run infrequently.
The C9 covers three standby ratings (200, 250, 300 kW) with the same engine block, which means the same annual PM kit, the same oil capacity, and the same service procedures apply regardless of which rating is installed. This simplifies fleet management for customers with multiple C9 units at different power levels. We recommend annual load bank testing to prevent wet stacking, which is more common in smaller-displacement engines running at low load factors.
Frequently Asked Questions#
What is the output rating of the Caterpillar C9 generator? The Cat C9 ACERT is rated at 250 ekW standby and 225 ekW prime at 60 Hz / 1800 rpm. In the same platform, 200 ekW standby / 180 ekW prime and 300 ekW standby / 275 ekW prime configurations are also available, all using the same 8.8-liter C9 ACERT engine.
What engine does the Cat C9 use? The Cat C9 ACERT -- an 8.8-liter (538 in³) inline-6, four-stroke turbocharged air-to-air aftercooled diesel with a 112 mm x 149 mm bore and stroke and 16.1:1 compression ratio. The engine uses MEUI (Mechanically-actuated Electronically-controlled Unit Injection) fuel system with an ADEM A4 electronic governor. EPA Tier 3 certified for stationary emergency use.
What are the dimensions of the Cat C9 generator set? In open-skid configuration, the Cat C9 generator set measures approximately 122 inches (3,091 mm) long, 64 inches (1,622 mm) wide, and 82 inches (2,066 mm) high. Dry weight for the 250 ekW standby configuration is approximately 4,956 lb (2,248 kg). Sound attenuated enclosures measure 177.8 x 80.2 x 86.5 in.
What is the C9 well-suited for? The C9 is a strong fit for retail centers, telecom facilities, municipal buildings, and light-industrial sites in the 200-300 kW range that need a proven, actively supported platform with good parts availability.
How does the C9 compare to the C13? The C9 steps down from the C13 in both displacement (8.8L vs 12.5L) and output (250 kW vs 350 kW standby). Both share the ACERT Tier 3 emissions platform, MEUI fuel injection, and active support status. Service procedures and tooling are similar across both models.
