What engine does the VD300-04FT4MP use?

The Volvo Penta TAD1383VE — a 12.8-liter, six-cylinder turbocharged and charge-air-cooled diesel. The TAD1383VE is the higher-output calibration of the 12.8L VP platform shared with the VD250-04FT4MP (TAD1381VE). Both engines share the same block, cylinder count, and displacement; the 1383 calibration produces 300 kWe through higher fuel delivery and boost. EPA Tier 4 Final and EU Stage 5 dual certification applies. The 18.5-gallon DEF tank is shared across the VD100 through VD300 mobile range. Rated power is available to 4,921 ft (1,500 m) at 122°F (50°C).

Is the VD300-04FT4MP available in single-phase output?

No. The VD300-04FT4MP is three-phase only — available in 120/208V (3Ø) and 277/480V (3Ø) configurations. Single-phase 120/240V output is not available at 300 kWe in the Blue Star mobile T4F VD series. The VD250-04FT4MP is the last model in this lineup to support single-phase output. Loads requiring single-phase above 250 kWe from this product line require a transformer or a different product.

How does the VD300-04FT4MP compare to the VD250-04FT4MP on the same 260 × 92 in platform?

The VD250 (TAD1381VE, 15,400 lbs, 17.3 gph, S4L1D-D41) and VD300 (TAD1383VE, 15,700 lbs, 21.1 gph, S4L1D-E41) are footprint-compatible — same 260 × 92 × 124 in trailer — but diverge in phase capability: VD250 supports single-phase, VD300 does not. The weight difference is 300 lbs. The 50 kWe gain costs approximately 3.8 gph at full load. Both share the 350-gallon fuel tank and 18.5-gallon DEF tank. The S4L1D-E41 alternator in the VD300 is the E-wind variant of the S4L1D frame, one step above the D41 in the VD250.

What are the fuel capacity and runtime of the VD300-04FT4MP?

The 350-gallon integral fuel tank at full load (21.1 gph) provides approximately 16.6 hours of runtime. At 75% load (16.6 gph), runtime extends to approximately 21 hours. The 18.5-gallon DEF tank needs refill approximately every 17 hours at full load. Combustion air draw is 931 CFM; ventilation requirement is 13,074 CFM; heat rejected to coolant is 582,660 BTU/hr; exhaust exits at 893°F at 1,823 CFM. Plan daily fuel and DEF replenishment for around-the-clock deployments.

Blue Star Power Systems · Volvo Penta Diesel Mobile

Blue Star VD300-04FT4MP

Name: Blue Star VD300-04FT4MP
Brand: Blue Star Power Systems
Availability: PreOrder

300 kW standby · Diesel · Liquid-cooled

300 kW Tier 4 Final / EU Stage 5 mobile trailer diesel generator built by Blue Star Power Systems. Volvo Penta TAD1383VE six-cylinder engine, Stamford S4L1D-E41 alternator, DSE DCP7310 controller, 350-gallon integrated fuel tank.

Standby power: 300 kW / 300 kW prime
Voltage options: 120/208V, 277/480V
Frequency / Phase: 60 Hz · 3-phase
Engine: Volvo Penta TAD1383VE · 12.8L
EPA / Emissions: Tier 4 Final
Alternator: Stamford S4L1D-E41

Commercialtemporary-powerManufacturing Government Media & Telecompump-stationHealthcare

Configure & Quote Download spec sheet

Overview#

The Blue Star VD300-04FT4MP is a 300-kilowatt EPA Tier 4 Final / EU Stage 5 mobile trailer diesel generator powered by the Volvo Penta TAD1383VE — a 12.8-liter, six-cylinder turbocharged and charge-air-cooled engine. It is the highest-output model on Blue Star's 260 × 92 in mobile trailer platform and the maximum output available from the TAD1383VE in this product line.

Blue Star Power Systems pairs the TAD1383VE with a Stamford S4L1D-E41 alternator and DSE DCP7310 controller, mounted on an aluminum road trailer with a 350-gallon integral fuel tank and 18.5-gallon DEF tank. At 15,700 lbs, the VD300-04FT4MP is three-phase only — no single-phase output option exists at this output level in the mobile T4F lineup. The next step up is the VD550-04FT4MP, which moves to the larger 334.5 × 99.5 in trailer platform with a 550-gallon fuel tank.

Three-Phase Only at 300 kW#

The VD300-04FT4MP is three-phase only. Unlike the VD250 below it (which supports 120/240V single-phase), the VD300 is available only in 120/208V and 277/480V three-phase configurations. This is an important planning distinction for applications with any single-phase load requirements. If 120/240V single-phase is needed at or near 300 kWe, a step-down transformer or a different product specification is required.

Platform Ceiling on the 260 × 92 Trailer#

The VD300-04FT4MP is the maximum output available on the 260 × 92 in trailer class. The VD550-04FT4MP steps up to the 334.5 × 99.5 in trailer with the TWD1682GE engine (16.12L, I-6) and a 550-gallon fuel tank — representing a substantial increase in trailer size, weight (24,750 lbs vs 15,700 lbs), and fuel capacity. If load requirements sit between 300 and 550 kWe, there is no intermediate model in the mobile T4F VD series.

When to specify the VD300-04FT4MP#

270–300 kW three-phase temporary or standby power at industrial, construction, municipal, or healthcare sites
Maximum output from the 260 × 92 in Blue Star mobile trailer class
Sites up to 4,921 ft elevation at ambient temperatures to 122°F
Applications requiring EU Stage 5 dual certification at 300 kWe
Projects where the 334.5 × 99.5 in VD550 trailer is too large and 300 kWe satisfies the load requirement

Our service experience#

The TAD1383VE running at 300 kWe full load consumes 21.1 gph — plan fuel logistics accordingly for 24-hour deployments (approximately 500 gallons per day). The 18.5-gallon DEF tank requires daily attention at this consumption rate. Exhaust temperature of 893°F is on the higher end for this platform; ensure exhaust connections and flex connectors are rated appropriately. DPF regeneration is generally reliable at this load density. Annual full-load testing and Volvo Penta T4F/Stage 5 aftertreatment inspections are required maintenance items.

Engineering specifications

Physical

Length: 260 in
Width: 92 in
Height: 124 in
Dry weight: 15,700 lb

Acoustic

Sound @ 7m, full load: 72 dBA
Enclosure: Open

Fuel system & runtime

Integral fuel tank: 350 gal
Fuel use @ full load: 21.1 GPH
Fuel use @ 75% load: 16.6 GPH
Fuel use @ 50% load: 11.9 GPH
DEF tank: 18.5 gal

Thermal & ventilation

Heat to coolant: 582,660 BTU/hr
Heat radiated: 368,040 BTU/hr
Exhaust flow: 1,823 CFM
Exhaust temp: 893 °F
Combustion air: 931 CFM
Ventilation air: 13,074 CFM

Documents & downloads

Spec sheets & manuals

Spec sheet (datasheet)

Ready to order this model?

Configure your Blue Star VD300-04FT4MP

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Configure & Quote →Just request a quote Download datasheet

Estimate runtime for the Blue Star VD300-04FT4MP

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Generator size

Fuel

Fuel tank capacity

gal

Load

Override full-load GPH (optional)

GPH

Estimated runtime

21.5 hours(0.9 days)

Fuel consumption ≈ 16.28 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Service intervals

Manufacturer-recommended intervals for the Blue Star VD300-04FT4MP under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.

Oil & filter: Every 500 hours or 12 months
Coolant change: Every 6000 hours
Air filter: Every 1000 hours
Fuel filter: Every 500 hours
Major overhaul: ≈ 20,000 hours
Load bank test: Every 12 months

Common failure modes

What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.

Component	Symptom	Typical hours	Severity
DEF system (SCR catalyst)	Derate warning, NOx fault, DEF quality alert	4,380+	moderate
Fuel quality	Injector fouling, hard starting	4,380+	moderate
Battery	Failed to start, slow crank	8,760+	minor

Frequently Asked Questions

What engine does the VD300-04FT4MP use?: The Volvo Penta TAD1383VE — a 12.8-liter, six-cylinder turbocharged and charge-air-cooled diesel. The TAD1383VE is the higher-output calibration of the 12.8L VP platform shared with the VD250-04FT4MP (TAD1381VE). Both engines share the same block, cylinder count, and displacement; the 1383 calibration produces 300 kWe through higher fuel delivery and boost. EPA Tier 4 Final and EU Stage 5 dual certification applies. The 18.5-gallon DEF tank is shared across the VD100 through VD300 mobile range. Rated power is available to 4,921 ft (1,500 m) at 122°F (50°C).
Is the VD300-04FT4MP available in single-phase output?: No. The VD300-04FT4MP is three-phase only — available in 120/208V (3Ø) and 277/480V (3Ø) configurations. Single-phase 120/240V output is not available at 300 kWe in the Blue Star mobile T4F VD series. The VD250-04FT4MP is the last model in this lineup to support single-phase output. Loads requiring single-phase above 250 kWe from this product line require a transformer or a different product.
How does the VD300-04FT4MP compare to the VD250-04FT4MP on the same 260 × 92 in platform?: The VD250 (TAD1381VE, 15,400 lbs, 17.3 gph, S4L1D-D41) and VD300 (TAD1383VE, 15,700 lbs, 21.1 gph, S4L1D-E41) are footprint-compatible — same 260 × 92 × 124 in trailer — but diverge in phase capability: VD250 supports single-phase, VD300 does not. The weight difference is 300 lbs. The 50 kWe gain costs approximately 3.8 gph at full load. Both share the 350-gallon fuel tank and 18.5-gallon DEF tank. The S4L1D-E41 alternator in the VD300 is the E-wind variant of the S4L1D frame, one step above the D41 in the VD250.
What are the fuel capacity and runtime of the VD300-04FT4MP?: The 350-gallon integral fuel tank at full load (21.1 gph) provides approximately 16.6 hours of runtime. At 75% load (16.6 gph), runtime extends to approximately 21 hours. The 18.5-gallon DEF tank needs refill approximately every 17 hours at full load. Combustion air draw is 931 CFM; ventilation requirement is 13,074 CFM; heat rejected to coolant is 582,660 BTU/hr; exhaust exits at 893°F at 1,823 CFM. Plan daily fuel and DEF replenishment for around-the-clock deployments.

Compatible equipment

Engine

Volvo Penta TAD1383VEEngines

Transfer switches

More in the Volvo Penta Diesel Mobile

100–600 kW Tier 4 Final mobile trailer diesel generators on Volvo Penta platforms — all eight models EPA/EU Stage 5 certified.

View all 8models in this series →

Similar models

Blue Star Power Systems

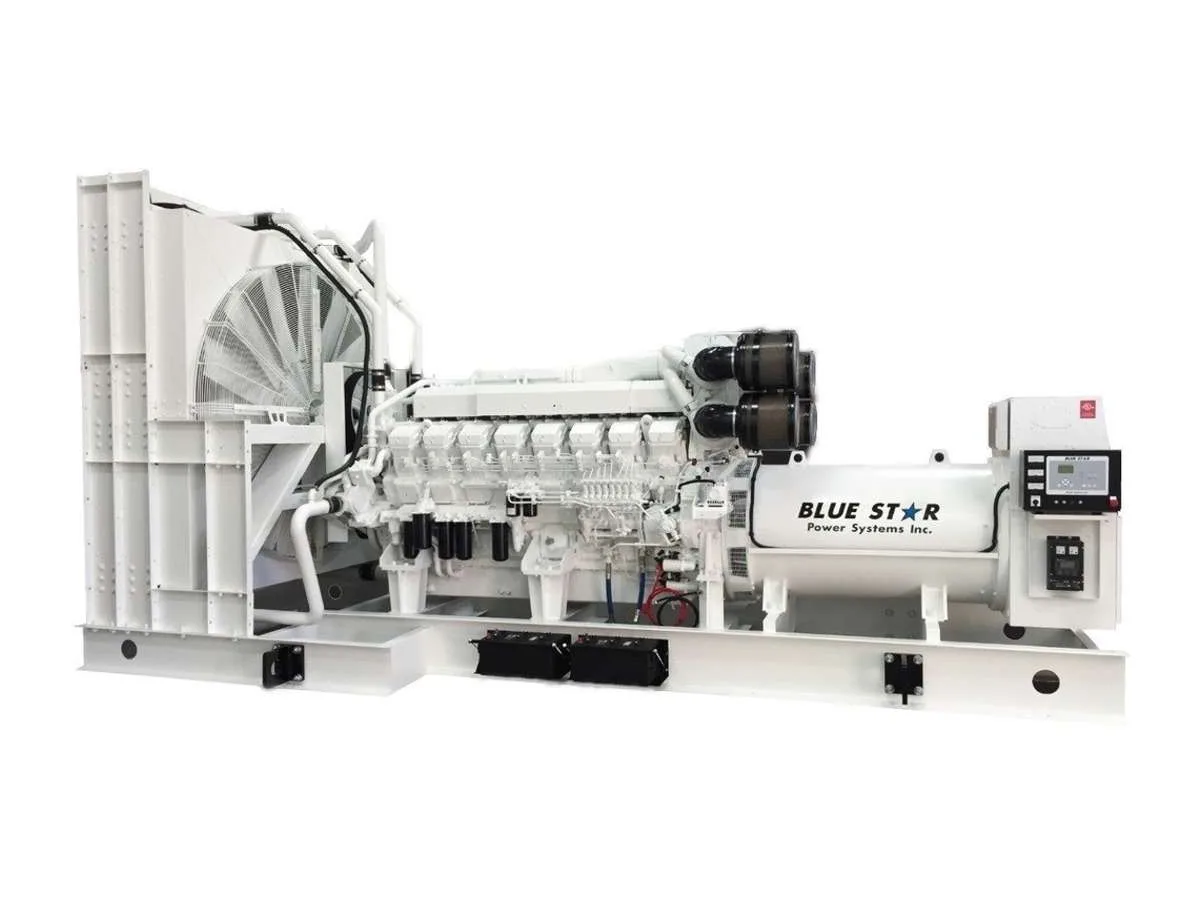

Blue Star VD300-02FT4

Open Basler DGC-2020 controller + Volvo Penta engine + Stamford alternator — Tier 4 Final, no proprietary lock-in. Serviceable by any qualified tech.

300 kW standby · Diesel · Liquid-cooled

300 kW Tier 4 Final diesel standby for large commercial and campus facilities requiring current emissions compliance and open-architecture components.

300 kW Tier 4 Final diesel standby generator. Volvo Penta TAD1373VE 12.8L inline-six, 208-600V output, with Basler DGC-2020 controller and SCR aftertreatment.

Tier 4 Final3-phaselarge-commercialhospital-non-critical

Blue Star Power Systems

Blue Star VD300-04FT4

Open Basler controller + Volvo Penta engine + Stamford alternator — Tier 4 Final compliant, no proprietary lock-in. Serviceable by any qualified tech.

300 kW standby · Diesel · Liquid-cooled

300 kW Tier 4 Final diesel standby for large commercial, campus, and industrial facilities requiring current emissions and component independence.

300 kW Tier 4 Final diesel standby/prime generator from Blue Star Power Systems. Volvo Penta TAD1383VE 12.8L inline-six with SCR/DPF/DOC, DSE DCP7310 controller, 208-600V.

Tier 4 Final3-phaselarge-commercialhospital-non-critical

Blue Star Power Systems

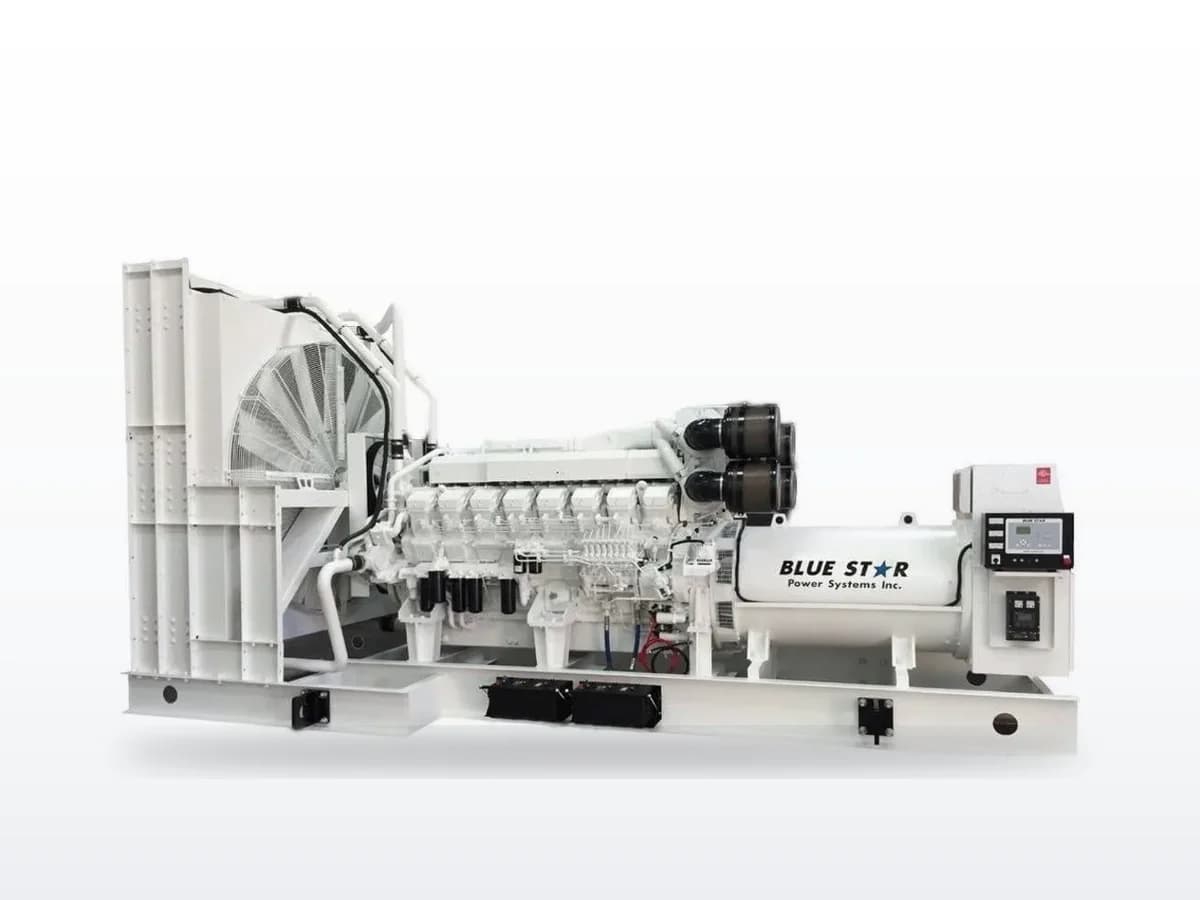

Blue Star VD250-04FT4MP
