Blue Star Power Systems · Volvo Penta Diesel Standby

Blue Star VD300-01

300 kW standby · Diesel · Liquid-cooled

300 kW Tier 3 diesel standby generator from Blue Star Power Systems. Volvo Penta TAD1351GE 12.8L inline-six with DSE DCP7310 controller, 208-600V output.

Blue Star Power Systems Blue Star VD300-01 generator — specifications and details
Standby power
300 kW
Voltage options
120/208V, 120/240V, 277/480V, 347/600V
Frequency / Phase
60 Hz · 1/3-phase
Engine
Volvo Penta TAD1351GE · 12.8L
EPA / Emissions
Tier 3
Alternator
Stamford S4L1D-D41
CommercialHealthcareHospitalityGovernmentlight-industrialManufacturingdata-center-edge
Configure & QuoteDownload spec sheet

Overview#

The Blue Star VD300-01 is a 300-kilowatt EPA Tier 3 diesel standby generator built around the Volvo Penta TAD1351GE — a 12.8-liter inline-six that marks the transition from the 7.7L TAD851-853GE engine family used in the VD230/250/275 models. This is a current-production active model.

The move to the larger-displacement engine brings meaningful engineering advantages: a 6,560 ft altitude deration ceiling (versus 1,640 ft for the VD275-01), V-ACT combustion technology with electronic high-pressure unit injectors, and overhead camshaft with four valves per cylinder.

The Volvo Penta TAD1351GE platform#

The TAD1351GE is the entry point to Volvo Penta's 12.8L industrial diesel family — the same displacement block that powers Blue Star's units up through the 400+ kW range:

  • 12.8L inline-six — 66% more displacement than the 7.7L TAD851-853GE, with bore of 5.16 in and stroke of 6.22 in
  • V-ACT combustion technology — Volvo Advanced Combustion Technology with internal EGR, flexible high-pressure fuel injection, and enhanced electronic controller
  • Overhead camshaft, four valves per cylinder — a more sophisticated valvetrain than the TAD851-853GE family
  • 6,560 ft altitude ceiling — rated power available to 2,000 m, making this suitable for virtually all Northern California job sites including mountain installations
  • Switchable 1500/1800 RPM — dual-speed capability for 50/60 Hz applications

Variant selection guide#

The VD300-01 bridges the gap between Blue Star's 7.7L and 12.8L Volvo Penta engine families:

  • VD275-01 (275 kW, Volvo TAD853GE 7.7L) — lighter and more compact, but limited to 1,640 ft altitude. Choose this only for low-elevation sites where 275 kW meets the load study.
  • VD350-01 (350 kW, Volvo Penta) — next step up on the same 12.8L platform if 300 kW is marginal.
  • JD300-03 (300 kW, John Deere) — same kW class, different engine OEM. John Deere's agricultural dealer network offers faster parts in rural regions.

When to spec the VD300-01#

  • 240-300 kW continuous emergency standby loads on diesel fuel
  • Sites at any elevation up to 6,560 ft — ideal for Northern California foothill and mountain installations where the 7.7L models derate
  • Large commercial facilities: hospitals (non-critical), hotels, retail centers, school campuses, municipal buildings
  • Applications requiring Tier 3 compliance (most US jurisdictions for stationary emergency standby)
  • Competitive bids against Kohler, Cummins, and Generac units in the 275-350 kW class

Our service experience#

The TAD1351GE is well-supported through Volvo Penta's industrial dealer channel. The engine uses electronic high-pressure unit injectors (not common rail like the 7.7L models), which affects the service tooling required. The 12.8L block is physically larger — the OPU stands 80 inches tall versus 72 inches for the 7.7L models — so site clearance must be verified for pad and enclosure installations. The 6,560 ft altitude rating eliminates deration concerns for virtually all Northern California job sites, which is a significant specification advantage over the VD275-01. The DSE DCP7310 controller and Stamford alternator are shared with the rest of the Blue Star lineup, keeping service parts commonality high.#

Engineering specifications

Physical

Length
120 in
Width
66 in
Height
80 in
Dry weight
7,775 lb

Acoustic

Sound @ 7m, full load
88 dBA
Enclosure
Open

Fuel system & runtime

Fuel use @ full load
21.4 GPH
Fuel use @ 75% load
16.4 GPH
Fuel use @ 50% load
11.7 GPH

Thermal & ventilation

Heat to coolant
532,320 BTU/hr
Heat radiated
362,100 BTU/hr
Exhaust flow
2,129 CFM
Exhaust temp
869 °F
Combustion air
908 CFM

Documents & downloads

Spec sheets & manuals

Ready to order this model?

Configure your Blue Star VD300-01

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Configure & Quote →Just request a quoteDownload datasheet

Estimate runtime for the Blue Star VD300-01

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

12.1 hours(0.5 days)

Fuel consumption ≈ 16.51 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Service intervals

Manufacturer-recommended intervals for the Blue Star VD300-01 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.

Oil & filter
Every 500 hours or 12 months
Coolant change
Every 6000 hours
Air filter
Every 1000 hours
Fuel filter
Every 500 hours
Major overhaul
≈ 20,000 hours
Load bank test
Every 12 months

Common failure modes

What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.

ComponentSymptomTypical hoursSeverity
Fuel quality / degradationHard starting, filter clogging, reduced power4,380+moderate
TurbochargerPower loss, excessive smoke under load12,000+moderate
BatteryFailed to start, slow crank8,760+minor

Frequently Asked Questions

What engine is in the VD300-01?
The Volvo Penta TAD1351GE — a 12.8-liter inline-six turbocharged-aftercooled diesel rated 456 HP (335 kWm) at 1800 RPM. This is a step up from the 7.7L TAD851-853GE family used in the VD230/250/275 models. The TAD1351GE uses Volvo's V-ACT (Advanced Combustion Technology) with electronic high-pressure unit injectors, overhead camshaft, and four valves per cylinder. EPA/CARB Tier 3 and EU Stage 3A certified.
How does the VD300-01 compare to the VD275-01?
The VD300-01 moves to an entirely different engine platform — the 12.8L TAD1351GE versus the 7.7L TAD853GE in the VD275-01. The larger displacement gives the VD300-01 a significantly better altitude deration: rated power available up to 6,560 ft (2,000 m) versus only 1,640 ft (500 m) for the VD275-01. The trade-off is size and weight — the VD300-01 is 8 inches taller (80 vs 72 in) and 2,000 lbs heavier (7,775 vs 5,750 lbs).
What controller does the VD300-01 use?
The DSE DCP7310 — the same controller used across Blue Star's current diesel lineup. It features CAN bus J1939 communications, RS-485 interface, IP 65 front panel rating, and remote communications via DSE2548 annunciator. cULus Listed and NFPA 110 Level 1 compatible.
What is the altitude deration for the VD300-01?
Rated power is available up to 6,560 ft (2,000 m) at ambient temperatures to 122F (50C). This is a major advantage over the 7.7L Volvo Penta models (VD230-275), which are limited to 1,640-4,921 ft depending on the variant. For high-altitude sites in the Sierra Nevada foothills or mountain regions, the VD300-01's 12.8L engine provides substantially more margin.

Compatible equipment

Transfer switches

More in the Volvo Penta Diesel Standby

100–700 kW Volvo Penta diesel standby across Tier 4 Final, Tier 3, and Tier 2 — 22 models, one and three-phase.

View all 22models in this series →

Similar models

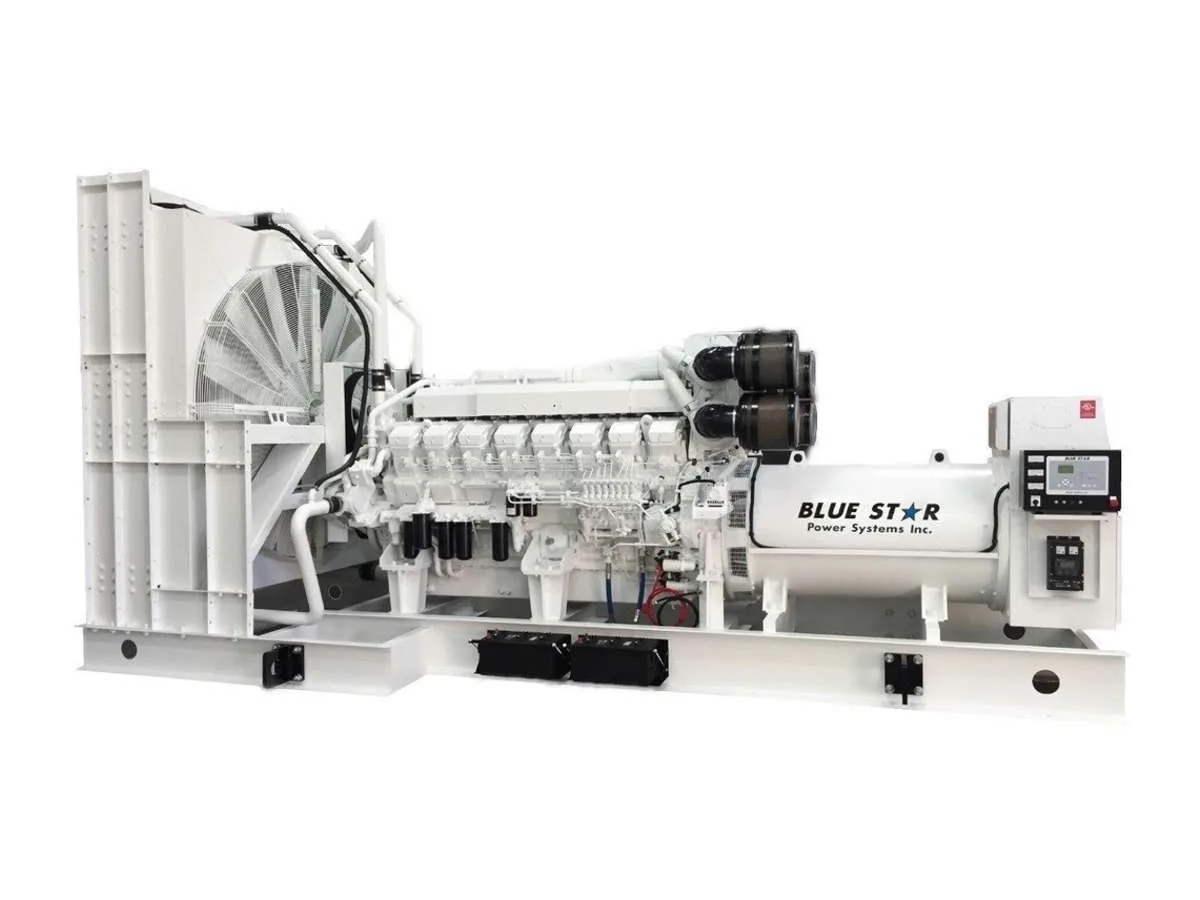

Blue Star Power Systems Blue Star VD300-02FT4 300 kW liquid-cooled standby generator
