Blue Star Power Systems · PSI Small Gaseous (20-100 kW)

Blue Star PS40-01P

40 kW standby / 35 kW prime · Natural Gas / LPG · Liquid-cooled

35 kW prime natural gas / LP generator from Blue Star Power Systems. PSI 4.3L six-cylinder V6 engine with catalyst/silencer, UCI224C alternator, DSE DCP7310 controller, 208-600V output.

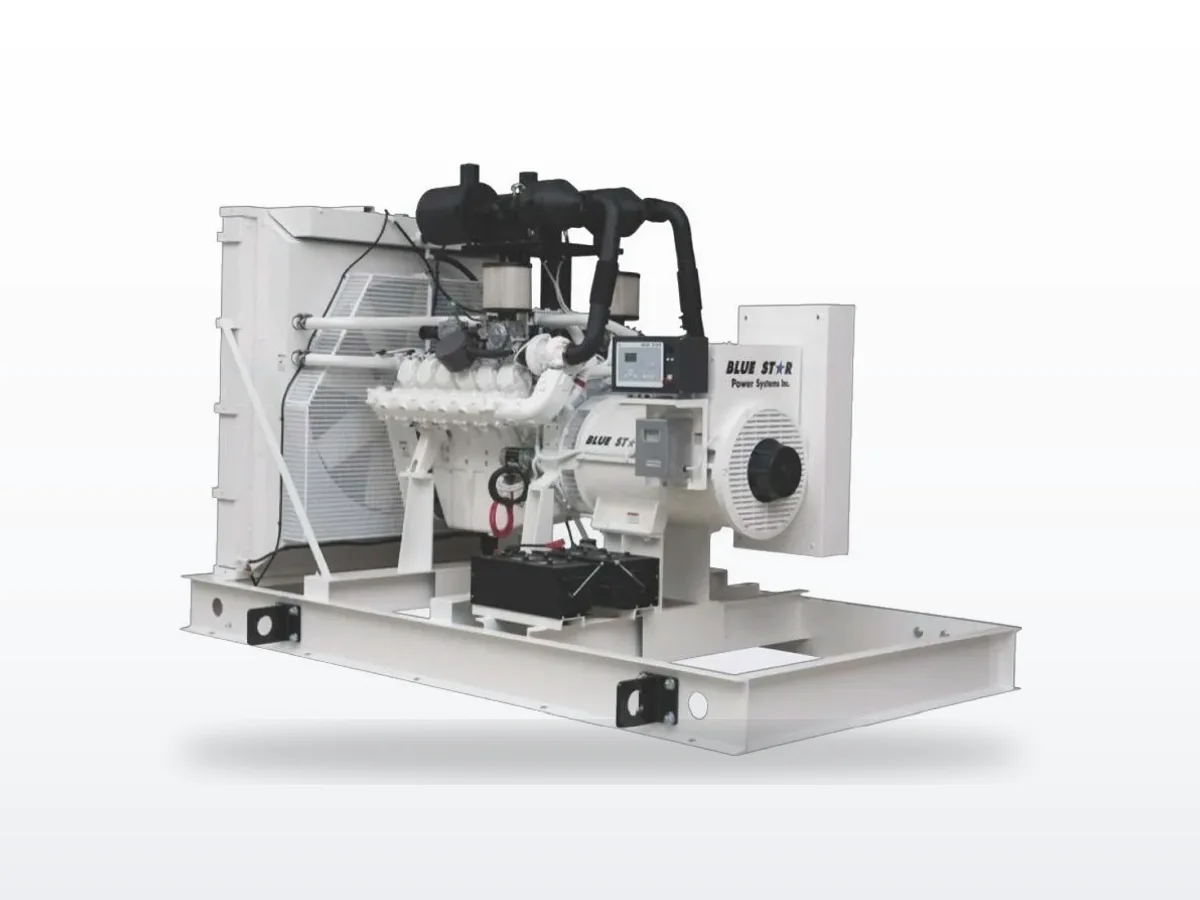

Blue Star Power Systems Blue Star PS40-01P generator — specifications and details
Standby power
40 kW / 35 kW prime
Voltage options
120/240V, 120/208V, 240V, 277/480V, 347/600V
Frequency / Phase
60 Hz · 1/3-phase
Engine
PSI 4.3L · 4.3L
Alternator
UCI224C

Overview#

The Blue Star PS40-01P is a 35-kilowatt prime / 40-kilowatt standby natural gas and LP generator powered by the PSI 4.3L six-cylinder V6. The "-P" designation identifies this as a prime-rated model with catalyst/silencer exhaust aftertreatment, 105°C temperature rise, and a 1-year / 1,500-hour prime warranty.

Blue Star Power Systems pairs the 4.3L engine with a UCI224C alternator and DSE DCP7310 controller. The OPU footprint is 80 × 42 × 59 in.

Prime vs. Standby: Understanding the Rating#

The prime rating (35 kWe) is the correct rating for any application requiring continuous or unlimited-hours operation — base load power, peak shaving, or sites without reliable utility.

Size prime power applications to 35 kWe.

When to specify the PS40-01P#

  • Continuous or unlimited-hours prime power at 35 kWe on natural gas or LP
  • Peak shaving, base load, or off-grid applications where standby-rated units are not suitable
  • Applications where the 80 × 42 in OPU footprint is acceptable

Our service experience#

Prime-rated gaseous generators require more disciplined preventive maintenance than standby units because they accumulate operating hours continuously. Catalyst condition, spark plug wear, fuel pressure stability, and coolant condition are all time-sensitive on the PS40-01P. The catalyst requires replacement at OEM-specified intervals — skipping this shortens the engine's working life due to back-pressure buildup. Gas pressure must be verified at full prime load: 550 ft³/hr NG at 11.0 in. W.C. is the sustained demand. Utility gas regulators often undersized for prime generator demand should be addressed at installation.

Engineering specifications

Physical

Length
80 in
Width
42 in
Height
59 in
Dry weight
1,575 lb

Acoustic

Sound @ 7m, full load
76 dBA
Enclosure
Open

Fuel system & runtime

NG required pressure
11 in WC

Thermal & ventilation

Heat to coolant
138,000 BTU/hr
Heat radiated
65,760 BTU/hr
Exhaust flow
362 CFM
Exhaust temp
1350 °F
Combustion air
112 CFM
Ventilation air
5,157 CFM

Documents & downloads

Spec sheets & manuals

Ready to order this model?

Configure your Blue Star PS40-01P

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Estimate runtime for the Blue Star PS40-01P

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Fuel demand at 75% load

420,000 BTU/hr≈ 420.0 cf/min @ 1,000 BTU/cf

On utility natural gas the runtime is generally unlimited provided the supply line and meter can deliver this BTU/hr at the engine's required inlet pressure (typically 5–14" WC residential, up to 5 psi commercial). Confirm against the OEM's published fuel-pressure spec.

Frequently Asked Questions

What are the fuel consumption rates for the PS40-01P at prime output?
At 100% prime load (35 kWe), the PS40-01P consumes 550 ft³/hr of natural gas or 220 ft³/hr of LP. At 75% prime load: 442 ft³/hr NG or 177 ft³/hr LP. At 50% prime load: 340 ft³/hr NG or 136 ft³/hr LP. Required inlet pressure is 11.0 in. W.C. Heat rejected to coolant at full prime load is 2,300 BTU/min; heat radiated to the room is 1,096 BTU/min.

Compatible equipment

More in the PSI Small Gaseous (20-100 kW)

20–100 kW natural gas and LP standby on PSI inline-four, V6, and V8 platforms — single and three-phase.

Similar models

Blue Star Power Systems Blue Star PS40-01 40 kW liquid-cooled standby generator

Blue Star Power Systems

Blue Star PS40-01

40 kW standby · Natural Gas / LPG · Liquid-cooled

40 kW natural gas / LP standby generator from Blue Star Power Systems. PSI 4.3L six-cylinder naturally aspirated V6 engine, UCI224C alternator, DSE DCP7310 controller, 208-600V output.

3-phasecommerciallight-commercial

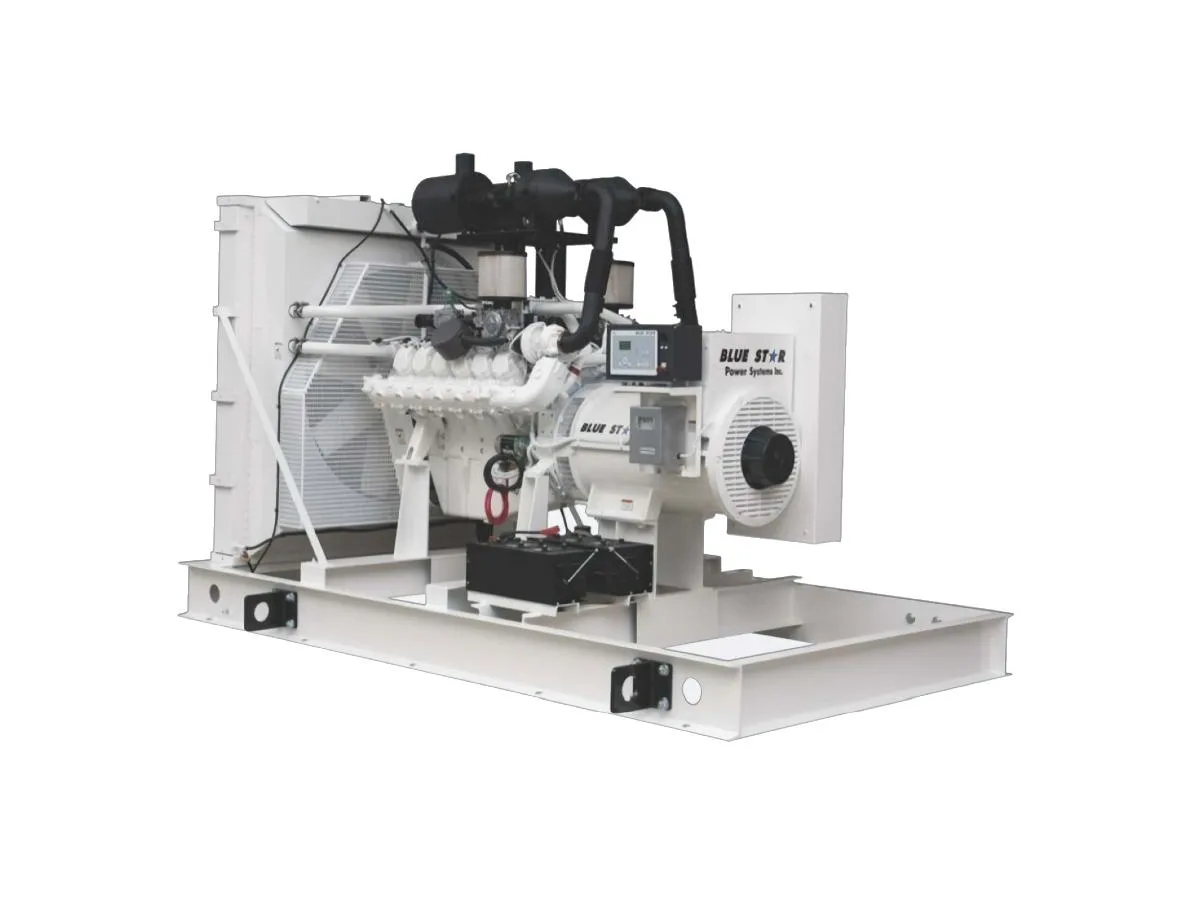

Blue Star Power Systems Blue Star PS25-01 20 kW liquid-cooled standby generator
