Blue Star Power Systems · Perkins Diesel Standby

Blue Star PD500-01

500 kW standby · Diesel · Liquid-cooled

500 kW Tier 2 diesel standby generator built by Blue Star Power Systems. Perkins 2506C-E15TAG3 six-cylinder engine with charge air cooling, HCI534D alternator, DSE DCP7310 controller.

Blue Star Power Systems Blue Star PD500-01 generator — specifications and details
Standby power
500 kW
Voltage options
120/208V, 277/480V, 347/600V
Frequency / Phase
60 Hz · 3-phase
Engine
Perkins 2506C-E15TAG3 · 15.2L
EPA / Emissions
Tier 2
Alternator
HCI534D

Overview#

The Blue Star PD500-01 is a 500-kilowatt EPA Tier 2 diesel standby generator powered by the Perkins 2506C-E15TAG3 — a 15.2-liter, six-cylinder turbocharged and charge-air-cooled engine. The PD500-01 has a 150×78 in structural steel base footprint.

Blue Star Power Systems (North Mankato, Minnesota) pairs the 2506C-E15TAG3 with an HCI534D alternator and DSE DCP7310 controller. The PD500-01 OPU weighs 9,525 lbs and is rated 94 dBA at full load. The ambient temperature deration limit is 86°F (30°C). Deration: rated power is available to 3,281 ft (1,000 m) at 86°F (30°C).

Tier 2 Entry: The 2506C at 500 kW#

The 2506C-E15TAG3 is a 15.2-liter, six-cylinder engine with a standby rating of 787 HP (587 kWm) and is EPA Tier 2 certified.

When to spec the PD500-01#

  • 500 kW three-phase emergency standby loads on diesel fuel at lower-elevation sites with moderate ambient temperatures
  • Projects where EPA Tier 2 compliance is acceptable (confirm with AHJ)
  • Industrial, healthcare, data center, and municipal applications in the 500 kW tier

Our service experience#

The PD500-01 operates at the upper end of the 2506C platform. The ambient temperature limit of 86°F (30°C) should be verified against site conditions — sites in warm climates or with restricted generator room ventilation may experience thermal deration.

Engineering specifications

Physical

Length
150 in
Width
78 in
Height
98 in
Dry weight
9,525 lb

Acoustic

Sound @ 7m, full load
94 dBA
Enclosure
Open

Fuel system & runtime

Fuel use @ full load
32.3 GPH
Fuel use @ 75% load
26 GPH
Fuel use @ 50% load
21.3 GPH

Thermal & ventilation

Heat to coolant
644,580 BTU/hr
Heat radiated
589,500 BTU/hr
Exhaust flow
3,958 CFM
Exhaust temp
1022 °F
Combustion air
1,484 CFM
Ventilation air
30,600 CFM

Documents & downloads

Spec sheets & manuals

Ready to order this model?

Configure your Blue Star PD500-01

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Estimate runtime for the Blue Star PD500-01

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

8.0 hours(0.3 days)

Fuel consumption ≈ 24.92 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Frequently Asked Questions

What engine does the PD500-01 use?
The Perkins 2506C-E15TAG3 — a 15.2-liter, six-cylinder turbocharged and charge-air-cooled diesel. It is EPA Tier 2 certified. Rated power is available up to 3,281 ft (1,000 m) at ambient temperatures to 86°F (30°C).
What controller does the PD500-01 use?
The DSE DCP7310 Digital Control Panel, with CAN Bus J1939 engine communication, digital metering, RS-485 interface, 8 programmable contact inputs, 10 contact outputs, and NFPA 110 Level 1 compatibility. The panel is cULus Listed and CE Approved with IP 65 ingress protection (with supplied gasket). A 24V battery system and 24V 5 Amp battery charger are standard.
What are the ventilation and thermal requirements for the PD500-01?
The PD500-01 requires 30,600 CFM of radiator cooling airflow. Combustion air draw is 1,484 CFM. Heat rejected to the coolant circuit is 10,743 BTU/min; heat radiated to ambient is 9,825 BTU/min. Exhaust exits at 1,022°F at 3,958 CFM. For fuel planning: at full load (32.3 gph), a 900-gallon sub-base tank provides approximately 28 hours of runtime. The 24-hour fuel tank option provides 900 gallons.

Compatible equipment

More in the Perkins Diesel Standby

17–750 kW Perkins diesel standby generators across Tier 2, 3, and 4 Interim — 19 models, single and three-phase.

Similar models

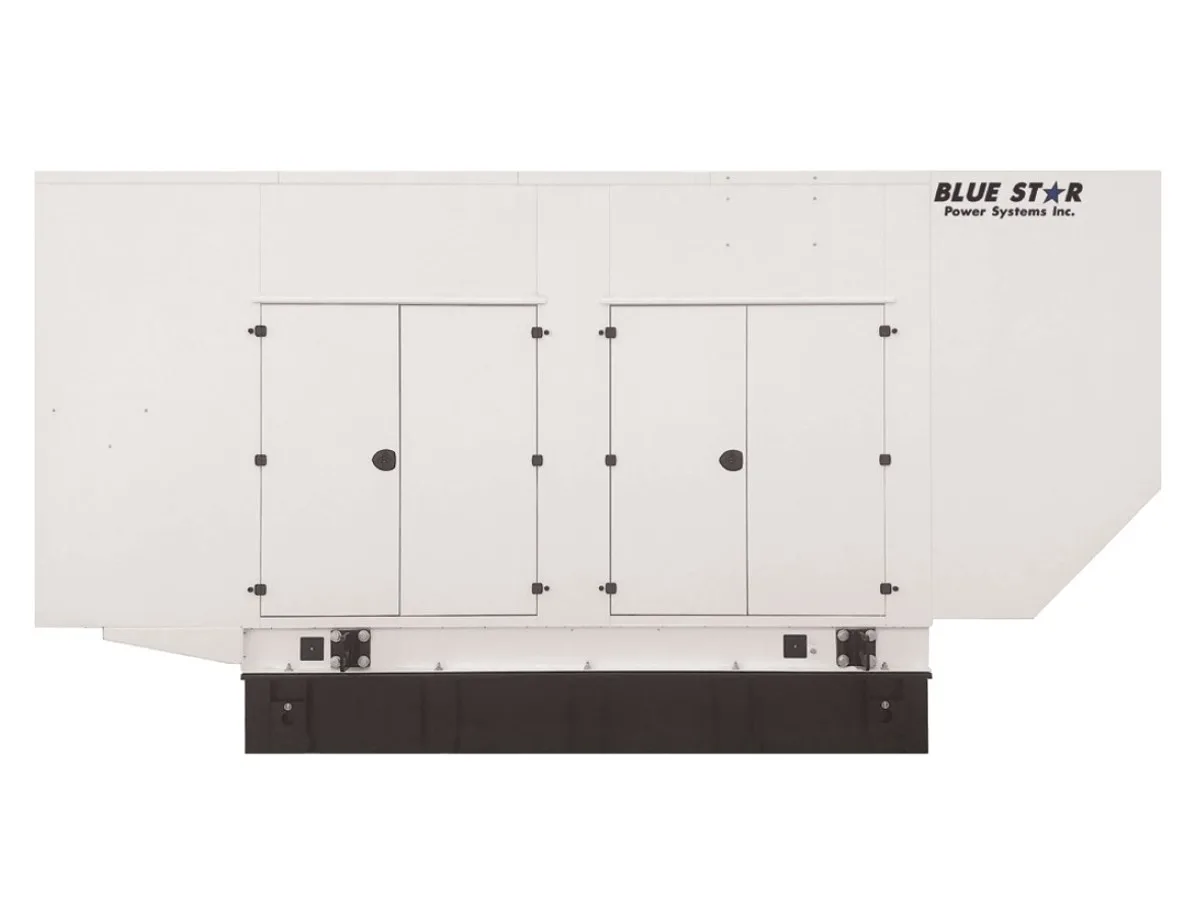

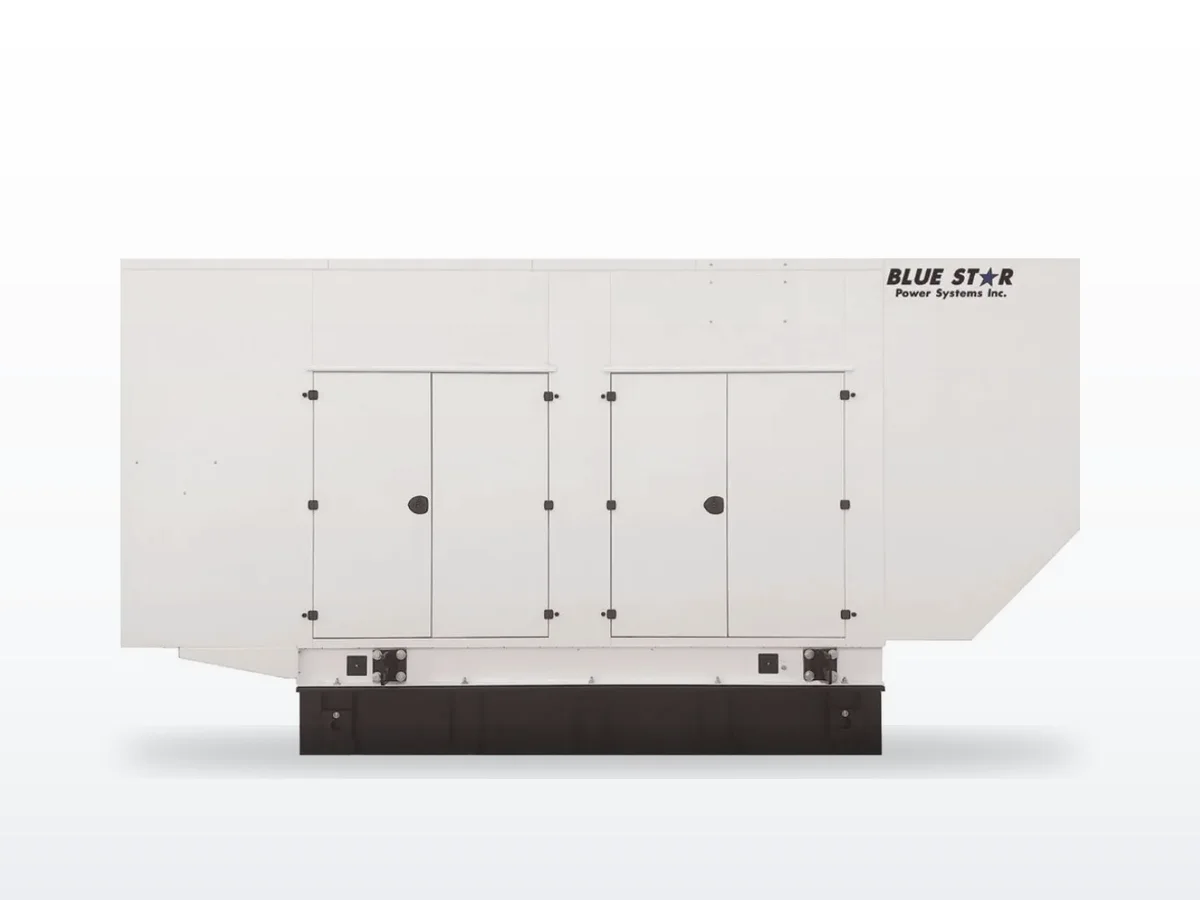

Blue Star Power Systems Blue Star PD450-01 450 kW liquid-cooled standby generator

Blue Star Power Systems

Blue Star PD450-01

450 kW standby · Diesel · Liquid-cooled

450 kW Tier 3 diesel standby generator built by Blue Star Power Systems. Perkins 2506D-E15TAG1 six-cylinder engine with charge air cooling, HCI534C alternator, DSE DCP7310 controller.

Tier 33-phasecommercialindustrial

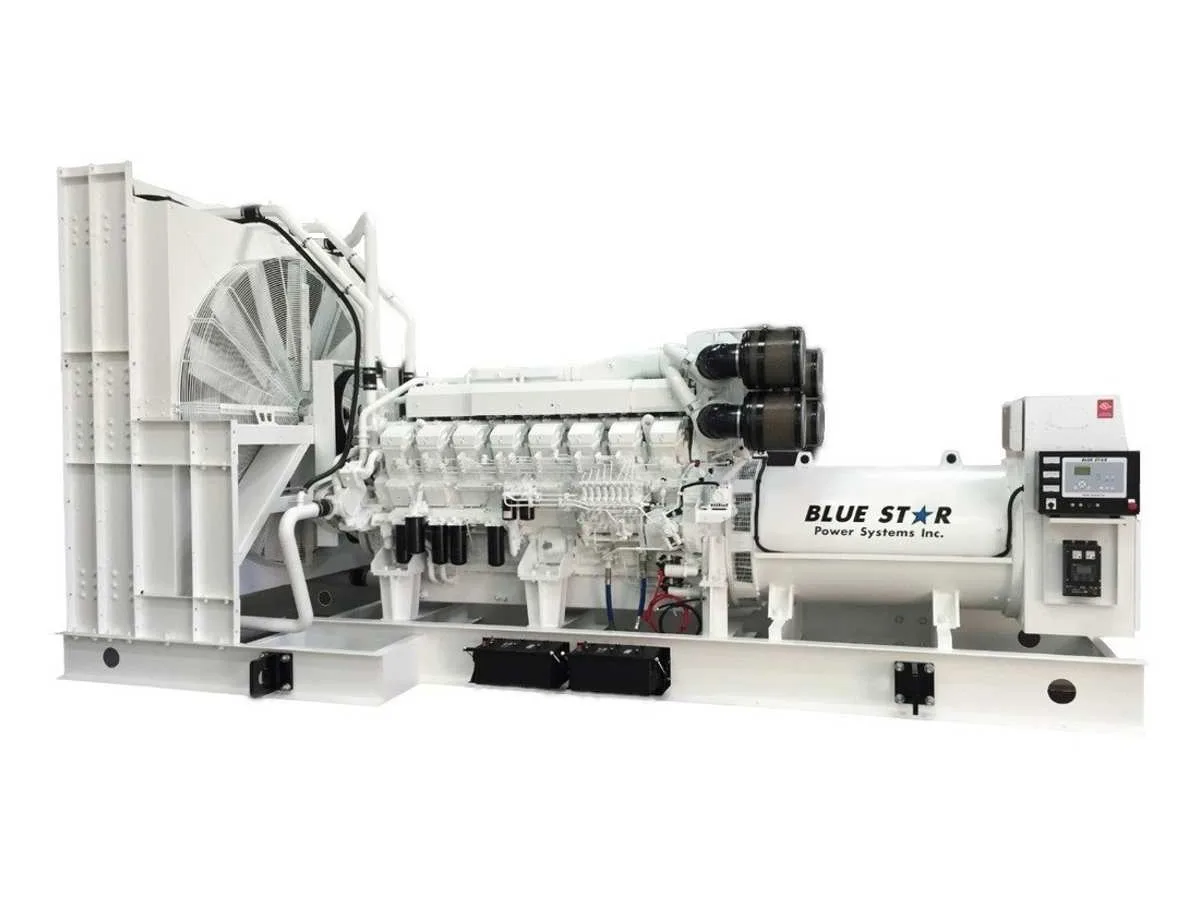

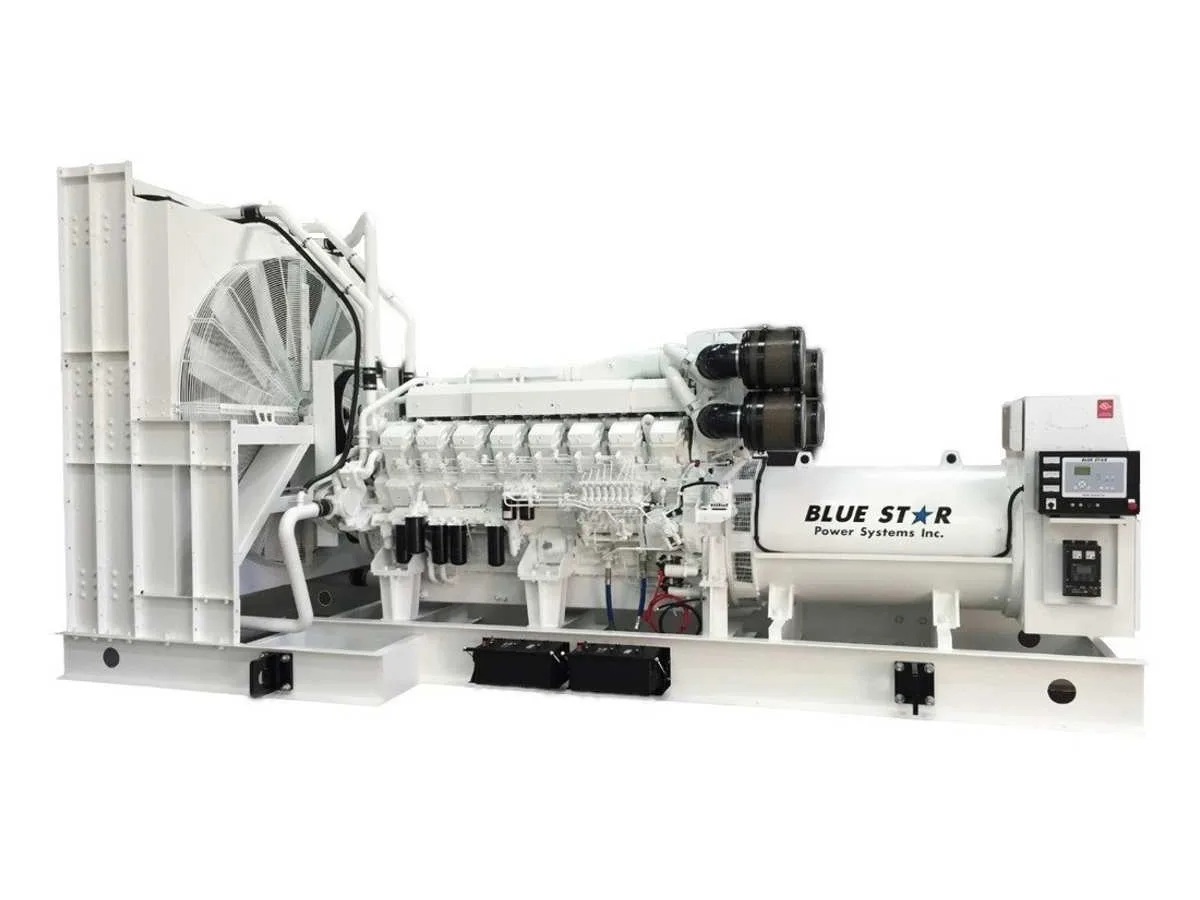

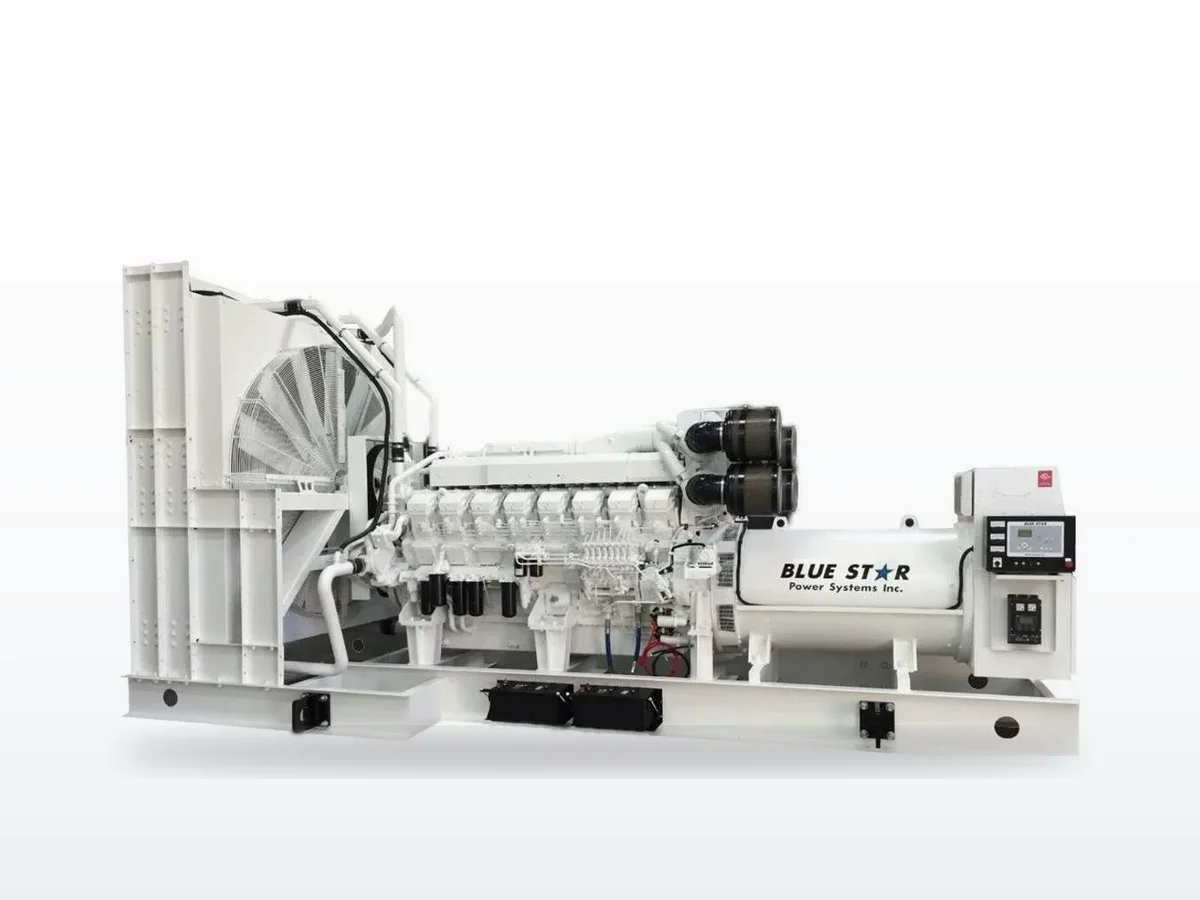

Blue Star Power Systems Blue Star PD550-01 550 kW liquid-cooled standby generator

Blue Star Power Systems

Blue Star PD550-01

550 kW standby · Diesel · Liquid-cooled

550 kW Tier 2 diesel standby generator built by Blue Star Power Systems. Perkins 2506C-E15TAG4 six-cylinder engine with charge air cooling, HCI534E alternator, DSE DCP7310 controller.

Tier 23-phasecommercialindustrial

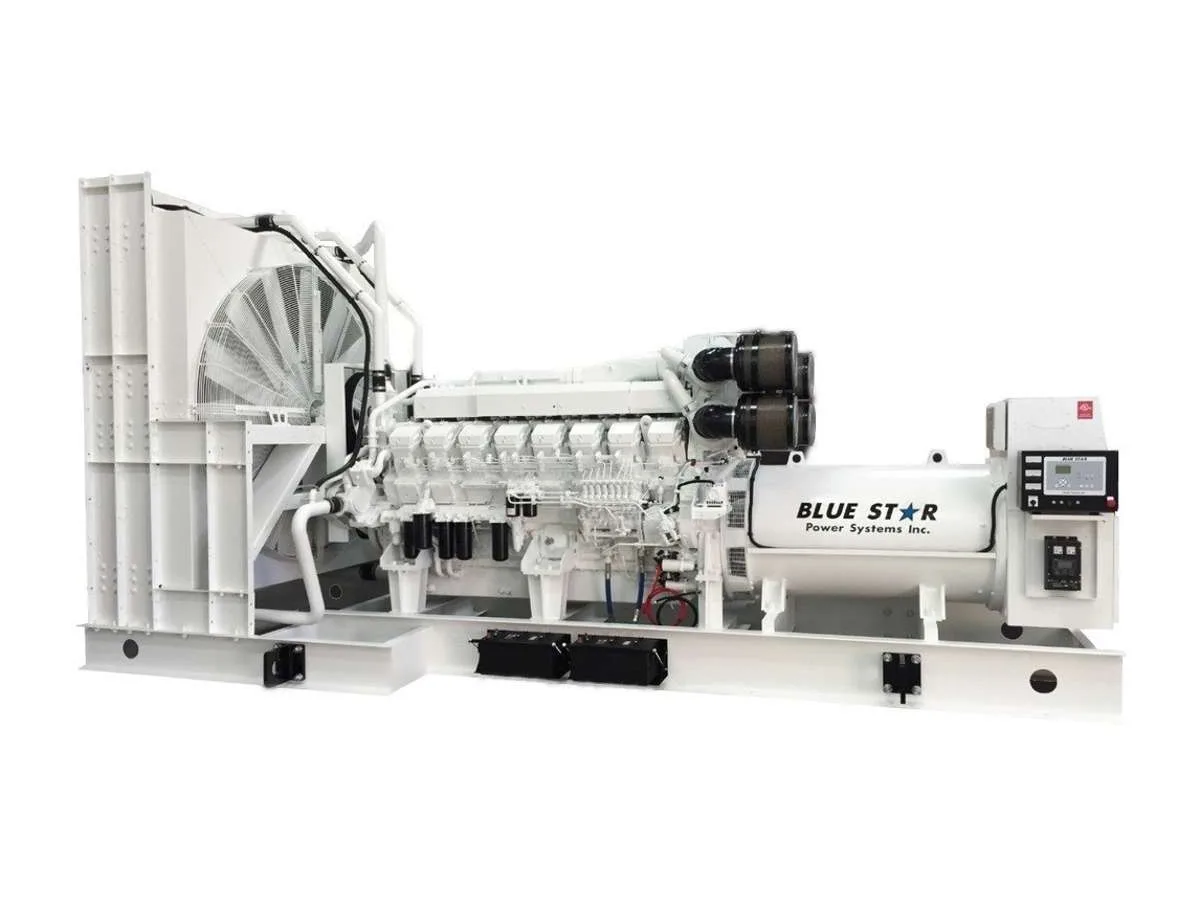

Blue Star Power Systems Blue Star VD500-01 500 kW liquid-cooled standby generator
