Blue Star Power Systems · Perkins Diesel Standby

Blue Star PD550-01

550 kW standby · Diesel · Liquid-cooled

550 kW Tier 2 diesel standby generator built by Blue Star Power Systems. Perkins 2506C-E15TAG4 six-cylinder engine with charge air cooling, HCI534E alternator, DSE DCP7310 controller.

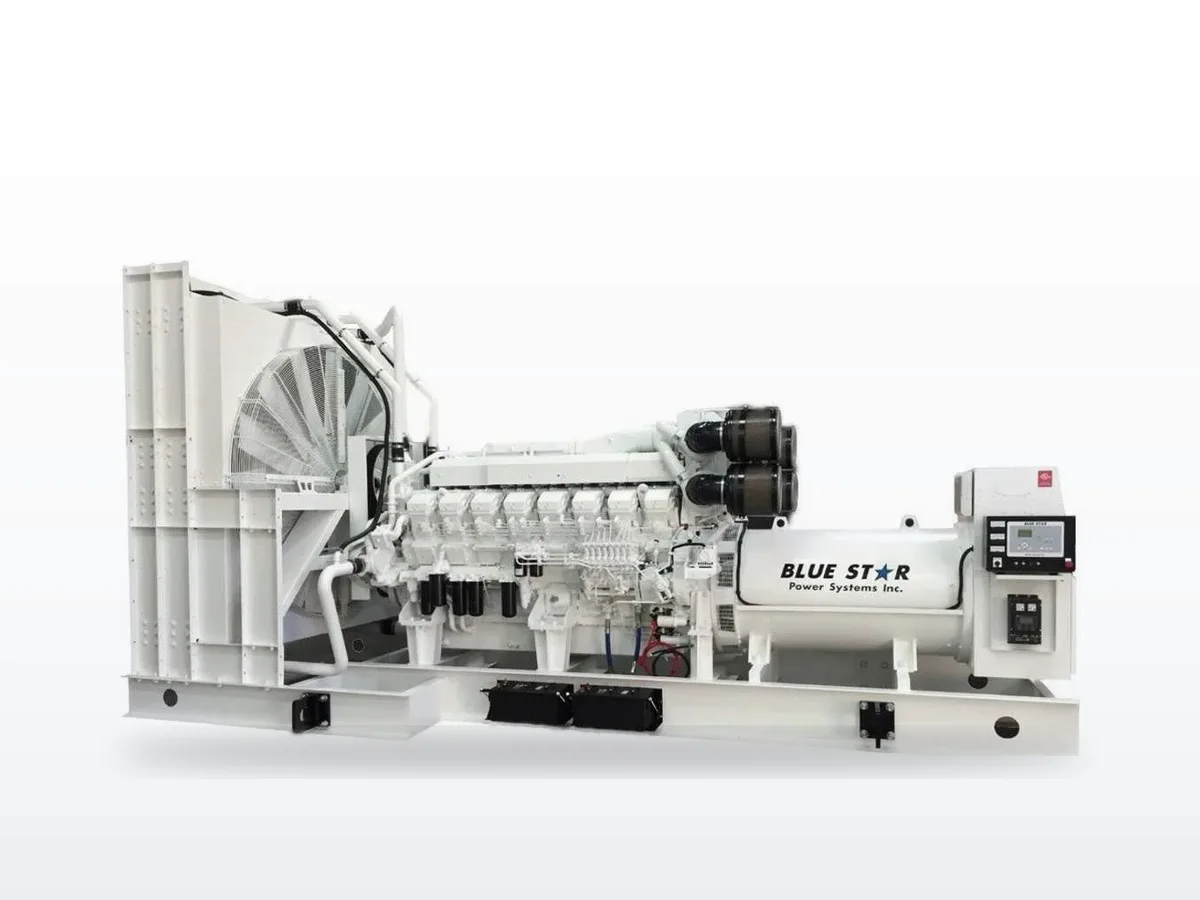

Blue Star Power Systems Blue Star PD550-01 generator — specifications and details
Standby power
550 kW
Voltage options
120/208V, 277/480V, 347/600V
Frequency / Phase
60 Hz · 3-phase
Engine
Perkins 2506C-E15TAG4 · 15.2L
EPA / Emissions
Tier 2
Alternator
HCI534E

Overview#

The Blue Star PD550-01 is a 550-kilowatt EPA Tier 2 diesel standby generator powered by the Perkins 2506C-E15TAG4, a 15.2-liter, six-cylinder turbocharged and charge-air-cooled engine. The OPU is 150×78×97 in.

Blue Star Power Systems pairs the 2506C-E15TAG4 with an HCI534E alternator and DSE DCP7310 controller. The OPU weighs 9,875 lbs. Rated power is available to 1,640 ft (500 m) at 86°F (30°C).

The 2506C at Its Ceiling#

The 2506C-E15TAG4 is rated 550 kWe standby. Combustion air draw is 1,484 CFM and ventilation airflow is 30,600 CFM.

When to spec the PD550-01#

  • Facilities where the altitude is confirmed below 1,640 ft and ambient temperatures are consistently below 86°F

Our service experience#

The PD550-01 at 550 kWe is operating the 2506C platform at its rated ceiling. The restrictive altitude limit (1,640 ft) must be verified at commissioning — sites that appeared to qualify on paper may encounter thermal issues in summer conditions. Confirm exhaust system component ratings for sustained 1,022°F operation. Follow the Perkins 2500C generator series maintenance schedule.

Engineering specifications

Physical

Length
150 in
Width
78 in
Height
97 in
Dry weight
9,875 lb

Acoustic

Sound @ 7m, full load
94 dBA
Enclosure
Open

Fuel system & runtime

Fuel use @ full load
35.2 GPH
Fuel use @ 75% load
28.4 GPH
Fuel use @ 50% load
23.2 GPH

Thermal & ventilation

Heat to coolant
668,580 BTU/hr
Heat radiated
644,100 BTU/hr
Exhaust flow
4,240 CFM
Exhaust temp
1022 °F
Combustion air
1,484 CFM
Ventilation air
30,600 CFM

Documents & downloads

Spec sheets & manuals

Ready to order this model?

Configure your Blue Star PD550-01

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Estimate runtime for the Blue Star PD550-01

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

7.4 hours(0.3 days)

Fuel consumption ≈ 27.15 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Frequently Asked Questions

What engine does the PD550-01 use?
The Perkins 2506C-E15TAG4 — a 15.2-liter, six-cylinder turbocharged and charge-air-cooled diesel. The TAG4 produces 550 kWe standby. It is EPA Certified Tier 2. Rated power is available to 1,640 ft (500 m) at 86°F (30°C).
What controller does the PD550-01 use?
The DSE DCP7310 Digital Control Panel, with CAN Bus J1939 engine communication, digital metering, RS-485 interface, 8 programmable contact inputs, 10 contact outputs, and NFPA 110 Level 1 compatibility. The panel is cULus Listed and CE Approved with IP 65 ingress protection (with supplied gasket). A 24V battery system and 24V 5 Amp battery charger are standard.
What are the ventilation and thermal requirements for the PD550-01?
The PD550-01 requires 30,600 CFM of radiator cooling airflow. Combustion air draw is 1,484 CFM. Heat rejected to the coolant circuit is 11,143 BTU/min. Exhaust exits at 1,022°F at 4,240 CFM. Fuel consumption at full load is 35.2 gph.

Compatible equipment

More in the Perkins Diesel Standby

17–750 kW Perkins diesel standby generators across Tier 2, 3, and 4 Interim — 19 models, single and three-phase.

Similar models

Blue Star Power Systems Blue Star PD500-01 500 kW liquid-cooled standby generator

Blue Star Power Systems

Blue Star PD500-01

500 kW standby · Diesel · Liquid-cooled

500 kW Tier 2 diesel standby generator built by Blue Star Power Systems. Perkins 2506C-E15TAG3 six-cylinder engine with charge air cooling, HCI534D alternator, DSE DCP7310 controller.

Tier 23-phasecommercialindustrial

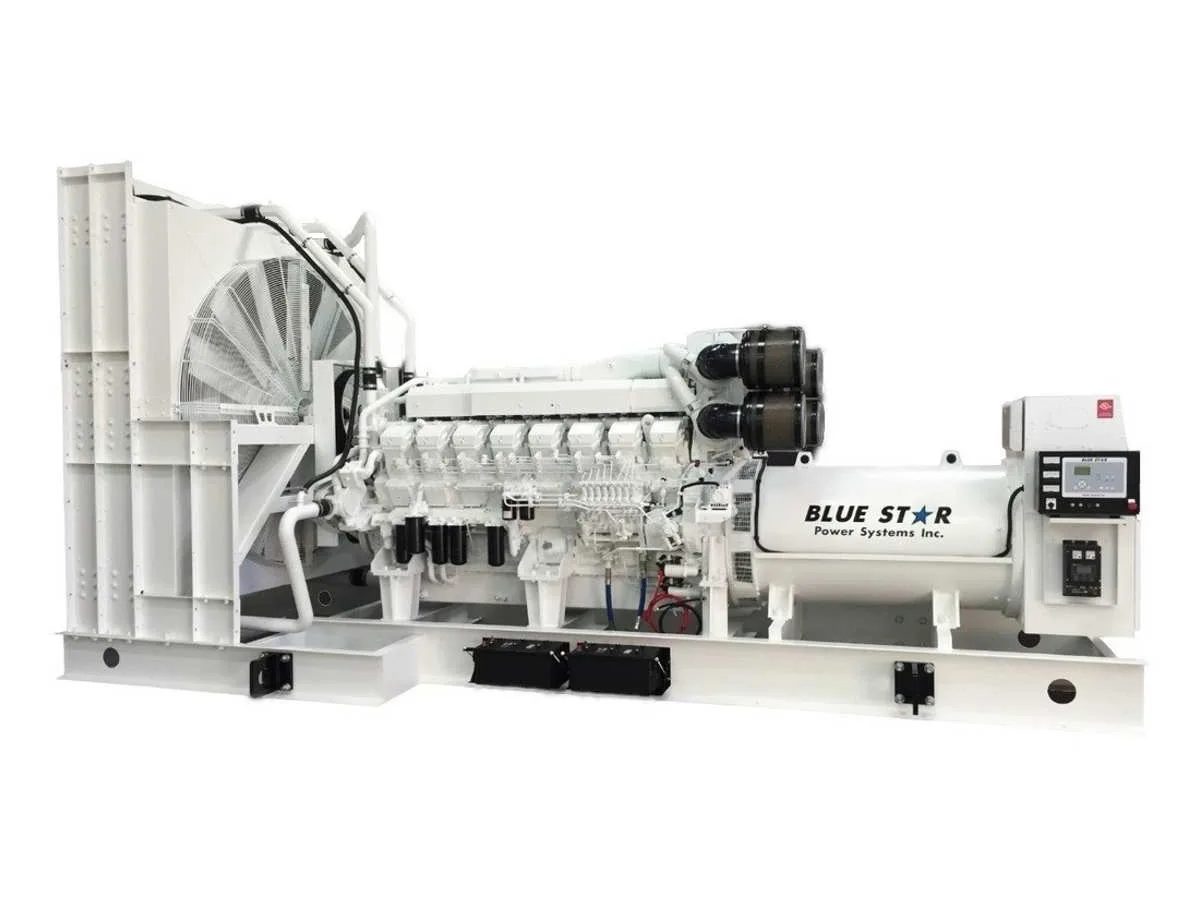

Blue Star Power Systems Blue Star PD600-01 600 kW liquid-cooled standby generator

Blue Star Power Systems

Blue Star PD600-01

600 kW standby · Diesel · Liquid-cooled

600 kW Tier 2 diesel standby generator built by Blue Star Power Systems. Perkins 2806C-E18TAG3 six-cylinder engine with charge air cooling, HCI534E alternator, DSE DCP7310 controller.

Tier 23-phasecommercialindustrial

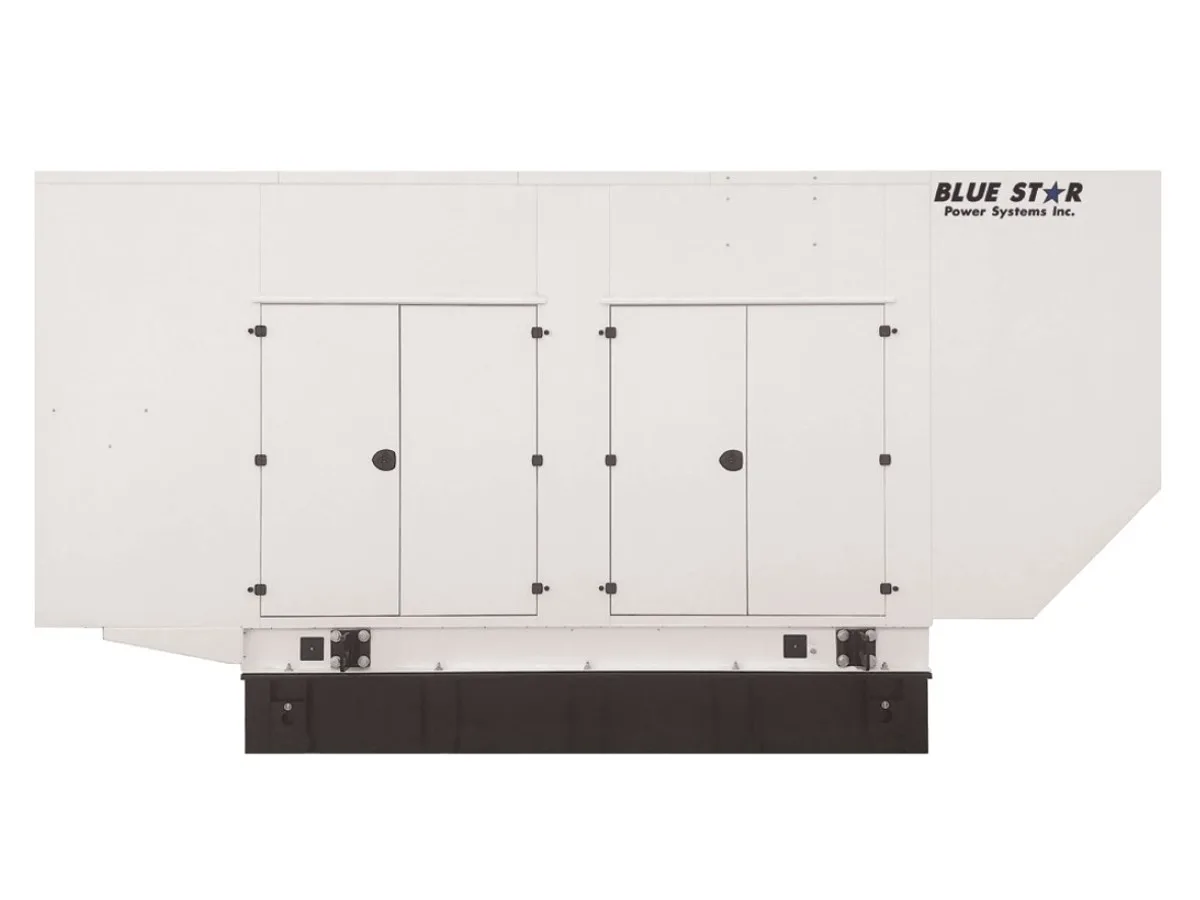

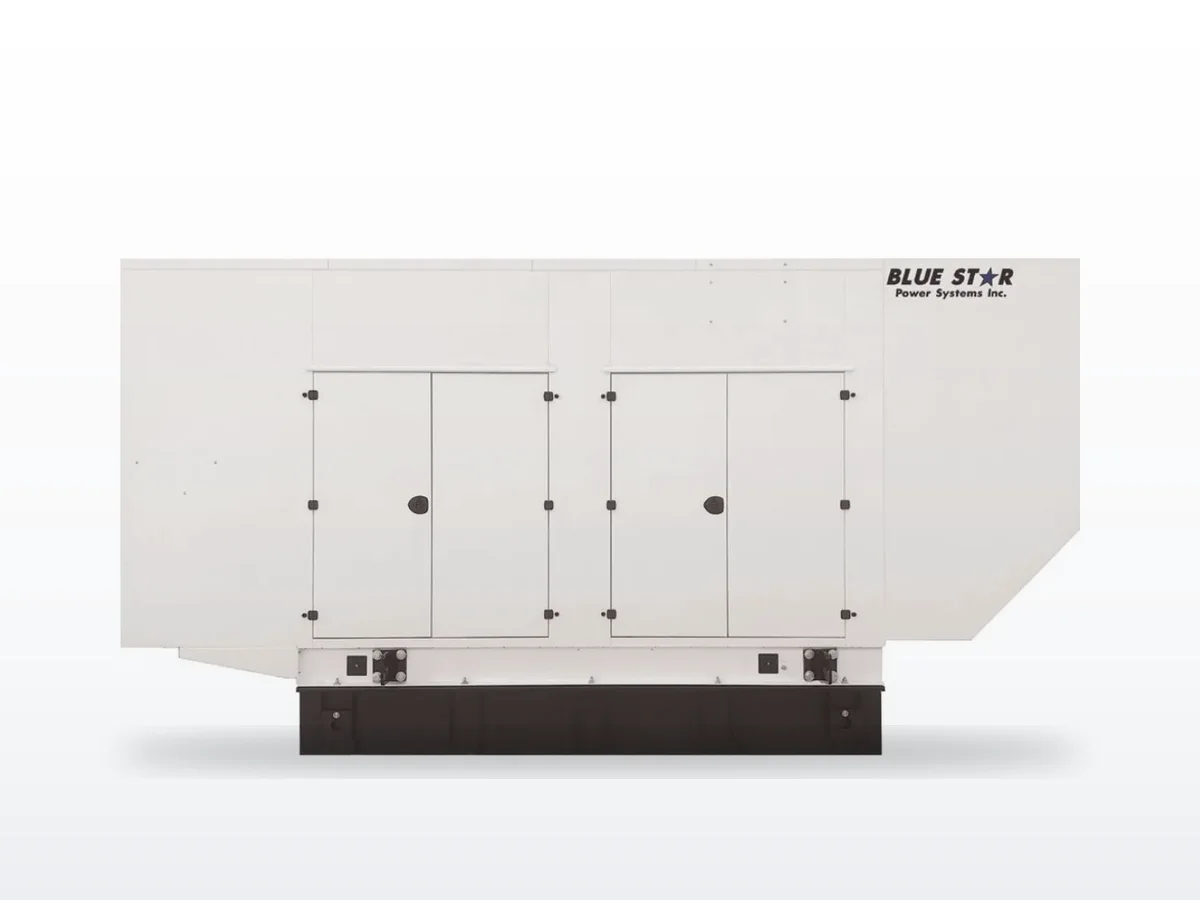

Blue Star Power Systems Blue Star VD550-01 550 kW liquid-cooled standby generator
