What engine does the PD450-01 use?

The Perkins 2506D-E15TAG1 — a 15.2-liter, six-cylinder turbocharged and charge-air-cooled diesel. The 2506D-E15 is a larger-displacement platform than the 2206D-E13 used in the PD350/PD400, producing 450 kWe standby with the TAG1 calibration. The 2506D platform carries EPA Tier 3 certification for stationary emergency applications. Rated power is available up to 3,281 ft (1,000 m) at ambient temperatures to 104°F (40°C).

What controller does the PD450-01 use?

The DSE DCP7310 Digital Control Panel, with CAN Bus J1939 engine communication, digital metering, RS-485 interface, 8 programmable contact inputs, 10 contact outputs, and NFPA 110 Level 1 compatibility. The panel is cULus Listed and CE Approved with IP 65 ingress protection (with supplied gasket). A 24V battery system and 24V 5 Amp battery charger are standard.

How does the PD450-01 compare to the PD400-01 and PD500-01?

The PD400-01 uses the 2206D-E13TAG3 (12.5L) on a 140×72 in formed steel base at 8,175 lbs. The PD450-01 steps to the 2506D-E15TAG1 (15.2L) on a larger 150×78 in structural steel base at 9,325 lbs — both a platform change and a base structure upgrade. The PD500-01 uses the 2506C-E15TAG3 (the 'C' series, Tier 2) on the same 150×78 in footprint, producing 500 kWe at 9,525 lbs. The PD450 is the last Tier 3 model before the lineup transitions to Tier 2 for the 500 kW and above range.

What are the ventilation and thermal requirements for the PD450-01?

The PD450-01 requires 30,601 CFM of radiator cooling airflow. Combustion air draw is 1,466 CFM. Heat rejected to the coolant circuit is 610,260 BTU/hr; heat radiated to ambient is 484,140 BTU/hr. Exhaust exits at 1,022°F at 3,958 CFM. For fuel planning: at full load (32.7 gph), a 1,000-gallon tank provides approximately 30 hours of runtime. The 24-hour fuel tank option provides 900 gallons.

Blue Star Power Systems · Perkins Diesel Standby

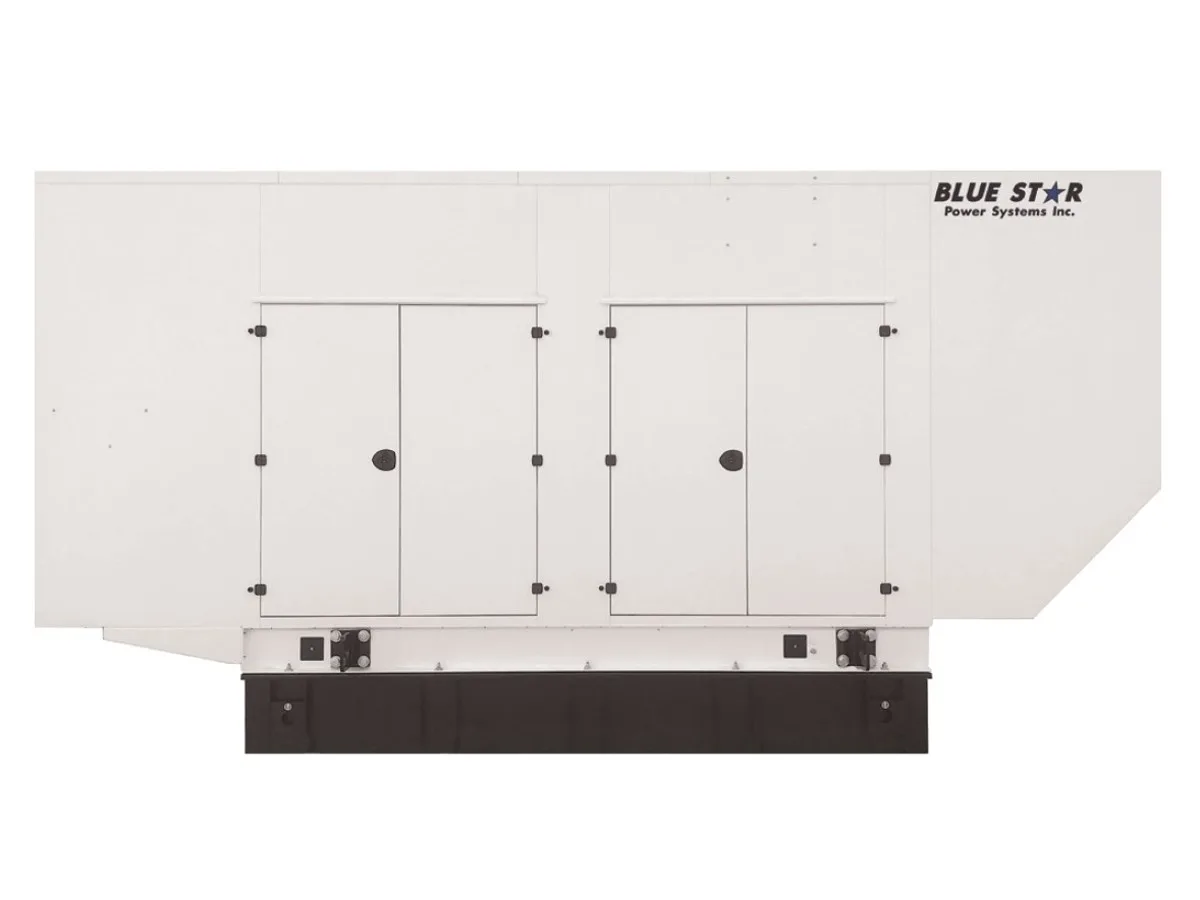

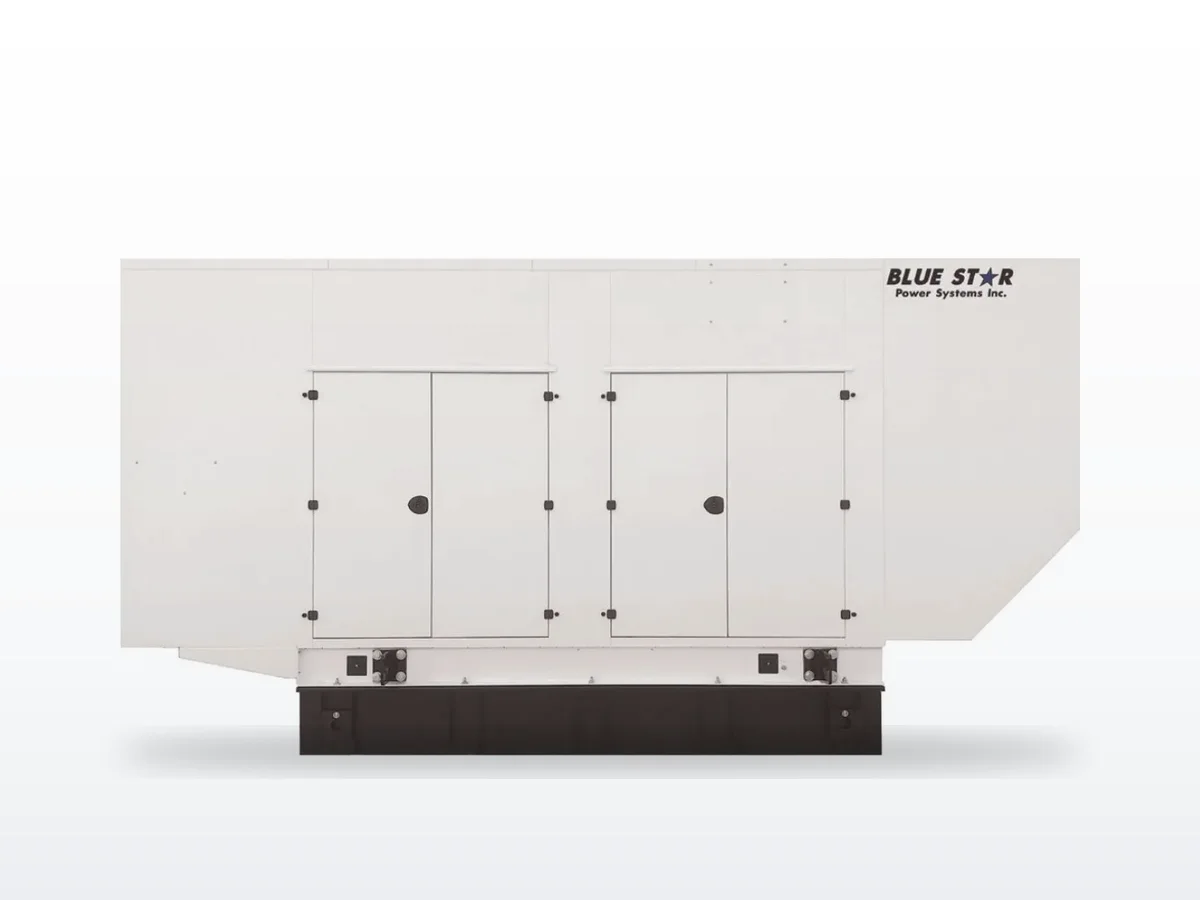

Blue Star PD450-01

Name: Blue Star PD450-01
Brand: Blue Star Power Systems
Availability: PreOrder

450 kW standby · Diesel · Liquid-cooled

450 kW Tier 3 diesel standby generator built by Blue Star Power Systems. Perkins 2506D-E15TAG1 six-cylinder engine with charge air cooling, Stamford HCI534C alternator, DSE DCP7310 controller.

Standby power: 450 kW
Voltage options: 120/208V, 277/480V, 347/600V
Frequency / Phase: 60 Hz · 3-phase
Engine: Perkins 2506D-E15TAG1 · 15.2L
EPA / Emissions: Tier 3
Alternator: Stamford HCI534C

Commercial Manufacturing Government Media & Telecompump-stationData Centers Healthcare

Configure & Quote Download spec sheet

Overview#

The Blue Star PD450-01 is a 450-kilowatt Tier 3 diesel standby generator powered by the Perkins 2506D-E15TAG1 — a 15.2-liter, six-cylinder turbocharged and charge-air-cooled engine. The PD450-01 marks two significant transitions in the Blue Star Perkins lineup: the engine moves from the 2206D-E13 (12.5L) to the 2506D-E15 (15.2L) platform, and the base structure upgrades from formed steel to structural steel. The footprint expands to 150×78 in, which is shared by all models through the PD750.

Blue Star Power Systems (North Mankato, Minnesota) pairs the 2506D-E15TAG1 with a Stamford HCI534C alternator and DSE DCP7310 controller. At 9,325 lbs, the PD450-01 weighs 1,150 lbs more than the PD400-01. The PD450-01 is also the last Tier 3 model in the Blue Star Perkins lineup — the PD500-01 and above are EPA Tier 2 certified. Deration: rated power is available to 3,281 ft (1,000 m) at 104°F (40°C).

Platform Change: 2506D-E15 at 450 kW#

The step from PD400 to PD450 involves a full engine and frame upgrade: the 2506D-E15 displaces 15.2L vs 12.5L for the 2206D-E13, the base transitions to structural steel, the alternator moves from the S4L1D series to the Stamford HCI534 series, and the footprint expands from 140×72 to 150×78 inches. The ventilation airflow requirement steps from 27,845 to 30,601 CFM. These changes should be fully accounted for in new generator room design or any room-to-room upgrade planning.

When to spec the PD450-01#

425–450 kW three-phase emergency standby loads on diesel fuel
Applications requiring the last Tier 3 compliant model in the 400–500 kW range
New construction where the 150×78 in footprint will be established (shared with PD500 through PD750 for future upgrades)
Healthcare, data center, industrial, and municipal applications at this power tier

Our service experience#

The 2506D-E15TAG1 introduces the structural steel base frame that is used on all larger Blue Star Perkins models. This base is heavier and requires appropriate rigging and anchor bolt planning at installation. Verify that the fuel system is sized for the 32.7 gph full-load consumption rate. The HCI534C alternator represents a different service category than the S4L1D series used on the PD250–PD400 — familiarize service personnel with the alternator's maintenance requirements. Follow the Perkins 2500D generator series maintenance schedule.

Engineering specifications

Physical

Length: 150 in
Width: 78 in
Height: 98 in
Dry weight: 9,325 lb

Acoustic

Sound @ 7m, full load: 93 dBA
Enclosure: Open

Fuel system & runtime

Fuel use @ full load: 32.7 GPH
Fuel use @ 75% load: 27.5 GPH
Fuel use @ 50% load: 20.5 GPH

Thermal & ventilation

Heat to coolant: 610,260 BTU/hr
Heat radiated: 484,140 BTU/hr
Exhaust flow: 3,958 CFM
Exhaust temp: 1022 °F
Combustion air: 1,466 CFM
Ventilation air: 30,601 CFM

Documents & downloads

Spec sheets & manuals

Spec sheet (datasheet)

Ready to order this model?

Configure your Blue Star PD450-01

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Configure & Quote →Just request a quote Download datasheet

Estimate runtime for the Blue Star PD450-01

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Generator size

Fuel

Fuel tank capacity

gal

Load

Override full-load GPH (optional)

GPH

Estimated runtime

7.9 hours(0.3 days)

Fuel consumption ≈ 25.23 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Service intervals

Manufacturer-recommended intervals for the Blue Star PD450-01 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.

Oil & filter: Every 500 hours or 12 months
Coolant change: Every 6000 hours
Air filter: Every 1000 hours
Fuel filter: Every 500 hours
Major overhaul: ≈ 20,000 hours
Load bank test: Every 12 months

Common failure modes

What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.

Component	Symptom	Typical hours	Severity
Fuel quality / degradation	Hard starting, filter clogging, reduced power	4,380+	moderate
Turbocharger	Power loss, excessive smoke under load	12,000+	moderate
Battery	Failed to start, slow crank	8,760+	minor

Frequently Asked Questions

What engine does the PD450-01 use?: The Perkins 2506D-E15TAG1 — a 15.2-liter, six-cylinder turbocharged and charge-air-cooled diesel. The 2506D-E15 is a larger-displacement platform than the 2206D-E13 used in the PD350/PD400, producing 450 kWe standby with the TAG1 calibration. The 2506D platform carries EPA Tier 3 certification for stationary emergency applications. Rated power is available up to 3,281 ft (1,000 m) at ambient temperatures to 104°F (40°C).
What controller does the PD450-01 use?: The DSE DCP7310 Digital Control Panel, with CAN Bus J1939 engine communication, digital metering, RS-485 interface, 8 programmable contact inputs, 10 contact outputs, and NFPA 110 Level 1 compatibility. The panel is cULus Listed and CE Approved with IP 65 ingress protection (with supplied gasket). A 24V battery system and 24V 5 Amp battery charger are standard.
How does the PD450-01 compare to the PD400-01 and PD500-01?: The PD400-01 uses the 2206D-E13TAG3 (12.5L) on a 140×72 in formed steel base at 8,175 lbs. The PD450-01 steps to the 2506D-E15TAG1 (15.2L) on a larger 150×78 in structural steel base at 9,325 lbs — both a platform change and a base structure upgrade. The PD500-01 uses the 2506C-E15TAG3 (the 'C' series, Tier 2) on the same 150×78 in footprint, producing 500 kWe at 9,525 lbs. The PD450 is the last Tier 3 model before the lineup transitions to Tier 2 for the 500 kW and above range.
What are the ventilation and thermal requirements for the PD450-01?: The PD450-01 requires 30,601 CFM of radiator cooling airflow. Combustion air draw is 1,466 CFM. Heat rejected to the coolant circuit is 610,260 BTU/hr; heat radiated to ambient is 484,140 BTU/hr. Exhaust exits at 1,022°F at 3,958 CFM. For fuel planning: at full load (32.7 gph), a 1,000-gallon tank provides approximately 30 hours of runtime. The 24-hour fuel tank option provides 900 gallons.

Compatible equipment

Transfer switches

More in the Perkins Diesel Standby

17–750 kW Perkins diesel standby generators across Tier 2, 3, and 4 Interim — 19 models, single and three-phase.

View all 19models in this series →

Similar models

Blue Star Power Systems

Blue Star PD400-01

Open Basler controller + Perkins engine + Stamford alternator — no proprietary lock-in. Serviceable by any qualified tech, not just the dealer.

400 kW standby · Diesel · Liquid-cooled

400 kW diesel standby for industrial, campus, and data center facilities where value engineering and non-proprietary component access matter.

400 kW Tier 3 diesel standby generator built by Blue Star Power Systems. Perkins 2206D-E13TAG3 six-cylinder engine with charge air cooling, Stamford S4L1D-F41 alternator, DSE DCP7310 controller.

Tier 33-phasecommerciallight-industrial

Blue Star Power Systems

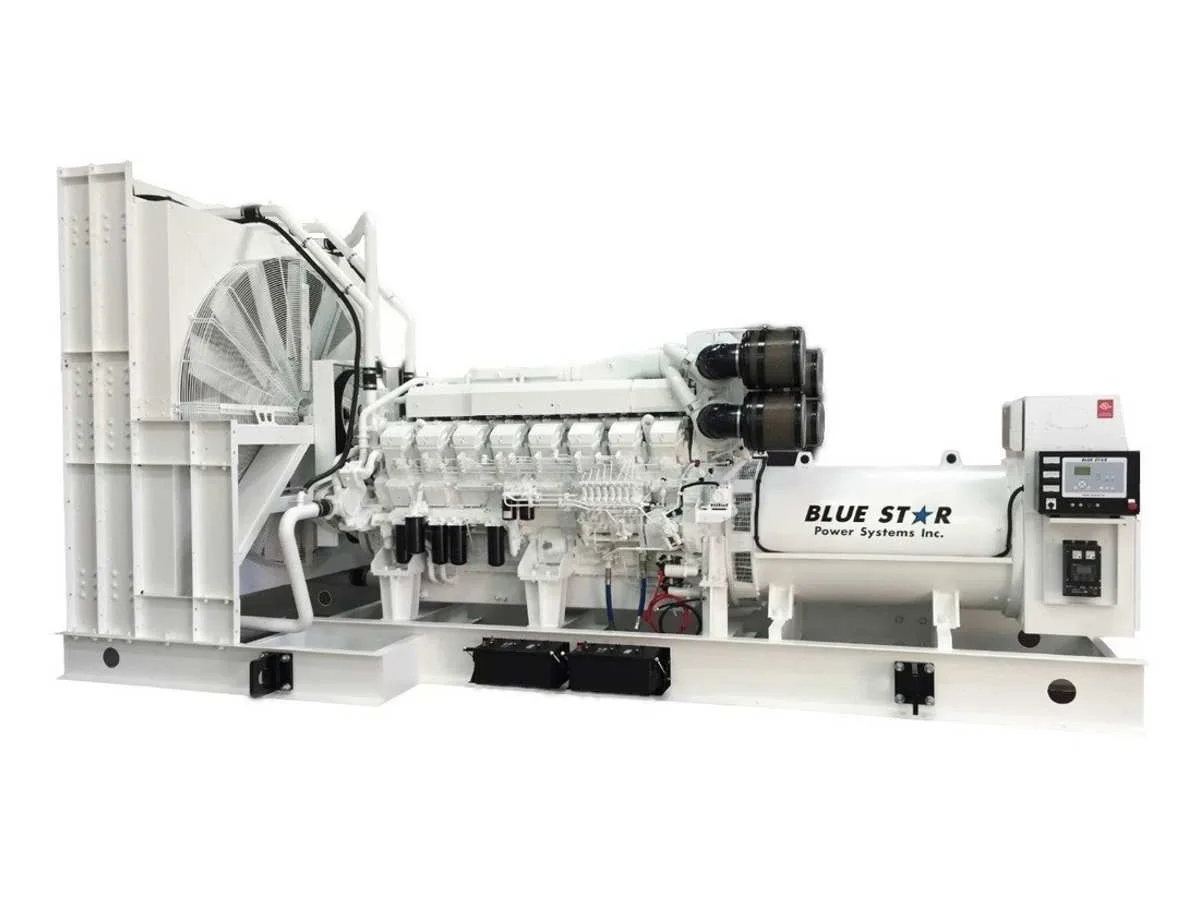

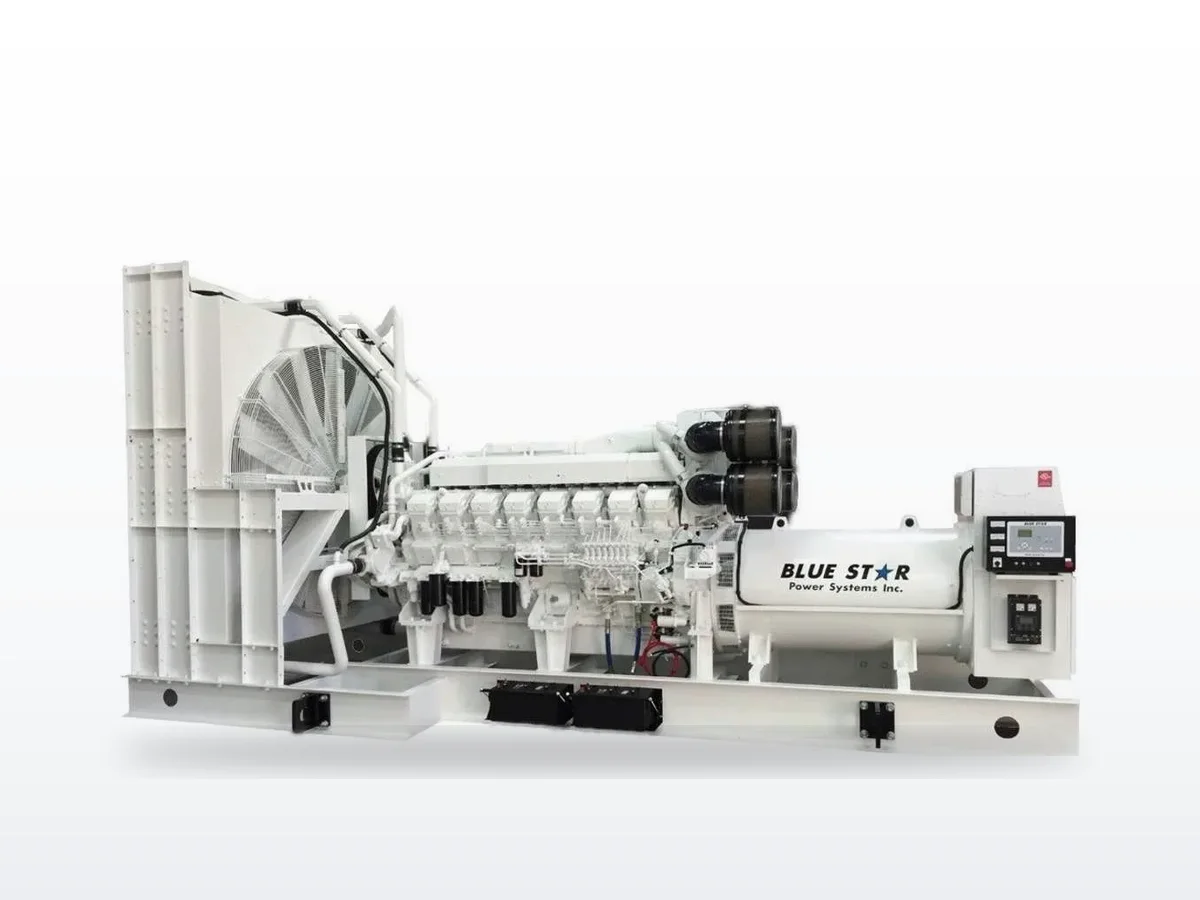

Blue Star PD500-01

Open Basler controller + Perkins engine + Stamford alternator — no proprietary lock-in. Serviceable by any qualified tech, not just the dealer.

500 kW standby · Diesel · Liquid-cooled

500 kW diesel standby for industrial, data center, and campus facilities where value engineering and non-proprietary component access matter.

500 kW Tier 2 diesel standby generator built by Blue Star Power Systems. Perkins 2506C-E15TAG3 six-cylinder engine with charge air cooling, Stamford HCI534D alternator, DSE DCP7310 controller.

Tier 23-phasecommercialindustrial

Blue Star Power Systems

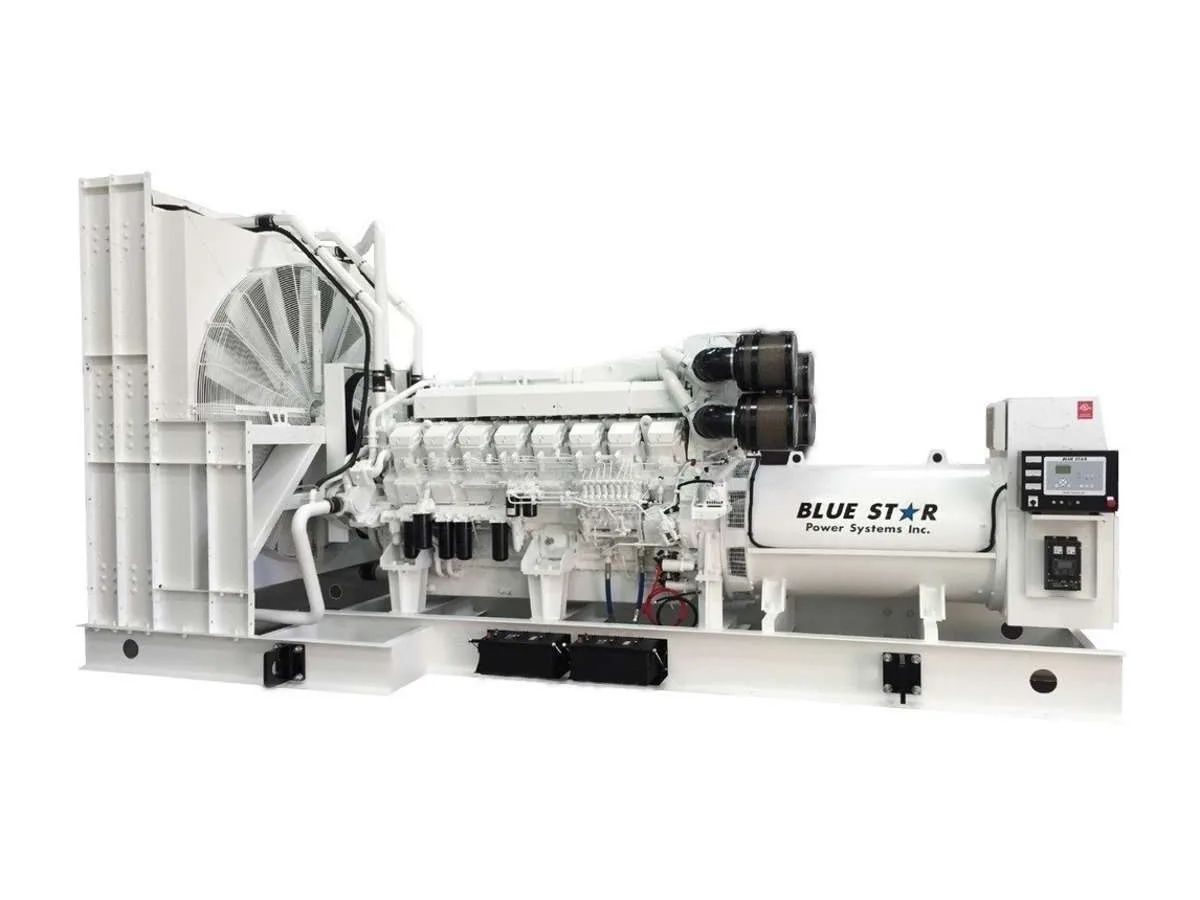

Blue Star VD450-01
