Kohler · REOZ Series (Diesel Mobile Trailer)

Kohler 55REOZT4

47 kW standby / 42 kW prime · Diesel · Liquid-cooled

55 kW Tier 4 Final diesel mobile trailer generator. Kohler-powered portable diesel for construction, events, and temporary power applications.

Kohler Kohler 55REOZT4 generator — specifications and details
Standby power
47 kW / 42 kW prime
Voltage options
120/208V, 120/240V
Frequency / Phase
60 Hz · 1/3-phase
Engine
Kohler KDI 3404 TCR · 3.4L
EPA / Emissions
Tier 4 Final

Overview#

The Kohler 55REOZT4 is a 47-kilowatt standby (42 kW prime) EPA Tier 4 Final diesel mobile trailer generator powered by a Kohler KDI 3404 TCR engine at 1800 RPM. The 4-cylinder, 3.4-liter charge-air-cooled engine achieves Tier 4 Final compliance via cooled EGR and Diesel Oxidation Catalyst — no DPF required.

The 55REOZT4 uses a brushless rare-earth permanent-magnet alternator with Kohler's Fast-Response X excitation system, providing excellent voltage response and sustained short-circuit capability — the alternator can sustain 300% of rated current for up to 10 seconds to enable downstream breakers to clear faults without collapsing the field. The Decision-Maker 3500 paralleling controller enables synchronized parallel operation. A 386-liter (102-gallon) fuel tank provides a minimum 24 hours of runtime at prime rating.

The single-axle trailer is rated at 6,000 lb., DOT and Transport Canada compliant, with electric brakes and breakaway battery backup. Environmental containment is 125% for oil/coolant and 110% secondary for fuel.

Specifications#

SpecValue
Standby Power47 kW
Prime Power42 kW
Voltage120/208V, 120/240V, 277/480V, 347/600V
Frequency60 Hz
EngineKohler KDI 3404 TCR
Cylinders4 inline
Displacement3.4 L (207 cu. in.)
AspirationTurbocharged, Charge Air Cooled
EmissionsEPA Tier 4 Final (nonroad)
RPM1800
FuelUltra Low Sulfur Diesel / HVO / RD
CoolingLiquid (unit-mounted radiator, 45°C ambient)
Fuel consumption — 100% load3.8 gph (standby)
Fuel consumption — 75% load2.9 gph (standby)
Fuel tank102 gal (386 L) — 24 hr minimum runtime
Sound level69 dB(A) @ 7 m (prime, full load)
Dimensions (L x W x H)98.6" x 44.1" x 94.4"
ControllerDecision-Maker 3500

Service & Maintenance#

Oil pan capacity with filter is 15.6 liters (16.5 quarts). Kohler specifies API CJ-4 or ACEA E6–E9 oil. The KDI 3404 TCR uses a primary 5-micron water-separator fuel filter; pay close attention to water-separator status during wet-season deployments in Northern California.

Our service experience#

PowerGen provides installation, maintenance, load bank testing, and emergency service for Kohler industrial generators throughout Northern California and the Central Valley.

FAQ#

What is the standby rating of the Kohler 55REOZT4?#

The 55REOZT4 is rated at 47 kW standby (58 kVA at 0.8 PF three-phase) at 120/208V. Prime power is 42 kW. All ratings are per Kohler spec sheet G5-414.

Is the 55REOZT4 a mobile or stationary generator?#

The 55REOZT4 is a trailer-mounted mobile generator, EPA Tier 4 Final certified for nonroad applications. A single-axle DOT/TC-compliant trailer with electric brakes is available as an option.

Does the 55REOZT4 require a DPF?#

No. The 55REOZT4 meets EPA Tier 4 Final without a Diesel Particulate Filter. Kohler uses cooled EGR and a Diesel Oxidation Catalyst to meet emissions requirements on the KDI 3404 TCR engine.

What is the sound level of the Kohler 55REOZT4?#

Per Kohler published specifications, the 55REOZT4 is rated at 69 dB(A) log average at 7 meters with full load at the prime rating.

Engineering specifications

Physical

Length
98.6 in
Width
44.1 in
Height
94.4 in
Wet weight
4,384 lb

Acoustic

Enclosure
Sound-attenuated

Fuel system & runtime

Integral fuel tank
102 gal
Fuel use @ full load
3.8 GPH
Fuel use @ 75% load
2.9 GPH
Fuel use @ 50% load
2 GPH

Photos

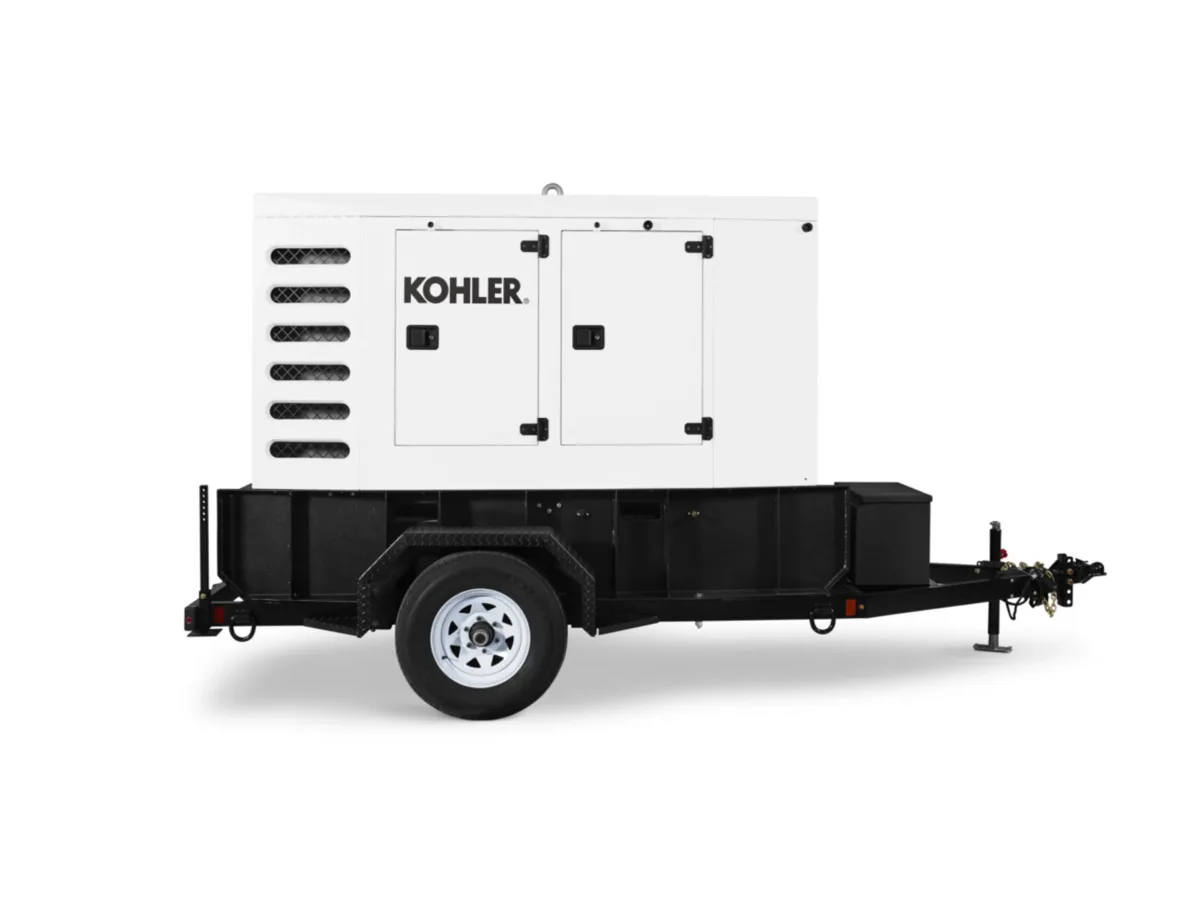

Kohler 55REOZT4 — product photo

Documents & downloads

Spec sheets & manuals

Ready to order this model?

Configure your Kohler 55REOZT4

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Estimate runtime for the Kohler 55REOZT4

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

34.8 hours(1.4 days)

Fuel consumption ≈ 2.93 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Frequently Asked Questions

Is the 55REOZT4 a mobile or stationary generator?
The 55REOZT4 is a trailer-mounted mobile generator, EPA Tier 4 Final certified for nonroad applications. It includes a 386-liter (102-gallon) fuel tank.
What controller does the 55REOZT4 use?
The 55REOZT4 uses a Decision-Maker 3500 controller with paralleling capability.

Compatible equipment

More in the REOZ Series (Diesel Mobile Trailer)

Kohler REOZT4 trailer generators: 30–150 kW EPA Tier 4 Final diesel, built for temporary and emergency deployment.

Why we recommend Kohler

Kohler is our primary recommendation for commercial standby power. We sell and service the full Kohler line — RCA residential, RCL light commercial, KG industrial diesel, and REOZ large-frame — and our technicians are factory-trained on every product family.

We are an authorized Kohler dealer with factory-trained technicians. Kohler is the majority of our new generator sales today, spanning residential through large industrial. Our parts inventory is stocked for same-day Kohler service.

See all Kohler generators →

Similar models

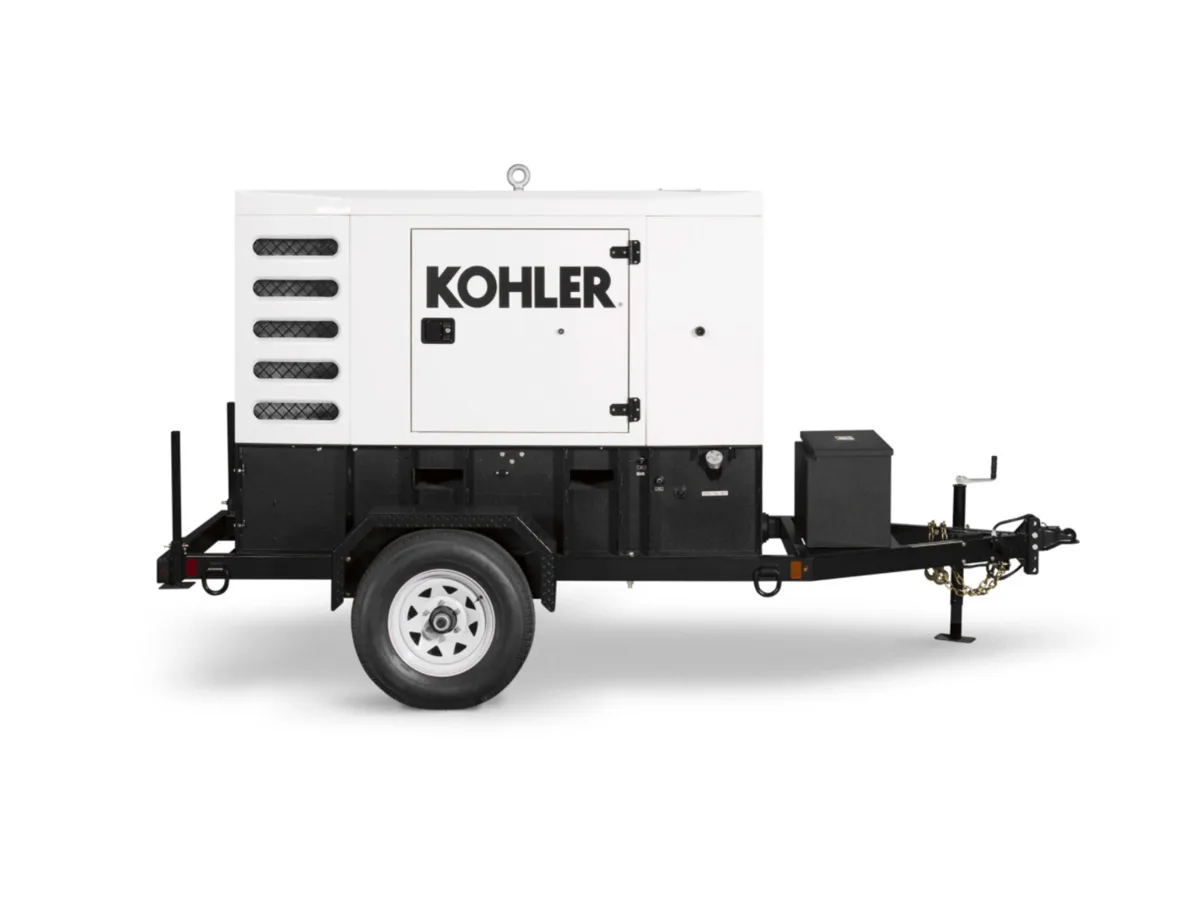

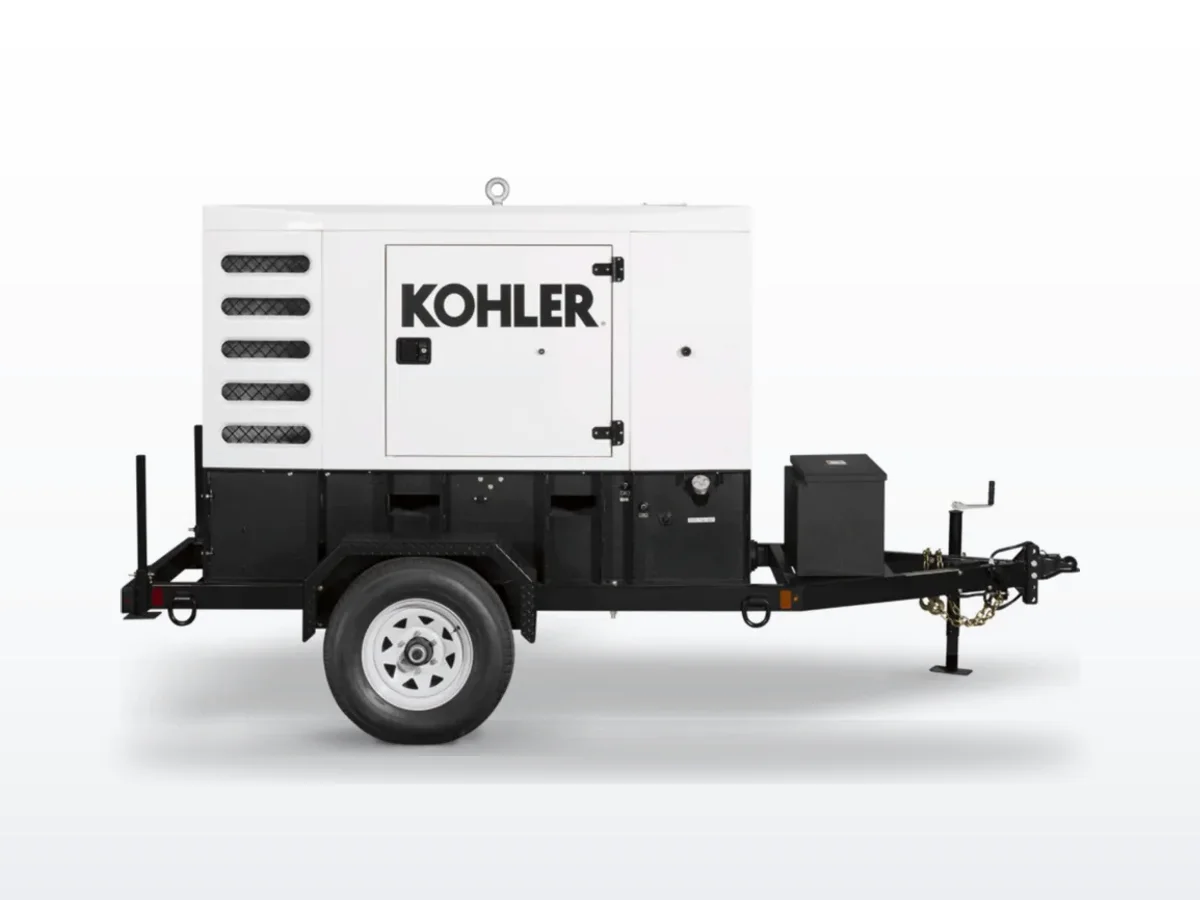

Kohler Kohler 45REOZT4 40 kW liquid-cooled standby generator

Kohler

Kohler 45REOZT4

40 kW mobile diesel trailer -- Tier 4 Kohler KDI 2504 TCR. Road-towable for temporary power, construction, and emergency deployment.

40 kW standby · Diesel · Liquid-cooled

45 kW Tier 4 Final diesel mobile trailer generator. Kohler-powered portable diesel for construction, events, and temporary power applications.

Tier 4 Final3-phasecommercialhealthcare

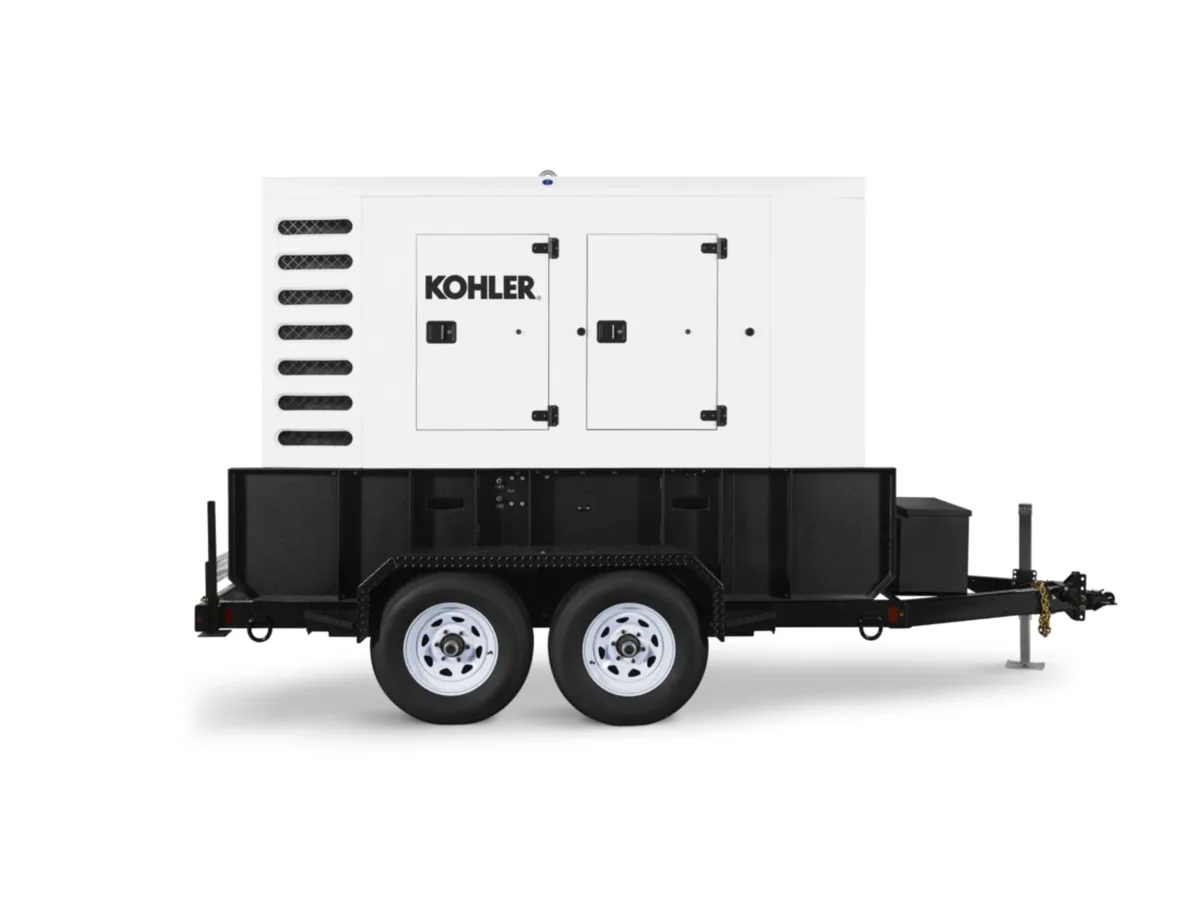

Kohler Kohler 90REOZT4 85 kW liquid-cooled standby generator

Kohler

Kohler 90REOZT4

85 kW mobile diesel trailer -- Tier 4 John Deere 4045HFG04. DOT-towable for temporary and emergency power deployment.

85 kW standby · Diesel · Liquid-cooled

90 kW Tier 4 Final diesel mobile trailer generator. John Deere-powered portable diesel for construction, events, and temporary power applications.

Tier 4 Final3-phasecommercialhealthcare

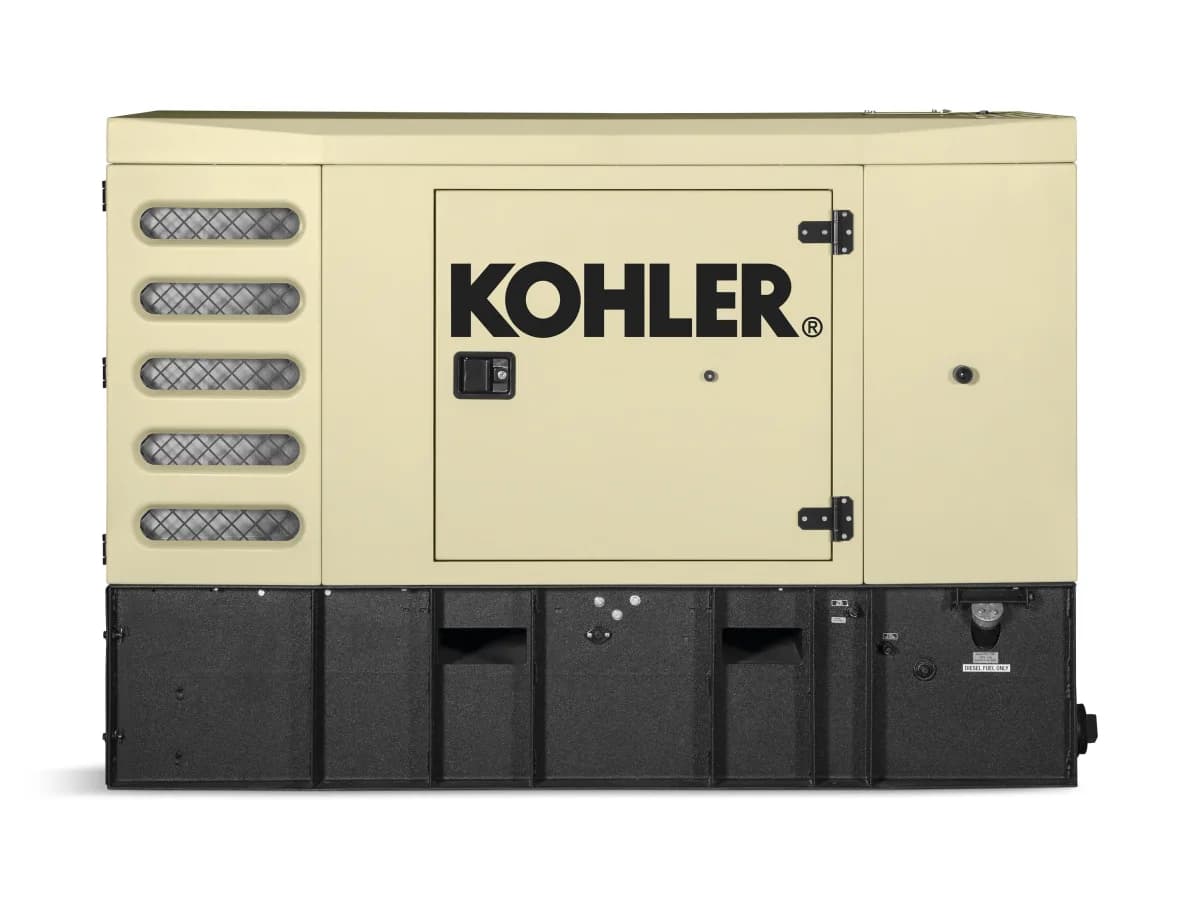

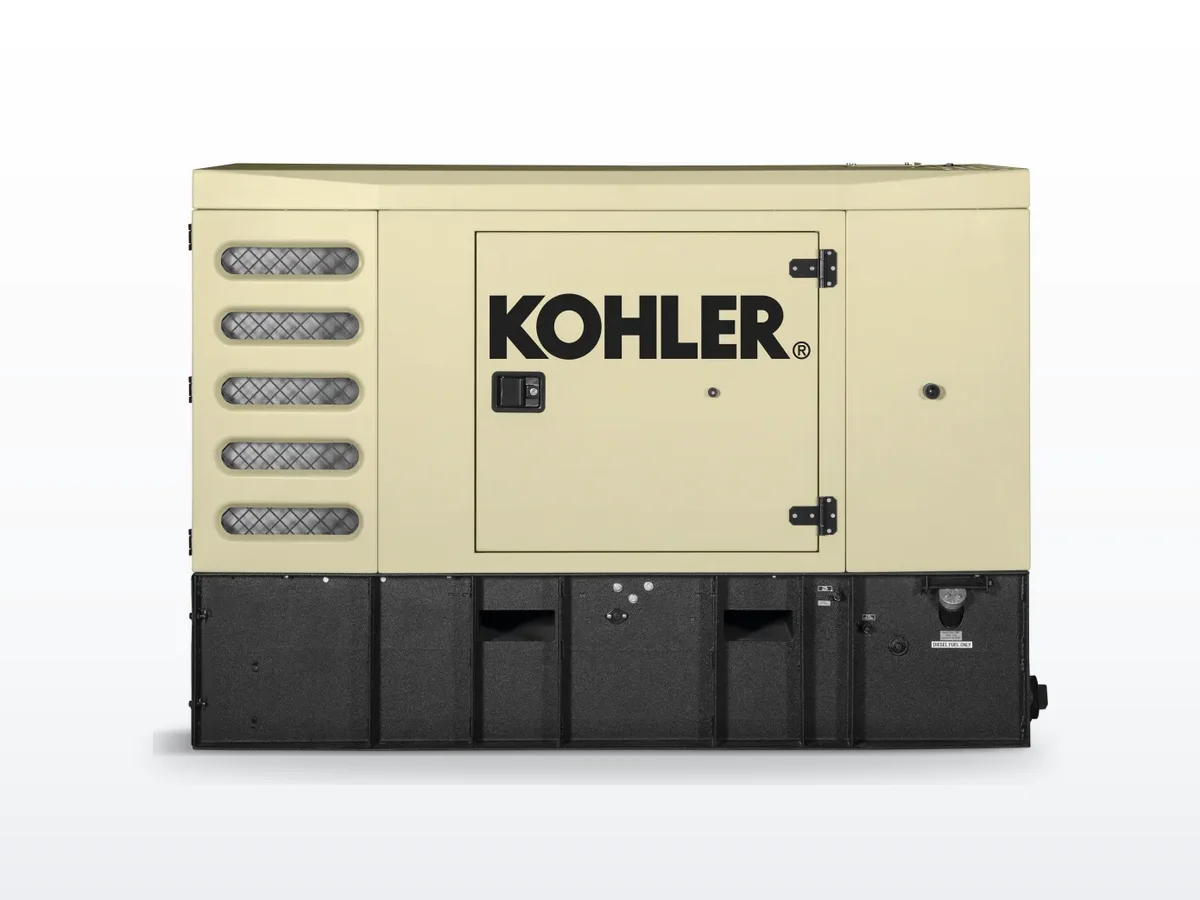

Kohler Kohler 48REOZK4 47 kW liquid-cooled standby generator
