Kohler · CCL Series (Residential/Light Commercial Gaseous)

Kohler 30CCL

30 kW standby · Natural Gas / LPG / Dual Fuel (NG/LPG) · Liquid-cooled

30 kW gaseous-fueled standby generator with Brushless Wound-Field alternator and PowerBoost excitation. Mid-range CCL series unit for residential and light commercial backup.

Kohler Kohler 30CCL generator — specifications and details
Standby power
30 kW
Voltage options
120/240V
Frequency / Phase
60 Hz · 1-phase
Engine
Kohler KG2204T · 2.2L
Alternator
Kohler Brushless, Wound-Field
residentialcommercial-small
Configure & QuoteDownload spec sheet

Overview#

The Kohler 30CCL is a 30-kilowatt gaseous standby generator and the mid-range unit in Kohler's CCL series. It uses a Brushless Wound-Field alternator with PowerBoost excitation, providing sustained short-circuit capability up to 300% of rated current for 10 seconds. The unit operates on natural gas or LP propane and is EPA certified for stationary emergency use.

The 30CCL shares its enclosure and dimensional footprint with the 25CCL and 36CCL, making it a straightforward step-up when 25 kW is not enough headroom but the site does not need the full 36 kW rating.

Our service experience#

The 30CCL is a common residential and light commercial installation in our territory. It shares the same engine platform and enclosure as the other CCL models, so service patterns and parts are consistent across the series.

Engineering specifications

Physical

Length
89.8 in
Width
32.7 in
Height
46.5 in
Wet weight
1,432 lb

Acoustic

Sound @ 7m, full load
57 dBA

Fuel system & runtime

NG required pressure
5 in WC

Photos

Kohler 30CCL — product photo

Documents & downloads

Spec sheets & manuals

Ready to order this model?

Configure your Kohler 30CCL

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Configure & Quote →Just request a quoteDownload datasheet

Estimate runtime for the Kohler 30CCL

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Fuel demand at 75% load

315,000 BTU/hr≈ 315.0 cf/min @ 1,000 BTU/cf

On utility natural gas the runtime is generally unlimited provided the supply line and meter can deliver this BTU/hr at the engine's required inlet pressure (typically 5–14" WC residential, up to 5 psi commercial). Confirm against the OEM's published fuel-pressure spec.

Service intervals

Manufacturer-recommended intervals for the Kohler 30CCL under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.

Oil & filter
Every 200 hours or 12 months
Coolant change
Every 2000 hours
Air filter
Every 500 hours
Spark plugs
Every 500 hours
Major overhaul
≈ 6,000 hours
Load bank test
Every 12 months

Common failure modes

What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.

ComponentSymptomTypical hoursSeverity
Spark plugs / ignitionMisfire under load, rough running, cylinder dropout codes500+minor
Fuel pressure regulatorHard starting, unstable idle, gas pressure fault6,000+moderate
Battery (starting)Slow crank, failed exercise, low voltage alarm8,760+minor

Frequently Asked Questions

What is the standby power rating of the Kohler 30CCL?
The 30CCL is rated 30 kW standby at 60 Hz. It is the mid-range unit in Kohler's CCL gaseous series, offering more headroom than the 25CCL for larger residential loads or small commercial applications.
What is the PowerBoost excitation system?
PowerBoost is Kohler's wound-field excitation design used in the CCL series. It provides enhanced motor-starting capability and sustained short-circuit support up to 300% of rated current for 10 seconds.
Does the 30CCL run on natural gas or propane?
Both. The 30CCL supports natural gas and LP propane with field-selectable fuel switching, like all CCL-series units.

Compatible equipment

Engine

Transfer switches

More in the CCL Series (Residential/Light Commercial Gaseous)

Kohler CCL Series: 25–36 kW liquid-cooled gaseous standby for residential and small commercial applications.

View all 3models in this series →

Similar models

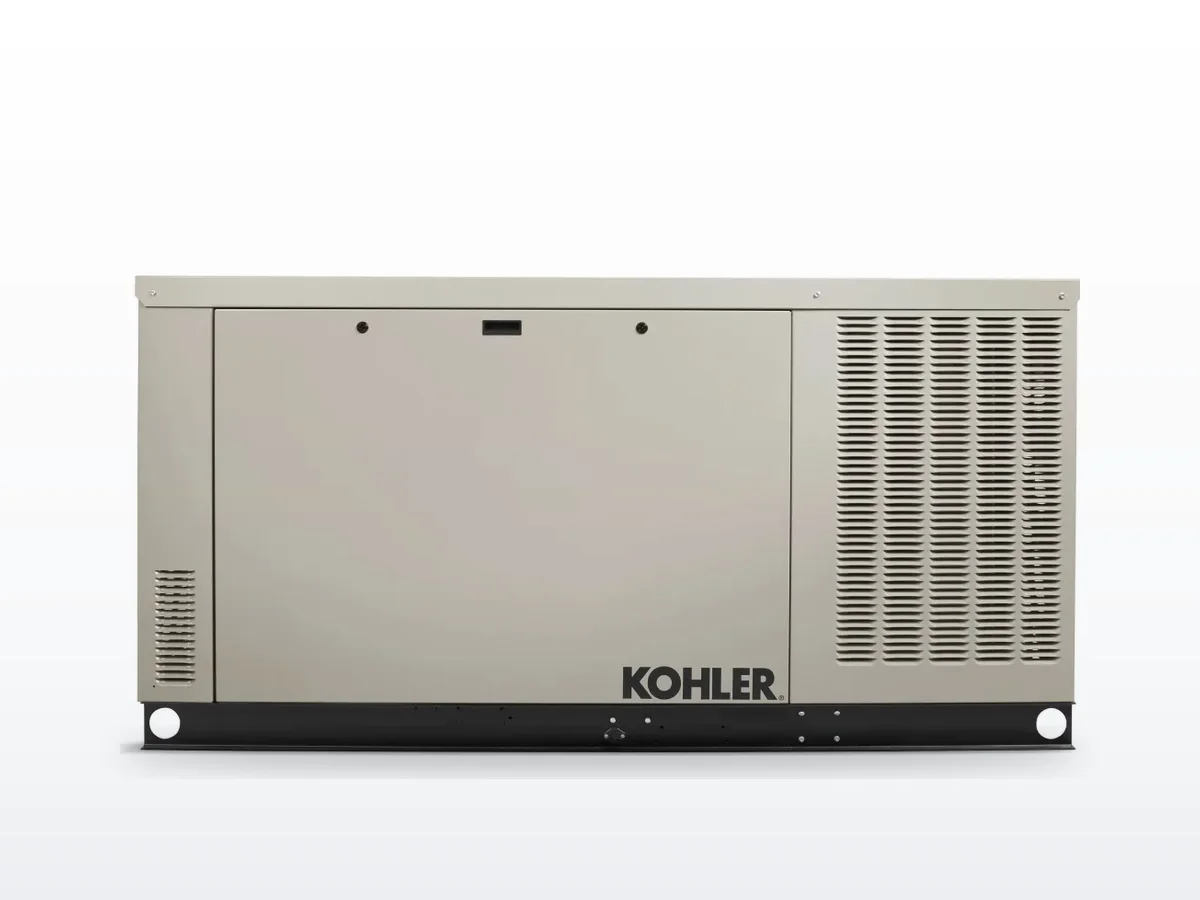

Kohler Kohler 25CCL 25 kW liquid-cooled standby generator

Kohler

Kohler 25CCL

25 kW gaseous standby with PowerBoost -- 300% short-circuit for 10 sec. Kohler KG2204T turbo, no fuel storage required.

25 kW standby · Natural Gas / LPG / Dual Fuel NG/LPG · Liquid-cooled

25 kW gaseous-fueled standby generator with Brushless Wound-Field alternator and PowerBoost excitation. Sized for residential and light commercial backup on natural gas or propane.

Single-phaseresidentialcommercial-small

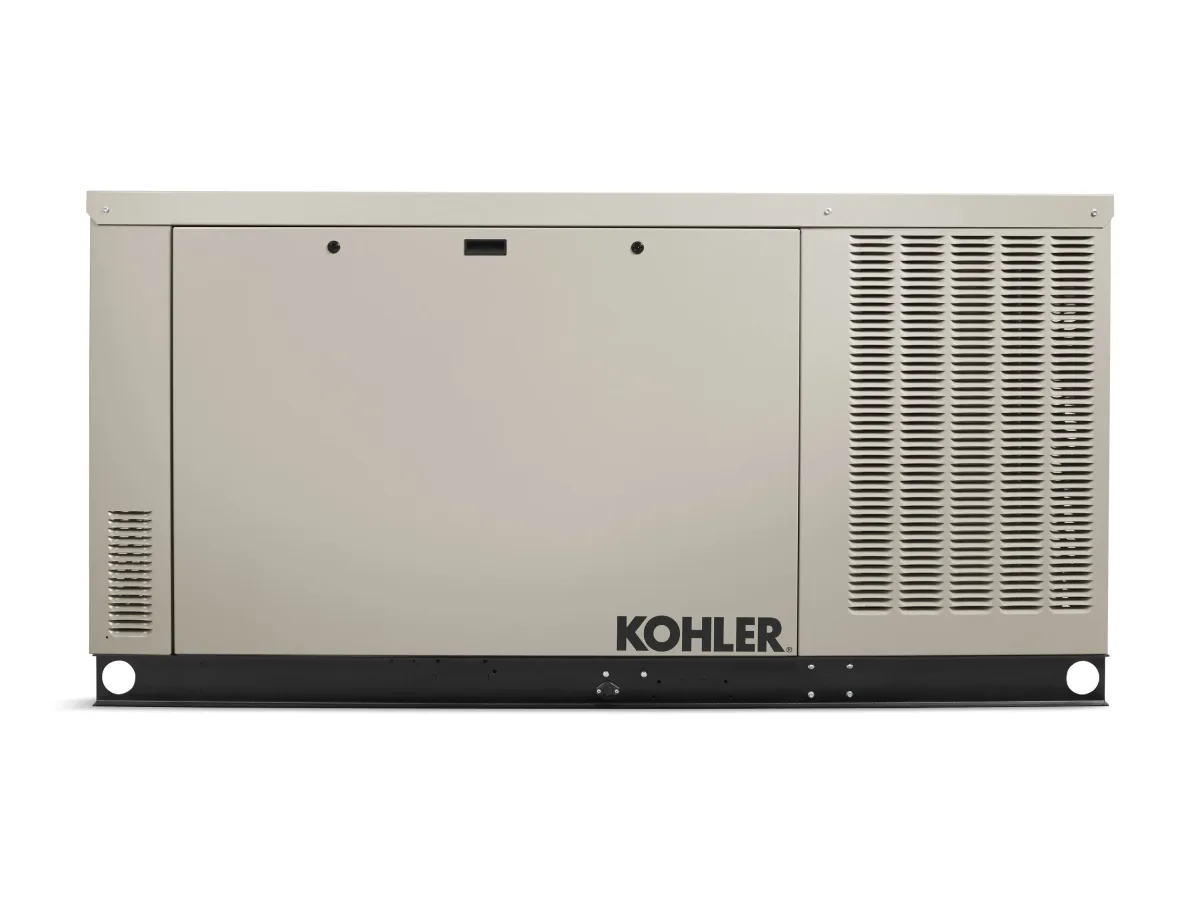

Kohler Kohler 36CCL 36 kW liquid-cooled standby generator

Kohler

Kohler 36CCL

36 kW gaseous standby with PowerBoost -- 300% short-circuit for 10 sec. Kohler KG2204T turbo, no fuel storage required.

36 kW standby · Natural Gas / LPG / Dual Fuel NG/LPG · Liquid-cooled

30-36 kW gaseous-fueled standby generator with Brushless Wound-Field alternator and PowerBoost excitation. Largest CCL series unit for residential and light commercial backup.

Single-phaseresidentialcommercial-small

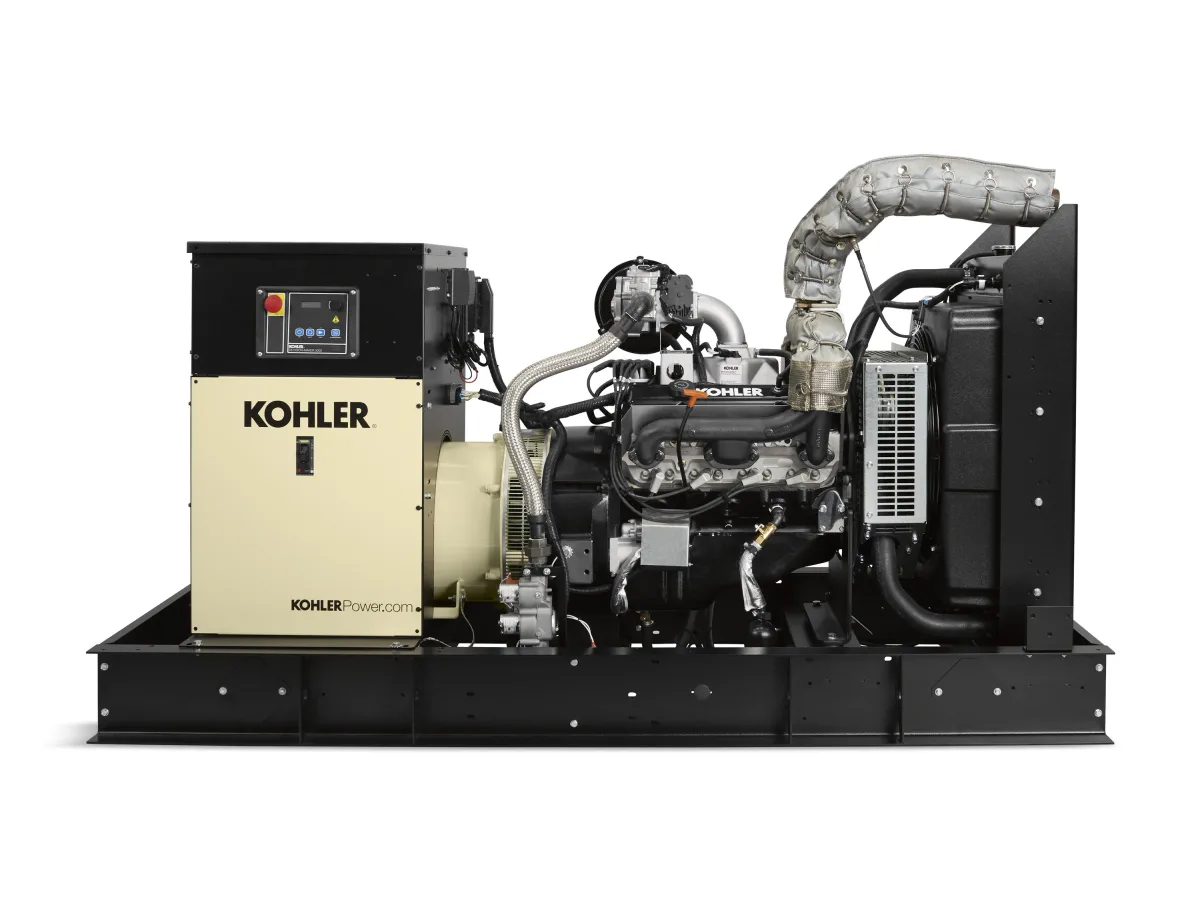

Kohler Kohler KG40 40 kW liquid-cooled standby generator
