Kohler · CCL Series (Residential/Light Commercial Gaseous)

Kohler 25CCL

25 kW standby · Natural Gas / LPG / Dual Fuel (NG/LPG) · Liquid-cooled

25 kW gaseous-fueled standby generator with Brushless Wound-Field alternator and PowerBoost excitation. Sized for residential and light commercial backup on natural gas or propane.

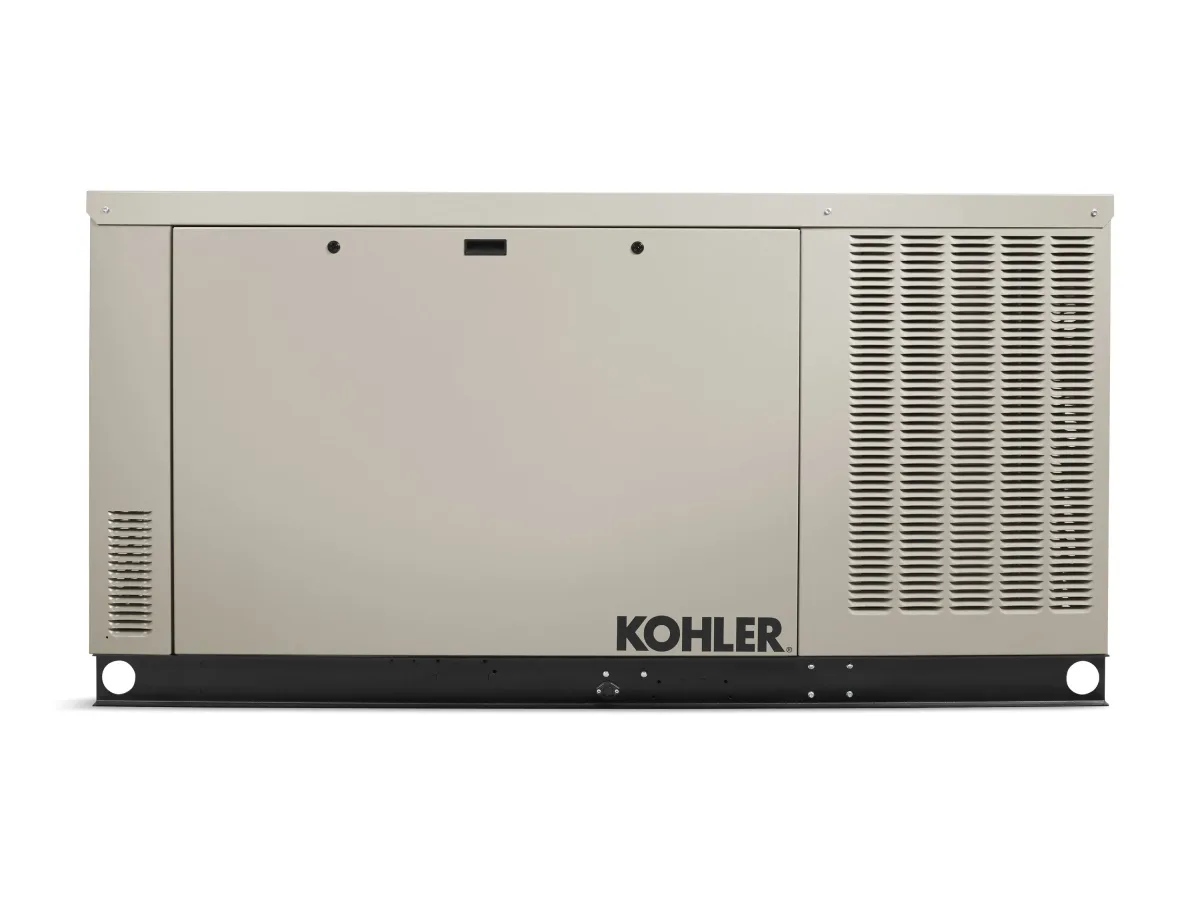

Kohler Kohler 25CCL generator — specifications and details
Standby power
25 kW
Voltage options
120/240V
Frequency / Phase
60 Hz · 1-phase
Engine
Kohler KG2204T · 2.2L
Alternator
Kohler Brushless, Wound-Field
residentialcommercial-small
Configure & QuoteDownload spec sheet

Overview#

The Kohler 25CCL is a 25-kilowatt gaseous standby generator and the entry point of Kohler's CCL series. It features a Brushless Wound-Field alternator with PowerBoost excitation, delivering strong motor-starting performance and sustained short-circuit support up to 300% rated current for 10 seconds. The unit runs on natural gas or LP propane and is EPA certified for stationary emergency use.

Sized for residential whole-house backup and small commercial applications, the 25CCL shares its enclosure platform with the 30CCL and 36CCL, keeping the footprint compact.

Our service experience#

The CCL series is common in residential and light commercial installations across our territory. Service patterns are straightforward with the naturally aspirated gaseous engine and wound-field alternator design.

Engineering specifications

Physical

Length
89.8 in
Width
32.7 in
Height
46.5 in
Wet weight
1,400 lb

Acoustic

Sound @ 7m, full load
57 dBA

Fuel system & runtime

NG required pressure
5 in WC

Photos

Kohler 25CCL — product photo

Documents & downloads

Spec sheets & manuals

Ready to order this model?

Configure your Kohler 25CCL

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Configure & Quote →Just request a quoteDownload datasheet

Estimate runtime for the Kohler 25CCL

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Fuel demand at 75% load

262,500 BTU/hr≈ 262.5 cf/min @ 1,000 BTU/cf

On utility natural gas the runtime is generally unlimited provided the supply line and meter can deliver this BTU/hr at the engine's required inlet pressure (typically 5–14" WC residential, up to 5 psi commercial). Confirm against the OEM's published fuel-pressure spec.

Service intervals

Manufacturer-recommended intervals for the Kohler 25CCL under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.

Oil & filter
Every 200 hours or 12 months
Coolant change
Every 2000 hours
Air filter
Every 500 hours
Spark plugs
Every 500 hours
Major overhaul
≈ 6,000 hours
Load bank test
Every 12 months

Common failure modes

What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.

ComponentSymptomTypical hoursSeverity
Spark plugs / ignitionMisfire under load, rough running, cylinder dropout codes500+minor
Fuel pressure regulatorHard starting, unstable idle, gas pressure fault6,000+moderate
Battery (starting)Slow crank, failed exercise, low voltage alarm8,760+minor

Frequently Asked Questions

What is the standby power rating of the Kohler 25CCL?
The 25CCL is rated 25 kW standby at 60 Hz. It is the smallest unit in Kohler's CCL gaseous series, sized for whole-house residential backup and small commercial loads.
Does the 25CCL run on natural gas or propane?
Both. Like all CCL-series units, the 25CCL supports natural gas and LP propane with field-selectable fuel switching.
What type of alternator does the 25CCL use?
The 25CCL uses a Brushless Wound-Field alternator. This design provides sustained short-circuit capability up to 300% of rated current for 10 seconds.

Compatible equipment

Engine

Transfer switches

More in the CCL Series (Residential/Light Commercial Gaseous)

Kohler CCL Series: 25–36 kW liquid-cooled gaseous standby for residential and small commercial applications.

View all 3models in this series →

Similar models

Kohler Kohler 30CCL 30 kW liquid-cooled standby generator

Kohler

Kohler 30CCL

30 kW gaseous standby with PowerBoost -- 300% short-circuit for 10 sec. Kohler KG2204T turbo, no fuel storage required.

30 kW standby · Natural Gas / LPG / Dual Fuel NG/LPG · Liquid-cooled

30 kW gaseous-fueled standby generator with Brushless Wound-Field alternator and PowerBoost excitation. Mid-range CCL series unit for residential and light commercial backup.

Single-phaseresidentialcommercial-small

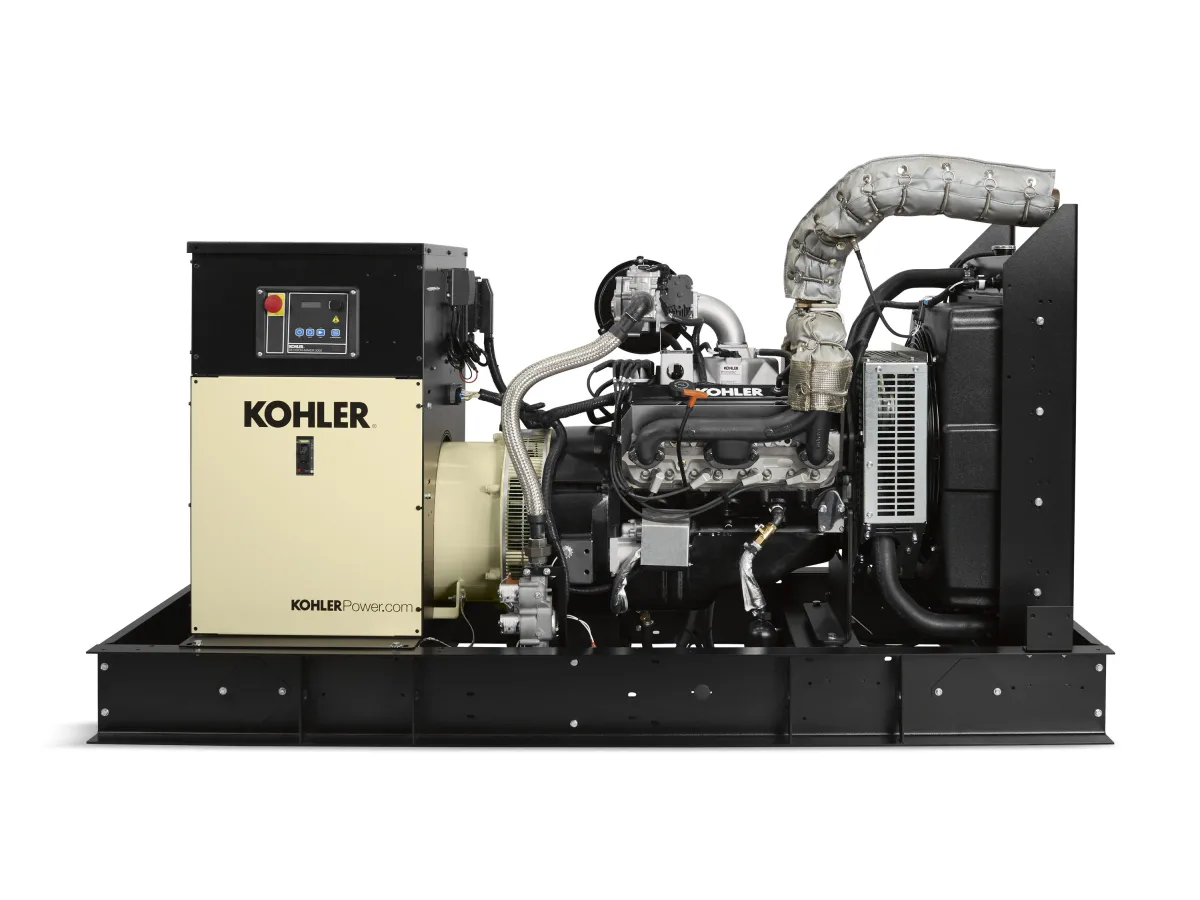

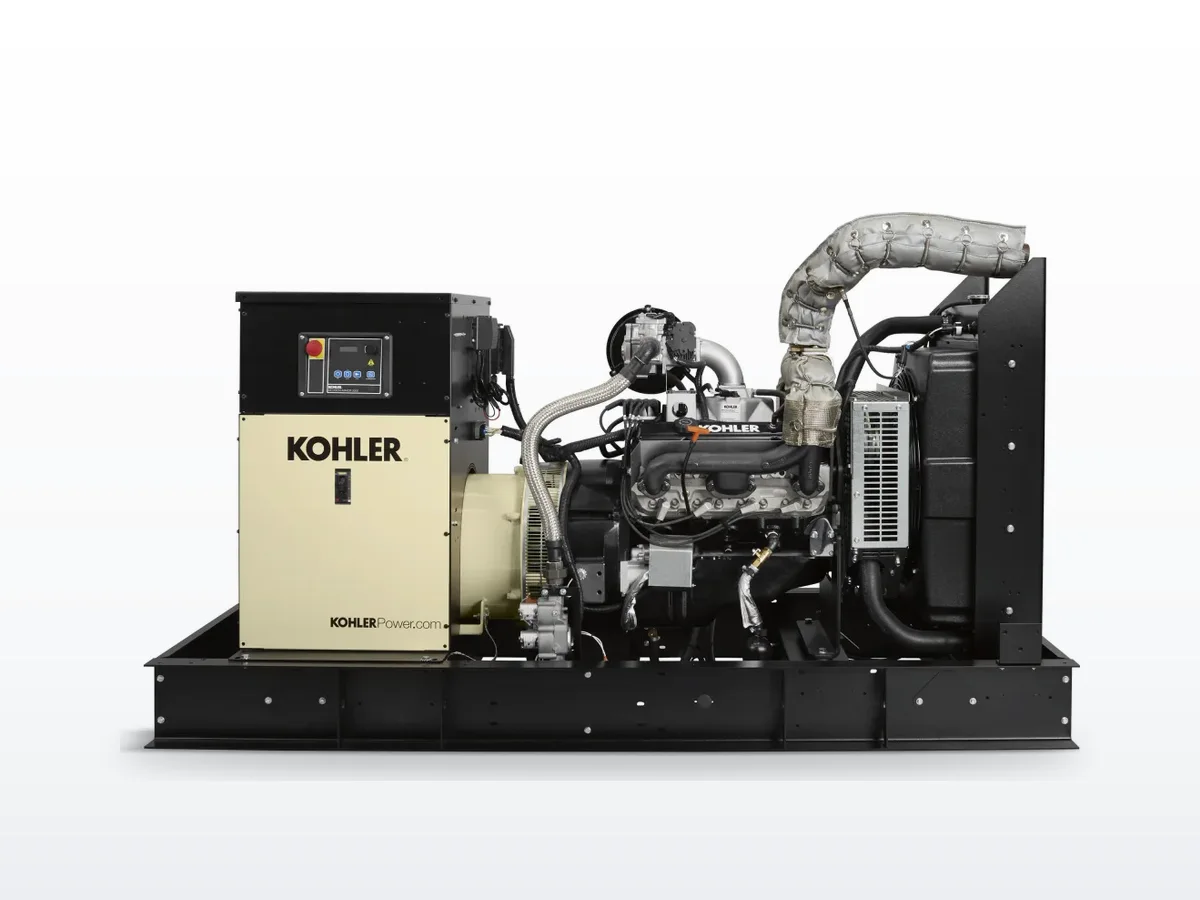

Kohler Kohler KG40 40 kW liquid-cooled standby generator

Kohler

Kohler KG40

40 kW gaseous standby -- no fuel storage, no SPCC plan. Kohler KG6208 NA V8 at 1800 RPM with rare-earth PM alternator.

40 kW standby · Natural Gas / LPG / Dual Fuel NG/LPG · Liquid-cooled

40 kW gaseous-fueled commercial standby generator. Kohler's entry-level industrial gaseous unit for light commercial backup on natural gas or propane.

EPA Stationary Spark Ignition3-phasesmall-retailrestaurant

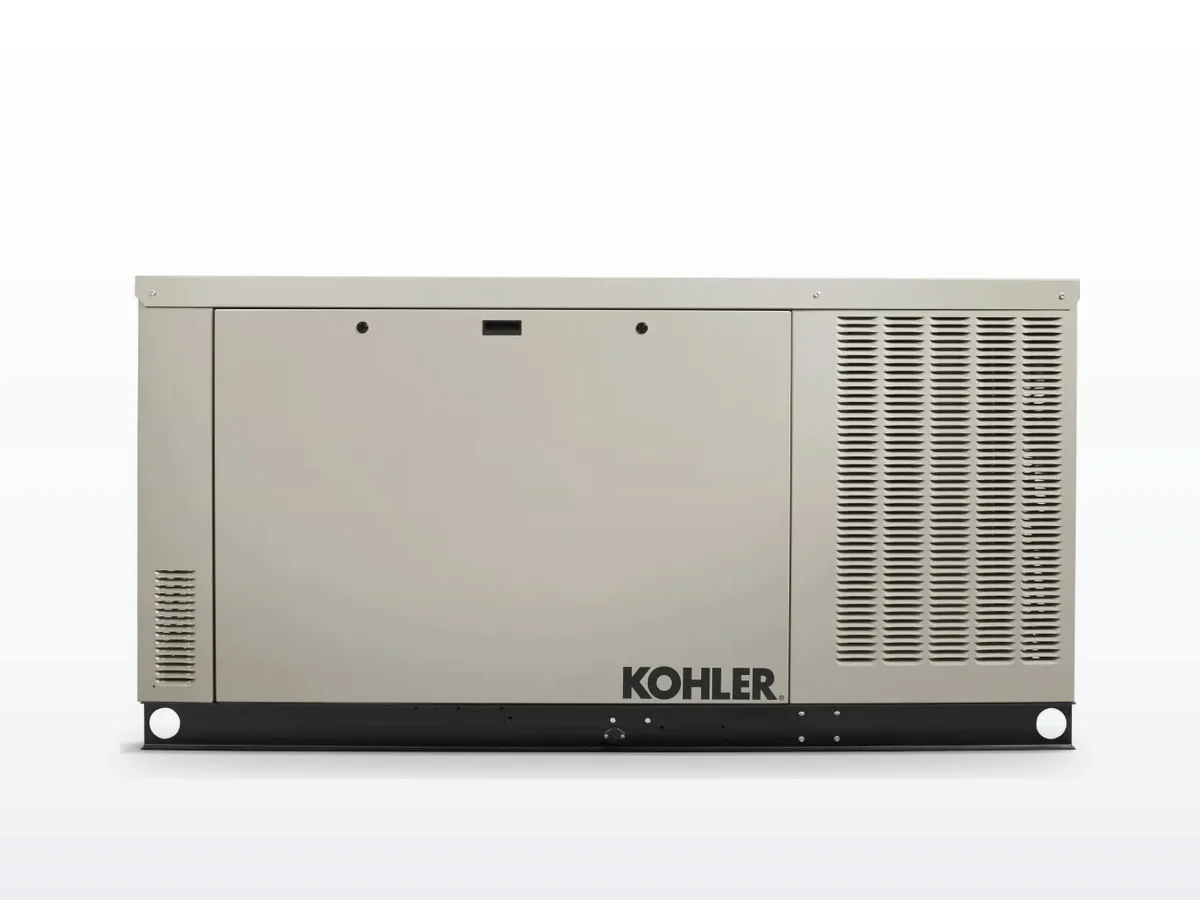

Kohler Kohler 36CCL 36 kW liquid-cooled standby generator
