Overview#

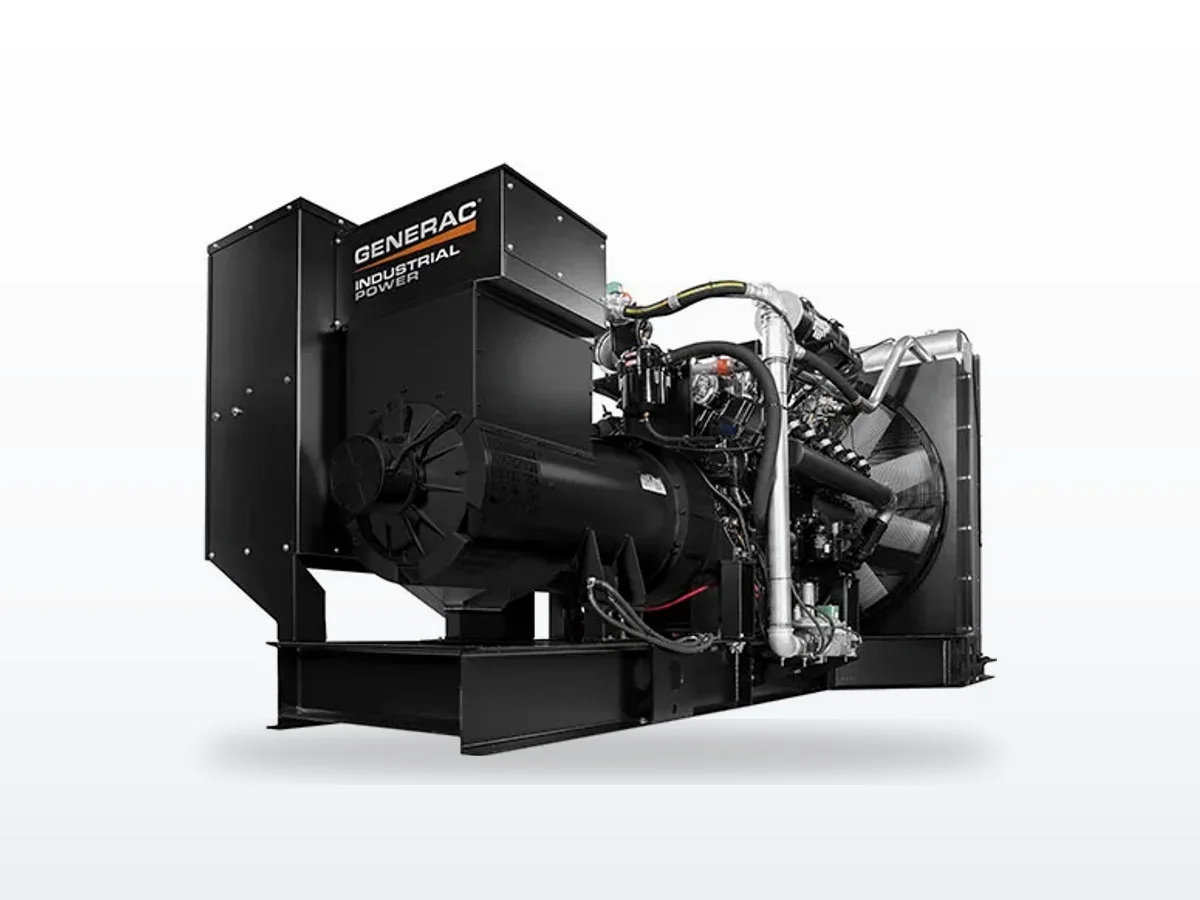

The Generac SG625 is a 625-kilowatt industrial natural gas generator from Generac's SG Series, powered by a Generac-built 33.9-liter V12 spark-ignited engine with turbocharged and aftercooled aspiration. This unit is EPA Certified for both Stationary Emergency and Non-Emergency operation and is Demand Response Ready for utility peak-shaving programs.

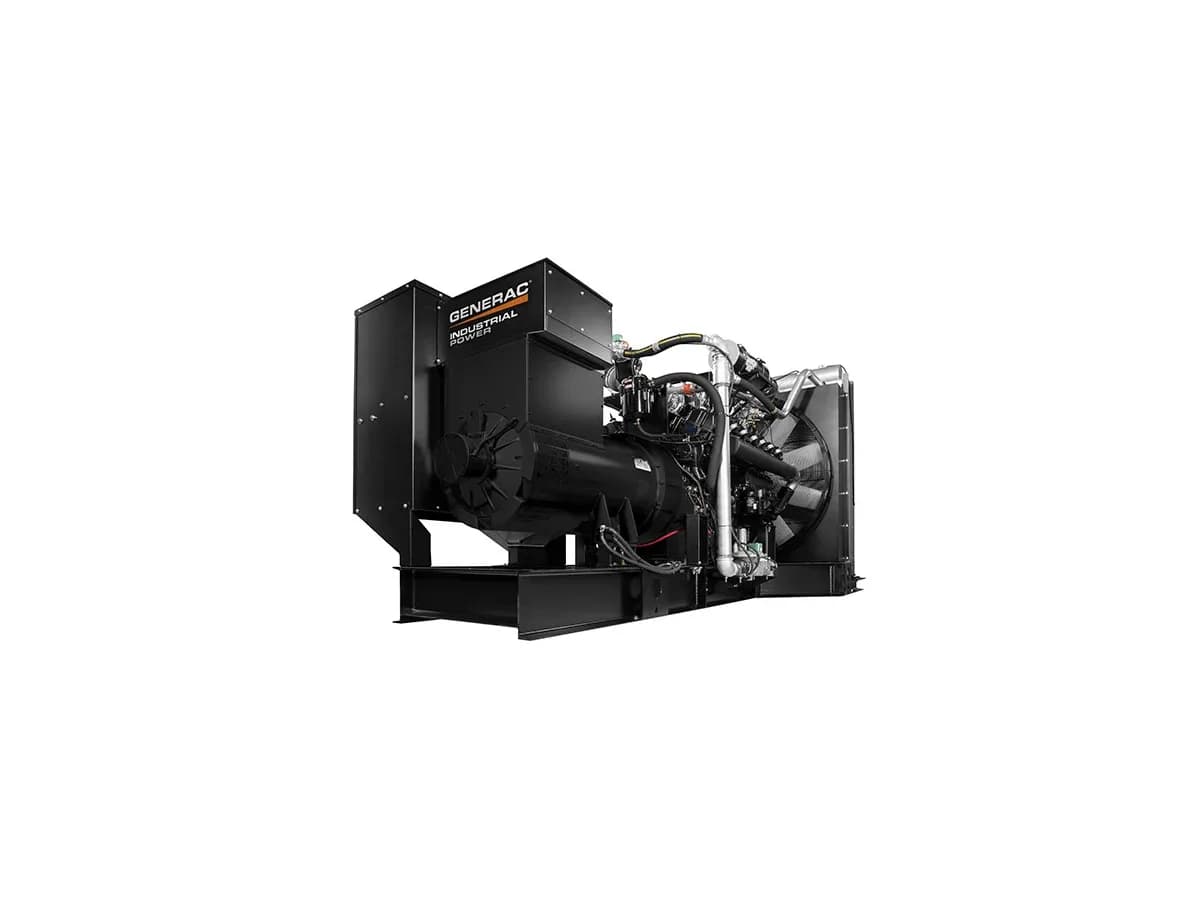

The SG625 shares the 33.9L engine platform with the SG750, which uses a higher-output tune of the same block. Generac pairs this engine with the K0732124Y22 alternator featuring Class H insulation, permanent magnet excitation, and sealed bearings. The Power Zone Pro Sync controller provides NFPA 110 Level 1 compliance, arc flash maintenance mode, Modbus RTU/TCP-IP communication, and a 7-inch sunlight-readable color touchscreen display.
The Generac 33.9L platform#
The 33.9-liter engine in the SG625 features a 4-valve cylinder head, 10.0:1 compression ratio, and chromium molybdenum steel crankshaft with seven main bearings. At standby rating, it produces 941 horsepower with BMEP of 188 psi and piston speed of 1,890 ft/min. The 126.8-quart (120-liter) oil capacity reflects the substantial size of this engine platform. Cooling is via forced circulation by centrifugal pump with a 64-inch pusher fan, and the coolant system holds 55 gallons. The engine is designed to operate at up to 122 degrees F ambient temperature without derating.
Our service experience#
The SG625 is deployed in large commercial campuses, hospitals, and industrial facilities throughout Northern California where natural gas infrastructure makes gaseous standby power the preferred choice over diesel. At nearly 6,850 scfh full-load consumption, gas supply sizing is critical -- we verify supply pressure (minimum 14 inches WC) and regulator capacity during commissioning and at each annual service. The oil system holds 120 liters, making oil changes a substantial operation that should be planned with adequate drain capacity. The ignition system and spark plugs remain the most frequent maintenance items, and we recommend inspecting them at each scheduled service interval. The structural steel sub-base with spring isolators provides excellent vibration isolation for the considerable mass of this unit.
