Cummins · Cummins N6 Commercial Gas

Cummins C1400 N6c

1400 kW standby · Natural Gas / LPG · Liquid-cooled

1400 kW natural gas standby generator with QSV91G gas engine. 1400 kW / 1750 kVA standby, PowerCommand controls, AmpSentry protection, UL 2200, EPA certified.

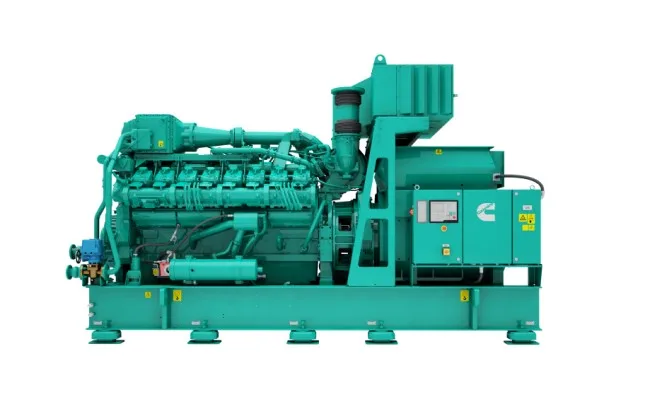

Cummins Cummins C1400 N6c generator — specifications and details
Standby power
1400 kW
Voltage options
120/208V, 277/480V, 347/600V
Frequency / Phase
60 Hz · 3-phase
Engine
Cummins QSV91G

Overview#

The Cummins C1400 N6c is a 1400 kW (1750 kVA) standby natural gas generator set powered by the QSV91G -- a 91-liter, turbocharged and aftercooled spark-ignited gas engine. The QSV91G is one of the largest dedicated gas engines in the Cummins portfolio, providing the displacement and robustness required for reliable high-capacity gas standby operation. The unit runs on natural gas or propane vapor and is equipped with PowerCommand controls.

The C1400 N6c serves megawatt-class standby applications in hospitals, Tier III+ data centers, large campus environments, and industrial facilities. At 1400 kW, it provides substantial emergency capacity while avoiding the fuel storage, permitting, and environmental compliance requirements associated with diesel generators at this scale.

Technical Specifications#

ParameterValue
Standby Rating1400 kW (1750 kVA)
Frequency60 Hz
Power Factor0.8
Engine ModelQSV91G
Fuel TypeNatural gas / LPG
CoolingLiquid
AspirationTurbocharged and aftercooled
Rated Speed1800 rpm
NG Fuel Consumption (Full Load)~14,000 CFH

Our Service Experience#

The QSV91G is a large-frame, high-cylinder-count gas engine requiring experienced technicians and specialized tooling. Spark plug replacement is a significant planned maintenance event due to cylinder count and access requirements. Catalytic converter backpressure monitoring is essential at this power level.

Gas supply infrastructure at 1400 kW is a major engineering consideration. At approximately 14,000 CFH, the facility needs utility-grade gas service with dedicated industrial metering and appropriately sized supply piping. Coordinate with the local gas utility early in the project.

Frequently Asked Questions#

What engine does the C1400 N6c use? The Cummins QSV91G -- a 91-liter, turbocharged and aftercooled spark-ignited gas engine rated for 1400 kW standby at 1800 rpm.

What is the standby rating of the C1400 N6c? 1400 kW (1750 kVA) at 60 Hz, 0.8 power factor. Emergency Standby Power (ESP) rating.

Can PowerGen service the C1400 N6c in Northern California? Yes. PowerGen maintains factory-trained staff for QSV91G gas engine service across the San Francisco Bay Area, Silicon Valley, and Northern California.

Engineering specifications

Ready to order this model?

Configure your Cummins C1400 N6c

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Estimate runtime for the Cummins C1400 N6c

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Fuel demand at 75% load

14,700,000 BTU/hr≈ 14700.0 cf/min @ 1,000 BTU/cf

On utility natural gas the runtime is generally unlimited provided the supply line and meter can deliver this BTU/hr at the engine's required inlet pressure (typically 5–14" WC residential, up to 5 psi commercial). Confirm against the OEM's published fuel-pressure spec.

Frequently Asked Questions

What engine does the Cummins C1400 N6c use?
The C1400 N6c is powered by the Cummins QSV91G -- a 91-liter, turbocharged and aftercooled spark-ignited gas engine rated for 1400 kW standby output at 1800 rpm.
What is the standby rating of the Cummins C1400 N6c?
The C1400 N6c is rated at 1400 kW (1750 kVA) standby at 60 Hz, 0.8 power factor. This is an Emergency Standby Power (ESP) rating for both natural gas and propane vapor fuel types.
How much natural gas does the C1400 N6c consume at full load?
Approximately 14,000 CFH at full standby load on natural gas. This requires utility-grade gas service with dedicated industrial metering and high-capacity pressure regulation.
Can PowerGen service the C1400 N6c in Northern California?
Yes. PowerGen provides authorized Cummins natural gas generator service across the San Francisco Bay Area, Silicon Valley, and Northern California. The QSV91G is a large-frame engine requiring factory-trained technicians -- we maintain qualified staff for spark plug replacement, gas regulator calibration, turbocharger inspection, and load bank testing.

Compatible equipment

Similar models

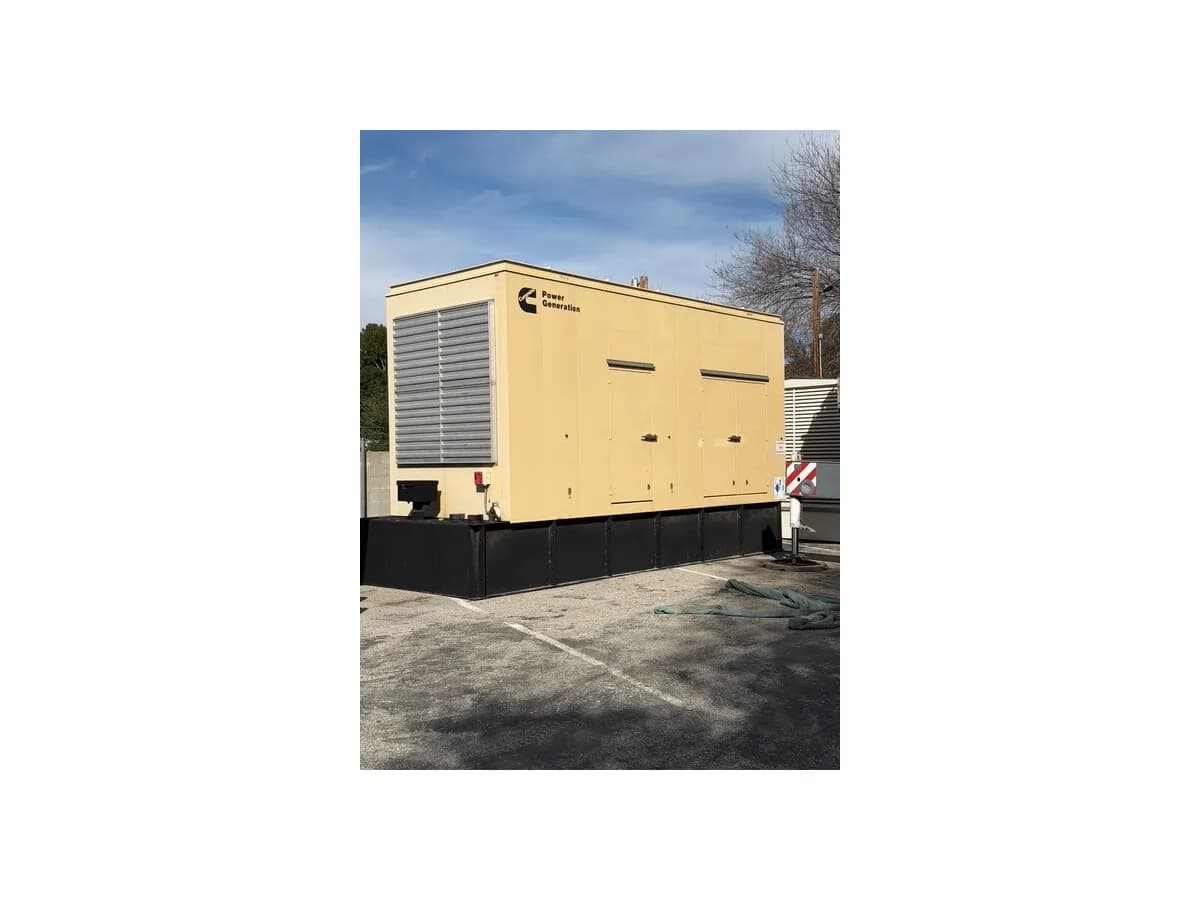

Cummins Cummins C1500 D6 1.5 MW liquid-cooled standby generator

Cummins

Cummins C1500 D6

1500 kW standby / 1365 kW prime at 60 Hz from the Cummins QSK50 V-16 engine with MCRS fuel injection.

1.5 MW standby · Diesel · Liquid-cooled

1500 kW diesel standby generator with QSK50 50.3L V-16 engine and MCRS fuel injection. EPA Tier 2 compliant engine with 2P2L cooling, for data center, hospital, and mission-critical standby applications.

Tier 23-phasedata-centerhospital

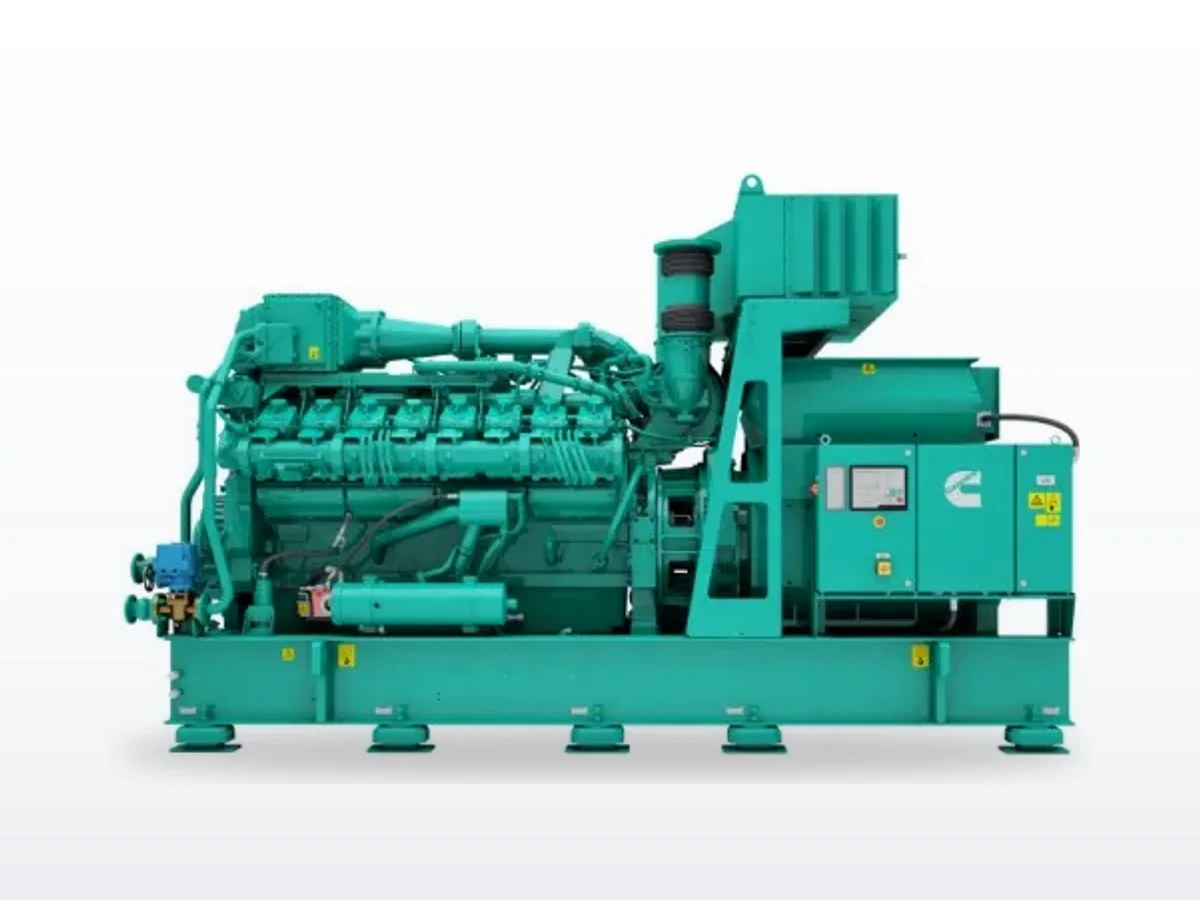

Cummins Cummins C1250 N6 1.3 MW liquid-cooled standby generator

Cummins

Cummins C1250 N6

1250 kW natural gas standby powered by the QSV91G. High-capacity gas power for mission-critical facilities without diesel infrastructure.

1.3 MW standby · Natural Gas / LPG · Liquid-cooled

1250 kW natural gas standby generator with QSV91G gas engine. 1250 kW / 1563 kVA standby, PowerCommand controls, AmpSentry protection, UL 2200, EPA certified.

3-phasecommercial-standbyindustrial-standby

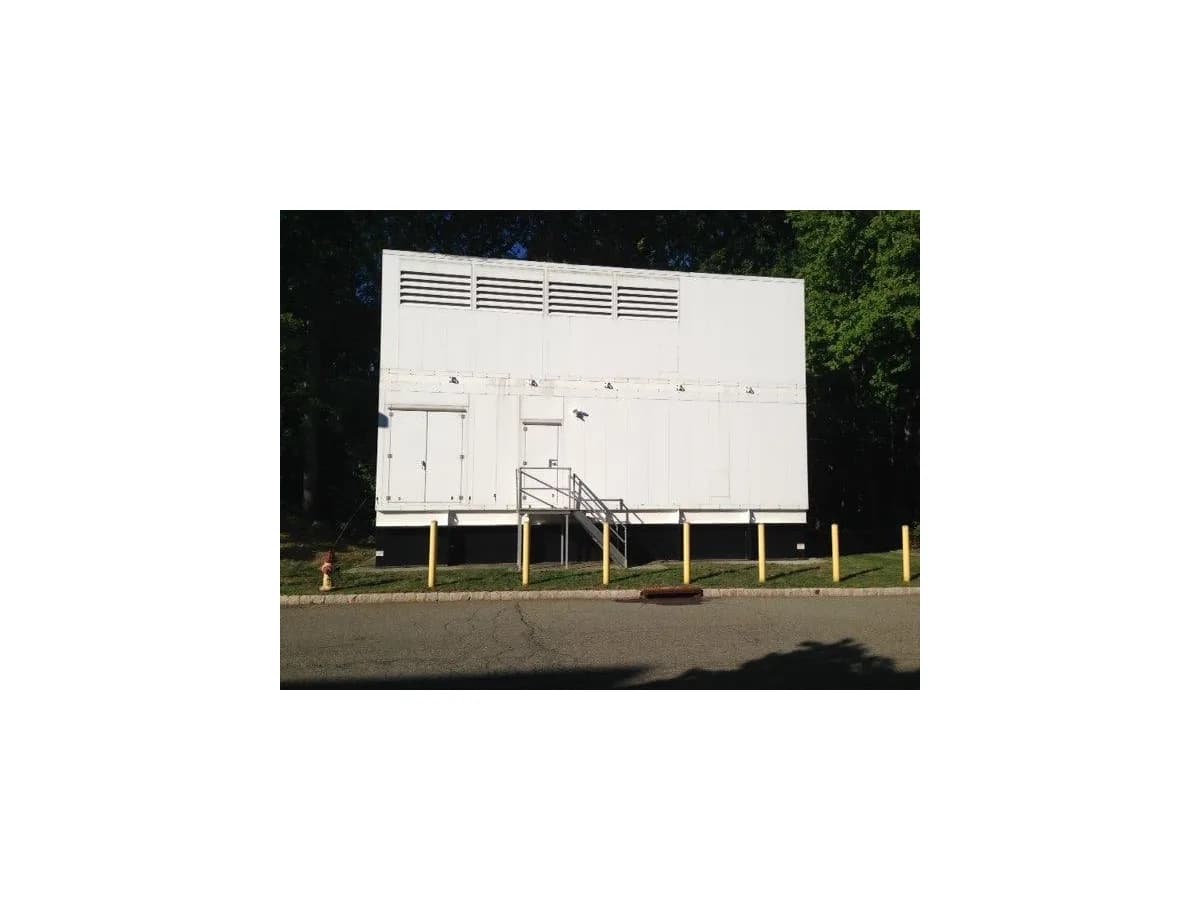

Cummins Cummins C1540 N6c 1.5 MW liquid-cooled standby generator
