Caterpillar · Cat C-Series (Diesel)

Cat C32B

1500 kW standby · Diesel · Liquid-cooled

1500 kW diesel standby generator with Cat C32B V-12 engine. Tier 2, EUI fuel system, Cat ECS/GCCP controller. The D1500 platform.

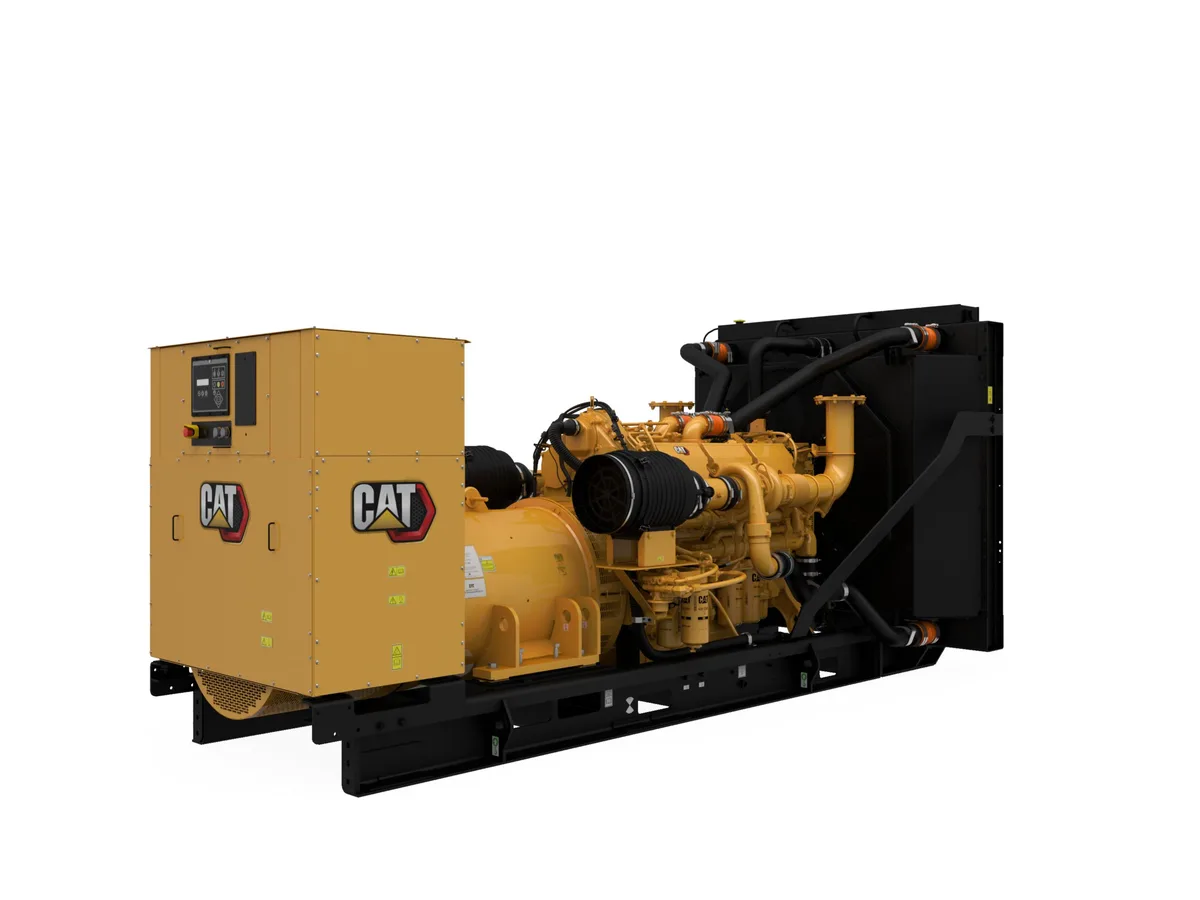

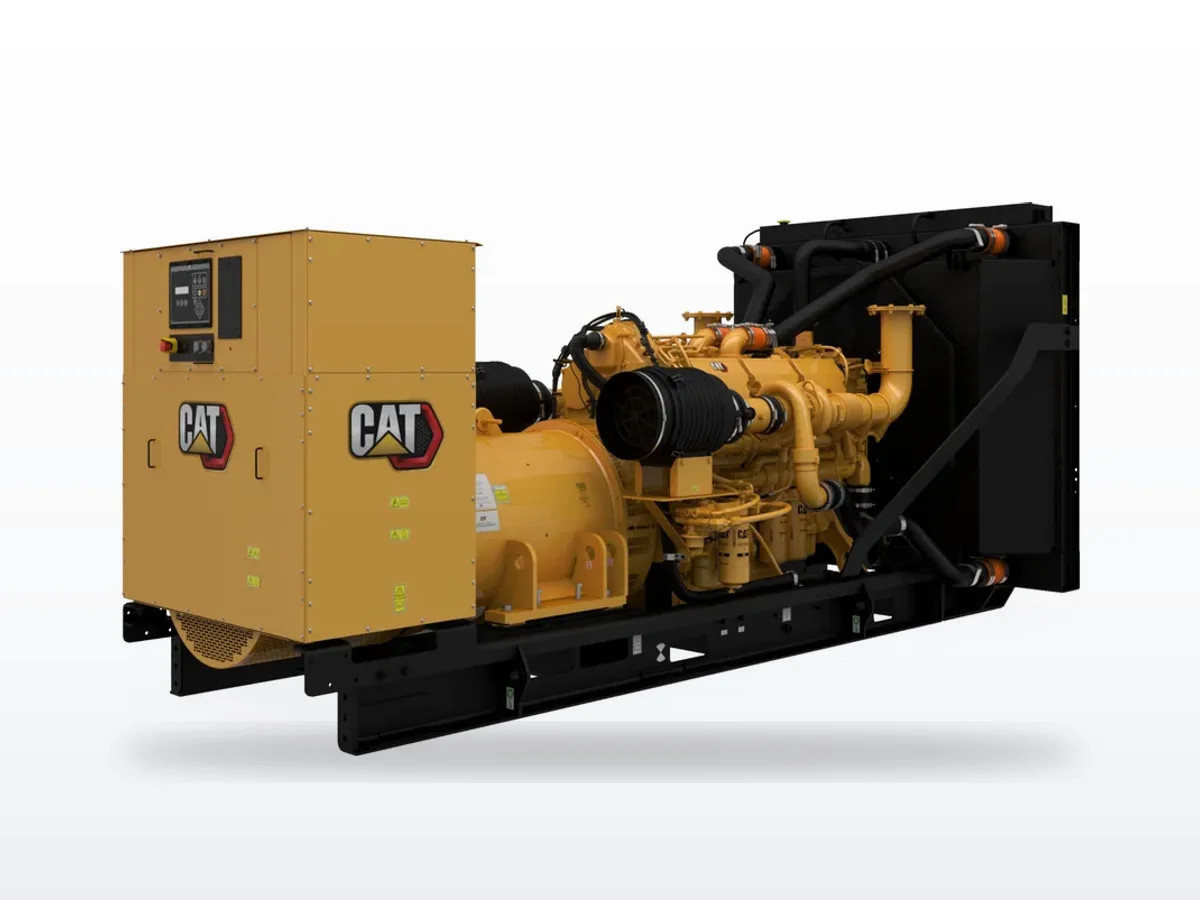

Caterpillar Cat C32B generator — specifications and details
Standby power
1500 kW
Voltage options
480V, 600V, 2400V, 4160V
Frequency / Phase
60 Hz · 3-phase
Engine
Caterpillar C32B · 32.1L
EPA / Emissions
Tier 2
Data CentersHealthcarehigh-riseCommercialparalleling-arrayManufacturing
Configure & QuoteDownload spec sheet

Overview#

The Cat C32B is a 1,500-kilowatt diesel standby generator -- Caterpillar's newest entry in the 1.5 MW class. Designated as the D1500 in Cat's product lineup, it uses a 32.1-liter V-12 engine with Electronic Unit Injection (EUI) and the ADEM A5 electronic governor. At 1500 ekW standby, the C32B delivers 50% more power than the original C32 platform it evolves from.

The C32B is certified to EPA Tier 2 for stationary emergency use and features Cat's latest Energy Control System (ECS) / GCCP controller platform. Standard features include 100% block load acceptance per NFPA 110, ISO 8528-5 G2 load acceptance compliance, and a 24-month / 1,000-hour warranty with 5 years of complimentary Platinum Extended Service Coverage.

The D1500: 1.5 MW from a V-12#

The C32B represents Cat's answer to the data center industry's demand for higher power density. Where the original C32 topped out at 1000-1250 kW, the C32B pushes 1500 kW from a V-12 footprint (200 x 90 inches). This matters in data center applications where generator room space directly affects the cost per megawatt of backup power.

Key specifications from the OEM spec sheet:

  • Bore x stroke: 145 mm x 162 mm (5.7 in x 6.4 in)
  • Displacement: 32.1 L (1,959 in3)
  • Compression ratio: 14.0:1
  • Fuel system: Electronic Unit Injection (EUI)
  • Fuel consumption at full load: 101.9 gal/hr (385.9 L/hr)
  • Exhaust gas temperature: 857.5 degrees F at full load
  • Motor starting capability: 4160V medium voltage available

The medium voltage options (2400V, 4160V) with both random-wound and form-wound alternator configurations make the C32B suitable for large campus and utility interconnection installations.

Our service experience#

The C32B is Cat's newest large diesel platform and is increasingly specified in data center projects across Northern California. At 21,411 lbs, the unit requires substantial structural support and rigging planning. The EUI fuel system is a proven Cat technology, but the higher power output means thermal management is critical -- ensure adequate ventilation with nearly 49,000 CFM of radiator airflow. The ECS/GCCP controller platform is a significant upgrade from EMCP 4 and supports advanced paralleling, Ethernet connectivity, and remote monitoring out of the box.

Engineering specifications

Physical

Length
200 in
Width
90 in
Height
96.3 in
Dry weight
21,411 lb

Fuel system & runtime

Fuel use @ full load
101.9 GPH
Fuel use @ 75% load
81.8 GPH
Fuel use @ 50% load
58.7 GPH

Documents & downloads

Spec sheets & manuals

Ready to order this model?

Configure your Cat C32B

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Configure & Quote →Just request a quoteDownload datasheet

Estimate runtime for the Cat C32B

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

2.5 hours(0.1 days)

Fuel consumption ≈ 78.61 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Service intervals

Manufacturer-recommended intervals for the Cat C32B under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.

Oil & filter
Every 500 hours or 12 months
Coolant change
Every 6000 hours
Air filter
Every 1000 hours
Fuel filter
Every 500 hours
Major overhaul
≈ 20,000 hours
Load bank test
Every 12 months

Common failure modes

What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.

ComponentSymptomTypical hoursSeverity
Fuel quality / degradationInjector fouling, filter clogging, hard starting4,380+moderate
Turbocharger(s)Reduced power, oil in intake, turbo noise18,000+severe
Battery bank (24V)Slow crank, failed start8,760+minor
Coolant heaterCold start issues, block heater element failure10,000+minor

Frequently Asked Questions

What are the power ratings for the Cat C32B generator?
The Cat C32B generator set is rated at 1500 ekW (1875 kVA) standby / mission critical at 60 Hz, 1800 rpm, 480V, 0.8 power factor. It is available in 480V, 600V, 2400V, and 4160V configurations. The model designation for the complete generator set package is D1500.
What engine does the Cat C32B use?
The C32B is a 32.1-liter, V-12 diesel engine with a 145 mm bore, 162 mm stroke, and 14.0:1 compression ratio. It uses Electronic Unit Injection (EUI) and the ADEM A5 electronic governor. The engine is certified to EPA Tier 2 for stationary emergency use.
How does the C32B compare to the original C32?
The C32B delivers 1500 kW standby versus the C32's 1000 kW -- a 50% power increase from the same V-12 architecture. The C32B uses a different bore and stroke (145 x 162 mm vs the C32's specs) and the newer ADEM A5 governor vs the C32's ADEM A4. It also features Cat's newer ECS/GCCP controller platform rather than the older EMCP 4. At 21,411 lbs dry, it is significantly heavier than the C32.
What are the dimensions and weight of the Cat C32B?
The C32B generator set measures 200 inches long x 90 inches wide x 96.3 inches high (103 inches with isolators). Dry weight is 21,411 lbs (9,712 kg). These dimensions are for the open-skid configuration; enclosed packages will be larger.
What controller does the C32B use?
The C32B uses Cat's Energy Control System (ECS) / GCCP controller platform, available in GCCP 1.2, ECS 100, and ECS 200 configurations. This is Cat's newest controller platform, replacing the EMCP 4 series. It features a graphical touchscreen display, Ethernet and cellular connectivity options, and expansion modules for site-specific programming.

Compatible equipment

Transfer switches

More in the Cat C-Series (Diesel)

CAT's broadest diesel lineup: 45–1,500 kW across ten ACERT models for commercial, hospital, and industrial standby.

View all 10models in this series →

Similar models

Caterpillar Cat 3512 1 MW liquid-cooled standby generator

Caterpillar

Cat 3512

1000 kW diesel with CAT 3512 V-12. Best resale value in class. ~200 US dealers with parts availability back decades.

1 MW standby · Diesel · Liquid-cooled

1000-1400 kVA diesel generator with Cat 3512 V-12 engine. 51.8L displacement, Woodward governor, continuous/prime/standby ratings.

3-phasecommercial-standbyindustrial

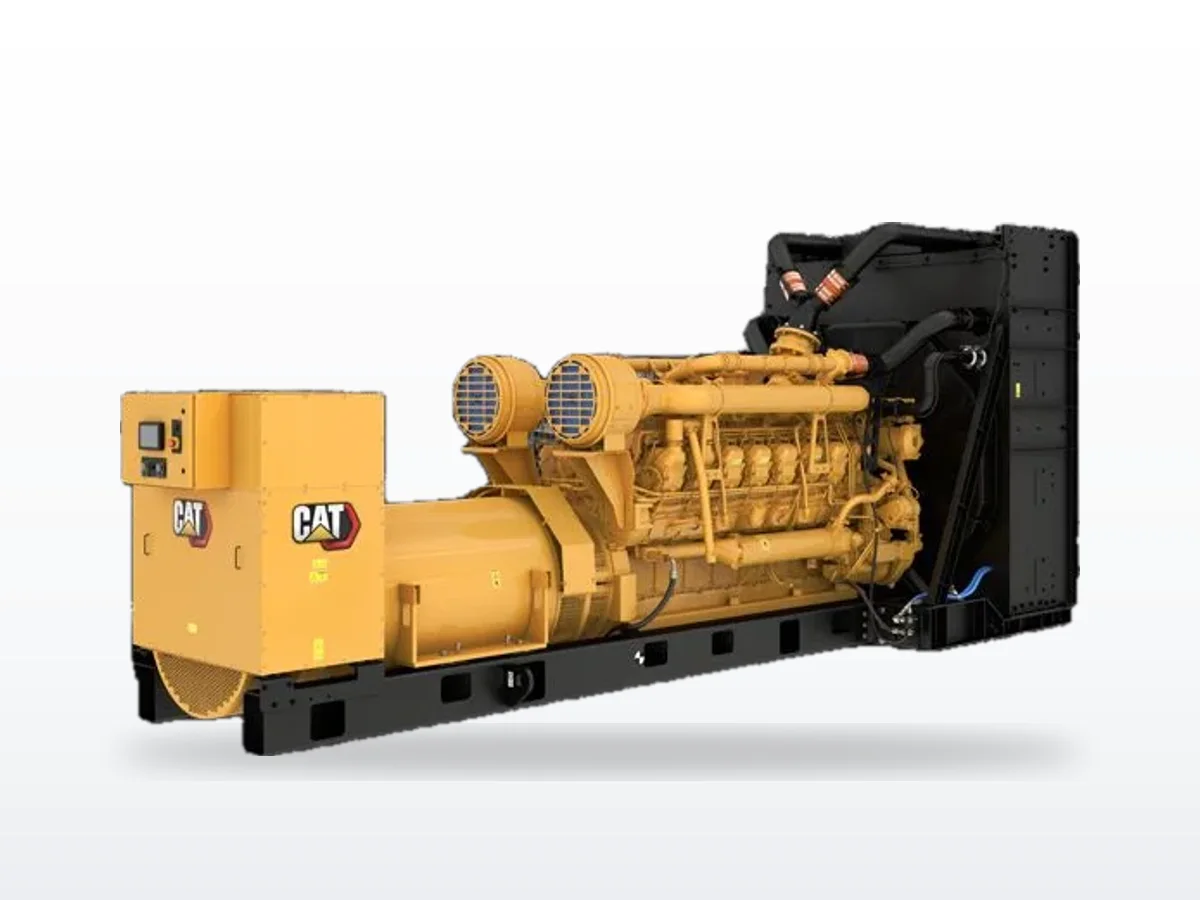

Caterpillar Cat 3516 1.6 MW liquid-cooled standby generator

Caterpillar

Cat 3516

1600 kW diesel with CAT 3516 V-16. Best resale -- retains 15-25% more than competitors. ~200 US dealer network.

1.6 MW standby · Diesel · Liquid-cooled

1600 kW diesel generator with Cat 3516 turbocharged V-16 engine. Mission-critical platform for data centers, hospitals, and large industrial standby and prime power.

3-phasedata-centerhospital

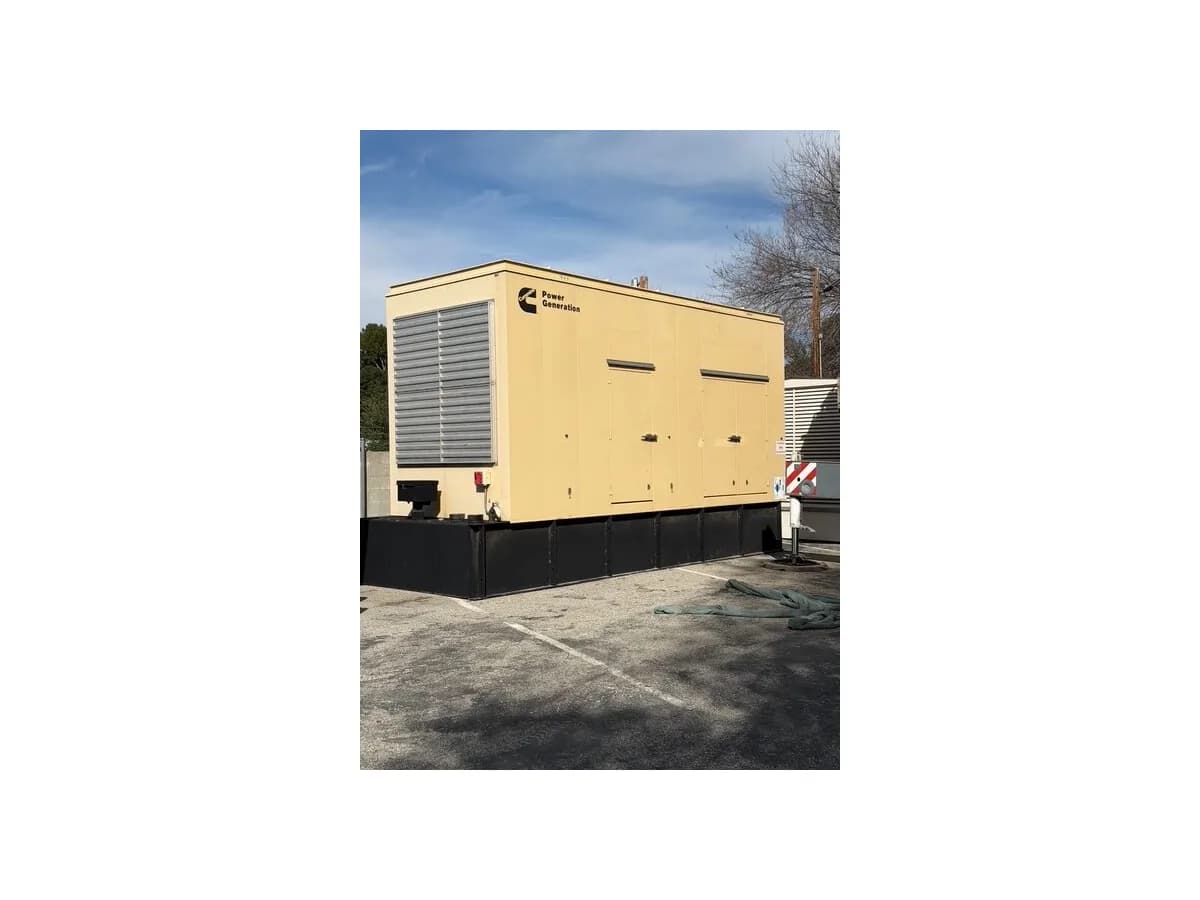

Cummins Cummins QSK50 1.5 MW liquid-cooled standby generator
