Caterpillar · Cat 3500 Series (Large Diesel)

Cat 3512B

1500 kW standby · Diesel · Liquid-cooled

1230-1500 kW diesel generator with Cat 3512B V-12 engine. EUI fuel system, EMCP 4.2B controller, mission-critical and standby ratings.

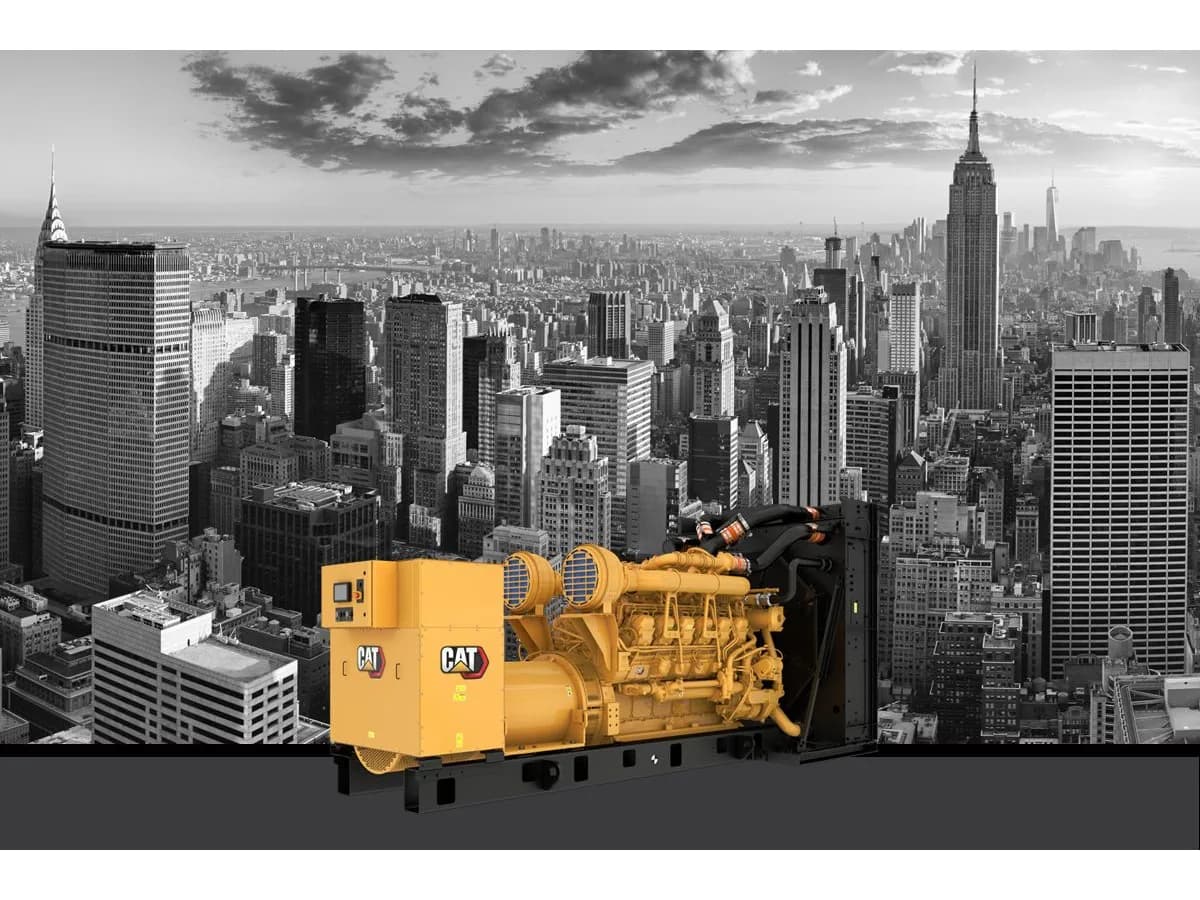

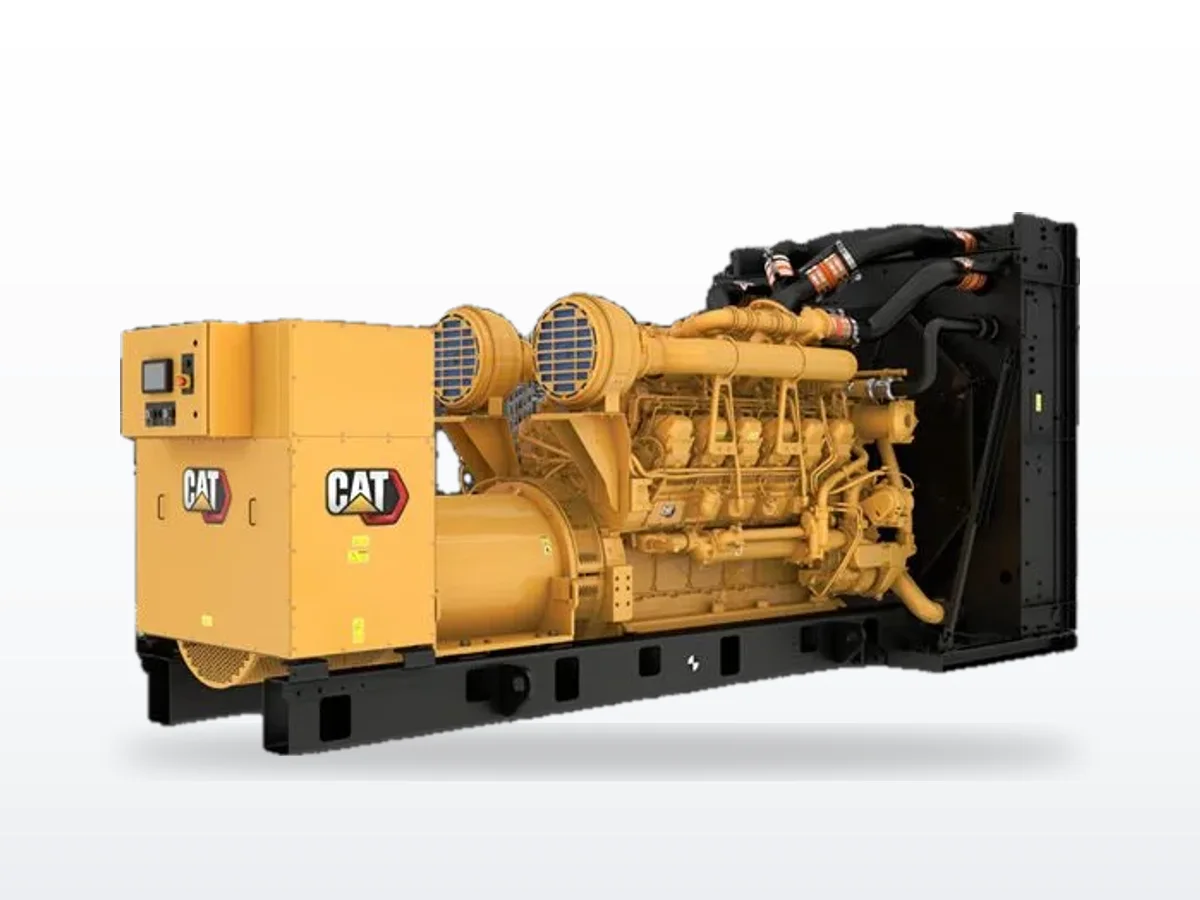

Caterpillar Cat 3512B generator — specifications and details
Standby power
1500 kW
Voltage options
277/480V, 2400V, 4160V, 13800V
Frequency / Phase
60 Hz · 3-phase
Engine
Caterpillar 3512B · 58.56L

Overview#

The Cat 3512B is a 1,230-1,500 kW diesel generator -- a V-12 platform in Cat's 3500 Series. With Electronic Unit Injection (EUI), the ADEM III governing system, and support for low, medium, and high voltage configurations up to 13,800V, the 3512B serves mission critical, standby, prime, and continuous applications.

The 3512B supports four duty cycles: standby, mission critical, prime, and continuous. At the 1500 ekW mission critical standby rating (60 Hz, 480 V), it delivers 1875 kVA at 0.8 power factor. The EMCP 4.2B controller provides programmable protective relaying, Modbus RTU communication, and Cat Connect.

Fuel system and governing#

The 3512B uses an Electronic Unit Injection (EUI) fuel system with an ADEM III governing system.

Key specifications from the OEM spec sheet:

  • Bore x stroke: 170 mm x 190 mm (6.69 in x 7.48 in)
  • Displacement: 58.56 L (3573.55 in3)
  • Compression ratio: 14.0:1 (standard) or 15.5:1 (HD)
  • Fuel consumption at full load (1500 ekW mission critical standby, 60 Hz, 480 V): 104.7 gal/hr (396.4 L/hr)
  • Genset dimensions (sheet Dimensions table; the sheet's Technical Spec Sheet rating is 1500 ekW mission critical standby, 60 Hz, 480 V): 221.9 in x 90.0 in x 93.2 in (L x W x H)
  • Heat rejection to jacket water: 34122 Btu/min
  • Combustion air inlet flow rate: 4788.2 cfm
  • Motor starting capability: 4350 skVA at 30% voltage dip

Medium and high voltage configurations#

The 3512B is available in low voltage (380-480V), medium voltage (2400V, 4160V), and high voltage (13,800V) configurations. Medium voltage generators are form wound with winding temperature detectors. This voltage flexibility makes the 3512B suitable for large campus distribution and industrial plant power systems.

Our service experience#

The 3512B is a proven workhorse in data centers, hospitals, and large industrial facilities across Northern California. The sheet lists two compression ratio options (14.0:1 standard and 15.5:1 HD), so it is important to know which configuration is installed. Structural and rigging planning is critical for a unit of this size.

Engineering specifications

Physical

Length
221.9 in
Width
90 in
Height
93.2 in

Fuel system & runtime

Fuel use @ full load
104.7 GPH
Fuel use @ 75% load
78.2 GPH
Fuel use @ 50% load
53.1 GPH

Documents & downloads

Spec sheets & manuals

Units For Sale

View all (2)
Used

2003

31,798 hrs

$99,900

Houston, TX

Fair Price
Used

2003

32,501 hrs

$99,900

Houston, TX

Fair Price

Don't see the right unit? Request a Custom Quote →

Ready to order this model?

Configure your Cat 3512B

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Estimate runtime for the Cat 3512B

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

2.5 hours(0.1 days)

Fuel consumption ≈ 80.77 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Frequently Asked Questions

What are the power ratings for the Cat 3512B generator?
The Cat 3512B has a minimum rating of 1230 ekW and a maximum rating of 1500 ekW at 60 Hz / 1800 rpm. The technical spec sheet shows a 1500 ekW (1875 kVA) mission critical standby rating at 480V, 0.8 power factor. It supports standby, mission critical, prime, and continuous duty cycles. Voltage options range from 380V to 13,800V.
What engine does the Cat 3512B use?
The 3512B is a V-12, four-stroke turbocharged-aftercooled diesel engine with a 170 mm bore, 190 mm stroke, and 58.56L displacement. It uses Electronic Unit Injection (EUI) and the ADEM III electronic governor. Two compression ratio options are available: 14.0:1 standard and 15.5:1 high-duty (HD).
What is the fuel consumption of the Cat 3512B?
At the 1500 ekW mission critical standby rating (480V, 60 Hz), the 3512B consumes 104.7 gal/hr at 100% load, 78.2 gal/hr at 75% load, 53.1 gal/hr at 50% load, and 32.3 gal/hr at 25% load. Fuel rates are based on No. 2 diesel fuel at 35 degrees API gravity.
What alternator options are available for the 3512B?
The 3512B uses the Cat SR5 alternator with robust Class H insulation. The sheet lists low, medium, and high voltage generator arrangements, with permanent magnet (PMG) or internal excitation (IE) options and an optional anti-condensation heater.

Compatible equipment

More in the Cat 3500 Series (Large Diesel)

Caterpillar's proven large diesel line with a long mission-critical field history.

Similar models

Caterpillar Cat 3512 1 MW liquid-cooled standby generator

Caterpillar

Cat 3512

Diesel generator set with the Cat 3512 V-12 engine, rated 1000 to 1400 kVA at 50 Hz.

1 MW standby · Diesel · Liquid-cooled

1000-1400 kVA (50 Hz) diesel generator with Cat 3512 V-12 engine. 51.8L displacement, Woodward governor, continuous/prime/standby duty cycles.

3-phasecommercial-standbyindustrial
Caterpillar Cat 3516 liquid-cooled standby generator

Caterpillar

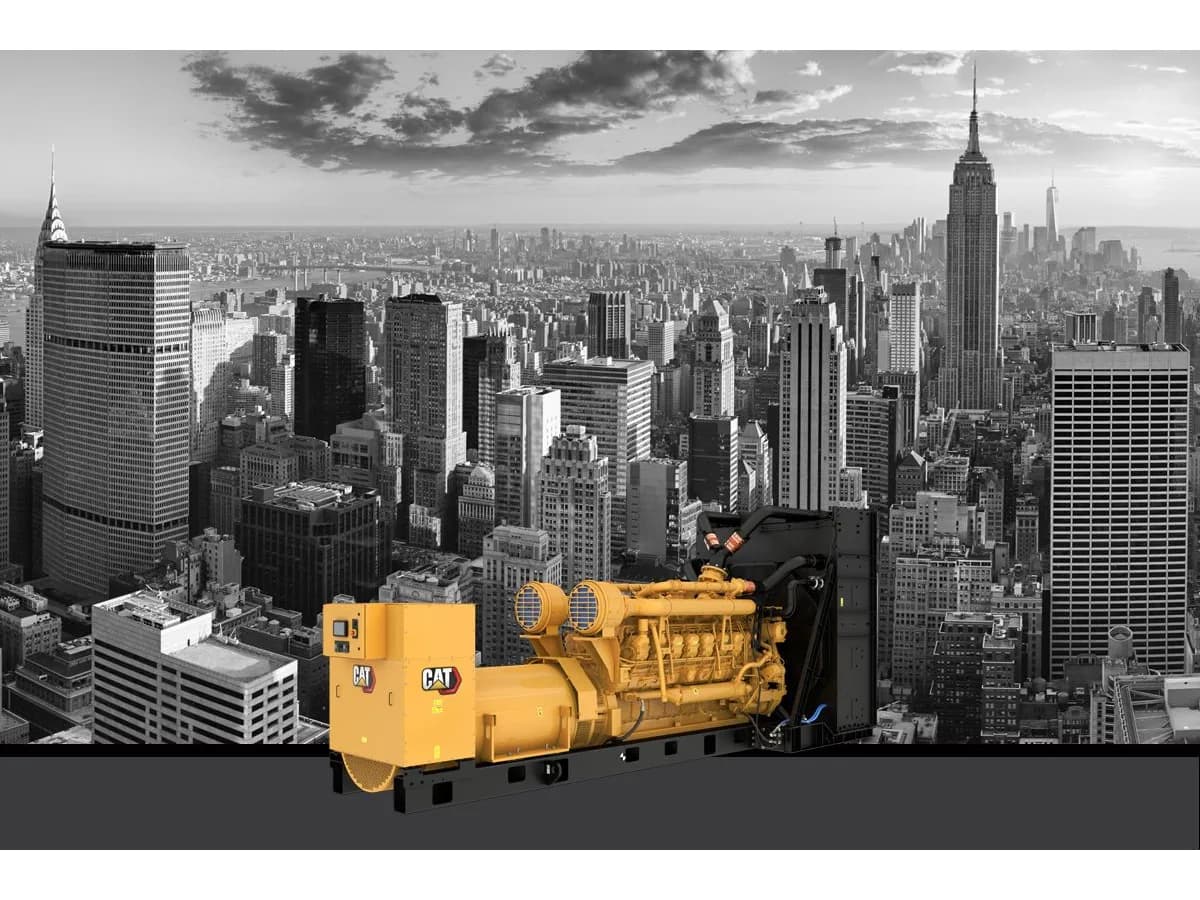

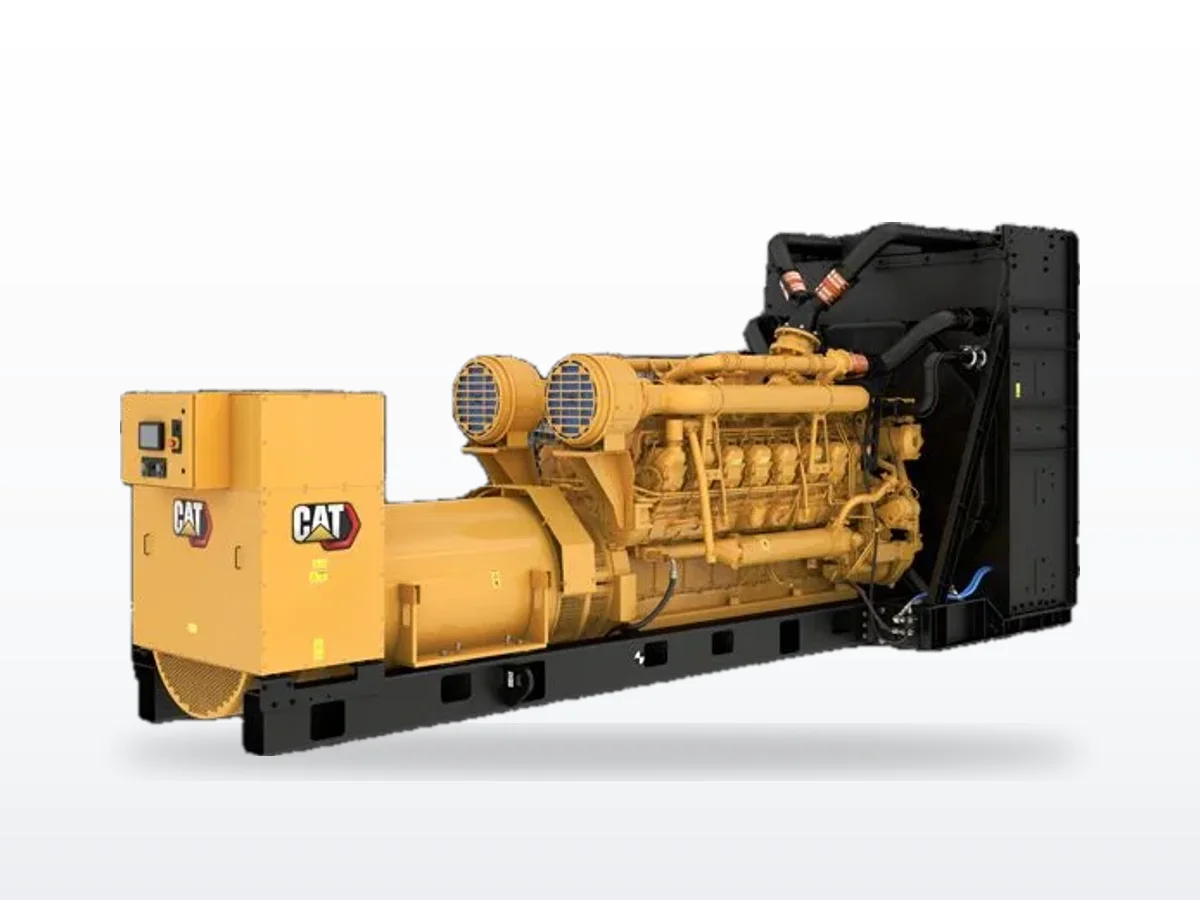

Cat 3516

Diesel with CAT 3516 V-16 engine and EMCP 4.2 controller.

Standby: see spec sheet · Diesel · Liquid-cooled

Diesel generator with Cat 3516 turbocharged V-16 engine. Mission-critical platform for data centers, hospitals, and large industrial standby and prime power.

3-phasedata-centerhospital
Cummins Cummins QSK50 1.5 MW liquid-cooled standby generator

Cummins

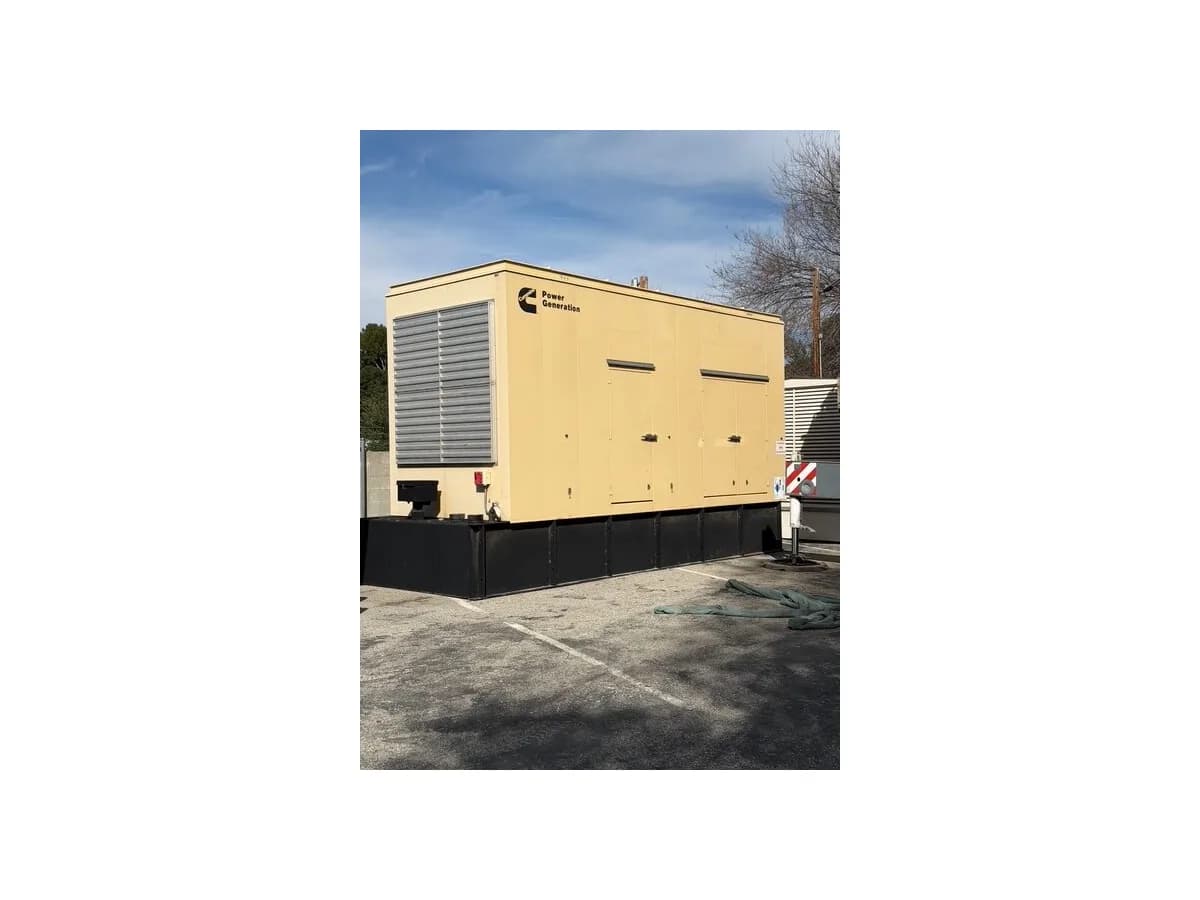

Cummins QSK50
