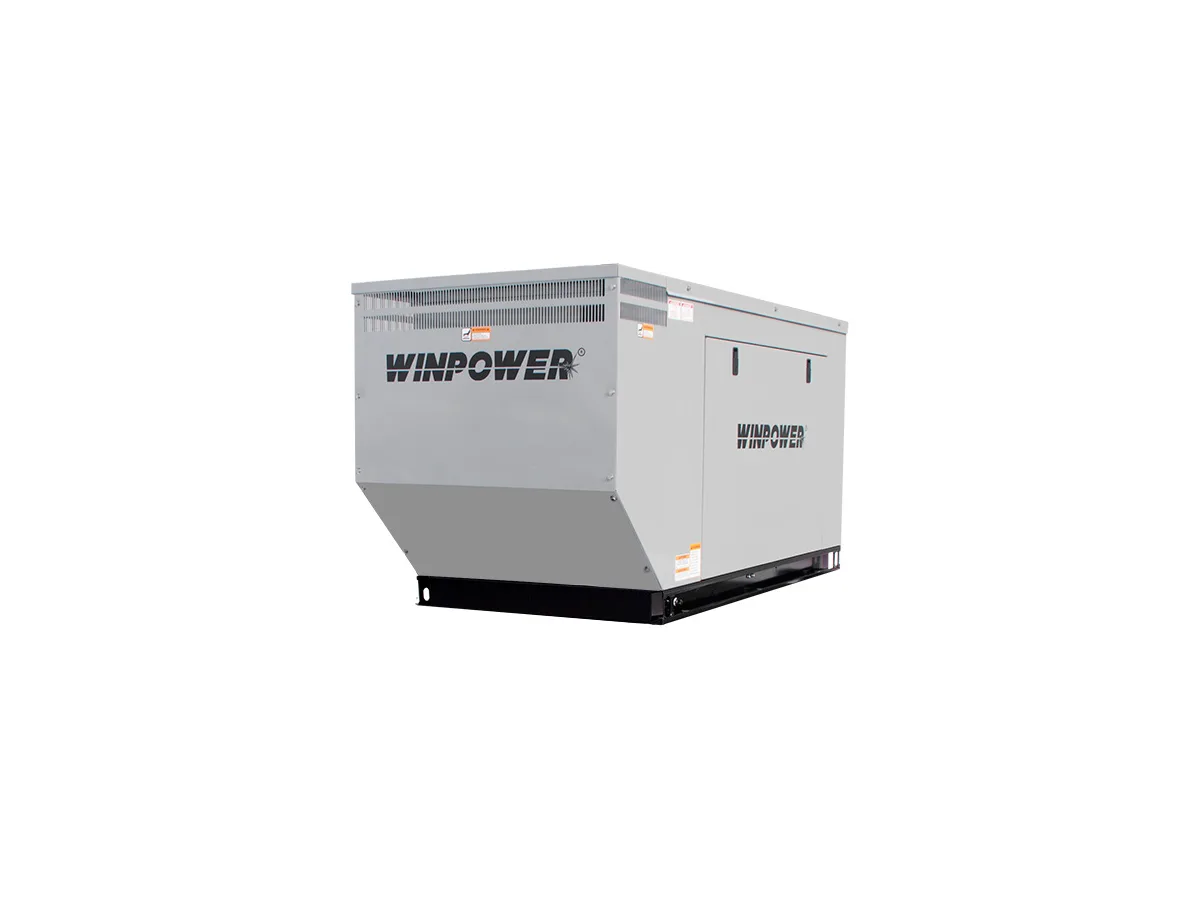

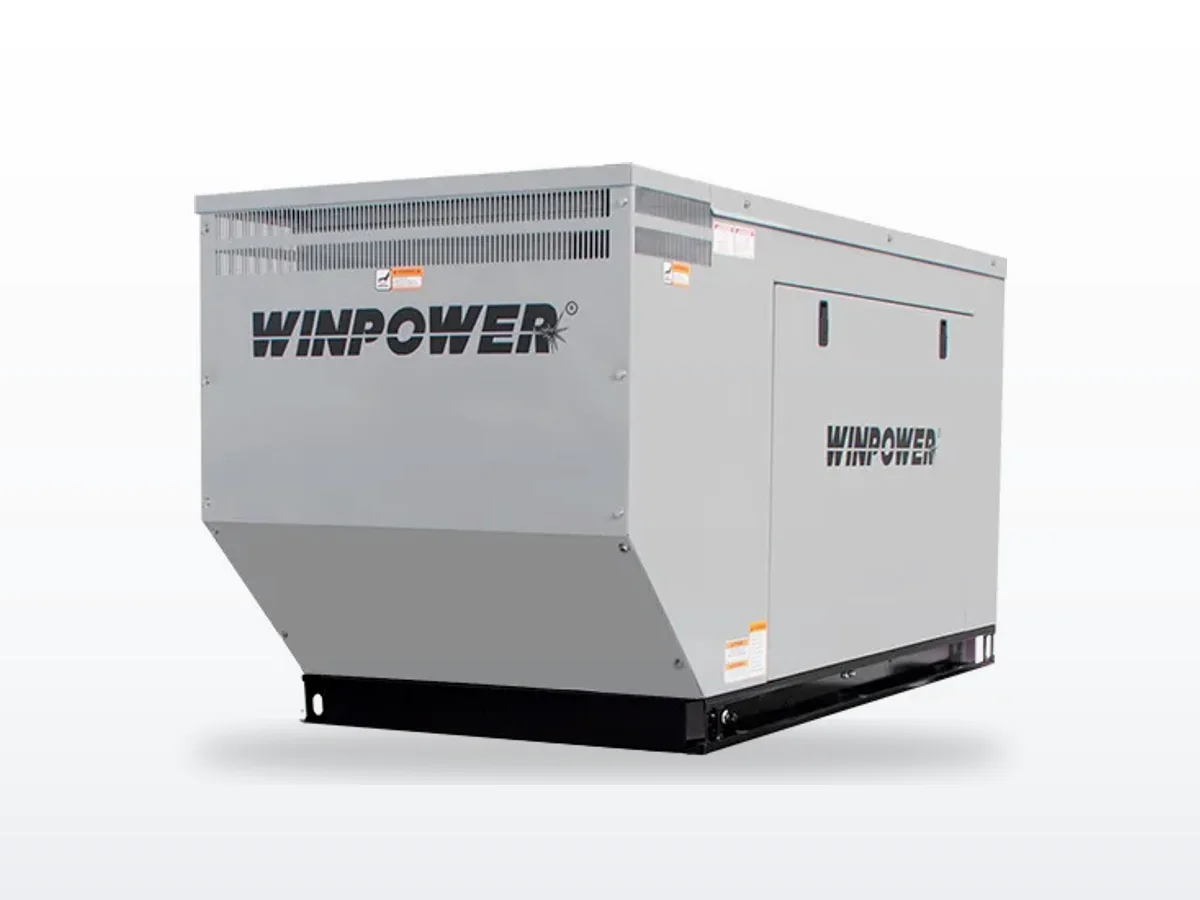

The Winco DR20I4 is a 20 kW standby diesel generator powered by an Isuzu 4LE1 2.2-liter four-cylinder turbocharged diesel engine with a Stamford alternator. EPA Tier 4 Interim certified, it is part of Winco's enclosed DR diesel standby series — designed for outdoor installation with a weather-protective enclosure and sub-base fuel tank. Single-phase 120/240V output. 100% US-made in Le Center, Minnesota since 1927.
The DR series is Winco's turnkey diesel standby line. Where the DE series ships as open-frame units for indoor generator rooms, the DR series arrives ready for outdoor permanent installation with enclosure, fuel tank, and automatic start capability.
Since 1927, Winco has manufactured generators in Le Center, Minnesota with US labor and components. The DR20I4 uses an Isuzu 4LE1 engine and a Stamford alternator — both non-proprietary, independently supported components. This means the owner is not dependent on Winco's own dealer footprint for parts or service.
For rural facilities, small municipalities, and agricultural operations with Buy American requirements, the DR20I4 provides 20 kW of outdoor-ready US-manufactured diesel standby. The Isuzu 4LE1 engine parts are available through any Isuzu industrial engine dealer, independent of Winco's distribution network.
Oil changes every 250 hours or annually. Fuel and air filter changes at 500 hours. Annual fuel filter changes are critical for standby units where diesel sits in sub-base tanks for extended periods — fuel degradation and microbial growth are the primary causes of injection system issues on standby generators.
The Isuzu 4LE1 uses standard diesel engine consumables. The Stamford alternator requires periodic brush inspection, bearing service, and winding insulation check. Transfer switch contacts should be exercised weekly to prevent oxidation. Major overhaul at 20,000 hours.
PowerGen services Winco DR units throughout the Bay Area and Northern California. The Isuzu 4LE1 and Stamford alternator components are non-proprietary — parts come through standard diesel supply channels. The DR20I4 is a practical choice for rural sites and agricultural operations where diesel is the only available fuel and US manufacturing compliance matters.
Request a quote
Get pricing & lead time on the Winco DR20I4
Tell us about the application — kW, voltage, application, install timeline — and we'll respond within one business day with budgetary pricing, lead time, and any sizing notes.
Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.
Estimate runtime on this tank
Estimated runtime
185.2 hours(7.7 days)
Fuel consumption ≈ 1.08 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.
Service intervals
Manufacturer-recommended intervals for the Winco DR20I4 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.
Oil & filter
Every 250 hours or 12 months
Air filter
Every 500 hours
Fuel filter
Every 500 hours
Major overhaul
≈ 20,000 hours
Common failure modes
What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.
Component
Symptom
Typical hours
Severity
Fuel filter
Extended standby fuel degradation — change annually regardless of hours
500+
minor
Starting battery
Capacity loss in standby — float charge, test annually
4,380+
minor
Transfer switch contacts
Oxidation on standby generators — exercise weekly to maintain contact quality
8,760+
minor
Frequently Asked Questions
What is the standby kW rating of the DR20I4?
The DR20I4 is rated at 20 kW standby — an enclosed single-phase (120/240V) DR series unit for outdoor installation.
What engine does the DR20I4 use?
The DR20I4 uses an Isuzu 4LE1 2.2-liter four-cylinder turbocharged diesel engine. The 4LE1 is a globally deployed industrial engine with parts available from any Isuzu industrial engine distributor.
What makes Winco different from Generac or Kohler?
Winco generators use non-proprietary engines (Isuzu in the DR20I4) and Stamford alternators — both globally serviceable without OEM-specific tools or dealer networks. Winco has manufactured 100% in Le Center, Minnesota since 1927. Generac and Kohler offer connected monitoring and denser dealer networks but with proprietary engine parts lock-in.
Is the DR20I4 EPA Tier 4 Interim compliant?
Yes. The DR20I4 carries EPA Tier 4 Interim certification for the Isuzu 4LE1 engine.
Where are Winco generators made?
100% in Le Center, Minnesota. Winco (formerly Winpower) has operated at that US facility since 1927 — America's oldest generator manufacturer.
What are the service intervals for the DR20I4?
Oil changes every 250 hours or annually. Fuel and air filter changes at 500 hours. Annual changes are mandatory for standby units — diesel degrades in storage. Major overhaul at 20,000 hours.
Who services Winco generators in Northern California?
PowerGen services Winco DR units throughout the Bay Area and Northern California. The Isuzu 4LE1 and Stamford alternator are non-proprietary components — our technicians source parts through standard diesel supply channels without a dedicated Winco dealer.
