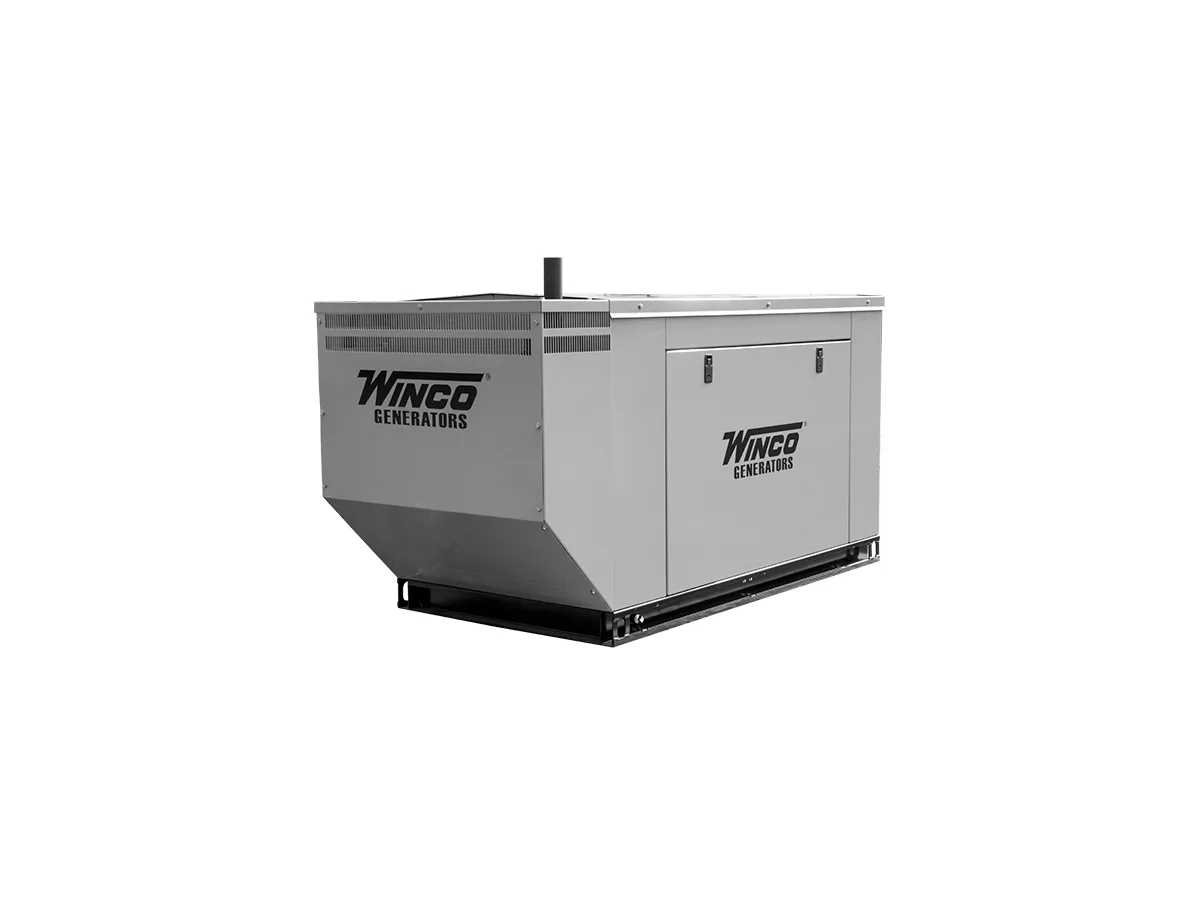

The Winco DR12I4 is a 13 kW standby / 11 kW prime diesel generator powered by an Isuzu 3CE1 three-cylinder diesel engine with a Stamford alternator. It is the smallest unit in Winco's DR diesel standby series, delivering single-phase 120/240V output for residential, small commercial, and agricultural backup power. EPA Tier 4 Interim certified. 100% US-made in Le Center, Minnesota since 1927.
The DR series is Winco's enclosed diesel standby line — designed for outdoor installation with weather-protective enclosure and sub-base fuel tank, ready for permanent standby duty. The DR12I4 is built for rural areas where diesel is the practical fuel and natural gas service is not available.
Winco has assembled generators in Le Center, Minnesota since 1927. Every DR12I4 is built at that US facility with US labor. The Isuzu 3CE1 engine and Stamford alternator are globally non-proprietary components — both serviceable by any qualified diesel technician without OEM-specific tools or dealer relationships.
For rural municipalities, small farm operations, and remote commercial facilities with Buy American requirements, the DR12I4 provides 13 kW of diesel standby in a compact enclosed package. The Isuzu 3CE1 engine is supported through Isuzu's industrial engine distribution network — parts available independent of Winco's own footprint.
Oil changes every 250 hours or annually. Fuel and air filter changes at 500 hours. The annual service interval is critical for standby units where diesel sits in storage — fuel degradation and water accumulation require annual filter changes regardless of engine hours logged.
The Isuzu 3CE1 three-cylinder engine uses standard diesel engine consumables. The Stamford alternator requires periodic brush, bearing, and insulation maintenance. Transfer switch contacts should be exercised weekly during standby. Major overhaul at 20,000 hours.
PowerGen services Winco DR units throughout the Bay Area and Northern California. The Isuzu 3CE1 and Stamford alternator components are non-proprietary — parts come through standard diesel supply channels. For rural and agricultural clients who value US manufacturing, diesel fuel practicality, and non-proprietary service access, the DR12I4 is Winco's entry-level diesel standby in a compact outdoor-ready package.
Request a quote
Get pricing & lead time on the Winco DR12I4
Tell us about the application — kW, voltage, application, install timeline — and we'll respond within one business day with budgetary pricing, lead time, and any sizing notes.
Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.
Estimate runtime on this tank
Estimated runtime
284.9 hours(11.9 days)
Fuel consumption ≈ 0.70 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.
Service intervals
Manufacturer-recommended intervals for the Winco DR12I4 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.
Oil & filter
Every 250 hours or 12 months
Air filter
Every 500 hours
Fuel filter
Every 500 hours
Major overhaul
≈ 20,000 hours
Common failure modes
What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.
Component
Symptom
Typical hours
Severity
Fuel filter
Extended standby fuel degradation — change annually regardless of hours
500+
minor
Starting battery
Capacity loss in standby — float charge, test annually
4,380+
minor
Transfer switch contacts
Oxidation on standby generators — exercise weekly to maintain contact quality
8,760+
minor
Frequently Asked Questions
What is the standby kW rating of the DR12I4?
The DR12I4 is rated at 13 kW standby / 11 kW prime — the smallest unit in Winco's DR diesel standby series. Single-phase 120/240V, enclosed design for outdoor installation.
What engine does the DR12I4 use?
The DR12I4 uses an Isuzu 3CE1 three-cylinder diesel engine — a compact industrial engine with parts available through Isuzu's global industrial engine dealer network.
What makes Winco different from Generac or Kohler?
Winco generators use non-proprietary engines (Isuzu in the DR12I4) and Stamford alternators — both globally serviceable without OEM-specific parts programs. Winco has manufactured 100% in Le Center, Minnesota since 1927. Generac and Kohler offer connected monitoring and denser dealer networks, but with proprietary engine lock-in.
Is the DR12I4 EPA Tier 4 Interim compliant?
Yes. The DR12I4 carries EPA Tier 4 Interim certification for the Isuzu 3CE1 engine in this displacement class.
Where are Winco generators made?
100% in Le Center, Minnesota. Winco has operated at that US facility since 1927 — America's oldest generator manufacturer.
What are the service intervals for the DR12I4?
Oil changes every 250 hours or annually. Fuel and air filter changes at 500 hours. Annual changes are mandatory for standby units regardless of hours — diesel degrades in storage. Major overhaul at 20,000 hours.
Who services Winco generators in Northern California?
PowerGen services Winco DR units throughout the Bay Area and Northern California. The Isuzu 3CE1 engine and Stamford alternator are non-proprietary — our technicians source parts through standard diesel supply channels.
