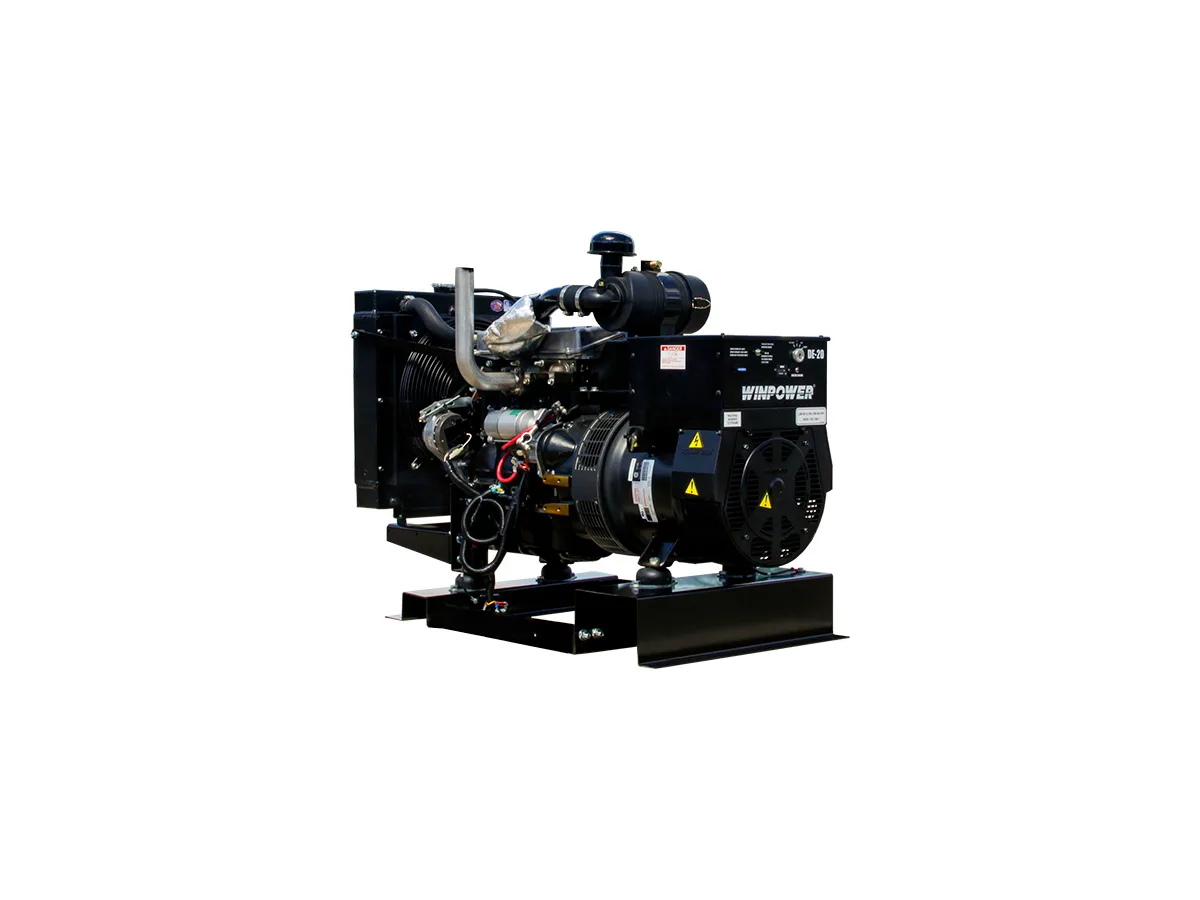

The Winco DE20I4 is a 20 kW standby / 17 kW prime diesel generator powered by an Isuzu 4LE1 2.2-liter four-cylinder turbocharged diesel engine with a Stamford alternator. Part of the DE open-frame diesel series, it delivers single-phase 120/240V output for small commercial and institutional standby applications. EPA Tier 4 Interim certified. 100% US-made in Le Center, Minnesota since 1927.
The DE series is Winco's open-frame diesel line — designed for indoor generator room installation. This eliminates enclosure cost and gives the installer full flexibility on ventilation, exhaust routing, and fuel supply configuration.
Since 1927, Winco has built generators in Le Center, Minnesota with US labor and components. The DE20I4 pairs a globally non-proprietary Isuzu 4LE1 engine with a Stamford alternator — two components that any qualified diesel technician can service without OEM-specific tooling or parts programs.
For small municipalities, rural schools, and agricultural facilities subject to Buy American procurement requirements, the DE20I4 provides 20 kW of US-manufactured standby power at a competitive price point. The Isuzu 4LE1 engine is distributed by Isuzu's industrial engine dealer network — parts are available nationwide independent of Winco's own distribution.
Oil changes every 250 hours or annually (shorter than the 500-hour diesel interval typical of larger engines). Fuel and air filter changes at 500 hours. Annual fuel filter changes are mandatory for standby units where diesel degrades in storage tanks. The 4LE1 uses standard diesel engine consumables available from Isuzu dealers and diesel parts distributors.
The Stamford alternator requires standard generator alternator maintenance — brush inspection, bearing service, and insulation check. Transfer switch contacts should be exercised weekly to prevent oxidation. Major overhaul at 20,000 hours.
PowerGen services Winco DE units throughout the Bay Area and Northern California. The Isuzu 4LE1 is a well-known industrial engine, and the Stamford alternator uses universal components. For clients with Buy American requirements or a preference for US-made equipment with non-proprietary components, the DE20I4 is a straightforward and well-built choice in the 20 kW open-frame class.
Request a quote
Get pricing & lead time on the Winco DE20I4
Tell us about the application — kW, voltage, application, install timeline — and we'll respond within one business day with budgetary pricing, lead time, and any sizing notes.
Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.
Estimate runtime on this tank
Estimated runtime
185.2 hours(7.7 days)
Fuel consumption ≈ 1.08 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.
Service intervals
Manufacturer-recommended intervals for the Winco DE20I4 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.
Oil & filter
Every 250 hours or 12 months
Air filter
Every 500 hours
Fuel filter
Every 500 hours
Major overhaul
≈ 20,000 hours
Common failure modes
What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.
Component
Symptom
Typical hours
Severity
Fuel filter
Extended standby fuel degradation — change annually regardless of hours
500+
minor
Starting battery
Capacity loss in standby — float charge, test annually
4,380+
minor
Transfer switch contacts
Oxidation on standby generators — exercise weekly to maintain contact quality
8,760+
minor
Frequently Asked Questions
What is the standby kW rating of the DE20I4?
The DE20I4 is rated at 20 kW standby / 17 kW prime, single-phase 120/240V. It is an open-frame unit intended for indoor installation in a dedicated generator room.
What engine does the DE20I4 use?
The DE20I4 uses an Isuzu 4LE1 2.2-liter four-cylinder turbocharged diesel engine. The 4LE1 is a globally supported industrial engine used across compact construction equipment, with parts available from any Isuzu industrial engine distributor.
What makes Winco different from Generac or Kohler?
Winco generators use non-proprietary engines (Isuzu in the DE20I4) and Stamford alternators — both serviceable without OEM-specific tools or dealer networks. Winco has manufactured 100% in Le Center, Minnesota since 1927. Generac and Kohler offer proprietary engines, connected monitoring, and denser dealer networks but require proprietary parts and service channels.
Is the DE20I4 EPA Tier 4 Interim compliant?
Yes. The DE20I4 carries EPA Tier 4 Interim certification — the appropriate emissions tier for this engine class and displacement.
Where are Winco generators made?
100% in Le Center, Minnesota. Winco (formerly Winpower) has operated at that US facility since 1927 — America's oldest generator manufacturer.
What are the service intervals for the DE20I4?
Oil changes every 250 hours or annually. Fuel and air filter changes at 500 hours. Major overhaul at 20,000 hours. Annual fuel filter changes are especially important for standby units where diesel sits in storage.
Who services Winco generators in Northern California?
PowerGen services Winco DE units throughout the Bay Area and Northern California. The Isuzu 4LE1 engine and Stamford alternator are non-proprietary — our technicians source parts through standard diesel supply channels without dependence on a dedicated Winco dealer.
