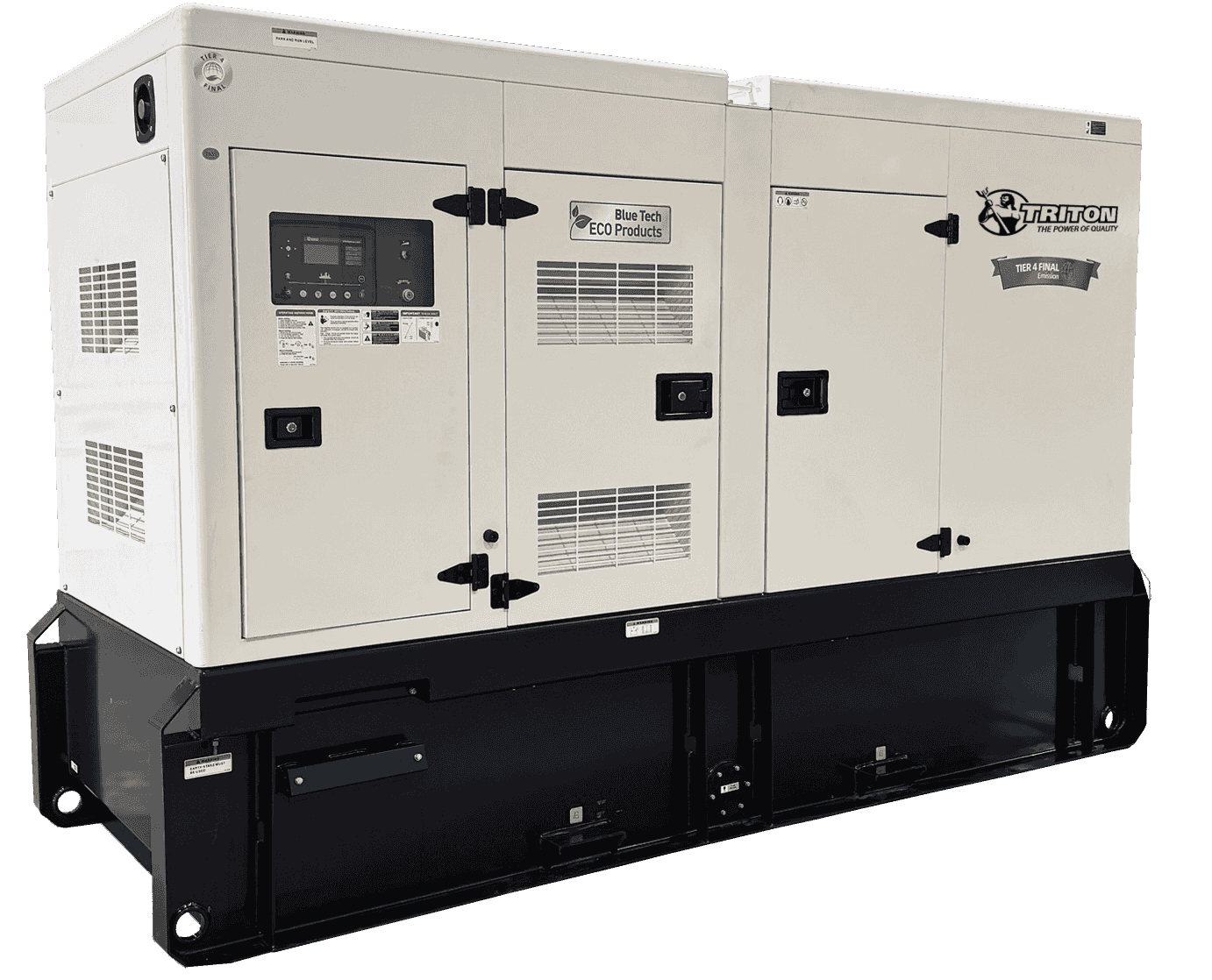

Triton Power TP-JD70-T4F

70 kW standby / 64 kW prime · Diesel · Liquid-cooled

70 kW Tier 4 Final diesel generator with John Deere 4045HFG04 engine. Turbocharged 4.5L inline-4 with Leroy Somer alternator and 430-liter fuel tank (enclosed set).

Triton Power Triton Power TP-JD70-T4F generator — specifications and details
Standby power
70 kW / 64 kW prime
Voltage options
120/208V, 277/480V
Frequency / Phase
60 Hz · 3-phase
Engine
John Deere 4045HFG04 · 4.5L
EPA / Emissions
Tier 4 Final
Alternator
Leroy Somer

Overview#

The Triton Power TP-JD70-T4F is a 70 kW diesel standby generator powered by the John Deere 4045HFG04 turbocharged four-cylinder engine with 4.5 L displacement. Paired with a Leroy Somer alternator, this unit delivers reliable three-phase power at 1800 RPM and the engine is rated Tier 4 Final. The spec sheet lists a 430-liter fuel tank for the enclosed set.

The unit is available in 120/208V and 277/480V three-phase configurations for commercial and industrial standby applications.

Our service experience#

Our service team supports Triton Power diesel generators, including the TP-JD70-T4F, from commissioning through repairs and parts sourcing.

Engineering specifications

Fuel system & runtime

Fuel use @ full load
3.43 GPH
Fuel use @ 75% load
2.64 GPH
Fuel use @ 50% load
1.85 GPH

Ready to order this model?

Configure your Triton Power TP-JD70-T4F

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Estimate runtime for the Triton Power TP-JD70-T4F

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

75.6 hours(3.1 days)

Fuel consumption ≈ 2.65 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Frequently Asked Questions

What engine powers the TP-JD70-T4F?
The TP-JD70-T4F uses a John Deere 4045HFG04 turbocharged four-cylinder engine with 4.5 L displacement, running at 1800 RPM and rated Tier 4 Final.
What is the difference between standby and prime power ratings?
The unit is rated at 70 kW for standby applications (backup power during outages) and 64 kW for prime power (continuous duty with variable load). Standby ratings assume the generator is not the sole source of power.
How large is the fuel tank on the TP-JD70-T4F?
The spec sheet lists a 430-liter fuel tank for the enclosed set of the TP-JD70-T4F.

Why we recommend Triton Power

Triton Power is our value brand for mobile and portable diesel generators, and an emerging option for industrial standby. When MQ Power's pricing is a stretch or lead times are too long, Triton delivers comparable capability at a lower price point with faster availability.

We are developing our Triton Power sales relationship and building fleet experience. Every engine platform Triton uses — Perkins, John Deere, Kubota, Scania, Volvo — is one we already service daily across other brands. Triton's open architecture means our technicians can maintain these units with standard tooling and widely available parts.

See all Triton Power generators →

Similar models

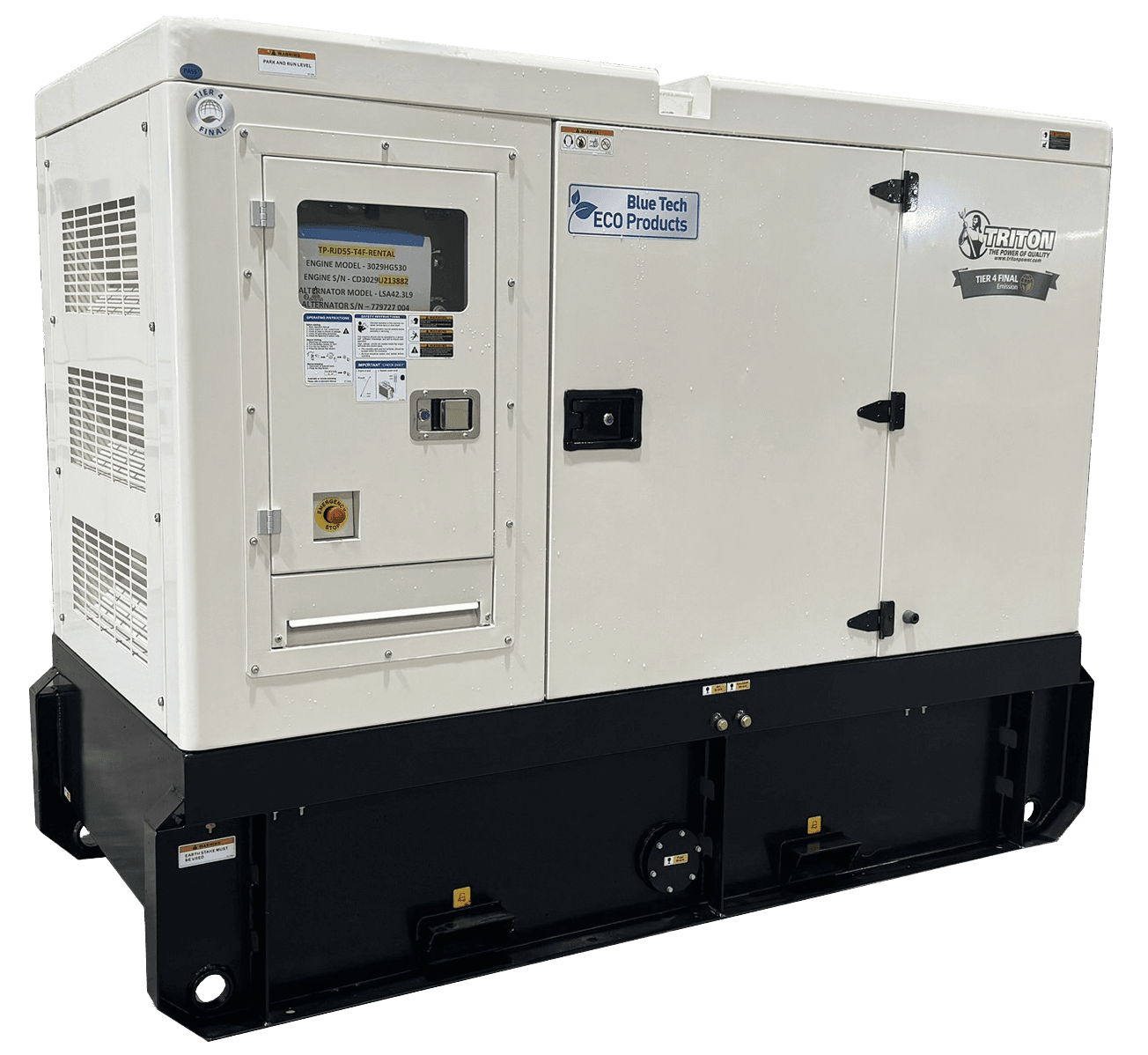

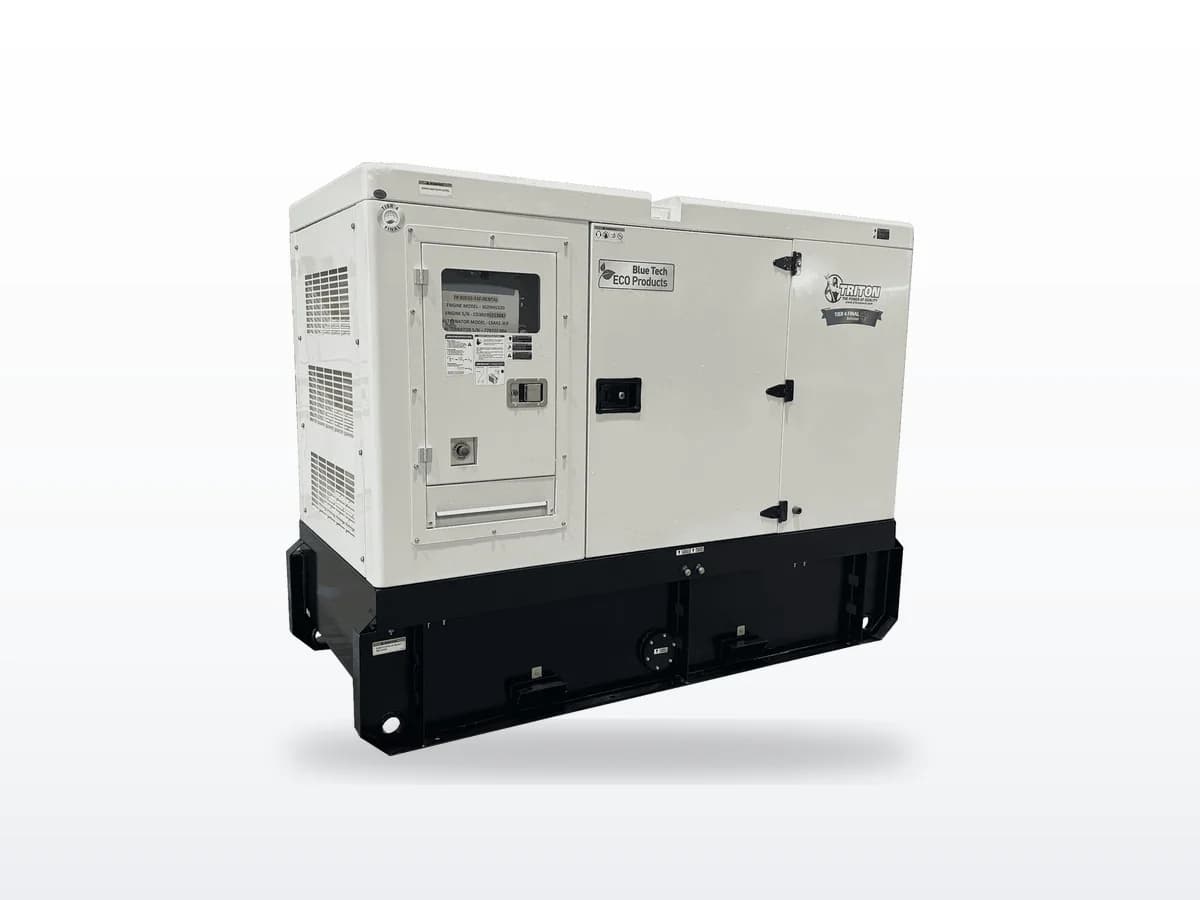

Triton Power Triton Power TP-JD50-T4F 50 kW liquid-cooled standby generator

Triton Power

Triton Power TP-JD50-T4F

50 kW standby · Diesel · Liquid-cooled

50 kW Tier 4 Final diesel generator with John Deere 3029HG530 engine. Turbocharged 2.9L inline-3 for commercial standby, with a 350-liter fuel tank (enclosed set).

Tier 4 Final3-phasecommercial-standbyretail-large
Triton Power Triton Power TP-JD88-T4F 88 kW liquid-cooled standby generator

Triton Power

Triton Power TP-JD88-T4F

88 kW standby · Diesel · Liquid-cooled

88 kW / 110 kVA Tier 4 Final diesel generator with John Deere 4045HFG04 engine. Turbocharged 4.5L inline-4 with Leroy Somer alternator and 680-liter fuel tank (enclosed set).

Tier 4 Final3-phasecommercial-standbyindustrial

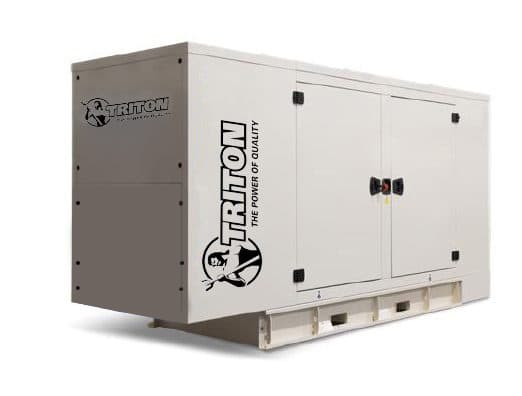

Triton Power Triton Power TP-P80-T3-UL 80 kW liquid-cooled standby generator
