Triton Power · TP-JD

Triton Power TP-JD88-T4F

88 kW standby / 80 kW prime · Diesel · Liquid-cooled

88 kW / 110 kVA Tier 4 Final diesel generator with John Deere 4045HFG04 engine. Turbocharged 4.5L inline-4 with Leroy Somer alternator and 680-liter fuel tank (enclosed set).

Triton Power Triton Power TP-JD88-T4F generator — specifications and details
Standby power
88 kW / 80 kW prime
Voltage options
120/208V, 277/480V
Frequency / Phase
60 Hz · 3-phase
Engine
John Deere 4045HFG04 · 4.5L
EPA / Emissions
Tier 4 Final
Alternator
Leroy Somer

Overview#

The Triton Power TP-JD88-T4F is an 88 kW (110 kVA) diesel standby generator built around the John Deere 4045HFG04 turbocharged four-cylinder engine with 4.5 L displacement. A Leroy Somer alternator delivers three-phase power at 60 Hz, and the engine is rated Tier 4 Final. The spec sheet lists a 680-liter fuel tank for the enclosed set.

The TP-JD88-T4F suits commercial standby and industrial applications.

Our service experience#

Our service team supports Triton Power diesel generators, including the TP-JD88-T4F, from commissioning through repairs and parts sourcing.

Engineering specifications

Fuel system & runtime

Fuel use @ full load
4.62 GPH
Fuel use @ 75% load
3.65 GPH
Fuel use @ 50% load
2.75 GPH

Ready to order this model?

Configure your Triton Power TP-JD88-T4F

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Estimate runtime for the Triton Power TP-JD88-T4F

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

56.1 hours(2.3 days)

Fuel consumption ≈ 3.56 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Frequently Asked Questions

What engine and alternator maker does the TP-JD88-T4F use?
The TP-JD88-T4F is powered by a John Deere 4045HFG04 turbocharged 4.5L four-cylinder engine running at 1800 RPM, paired with a Leroy Somer alternator.
What are the standby and prime power ratings?
The unit delivers 88 kW (110 kVA) in standby mode and 80 kW (100 kVA) in prime power mode. Standby ratings are for backup power during utility outages; prime ratings are for continuous variable-load duty.
What voltage configurations are available?
The TP-JD88-T4F is available in 120/208V and 277/480V three-phase configurations at 60 Hz.

Why we recommend Triton Power

Triton Power is our value brand for mobile and portable diesel generators, and an emerging option for industrial standby. When MQ Power's pricing is a stretch or lead times are too long, Triton delivers comparable capability at a lower price point with faster availability.

We are developing our Triton Power sales relationship and building fleet experience. Every engine platform Triton uses — Perkins, John Deere, Kubota, Scania, Volvo — is one we already service daily across other brands. Triton's open architecture means our technicians can maintain these units with standard tooling and widely available parts.

See all Triton Power generators →

Similar models

Triton Power Triton Power TP-JD70-T4F 70 kW liquid-cooled standby generator

Triton Power

Triton Power TP-JD70-T4F

70 kW standby · Diesel · Liquid-cooled

70 kW Tier 4 Final diesel generator with John Deere 4045HFG04 engine. Turbocharged 4.5L inline-4 with Leroy Somer alternator and 430-liter fuel tank (enclosed set).

Tier 4 Final3-phasecommercial-standbyindustrial

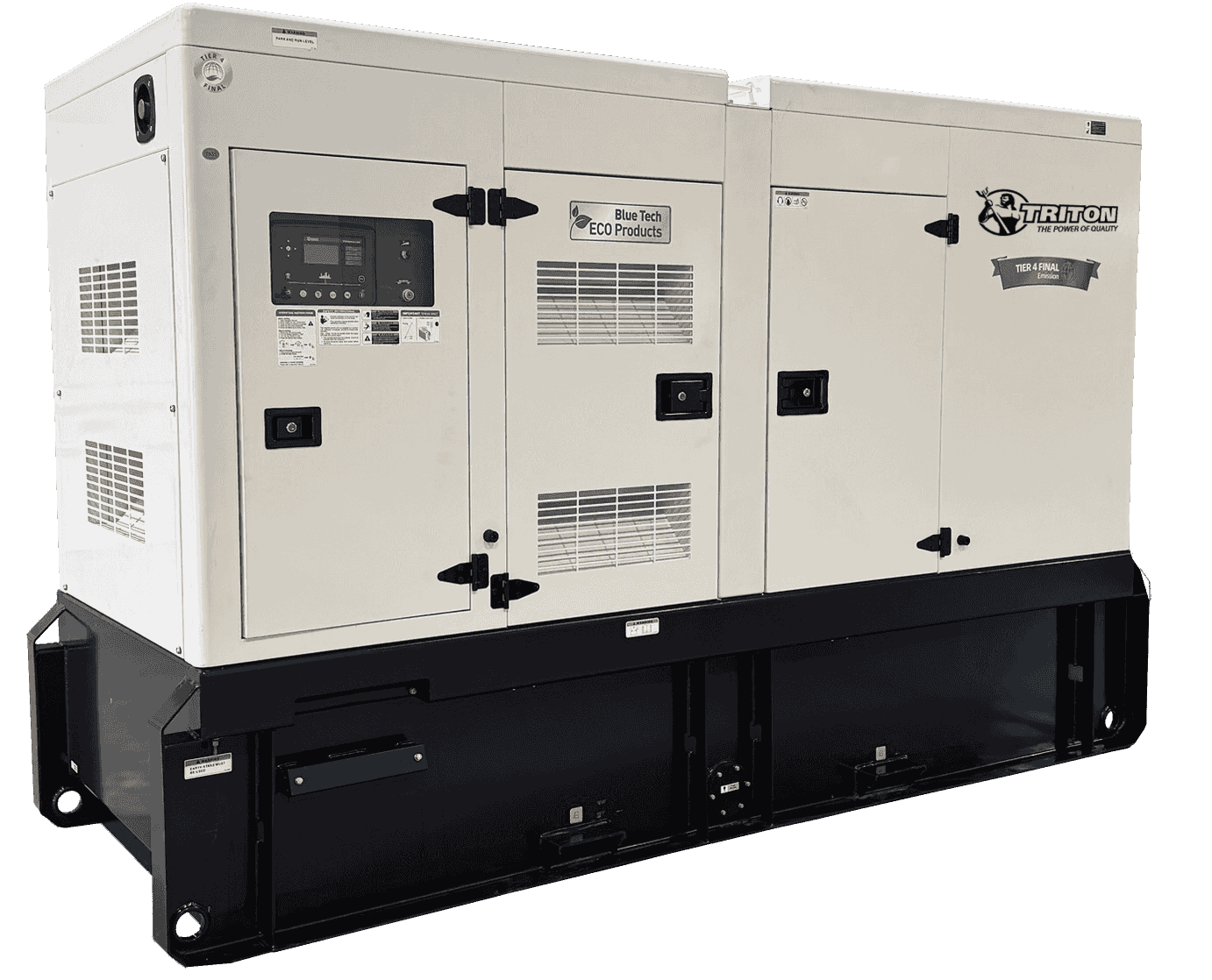

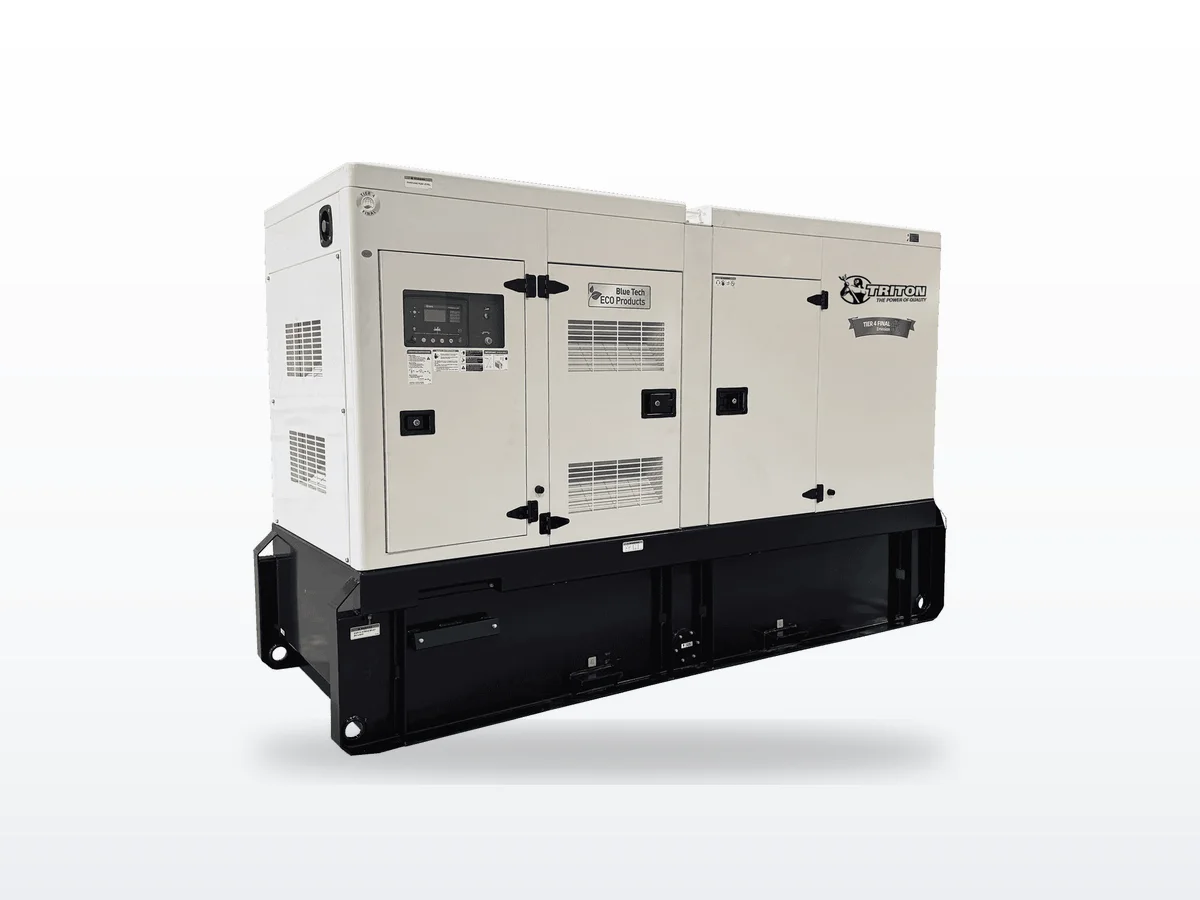

Triton Power Triton Power TP-JD110-T4F 110 kW liquid-cooled standby generator

Triton Power

Triton Power TP-JD110-T4F

110 kW standby · Diesel · Liquid-cooled

110 kW / 138 kVA Tier 4 Final diesel generator with John Deere 4045HFG09 engine. Turbocharged 4.5L inline-4 with Leroy Somer alternator and 680-liter fuel tank (enclosed set).

Tier 4 Final3-phasecommercial-standbyindustrial

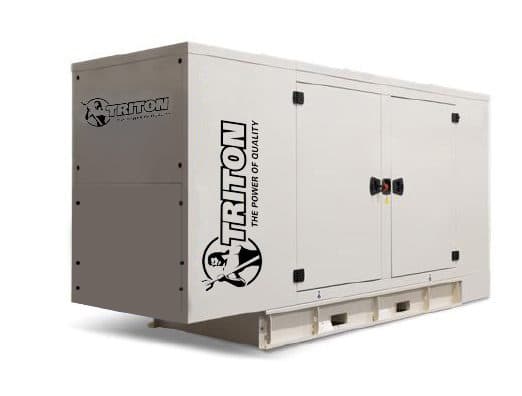

Triton Power Triton Power TP-P100-T3-UL 100 kW liquid-cooled standby generator
