Triton Power · TP-JD

Triton Power TP-JD165-T4F

165 kW standby / 152 kW prime · Diesel · Liquid-cooled

165 kW / 210 kVA Tier 4 Final diesel generator with John Deere 6068HG550 engine. Turbocharged 6.8L inline-6 with Leroy Somer alternator and 800-liter fuel tank (enclosed set).

Triton Power Triton Power TP-JD165-T4F generator — specifications and details
Standby power
165 kW / 152 kW prime
Voltage options
120/208V, 277/480V
Frequency / Phase
60 Hz · 3-phase
Engine
John Deere 6068HG550 · 6.8L
EPA / Emissions
Tier 4 Final
Alternator
Leroy Somer

Overview#

The Triton Power TP-JD165-T4F is a 165 kW (210 kVA) diesel standby generator powered by the John Deere 6068HG550 turbocharged six-cylinder engine with 6.8 L displacement. The engine is built to meet Tier 4 Final standards. The Leroy Somer alternator provides three-phase output, and the enclosed set lists an 800-liter fuel tank.

The TP-JD165-T4F serves mid-size commercial and industrial facilities including office buildings, retail centers, and manufacturing operations. The unit is available in 120/208V and 277/480V three-phase configurations at 60 Hz.

Our service experience#

The TP-JD165-T4F is suited to commercial standby and industrial applications where reliable backup power is essential.

Engineering specifications

Fuel system & runtime

Fuel use @ full load
8.9 GPH
Fuel use @ 75% load
7.21 GPH
Fuel use @ 50% load
5.73 GPH

Ready to order this model?

Configure your Triton Power TP-JD165-T4F

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Estimate runtime for the Triton Power TP-JD165-T4F

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

29.1 hours(1.2 days)

Fuel consumption ≈ 6.87 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Frequently Asked Questions

What engine does the TP-JD165-T4F use?
The TP-JD165-T4F is powered by a John Deere 6068HG550 turbocharged six-cylinder engine with 6.8 L displacement, running at 1800 RPM and built to meet Tier 4 Final standards.
What are the standby and prime power ratings?
The unit delivers 165 kW (210 kVA) in standby mode and 152 kW (190 kVA) in prime power mode. The standby rating applies to backup power during utility outages; the prime rating is for continuous variable-load operation.
How large is the fuel tank?
The sheet lists an 800-liter fuel tank for the enclosed set.

Why we recommend Triton Power

Triton Power is our value brand for mobile and portable diesel generators, and an emerging option for industrial standby. When MQ Power's pricing is a stretch or lead times are too long, Triton delivers comparable capability at a lower price point with faster availability.

We are developing our Triton Power sales relationship and building fleet experience. Every engine platform Triton uses — Perkins, John Deere, Kubota, Scania, Volvo — is one we already service daily across other brands. Triton's open architecture means our technicians can maintain these units with standard tooling and widely available parts.

See all Triton Power generators →

Similar models

Triton Power Triton Power TP-JD110-T4F 110 kW liquid-cooled standby generator

Triton Power

Triton Power TP-JD110-T4F

110 kW standby · Diesel · Liquid-cooled

110 kW / 138 kVA Tier 4 Final diesel generator with John Deere 4045HFG09 engine. Turbocharged 4.5L inline-4 with Leroy Somer alternator and 680-liter fuel tank (enclosed set).

Tier 4 Final3-phasecommercial-standbyindustrial

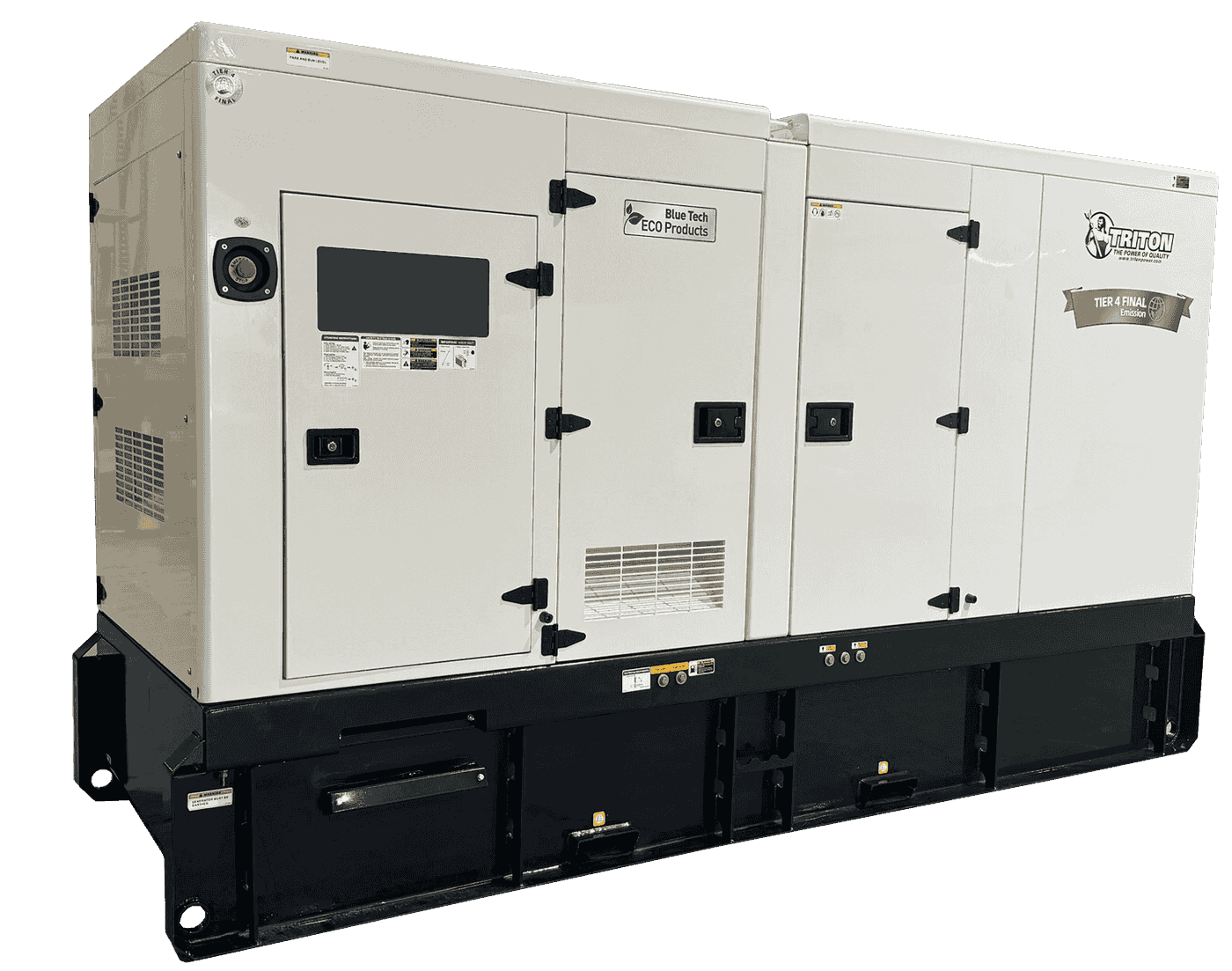

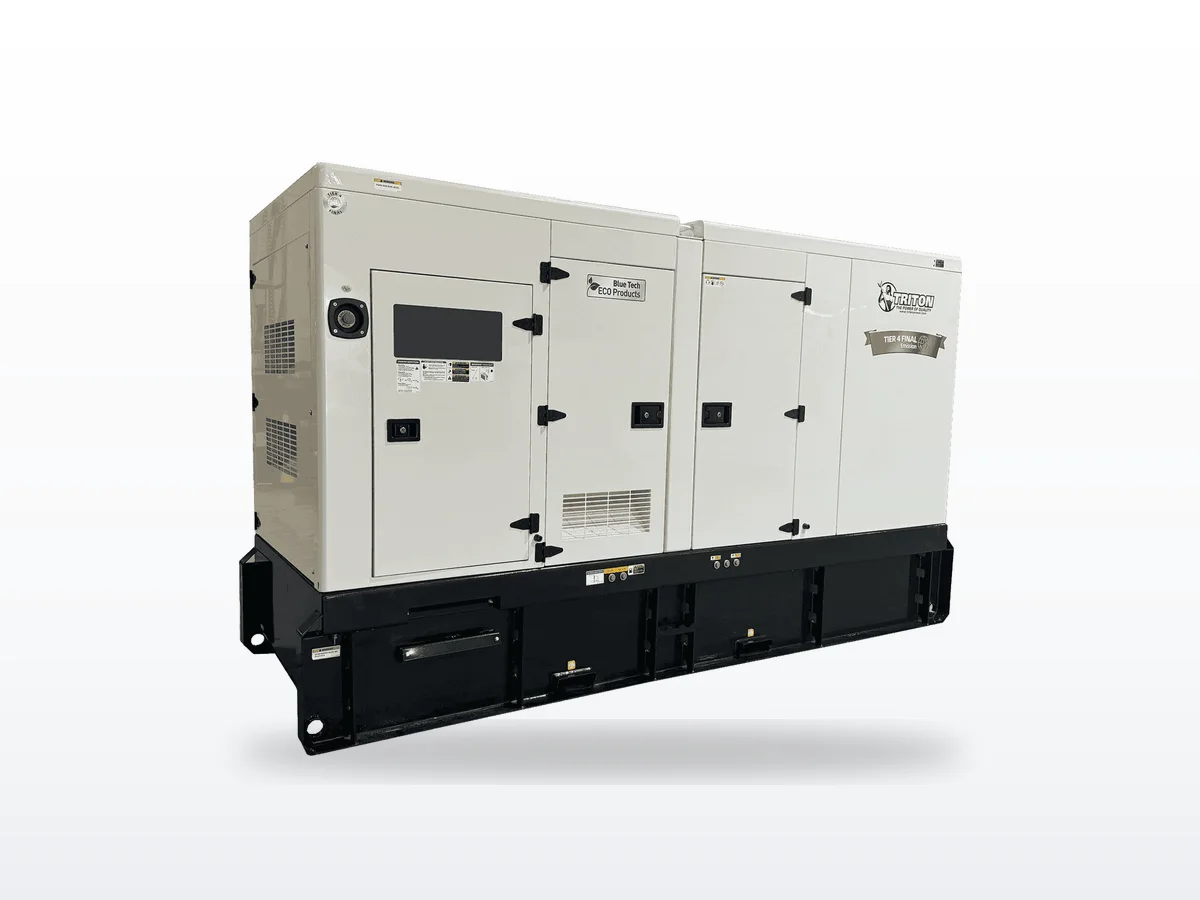

Triton Power Triton Power TP-JD200-T4F 200 kW liquid-cooled standby generator

Triton Power

Triton Power TP-JD200-T4F

200 kW standby · Diesel · Liquid-cooled

200 kW / 264 kVA Tier 4 Final diesel generator with John Deere 6068CG550 engine. Turbocharged 6.8L inline-6 with Leroy Somer alternator and 800-liter fuel tank (enclosed set).

Tier 4 Final3-phasecommercial-standbyindustrial

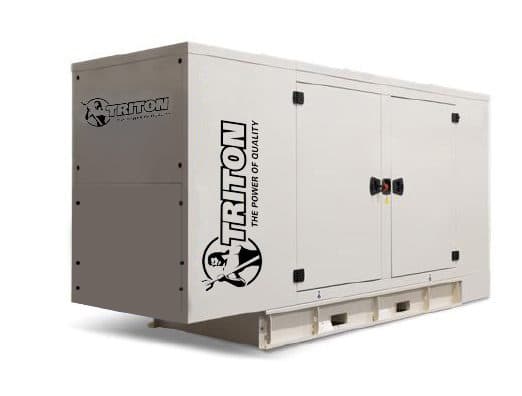

Triton Power Triton Power TP-P150-T3-UL 150 kW liquid-cooled standby generator
