Triton Power · TP-JD

Triton Power TP-JD200-T4F

200 kW standby / 180 kW prime · Diesel · Liquid-cooled

200 kW / 264 kVA Tier 4 Final diesel generator with John Deere 6068CG550 engine. Turbocharged 6.8L inline-6 with Leroy Somer alternator and 800-liter fuel tank (enclosed set).

Triton Power Triton Power TP-JD200-T4F generator — specifications and details
Standby power
200 kW / 180 kW prime
Voltage options
120/208V, 277/480V
Frequency / Phase
60 Hz · 3-phase
Engine
John Deere 6068CG550 · 6.8L
EPA / Emissions
Tier 4 Final
Alternator
Leroy Somer

Overview#

The Triton Power TP-JD200-T4F is a 200 kW (264 kVA) diesel standby generator powered by the John Deere 6068CG550 turbocharged six-cylinder engine with 6.8 L displacement. The unit is paired with a Leroy Somer alternator. The engine meets Tier 4 Final standards, and the enclosed set lists an 800-liter fuel tank.

Available in 120/208V and 277/480V three-phase configurations, the unit serves larger commercial facilities, industrial operations, and data centers requiring reliable backup power.

Our service experience#

The TP-JD200-T4F is suited to commercial standby and industrial applications where reliable backup power is essential.

Engineering specifications

Fuel system & runtime

Fuel use @ full load
12.02 GPH
Fuel use @ 75% load
9.38 GPH
Fuel use @ 50% load
6.02 GPH

Ready to order this model?

Configure your Triton Power TP-JD200-T4F

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Estimate runtime for the Triton Power TP-JD200-T4F

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

21.6 hours(0.9 days)

Fuel consumption ≈ 9.27 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Frequently Asked Questions

What engine and alternator power the TP-JD200-T4F?
The TP-JD200-T4F is powered by a John Deere 6068CG550 turbocharged 6.8L six-cylinder engine running at 1800 RPM, paired with a Leroy Somer alternator. The engine meets Tier 4 Final standards.
What is the fuel tank capacity?
The sheet lists an 800-liter fuel tank for the enclosed set.

Why we recommend Triton Power

Triton Power is our value brand for mobile and portable diesel generators, and an emerging option for industrial standby. When MQ Power's pricing is a stretch or lead times are too long, Triton delivers comparable capability at a lower price point with faster availability.

We are developing our Triton Power sales relationship and building fleet experience. Every engine platform Triton uses — Perkins, John Deere, Kubota, Scania, Volvo — is one we already service daily across other brands. Triton's open architecture means our technicians can maintain these units with standard tooling and widely available parts.

See all Triton Power generators →

Similar models

Triton Power Triton Power TP-JD165-T4F 165 kW liquid-cooled standby generator

Triton Power

Triton Power TP-JD165-T4F

165 kW standby · Diesel · Liquid-cooled

165 kW / 210 kVA Tier 4 Final diesel generator with John Deere 6068HG550 engine. Turbocharged 6.8L inline-6 with Leroy Somer alternator and 800-liter fuel tank (enclosed set).

Tier 4 Final3-phasecommercial-standbyindustrial

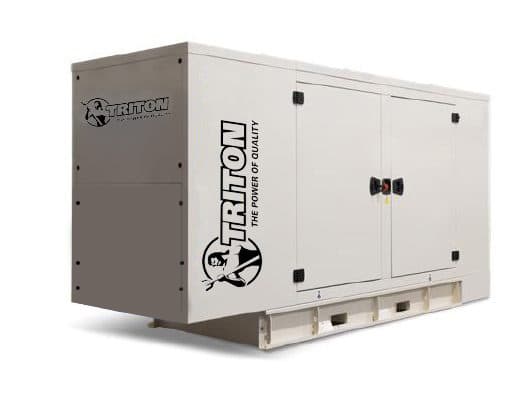

Triton Power Triton Power TP-P200-T3-UL 200 kW liquid-cooled standby generator

Triton Power

Triton Power TP-P200-T3-UL

200 kW standby · Diesel · Liquid-cooled

200 kW Tier 3 diesel generator with Perkins 1106D-E70TAG5 engine. UL2200-listed for commercial, healthcare, and government standby.

Tier 33-phasecommercial-standbyhealthcare

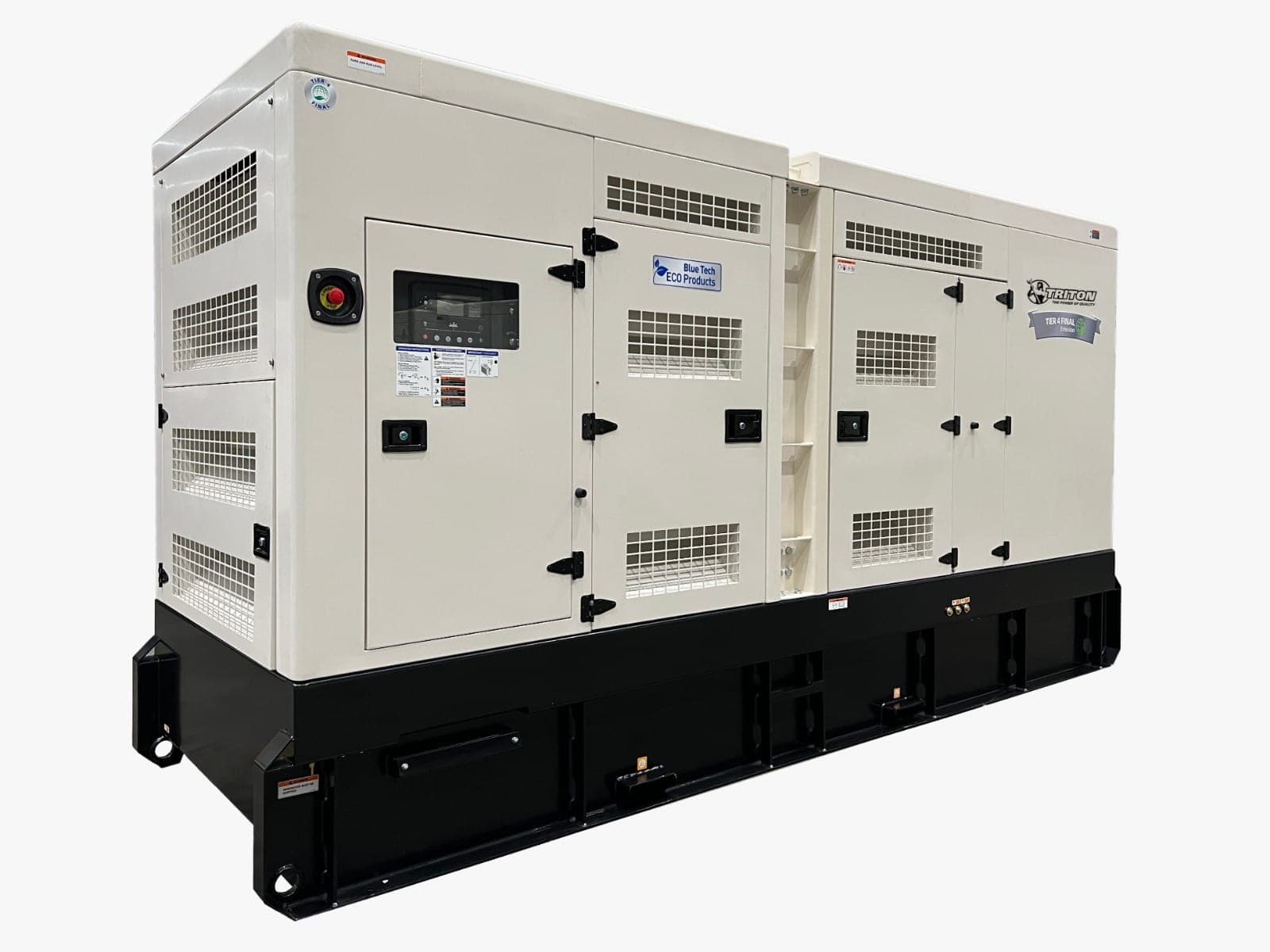

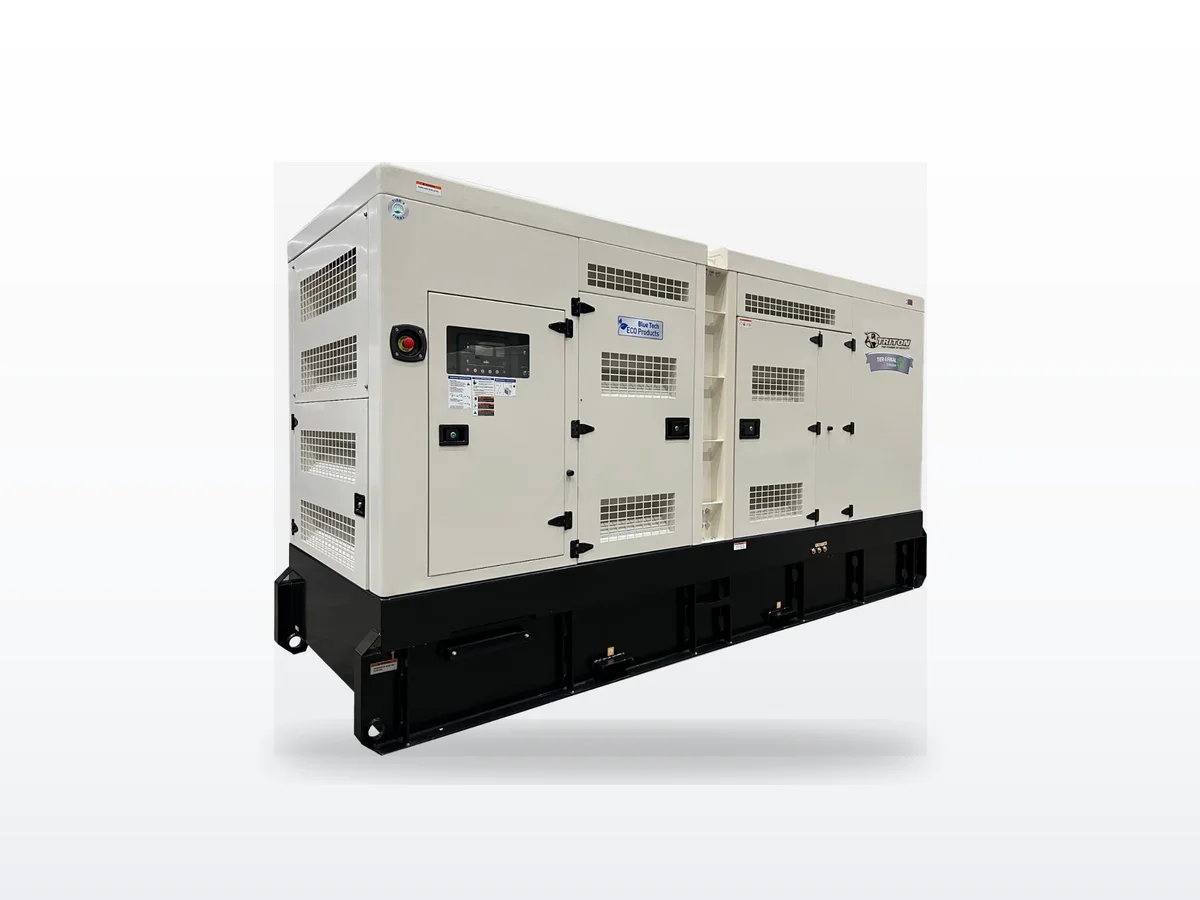

Triton Power Triton Power TP-S300-T4F 300 kW liquid-cooled standby generator

Triton Power

Triton Power TP-S300-T4F

300 kW standby · Diesel · Liquid-cooled

300 kW Tier 4 Final diesel generator with Scania DC13 084A engine. Triton lists 125% full containment for fluids and a sub-base tank up to 45 hours.

Tier 4 Final3-phasecommercial-standbyindustrial-light

Services for the Triton Power TP-JD200-T4F

Need service or parts for the Triton Power TP-JD200-T4F?

We service every major OEM and stock genuine parts for the most common models.
