Triton Power · TP-JD

Triton Power TP-JD110-T4F

110 kW standby / 100 kW prime · Diesel · Liquid-cooled

110 kW / 138 kVA Tier 4 Final diesel generator with John Deere 4045HFG09 engine. Turbocharged 4.5L inline-4 with Leroy Somer alternator and 680-liter fuel tank (enclosed set).

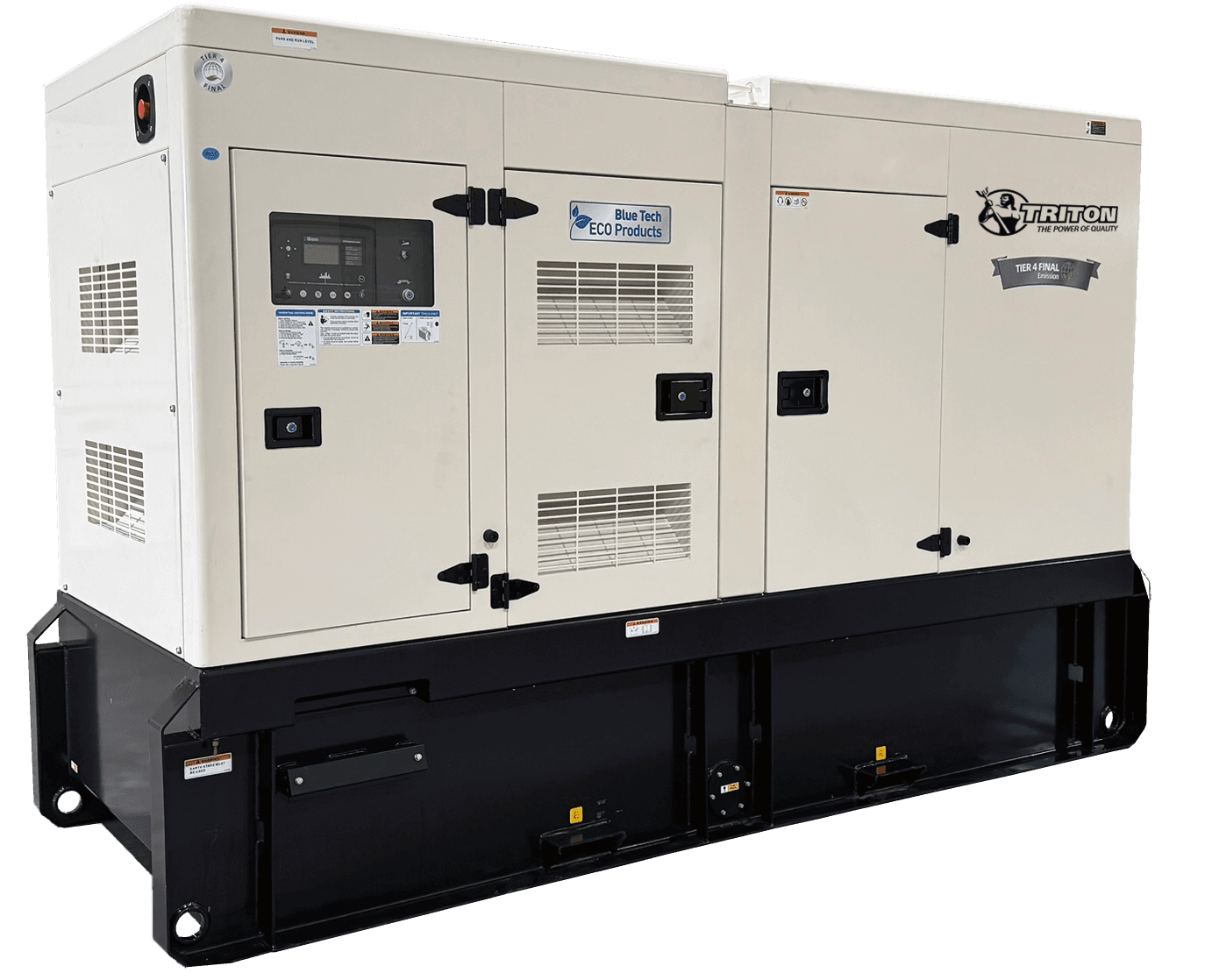

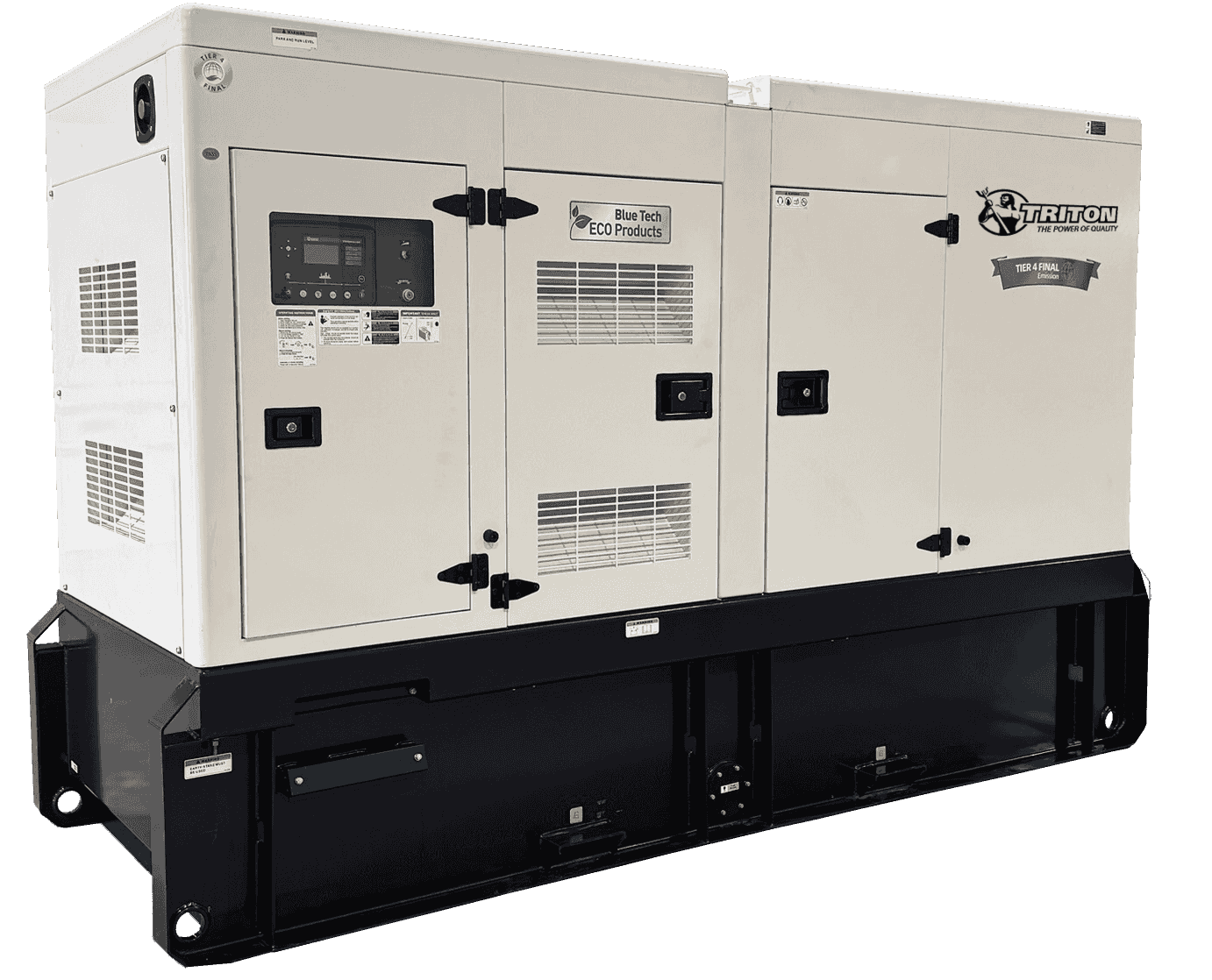

Triton Power Triton Power TP-JD110-T4F generator — specifications and details
Standby power
110 kW / 100 kW prime
Voltage options
120/208V, 277/480V
Frequency / Phase
60 Hz · 3-phase
Engine
John Deere 4045HFG09 · 4.5L
EPA / Emissions
Tier 4 Final
Alternator
Leroy Somer

Overview#

The Triton Power TP-JD110-T4F is a 110 kW (138 kVA) diesel standby generator powered by the John Deere 4045HFG09 turbocharged four-cylinder engine with 4.5 L displacement. The engine is built to meet Tier 4 Final standards. The Leroy Somer alternator provides three-phase output, and the enclosed set lists a 680-liter fuel tank.

The TP-JD110-T4F suits larger retail, education, and light industrial facilities. The unit is available in 120/208V and 277/480V three-phase configurations at 60 Hz.

Our service experience#

The TP-JD110-T4F is suited to commercial standby and industrial applications where reliable backup power is essential.

Engineering specifications

Fuel system & runtime

Fuel use @ full load
5.28 GPH
Fuel use @ 75% load
4.2 GPH
Fuel use @ 50% load
3.12 GPH

Ready to order this model?

Configure your Triton Power TP-JD110-T4F

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Estimate runtime for the Triton Power TP-JD110-T4F

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

49.1 hours(2.0 days)

Fuel consumption ≈ 4.07 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Frequently Asked Questions

What engine powers the TP-JD110-T4F?
The TP-JD110-T4F uses a John Deere 4045HFG09 turbocharged four-cylinder engine with 4.5 L displacement, running at 1800 RPM and built to meet Tier 4 Final standards.
What is the fuel tank capacity?
The sheet lists a 680-liter fuel tank for the enclosed set.

Why we recommend Triton Power

Triton Power is our value brand for mobile and portable diesel generators, and an emerging option for industrial standby. When MQ Power's pricing is a stretch or lead times are too long, Triton delivers comparable capability at a lower price point with faster availability.

We are developing our Triton Power sales relationship and building fleet experience. Every engine platform Triton uses — Perkins, John Deere, Kubota, Scania, Volvo — is one we already service daily across other brands. Triton's open architecture means our technicians can maintain these units with standard tooling and widely available parts.

See all Triton Power generators →

Similar models

Triton Power Triton Power TP-JD88-T4F 88 kW liquid-cooled standby generator

Triton Power

Triton Power TP-JD88-T4F

88 kW standby · Diesel · Liquid-cooled

88 kW / 110 kVA Tier 4 Final diesel generator with John Deere 4045HFG04 engine. Turbocharged 4.5L inline-4 with Leroy Somer alternator and 680-liter fuel tank (enclosed set).

Tier 4 Final3-phasecommercial-standbyindustrial

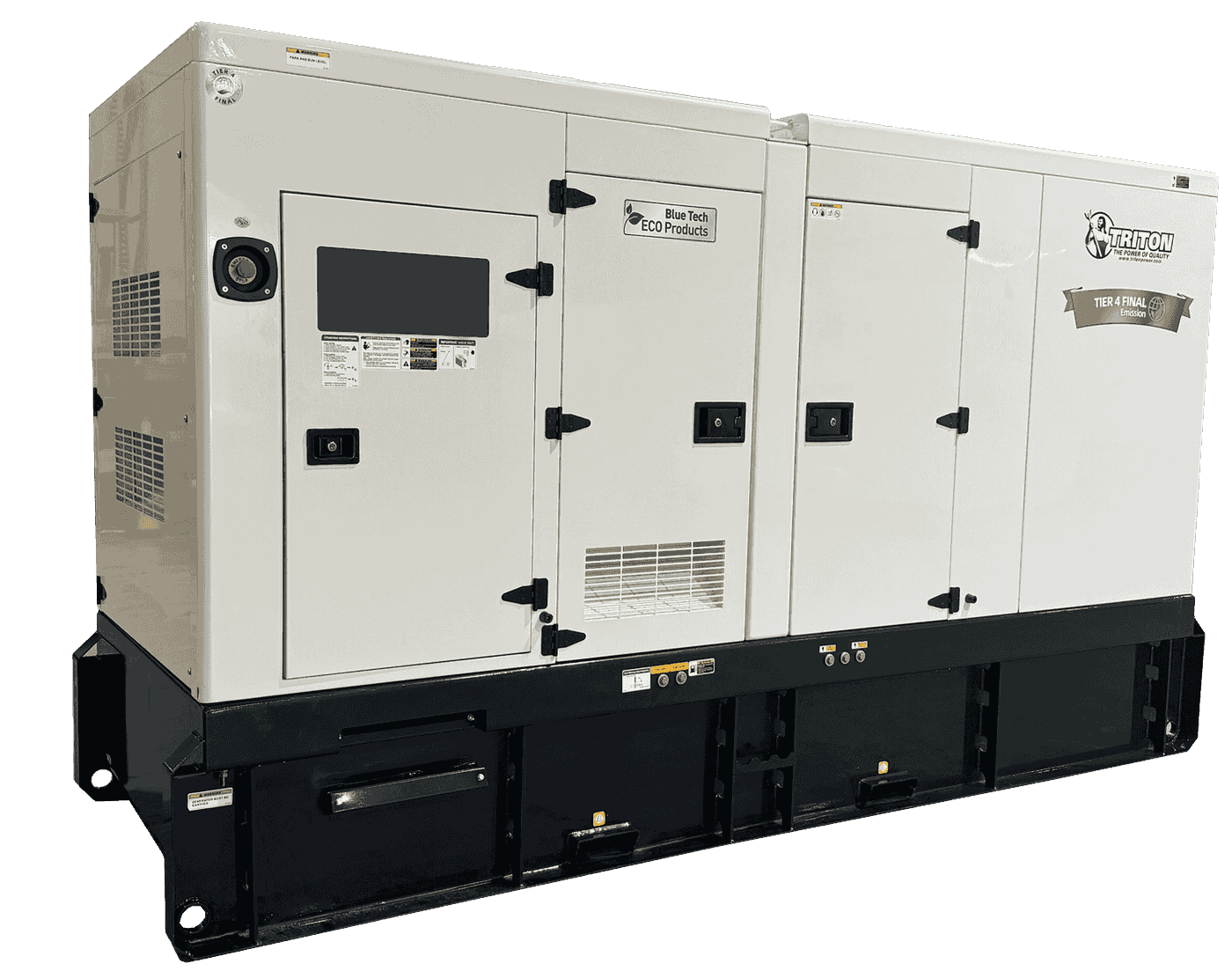

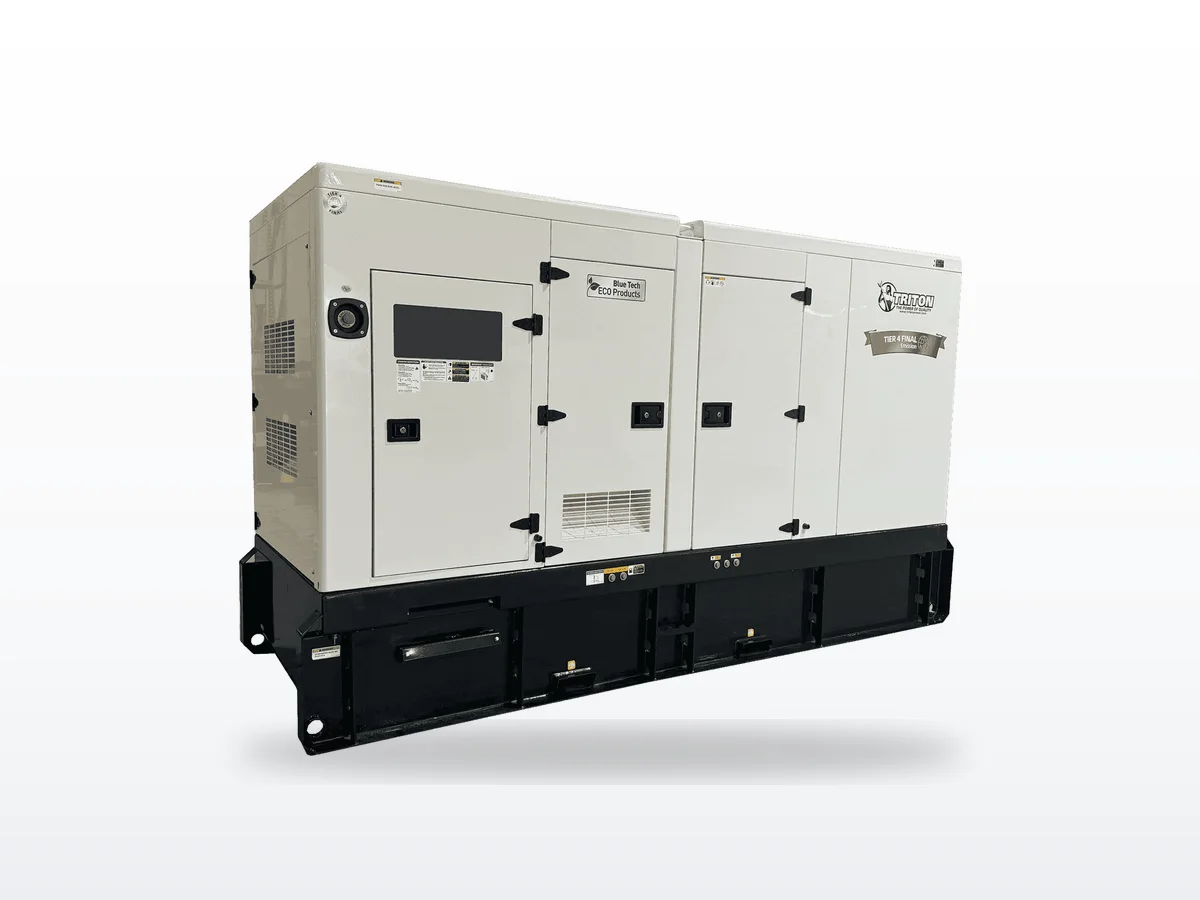

Triton Power Triton Power TP-JD165-T4F 165 kW liquid-cooled standby generator
