Kohler · KD Series (Industrial Diesel)

Kohler KD700

700 kW standby / 630 kW prime · Diesel · Liquid-cooled

700 kW diesel industrial standby generator. KD Series platform for data centers, healthcare, and mission-critical facilities.

Kohler Kohler KD700 generator — specifications and details
Standby power
700 kW / 630 kW prime
Voltage options
277/480V
Frequency / Phase
60 Hz · 3-phase
Engine
Kohler KD18L06 · 17.96L
EPA / Emissions
Tier 2
Alternator

Overview#

The Kohler KD700 is a 700-kilowatt diesel industrial standby generator from Kohler's KD Series platform. Powered by the Kohler KD18L06 — a 17.96-litre six-cylinder inline diesel engine rated at 1053 BHP — the KD700 serves data centers, healthcare facilities, and commercial buildings requiring reliable large-scale backup power. The engine is compatible with HVO (hydrotreated vegetable oil) renewable diesel.

KD Series platform#

The KD700 60 Hz generator set has a cULus listing (UL 2200 and CSA C22.2 No. 100) and meets NFPA 110, Level 1, when equipped with the necessary accessories and installed per NFPA standards. Hurricane-rated enclosures are available.

Our service experience#

PowerGen provides installation, maintenance, and emergency service for Kohler KD Series generators throughout Northern California. Our technicians are experienced with large diesel platforms in the megawatt class, including load bank testing, fuel system maintenance, and cooling system service for high-capacity industrial units.

Engineering specifications

Physical

Length
141.7 in
Width
74.8 in
Height
84.7 in
Wet weight
12,345 lb

Fuel system & runtime

Fuel use @ full load
48.1 GPH
Fuel use @ 75% load
38.2 GPH

Documents & downloads

Spec sheets & manuals

Ready to order this model?

Configure your Kohler KD700

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Estimate runtime for the Kohler KD700

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

5.4 hours(0.2 days)

Fuel consumption ≈ 37.11 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Frequently Asked Questions

What is the standby rating of the Kohler KD700?
The KD700 is rated at 670–700 kW standby and 600–630 kW prime at 0.8 power factor, 60 Hz, 1800 RPM (277/480V).
What engine does the Kohler KD700 use?
The KD700 uses the Kohler KD18L06, a 17.96-litre six-cylinder inline diesel engine rated at 1053 BHP at 1800 RPM. The engine is compatible with HVO renewable diesel fuel.
Is the Kohler KD700 EPA Tier 4 certified?
No. The KD700 is EPA certified for stationary emergency use at Tier 2.
What alternator type does the KD700 use?
The KD700 uses a brushless, permanent-magnet pilot exciter alternator.

Compatible equipment

Why we recommend Kohler

Kohler is our primary recommendation for commercial standby power. We sell and service the full Kohler line — RCA residential, RCL light commercial, KG industrial diesel, and REOZ large-frame — and our technicians are factory-trained on every product family.

We are an authorized Kohler dealer with factory-trained technicians. Kohler is the majority of our new generator sales today, spanning residential through large industrial. Our parts inventory is stocked for same-day Kohler service.

See all Kohler generators →

Similar models

Kohler Kohler KD800 800 kW liquid-cooled standby generator

Kohler

Kohler KD800

800 kW standby · Diesel · Liquid-cooled

800 kW diesel industrial standby generator. KD Series platform with KD27V12 engine.

Tier 23-phasedata-centerhealthcare
Kohler Kohler KD900 900 kW liquid-cooled standby generator

Kohler

Kohler KD900

900 kW KD Series -- Kohler KD27V12 with PM pilot exciter.

900 kW standby · Diesel · Liquid-cooled

900 kW diesel industrial standby generator.

Tier 23-phasedata-centerhealthcare

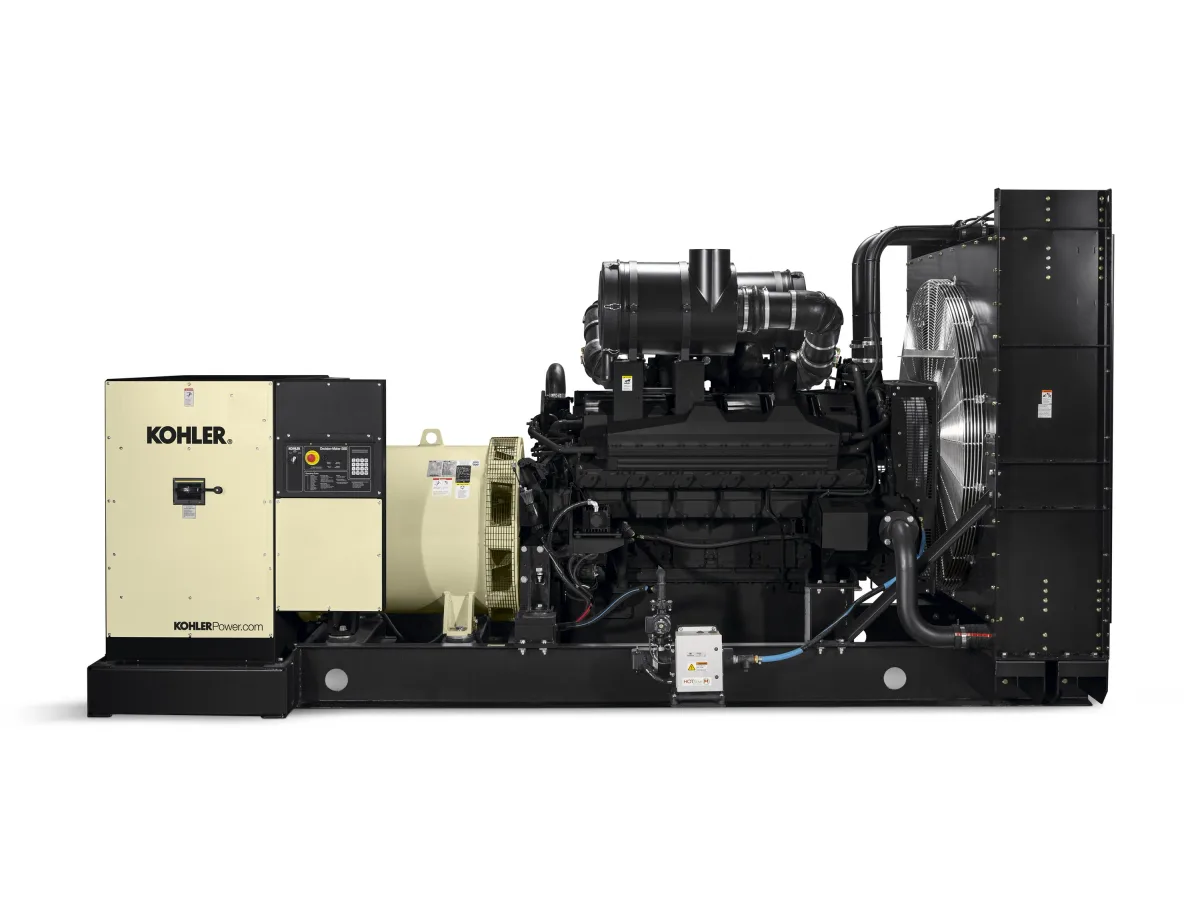

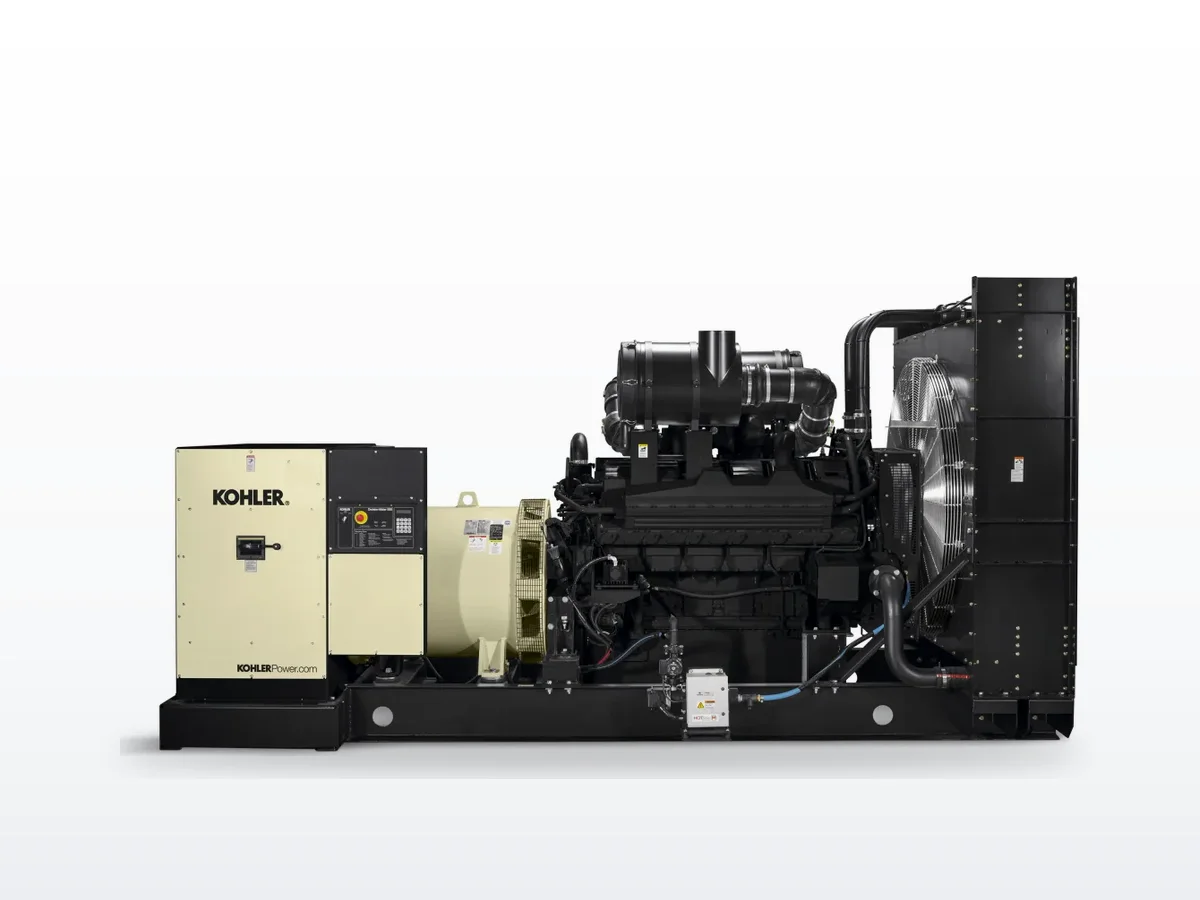

Kohler Kohler 750REOZMD 760 kW liquid-cooled standby generator

Kohler

Kohler 750REOZMD

760 kW diesel standby -- Mitsubishi S12A2-Y2PTAW-2, sub-3% THD. Decision-Maker controller for load management and paralleling.

760 kW standby · Diesel · Liquid-cooled

760 kW diesel commercial/industrial standby generator powered by Mitsubishi. Suitable for hospitals, data centers, and large commercial complexes.

Tier 23-phasecommercialhealthcare

Services for the Kohler KD700

Need service or parts for the Kohler KD700?

We service every major OEM and stock genuine parts for the most common models.

Last reviewed:
