What is the standby rating of the Kohler KD2500-4?

Per the Kohler spec sheet, the KD2500-4 is rated at 2500 kW / 3125 kVA standby and 2270 kW / 2837 kVA prime continuous at 0.8 power factor, 60 Hz, 1800 RPM.

Is the Kohler KD2500-4 EPA Tier 4 certified?

Yes. The KD2500-4 is EPA Tier 4 Final certified with dual certification for both stationary emergency and stationary non-emergency applications, making it suitable for prime power duty where air quality regulations require Tier 4 compliance.

What alternator type does the KD2500-4 use?

The KD2500-4 uses a brushless, permanent-magnet pilot exciter alternator — Kohler's standard for the KD Series large industrial diesel platform.

Kohler · KD Series (Industrial Diesel)

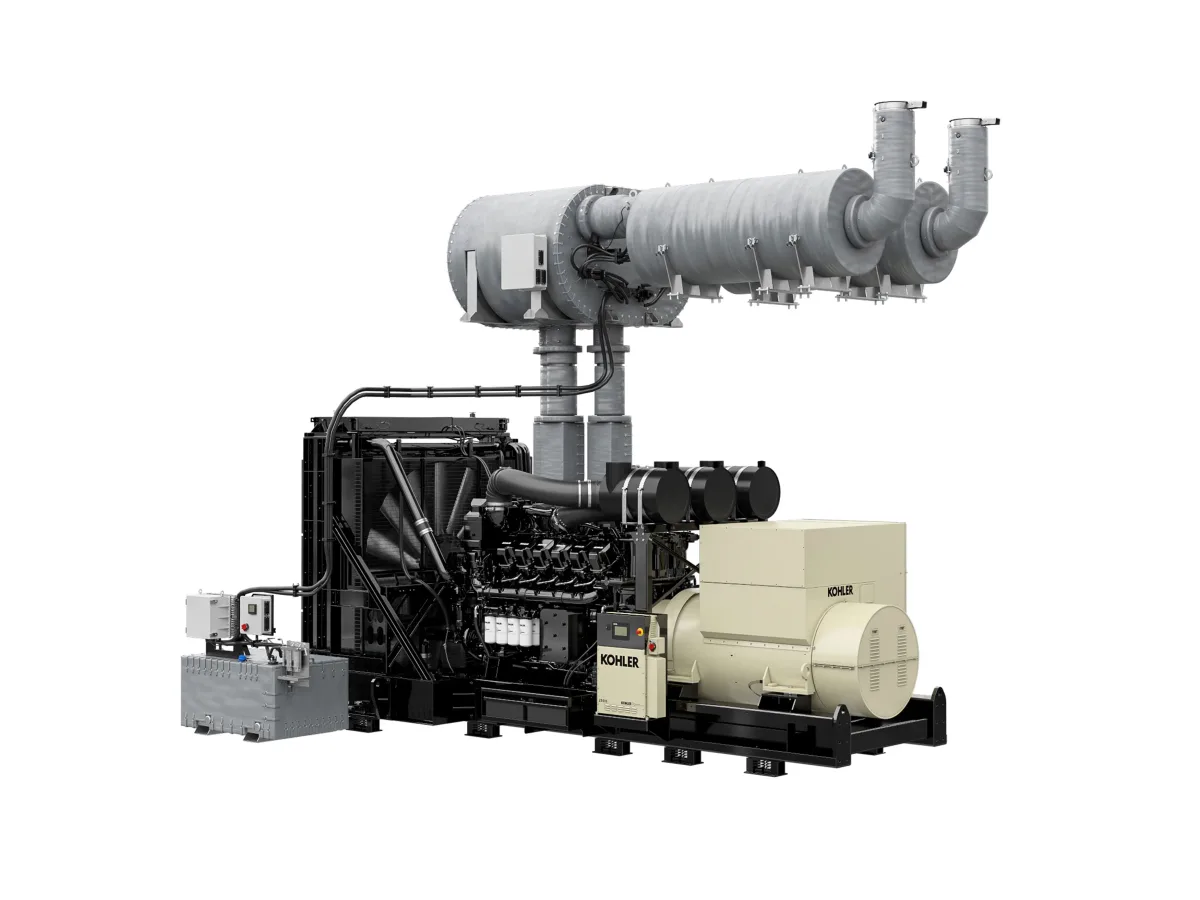

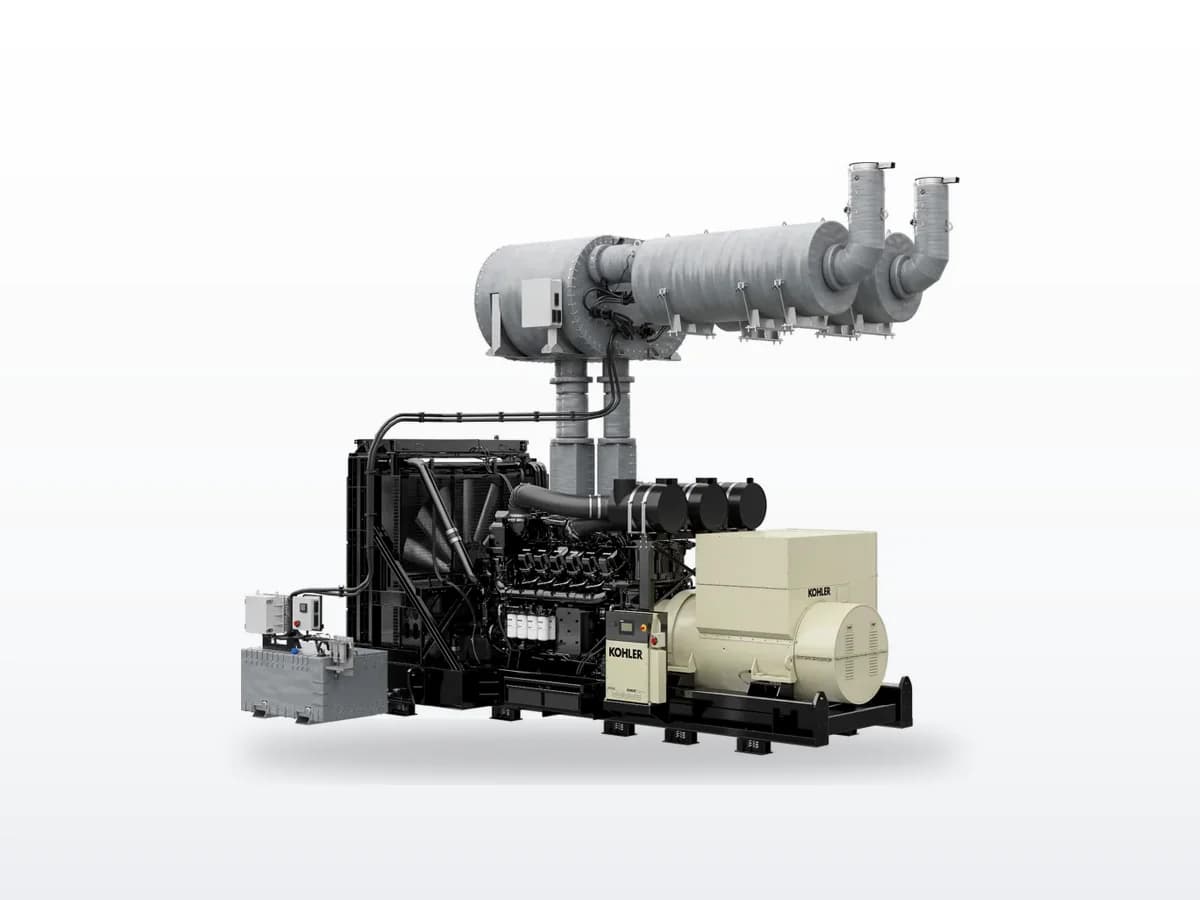

Kohler KD2500-4

2500 kW standby / 2270 kW prime · Diesel · Liquid-cooled

2500 kW EPA Tier 4 Final diesel industrial standby generator. Dual-certified (emergency and non-emergency) for mission-critical and prime power applications.

Standby power: 2500 kW / 2270 kW prime
Voltage options: 277/480V
Frequency / Phase: 60 Hz · 3-phase
Engine: Kohler KD62V12 · 62L
EPA / Emissions: Tier 4 Final
Alternator: Kohler KH08430TO4D

Data Centers Healthcare Manufacturing Commercial Government

Overview#

The Kohler KD2500-4 is a 2500-kilowatt EPA Tier 4 Final diesel industrial generator from Kohler's KD Series platform. The -4 designation indicates Tier 4 Final emissions compliance with dual certification for both emergency standby and non-emergency (prime power) applications. At 2.5 MW, it serves large data centers, hospital systems, and industrial facilities where air quality regulations or continuous duty requirements demand Tier 4 compliance. The KD Series uses Kohler-designed engines and permanent-magnet pilot exciter alternators.

KD Series platform#

The KD Series is Kohler's large industrial diesel generator line, covering 800 to 4000 kW. Designed for mission-critical facilities, every KD Series unit carries UL 2200 listing and meets NFPA 110 Level 1 requirements when equipped with the necessary accessories. Sound aluminum enclosures with 186 mph wind load ratings are available across the larger KD platform.

Our service experience#

PowerGen provides installation, maintenance, and emergency service for Kohler KD Series generators throughout Northern California. Tier 4 Final units require additional aftertreatment system maintenance, including DEF management and DPF regeneration monitoring, which our technicians handle as part of comprehensive PM programs.

Engineering specifications

Acoustic

Sound @ 7m, full load: 101 dBA

Fuel system & runtime

Fuel use @ full load: 174.6 GPH
Fuel use @ 75% load: 126.5 GPH
Fuel use @ 50% load: 88.1 GPH

Photos

Documents & downloads

Spec sheets & manuals

Spec sheet (datasheet)

Ready to order this model?

Configure your Kohler KD2500-4

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Configure & Quote →Just request a quote Download datasheet

Estimate runtime for the Kohler KD2500-4

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Generator size

Fuel

Fuel tank capacity

gal

Load

Override full-load GPH (optional)

GPH

Estimated runtime

1.5 hours(0.1 days)

Fuel consumption ≈ 134.69 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Service intervals

Manufacturer-recommended intervals for the Kohler KD2500-4 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.

Oil & filter: Every 500 hours or 12 months
Coolant change: Every 6000 hours
Air filter: Every 1000 hours
Fuel filter: Every 500 hours
Major overhaul: ≈ 20,000 hours
Load bank test: Every 12 months

Common failure modes

What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.

Component	Symptom	Typical hours	Severity
DPF (Diesel Particulate Filter)	Regen warning, back-pressure fault, power derate	4,380+	moderate
DEF system (SCR catalyst)	Derate warning, NOx fault, DEF quality alert	4,380+	moderate
Fuel quality / degradation	Injector fouling, hard starting, black smoke under load	4,380+	moderate
Turbocharger	Power loss, excessive exhaust smoke, oil at turbo seals	15,000+	moderate
Cooling system (hoses / thermostat)	Overtemperature fault, coolant loss, high EGT	10,000+	moderate
Battery (starting)	Slow crank, failed exercise, low voltage alarm	8,760+	minor

Frequently Asked Questions

What is the standby rating of the Kohler KD2500-4?: Per the Kohler spec sheet, the KD2500-4 is rated at 2500 kW / 3125 kVA standby and 2270 kW / 2837 kVA prime continuous at 0.8 power factor, 60 Hz, 1800 RPM.
Is the Kohler KD2500-4 EPA Tier 4 certified?: Yes. The KD2500-4 is EPA Tier 4 Final certified with dual certification for both stationary emergency and stationary non-emergency applications, making it suitable for prime power duty where air quality regulations require Tier 4 compliance.
What alternator type does the KD2500-4 use?: The KD2500-4 uses a brushless, permanent-magnet pilot exciter alternator — Kohler's standard for the KD Series large industrial diesel platform.

Compatible equipment

Engine

Kohler KD62V12Engines

Transfer switches

More in the KD Series (Industrial Diesel)

Kohler-engineered megawatt-class diesel gensets from 900 to 4000 kW for mission-critical facilities.

View all 18models in this series →

Similar models

Kohler

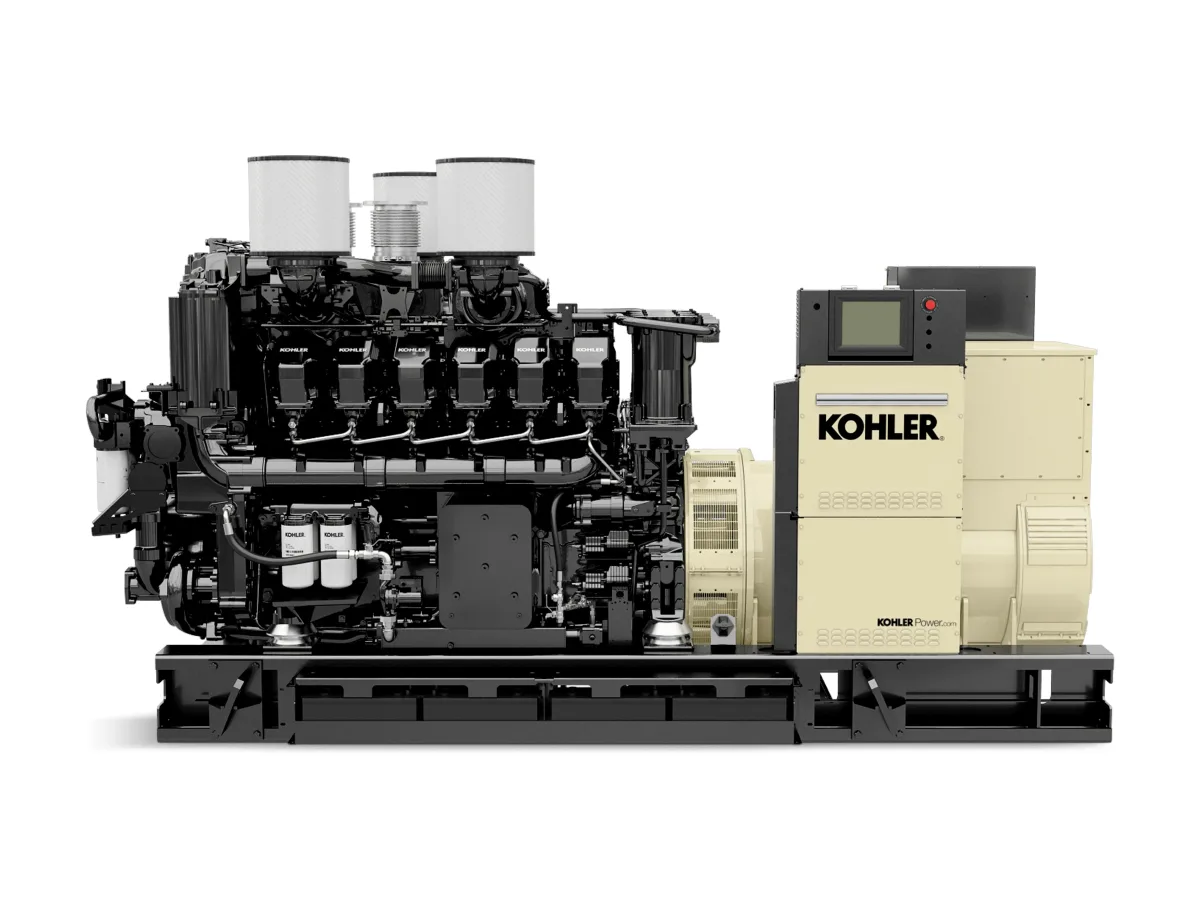

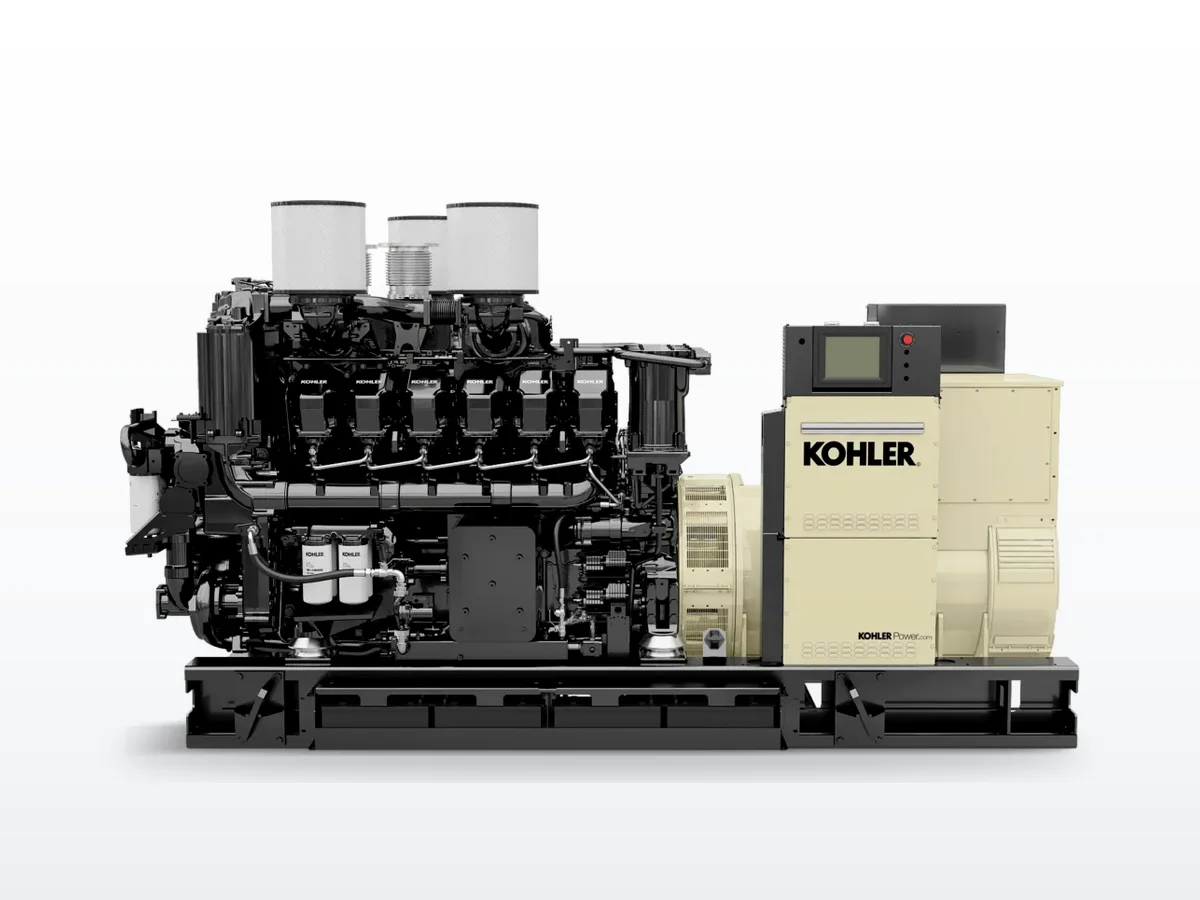

Kohler KD2500

2500 kW KD Series -- Kohler KD62V12 with sub-3% THD and PM pilot exciter. Hurricane-rated enclosures available.

2.5 MW standby · Diesel · Liquid-cooled

2500 kW industrial standby for data centers, hospitals, and critical infrastructure requiring multi-MW backup with NFPA 110 Level 1.

2500 kW diesel industrial standby generator. KD Series platform for data centers, healthcare, and heavy industrial facilities requiring 2+ MW backup.

Tier 23-phasedata-centerhealthcare

Kohler

Kohler KD2250

2250 kW KD Series -- Kohler KD62V12 with sub-3% THD and PM pilot exciter. Hurricane-rated enclosures available.

2.3 MW standby · Diesel · Liquid-cooled

2250 kW industrial standby for data centers, hospitals, and critical infrastructure requiring multi-MW backup with NFPA 110 Level 1.

2250 kW diesel industrial standby generator. KD Series platform for data centers, healthcare, and mission-critical facilities approaching 2 MW.

Tier 23-phasedata-centerhealthcare

Kohler

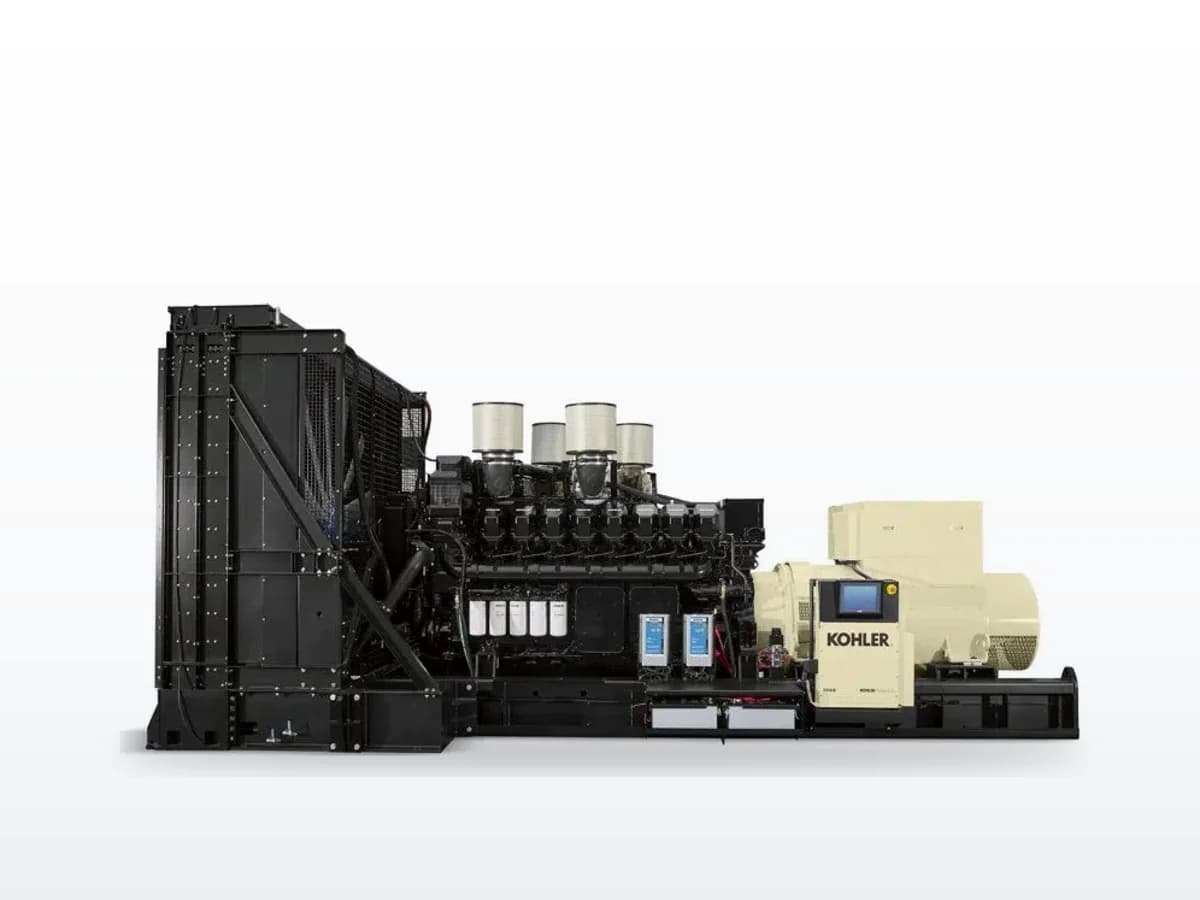

Kohler KD2800
