Overview#

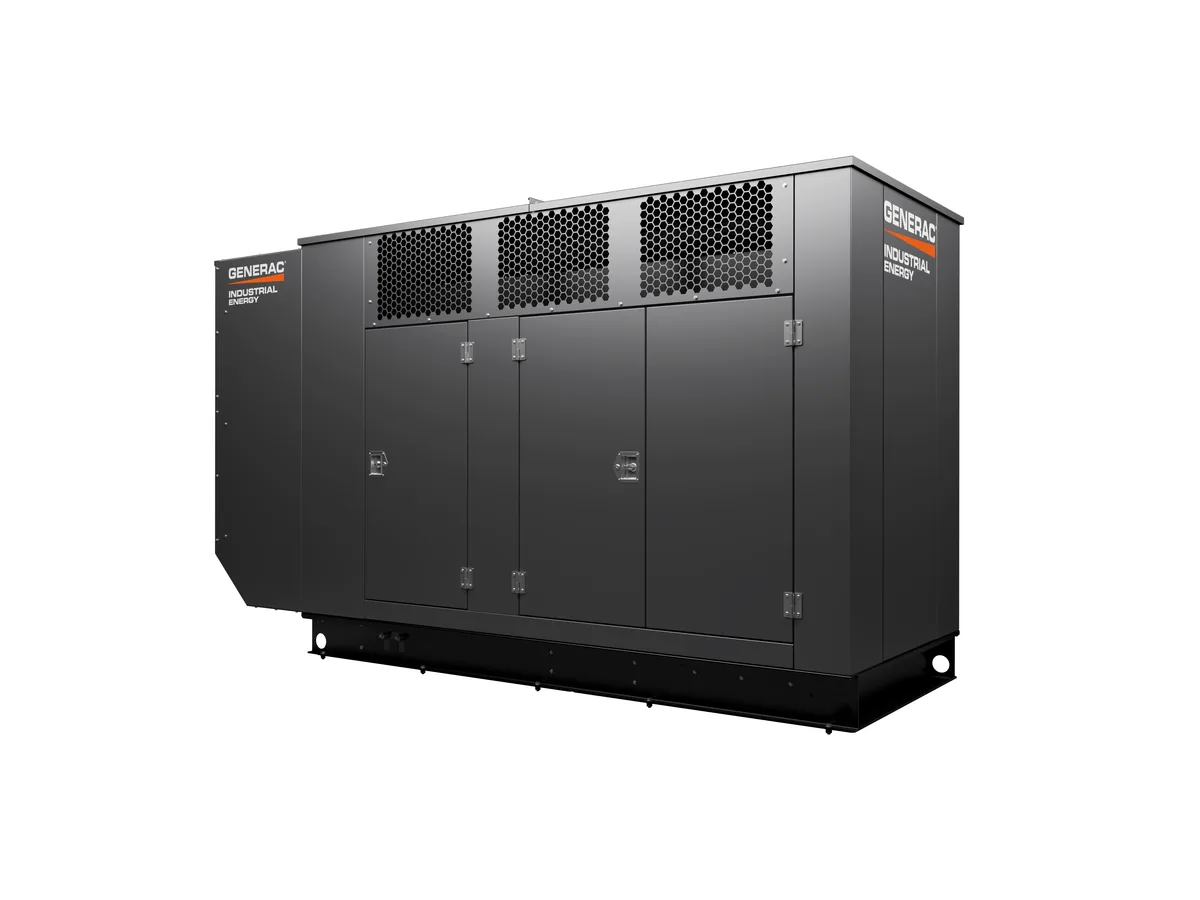

The Generac SG150 is a 150 kW standby demand response ready industrial natural gas generator set powered by Generac's 9.0L V8 turbocharged and aftercooled spark-ignited engine. Rated at 188 kVA standby at 60 Hz, it is EPA certified for both stationary emergency and non-emergency applications. The genset features the Generac Digital H controller with dual 4x20 display, Modbus protocol, and all-phase sensing digital voltage regulator.
Engine and alternator#
The Generac 9.0L (543 cubic inch) V8 turbocharged/aftercooled engine achieves 150 kW standby at 229 hp and 185 psi BMEP at 1,800 RPM. The engine has two build variants: G18 (before August 3, 2018) with 10.5:1 compression and 8.5-quart crankcase; G26 (after August 3, 2018) with 9.1:1 compression and 9.5-quart (10 qt) crankcase. Key features include forged steel connecting rods and crankshaft, hydraulic roller lifters, high energy ignition, and cast iron cylinder head.
The standard alternator is the Generac K0150124Y26, a 4-pole revolving-field design with Class H insulation on both rotor and stator. It features permanent magnet excitation, full digital voltage regulation with plus or minus 0.25% steady-state accuracy, and total harmonic distortion below 5%.
Power ratings and fuel consumption#
At 277/480V three-phase and 0.8 power factor, the SG150 delivers 150 kW standby (226 A). Single-phase 120/240V at 1.0 pf produces 144 kW at 600 A on natural gas.
Natural gas consumption at standby/demand response ratings: 2,042 scfh at 100% load, 1,583 scfh at 75%, 1,127 scfh at 50%, and 668 scfh at 25% load.
Physical dimensions#
The open set measures 116.5 x 49.7 x 55.6 inches (2,959 x 1,262 x 1,412 mm), weighing 2,946 lbs (1,336 kg). The weather protected enclosure measures 143.0 x 50.4 x 68.2 inches. Level 1 sound attenuated enclosure: 168.5 x 50.4 x 68.2 inches. Level 2 sound attenuated enclosure: 143.0 x 50.4 x 91.7 inches.
Our service experience#
The SG150 is the highest-output turbocharged V8 model before the transition to the larger 14.2L inline-6 platform. Exhaust temperature reaches 1,440 degrees F at rated output — the hottest of the 9.0L V8 series — making valve train condition monitoring critical. The EPA non-emergency certification makes this an excellent demand response candidate for healthcare, data center, and campus applications. Always confirm G18 vs G26 build date before servicing; the different compression ratios and oil capacities affect tuning and service procedures.
