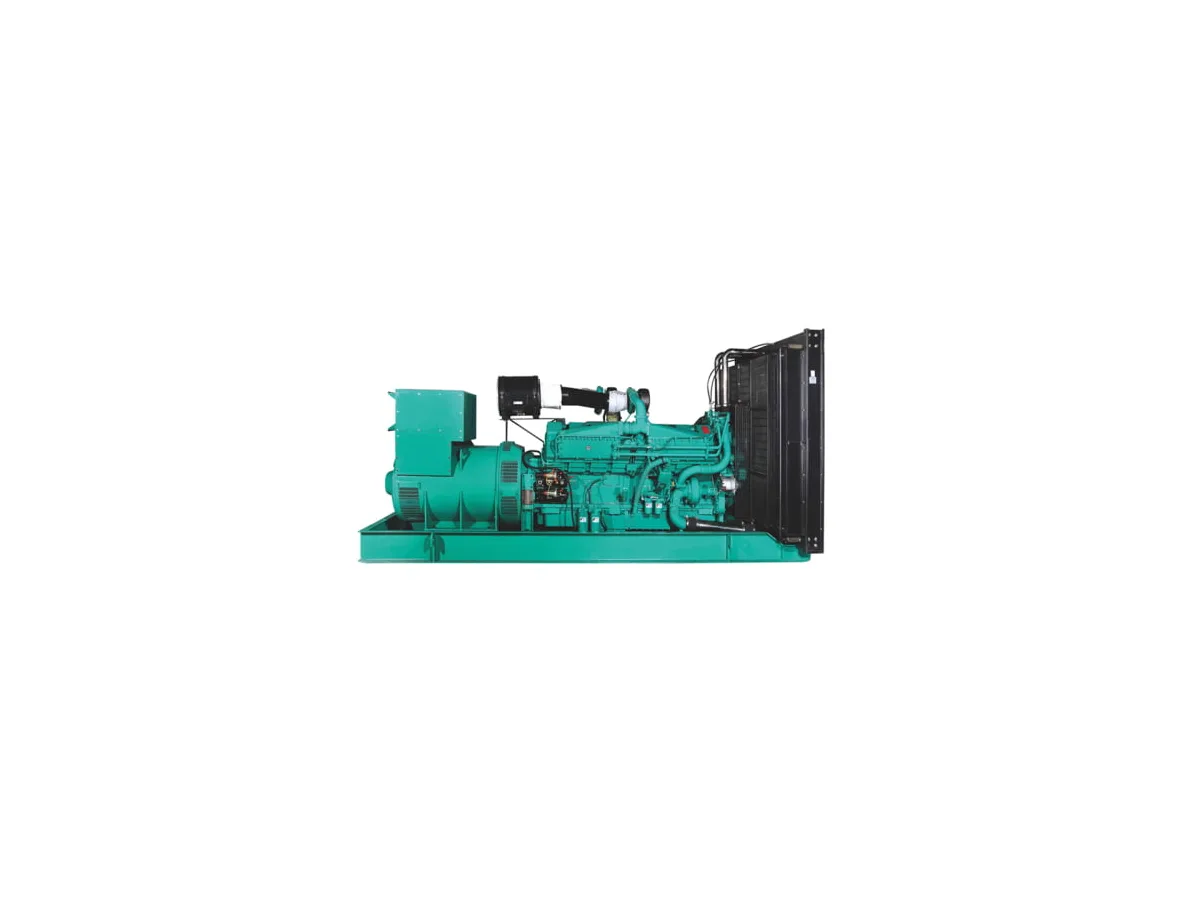

The Cummins KTA50 (C1500 D5) is a 1,500-kilowatt standby diesel generator built on the KTA50 V16 — Cummins' legacy large-displacement high-output diesel platform that preceded the current QSK series. Deployed extensively in industrial, hospital, campus, and mining applications from the 1990s through the mid-2000s, the KTA50 remains in active service at thousands of sites worldwide with continued Cummins legacy parts support.
The KTA50's mechanically controlled direct-injection fuel system is robust and serviceable in challenging environments — a key reason for its extensive mining and remote industrial deployments. At 1500 kW standby, the V16 platform provides substantial power output in a proven, well-understood package.
We service KTA50 installations at legacy industrial and campus accounts. The mechanical fuel injection system is straightforward to service but requires attention to injection timing and pump calibration to maintain rated performance. Cooling system maintenance is critical on these units — at 1500 kW, any degradation in the cooling circuit will manifest quickly. Our annual service includes oil and coolant analysis, injection system inspection, cooling circuit pressure testing, and a full load bank test.
Request a quote
Get pricing & lead time on the Cummins KTA50
Tell us about the application — kW, voltage, application, install timeline — and we'll respond within one business day with budgetary pricing, lead time, and any sizing notes.
Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.
Estimate runtime on this tank
Estimated runtime
2.5 hours(0.1 days)
Fuel consumption ≈ 81.00 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.
Service intervals
Manufacturer-recommended intervals for the Cummins KTA50 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.
Oil & filter
Every 500 hours or 12 months
Coolant change
Every 6000 hours
Air filter
Every 1000 hours
Fuel filter
Every 500 hours
Major overhaul
≈ 24,000 hours
Load bank test
Every 12 months
Common failure modes
What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.
Component
Symptom
Typical hours
Severity
Fuel quality (standby degradation)
Injector fouling, filter clogging, hard starting
4,380+
moderate
Turbocharger(s)
Reduced power, excessive smoke, turbo noise
18,000+
moderate
Starting system (24V battery banks)
Slow crank, failed start requirement
8,760+
minor
Frequently Asked Questions
What is the difference between the KTA50 and the QSK50?
The KTA50 is Cummins' legacy V16 large diesel platform, succeeded by the QSK50 in current production. The QSK50 uses Cummins' Modular Common Rail System (MCRS) fuel injection for improved efficiency and emissions compliance, while the KTA50 uses a mechanically controlled fuel system. A significant installed base of KTA50 generators remains in service globally, and parts support continues under Cummins' legacy program.
Is the KTA50 still serviceable?
Yes. Cummins maintains legacy support for the KTA50 platform with continued parts availability. Many KTA50 generator sets installed in industrial, hospital, and campus facilities during the 1990s and 2000s remain in active service. Our technicians are experienced with both the KTA and QSK platforms.
What makes the KTA50 common in mining applications?
The KTA50 was widely deployed in mining, remote industrial, and oil-field applications during its production years due to its robust construction, high power output, and availability with direct injection mechanical fuel systems that are serviceable in remote locations without sophisticated diagnostic tools. Many of these installations are still operational.
Similar models
C
Cummins
New
Cummins QSK50
1.8 MW standby · Diesel · Liquid-cooled
1750 kW standby / 1500 kW prime diesel generator. Cummins QSK50 V16 50.3L platform for data centers, large hospitals, campuses, and mission-critical paralleling arrays.
Tier 23-phasedata-centerhospital-large
C
Cummins
New
Cummins KTA38
1 MW standby · Diesel · Liquid-cooled
1000 kW standby / 900 kW prime diesel generator. Cummins KTA38 legacy V12 platform for industrial, hospital, campus, and mining standby applications.
Tier 23-phaseindustrialhospital-large
C
Cummins
New
Cummins QSK38
1.3 MW standby · Diesel · Liquid-cooled
1250 kW standby / 1000 kW prime diesel generator. Cummins QSK38 V12 38L platform for data centers, hospitals, campuses, and mission-critical paralleling arrays.
Tier 23-phasedata-centerhospital-large
Need service or parts for the Cummins KTA50?
We service every major OEM and stock genuine parts for the most common models.
