Cummins · Cummins D6 Commercial Diesel

Cummins C60 D6

60 kW standby / 54 kW prime · Diesel · Liquid-cooled

60 kW EPA Tier 3 diesel standby generator with Cummins 4BT3.3-G7 engine and PowerCommand 1.1 control. Sound-attenuated enclosure, liquid-cooled, for commercial and light-industrial standby applications.

Cummins Cummins C60 D6 generator — specifications and details
Standby power
60 kW / 54 kW prime
Voltage options
120/240V, 120/208V, 277/480V
Frequency / Phase
60 Hz · 1/3-phase
Engine
Cummins 4BT3.3-G7 · 3.3L
EPA / Emissions
Tier 3
Commerciallight-industrialResidential
Configure & QuoteDownload spec sheet

Overview#

The Cummins C60 D6 (model designation C60D6) is a 60 kW standby diesel generator set powered by the Cummins 4BT3.3-G7 engine -- a 3.3-liter, turbocharged and charge-air-cooled, 4-cylinder industrial diesel running at 1800 rpm. Rated at 75 kVA standby and 67.5 kVA prime at 60 Hz, the C60D6 is the highest-output generator on the 4BT3.3 platform. Cummins also offers the C60D6C variant using the larger QSB5-G13 (4.5L) engine at the same 60 kW rating.

Standard equipment includes the PowerCommand 1.1 control and a sound-attenuated enclosure. The unit is EPA Tier 3 certified for stationary emergency standby applications. The C60D6 bridges the gap between the small diesel range (C20-C40) and the mid-size QSB5-based units (C80-C125).

The C60D6 is designed for mid-size commercial standby applications including office buildings, retail centers, and light-industrial facilities where loads exceed 40 kW but remain under the 80 kW threshold of the QSB5-based C80D6C.

Our Service Experience#

The 4BT3.3-G7 variant runs the engine harder than the G5 variant used in smaller units. At 60 kW, charge air cooler condition is critical -- any signs of coolant contamination in the intake require immediate investigation. We recommend annual charge air cooler pressure testing on C60D6 units. For customers who prefer a more conservative engine loading, we suggest considering the C60D6C variant with its larger QSB5 block.

Frequently Asked Questions#

Should I choose the C60D6 or C60D6C? If budget allows, the C60D6C (QSB5-G13 engine) provides the same 60 kW output from a larger displacement engine operating at lower stress. This typically translates to longer engine life and quieter operation. The C60D6 (4BT3.3-G7) is the more compact and cost-effective option.

What fuel tank options are available? The C60D6 is available with integrated sub-base fuel tanks in various capacities. Contact your Cummins distributor for specific tank options and run-time calculations.

Engineering specifications

Physical

Length
95 in
Width
38 in
Height
52 in
Dry weight
1,900 lb

Fuel system & runtime

Fuel use @ full load
5.2 GPH
Fuel use @ 50% load
3 GPH

Documents & downloads

Spec sheets & manuals

Ready to order this model?

Configure your Cummins C60 D6

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Configure & Quote →Just request a quoteDownload datasheet

Estimate runtime for the Cummins C60 D6

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

49.9 hours(2.1 days)

Fuel consumption ≈ 4.01 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Service intervals

Manufacturer-recommended intervals for the Cummins C60 D6 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.

Oil & filter
Every 500 hours or 12 months
Air filter
Every 500 hours
Fuel filter
Every 500 hours
Major overhaul
≈ 20,000 hours

Common failure modes

What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.

ComponentSymptomTypical hoursSeverity
4BT3.3-G7 charge air coolerCoolant in intake, white smoke, loss of power under load—severe
Turbocharger wastegate actuatorOver-boost condition, black smoke, erratic power output—moderate
PowerCommand 1.1 battery monitoringWeak battery warning, slow crank, failed auto-start—moderate
Spin-on fuel filterRestricted fuel flow, hard start, power loss under load—minor

Frequently Asked Questions

What engine does the Cummins C60 D6 use?
The standard C60D6 uses the Cummins 4BT3.3-G7, a 3.3-liter, turbocharged and charge-air-cooled, inline-4-cylinder diesel rated at 1800 rpm. EPA Tier 3 certified. Cummins also offers the C60D6C variant, which uses the larger QSB5-G13 (4.5L) engine for the same 60 kW output with a more conservative loading on the engine block.
What are the standby and prime ratings of the C60 D6?
Standby rating is 60 kW (75 kVA) at 60 Hz, 0.8 power factor. Prime rating is 54 kW (67.5 kVA). Both at 1800 rpm.
What is the difference between the C60D6 and the C60D6C?
The C60D6 uses the 4BT3.3-G7 engine (3.3L, 4-cylinder), while the C60D6C uses the QSB5-G13 engine (4.5L, 4-cylinder). Both produce 60 kW standby. The C60D6C variant has a larger displacement engine operating at a lower percentage of its rated capacity, resulting in potentially longer engine life and lower thermal stress.
What are the service intervals for the C60 D6?
Oil and filter changes are due at 500 hours or 12 months, whichever comes first. Air filter and fuel filter replacement at 500-hour intervals. Coolant flush at 3,000 hours or 24 months.
Can PowerGen service the C60 D6 in Northern California?
Yes. PowerGen serves the San Francisco Bay Area, Silicon Valley, and broader Northern California with generator service. We carry parts for both the 4BT3.3 and QSB5 engine platforms and provide annual maintenance, load bank testing, and emergency response.

Compatible equipment

Transfer switches

Similar models

Cummins Cummins C40 D6 40 kW liquid-cooled standby generator

Cummins

Cummins C40 D6

40 kW diesel with Cummins 4BT3.3 engine. Top of the small B-series range. Sound-attenuated enclosure and PowerCommand control standard.

40 kW standby · Diesel · Liquid-cooled

40 kW EPA Tier 3 diesel standby generator with Cummins 4BT3.3-G5 engine and PowerCommand 1.1 control. Sound-attenuated enclosure, liquid-cooled, for small commercial and light-industrial standby.

Tier 33-phasecommercial-standbysmall-office

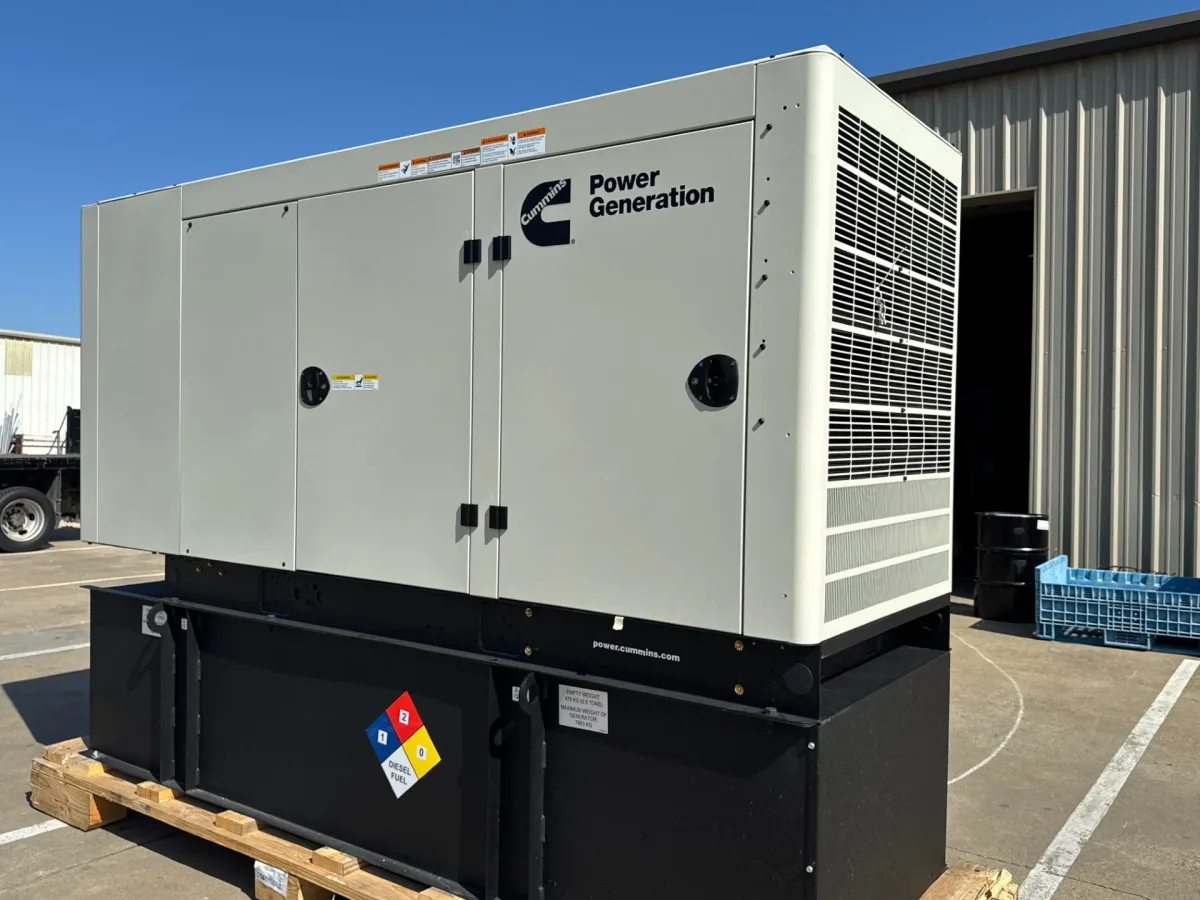

Cummins Cummins C80 D6 80 kW liquid-cooled standby generator

Cummins

Cummins C80 D6

80 kW diesel with full Cummins vertical integration. 100% load acceptance in 10 seconds. One throat to choke.

80 kW standby · Diesel · Liquid-cooled

80 kW EPA Tier 3 diesel standby generator with QSB5-G13 engine and PowerCommand 2.3 control. Sound-attenuated aluminum enclosure, liquid-cooled, rated for 50°C ambient operation.

Tier 33-phasecommercial-standbylight-industrial

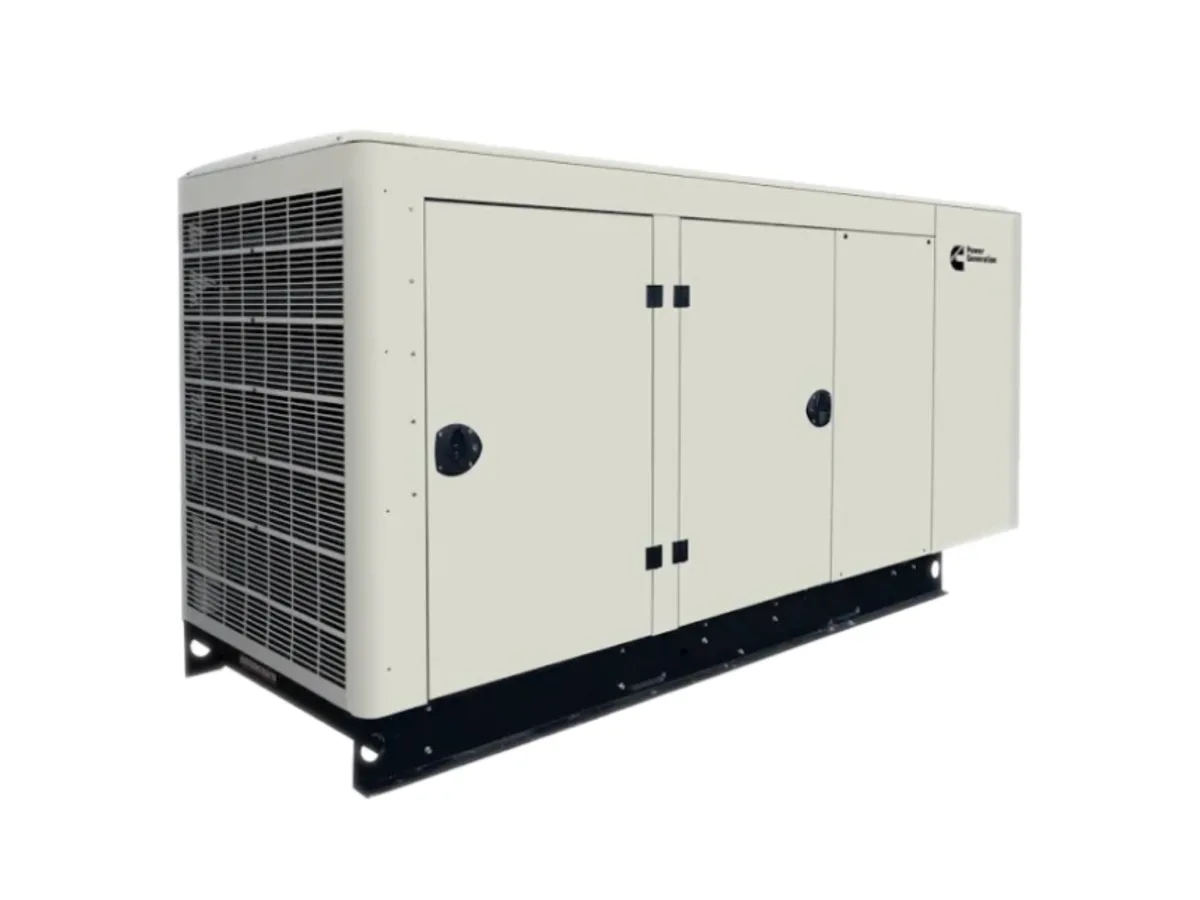

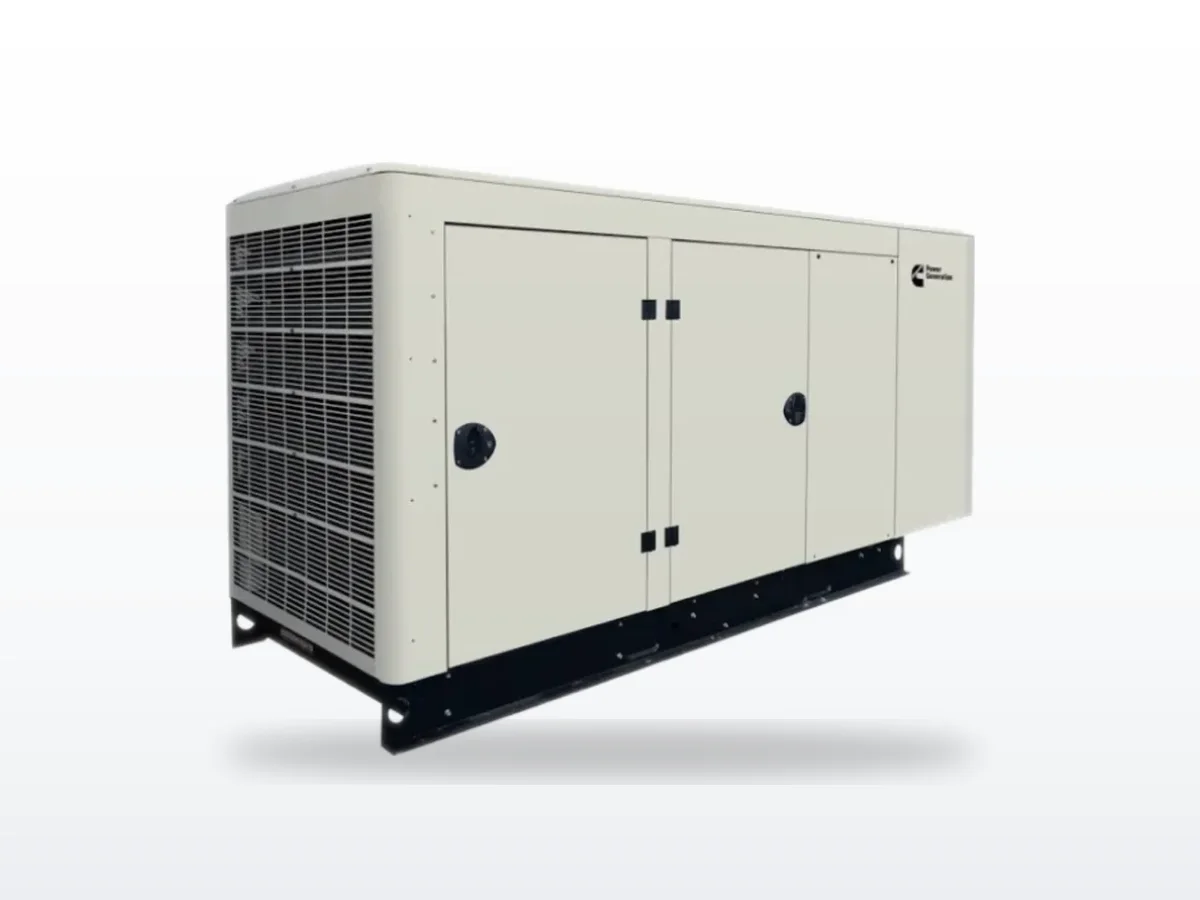

Cummins Cummins C60 N6 60 kW liquid-cooled standby generator
