Winco · DR Series

Winco DR130F4

130 kW standby / 117 kW prime · Diesel · Liquid-cooled

Winco DR130F4 diesel generator: 130 kW standby / 117 kW prime on 277/480 V three-phase, with an FPT N67 TM1 6.7-liter six-cylinder turbocharged diesel engine and a Stamford generator end.

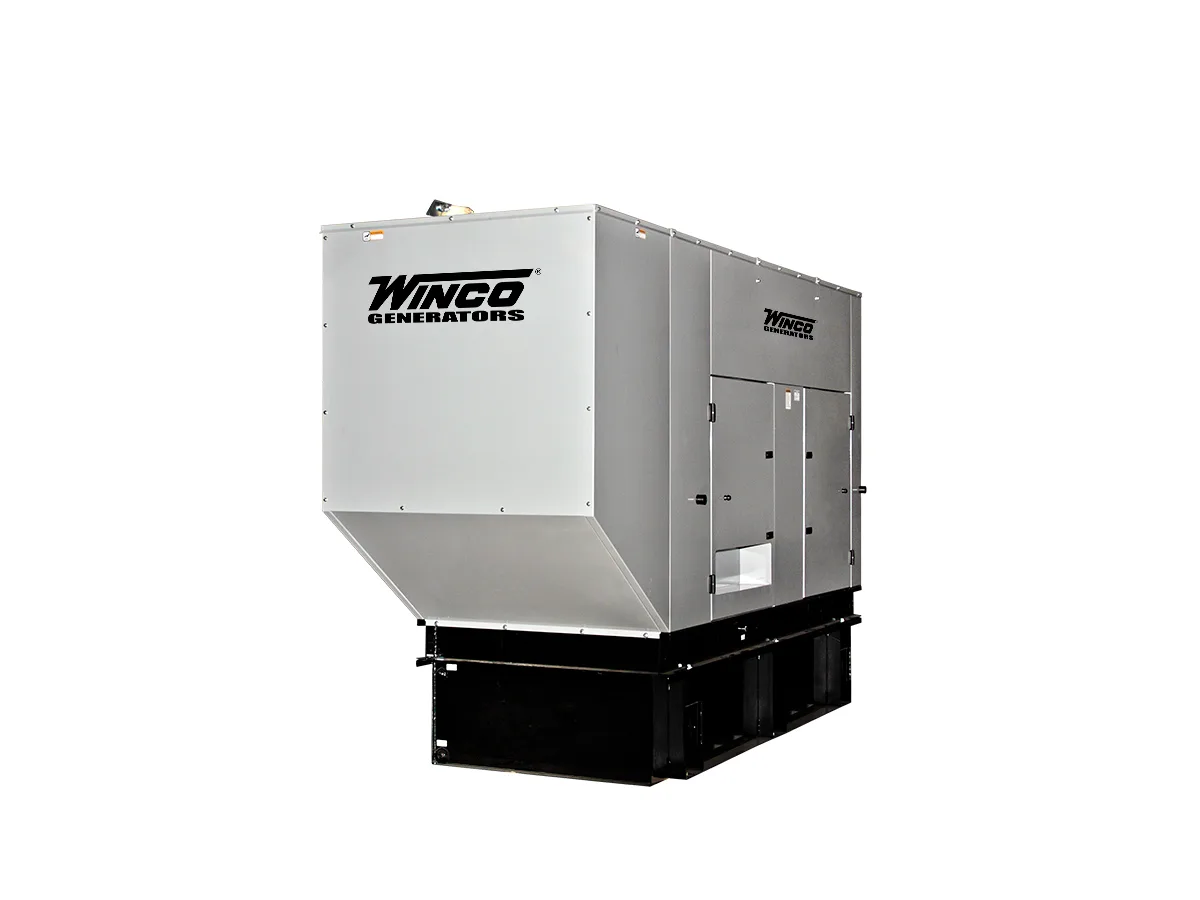

Winco Winco DR130F4 generator — specifications and details
Standby power
130 kW / 117 kW prime
Voltage options
120/208V, 120/240V, 277/480V, 346/600V
Frequency / Phase
60 Hz · 1/3-phase
Engine
FPT Industrial N67 TM1 · 6.7L
EPA / Emissions
Tier 3

Overview#

The Winco DR130F4 is a diesel generator rated 130 kW standby / 117 kW prime on 277/480 V three-phase, powered by an FPT Industrial N67 TM1 6.7-liter six-cylinder turbocharged diesel engine with a Stamford generator end. Winco's sheet also lists 120/208 V, 120/240 V and 346/600 V three-phase and 120/240 V single-phase ratings; on single-phase 120/240 V it is rated 123 kW standby / 110.7 kW prime. The sheet lists EPA approved Tier III (standby), 60 Hz operation and a DSE 7310 MKII controller.

Where It Is Built#

Winco's spec sheet states the unit is designed, engineered, and manufactured at its facility in Le Center, Minnesota, and lists it as assembled in USA.

Our Service Experience#

PowerGen services Winco DR units throughout the Bay Area and Northern California.

Engineering specifications

Acoustic

Enclosure
Sound-attenuated

Documents & downloads

Ready to order this model?

Configure your Winco DR130F4

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Estimate runtime for the Winco DR130F4

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

28.5 hours(1.2 days)

Fuel consumption ≈ 7.02 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Frequently Asked Questions

What is the standby kW rating of the DR130F4?
The DR130F4 is rated 130 kW standby / 117 kW prime on 277/480 V three-phase. Winco's sheet also lists 120/208 V, 120/240 V and 346/600 V three-phase and 120/240 V single-phase; on single-phase 120/240 V the ratings are 123 kW standby / 110.7 kW prime.
What engine does the DR130F4 use?
The DR130F4 uses an FPT Industrial N67 TM1 6.7-liter six-cylinder turbocharged diesel engine rated at 1800 RPM.
What emissions tier is the DR130F4?
The DR130F4 spec sheet lists EPA approved Tier III (standby) and CARB approved Tier III (standby).
Where are Winco generators made?
Winco's spec sheet states the unit is designed, engineered, and manufactured at its facility in Le Center, Minnesota, and lists it as assembled in USA.
Who services Winco generators in Northern California?
PowerGen services Winco DR units throughout the Bay Area and Northern California.

More in the DR Series

USA-made Tier 4 diesel standby in enclosed packages — 13 to 175 kW on FPT and Isuzu engines.

Similar models

Winco Winco DR100F4 105 kW liquid-cooled standby generator

Winco

Winco DR100F4

Diesel standby with an FPT N67 TM1 engine and a Stamford generator end, designed, engineered, and manufactured in Le Center, Minnesota.

105 kW standby · Diesel · Liquid-cooled

Winco DR100F4 diesel generator: 115 kW standby / 103.5 kW prime on 277/480 V three-phase, with an FPT N67 TM1 6.7-liter six-cylinder turbocharged diesel engine and a Stamford generator end.

Tier 33-phasecommercial-standby
Winco Winco DR175F4 175 kW liquid-cooled standby generator

Winco

Winco DR175F4

Diesel standby with an FPT N67 TE2 engine and a Cummins Industrial Genend generator end, assembled in USA.

175 kW standby · Diesel · Liquid-cooled

Winco DR175F4 diesel generator: 175 kW standby / 157.5 kW prime on 277/480 V three-phase, with an FPT N67 TE2 6.7-liter six-cylinder turbocharged diesel engine and a Cummins Industrial Genend generator end.

Tier 33-phasecommercial-standby

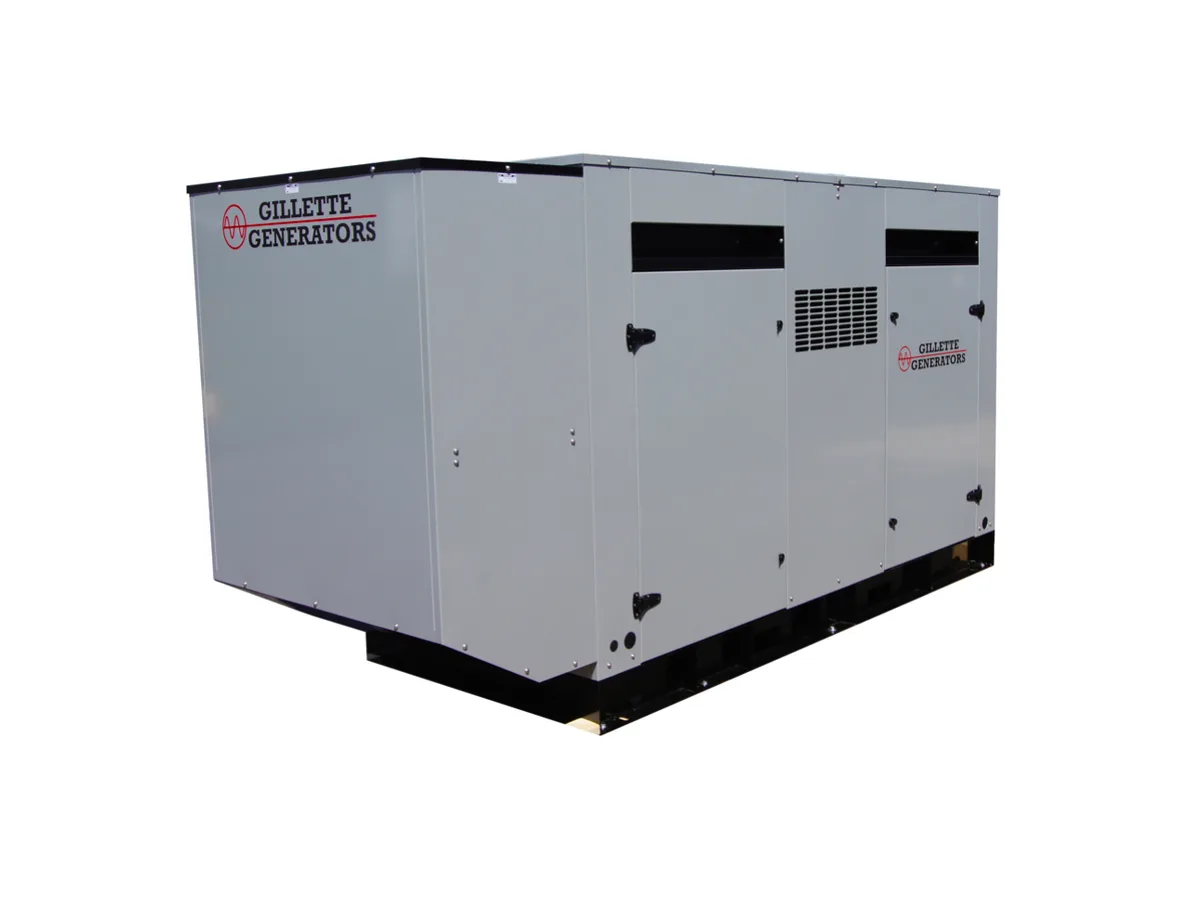

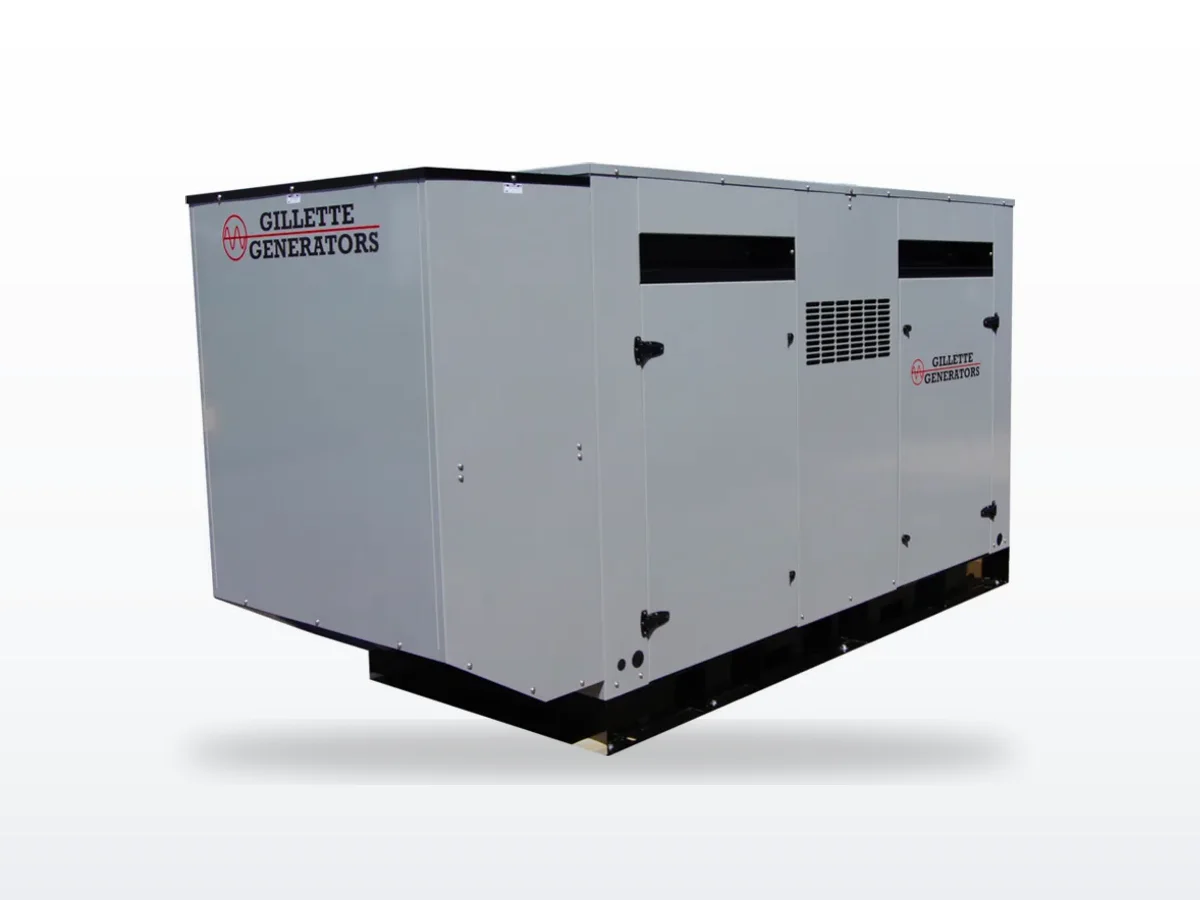

Gillette Gillette SPD-1500 150 kW liquid-cooled standby generator
