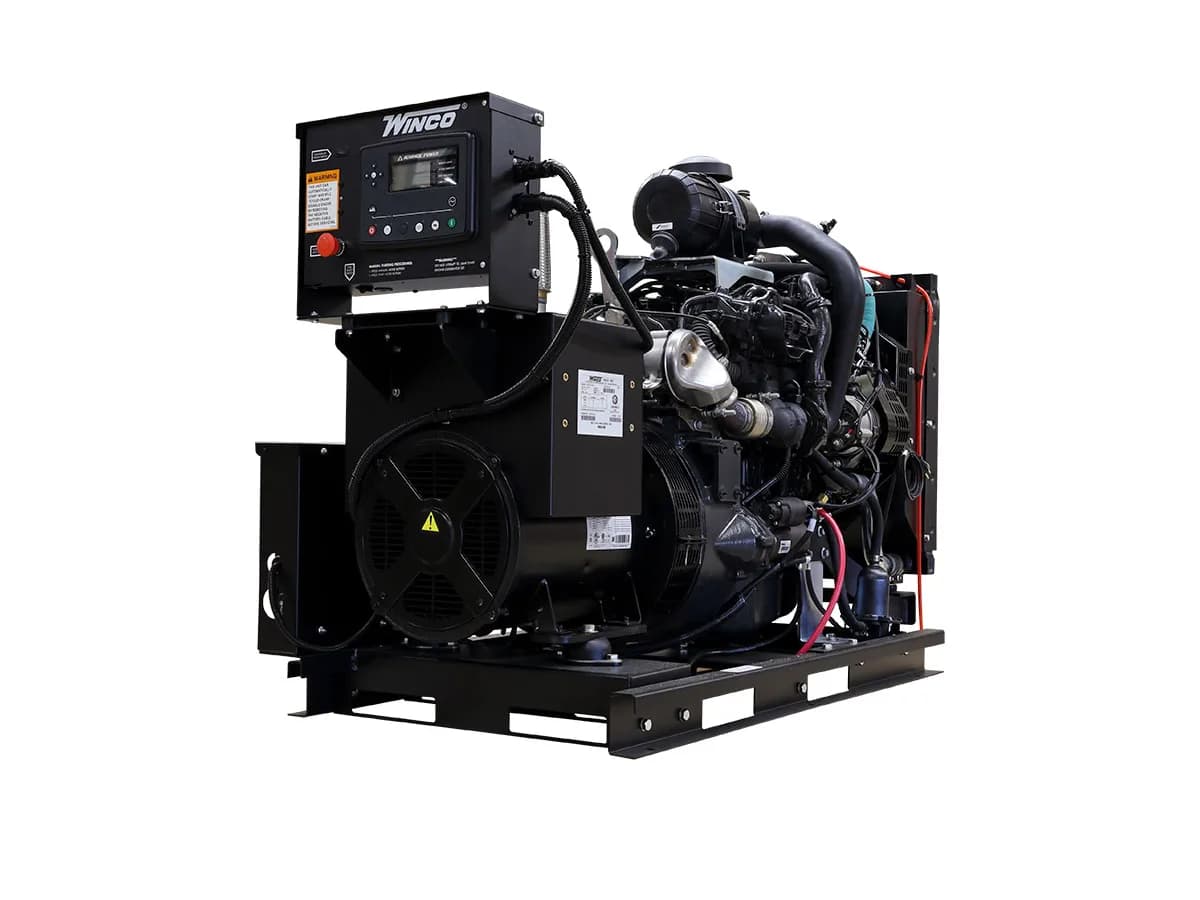

The Winco DE30 is a 30 kW standby / 27 kW prime diesel generator powered by an FPT Industrial N45-family 4.5-liter turbocharged diesel engine with a Stamford alternator. Available in single-phase (120/240V) and three-phase (277/480V) configurations, it is the mid-range unit in the DE open-frame diesel series. EPA Tier 4 Final certified. 100% US-made in Le Center, Minnesota since 1927.
The DE series open-frame design is intended for indoor generator room installation. The three-phase option makes the DE30 suitable for small commercial buildings, agricultural operations, and municipal facilities with three-phase loads.
Since 1927, Winco has assembled generators in Le Center, Minnesota with US labor and components. The DE30 uses an FPT Industrial N45 engine and a Stamford alternator — both globally non-proprietary, both serviceable without OEM-specific parts programs or dealer relationships.
For rural municipalities, school districts, and agricultural operations with Buy American procurement requirements, the DE30 provides 30 kW of US-manufactured diesel standby power. The FPT N45 engine is distributed globally through CNH Industrial's Case IH and New Holland networks — parts are available through standard diesel supply channels, not dependent on Winco's own dealer footprint.
Oil and fuel filter changes every 500 hours or annually. Annual fuel filter changes are mandatory for standby units where diesel sits in storage tanks and degrades. Air filter inspection at 500 hours. FPT N45-series engine consumables are available through CNH Industrial dealers and standard diesel parts distributors.
The Stamford alternator requires standard maintenance — brush inspection, bearing service, winding insulation check. Transfer switch contacts should be exercised weekly to prevent oxidation during standby periods. Major overhaul at 20,000 hours.
PowerGen services Winco DE units throughout the Bay Area and Northern California. Because the DE30 uses FPT Industrial and Stamford components, our technicians source parts through standard commercial diesel channels — the same supply network used for major-brand diesel standby generators. For clients with Buy American requirements or a preference for US-made equipment with non-proprietary components, the DE30 is a reliable and straightforward choice at 30 kW.
Request a quote
Get pricing & lead time on the Winco DE30
Tell us about the application — kW, voltage, application, install timeline — and we'll respond within one business day with budgetary pricing, lead time, and any sizing notes.
Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.
Estimate runtime on this tank
Estimated runtime
123.5 hours(5.1 days)
Fuel consumption ≈ 1.62 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.
Service intervals
Manufacturer-recommended intervals for the Winco DE30 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.
Oil & filter
Every 500 hours or 12 months
Air filter
Every 500 hours
Fuel filter
Every 500 hours
Major overhaul
≈ 20,000 hours
Common failure modes
What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.
Component
Symptom
Typical hours
Severity
Fuel filter
Extended standby fuel degradation — change annually regardless of hours
500+
minor
Starting battery
Capacity loss in standby — float charge, test annually
4,380+
minor
Transfer switch contacts
Oxidation on standby generators — exercise weekly to maintain contact quality
8,760+
minor
Frequently Asked Questions
What is the standby kW rating of the DE30?
The DE30 is rated at 30 kW standby / 27 kW prime. It is available in both single-phase (120/240V) and three-phase (277/480V) configurations — an open-frame unit for indoor generator room installation.
What engine does the DE30 use?
The DE30 uses an FPT Industrial N45-family 4.5-liter four-cylinder turbocharged diesel engine from CNH Industrial. The N45 is the same engine family used in Case IH and New Holland agricultural equipment globally.
What makes Winco different from Generac or Kohler?
Winco generators use non-proprietary FPT Industrial engines and Stamford alternators — components any qualified diesel technician can service without OEM-specific tools or programs. Winco has manufactured 100% in Le Center, Minnesota since 1927. Generac and Kohler offer proprietary engines, connected monitoring, and denser dealer networks but with parts lock-in.
Is the DE30 EPA Tier 4 Final compliant?
Yes. The DE30 carries EPA Tier 4 Final certification, meeting current non-road diesel emissions standards.
Where are Winco generators made?
100% in Le Center, Minnesota. Winco has operated at that US facility continuously since 1927 — America's oldest generator manufacturer.
What are the service intervals for the DE30?
Oil and fuel filter changes every 500 hours or annually. Air filter inspection at 500 hours. Annual changes are mandatory for standby units where diesel degrades in storage. Major overhaul at 20,000 hours.
Who services Winco generators in Northern California?
PowerGen services Winco DE units throughout the Bay Area and Northern California. The FPT Industrial engine and Stamford alternator are non-proprietary — parts come through standard diesel supply chains without requiring a dedicated Winco dealer.
