Triton Power · TP-K

Triton Power TP-K30-T4i-UL

30 kW standby / 28 kW prime · Diesel · Liquid-cooled

30 kW diesel generator with Kubota V3300-E3BG-CHN-1 engine. UL2200-listed for commercial standby and light industrial applications.

Triton Power Triton Power TP-K30-T4i-UL generator — specifications and details
Standby power
30 kW / 28 kW prime
Voltage options
120/240V, 120/208V, 277/480V
Frequency / Phase
60 Hz · 3-phase
Engine
Kubota V3300-E3BG-CHN-1 · 3.3L
Alternator
Leroy Somer LSA42.3VS3
Commercialsmall-business
Configure & QuoteDownload spec sheet

Overview#

The Triton Power TP-K30-T4i-UL is a 30 kW diesel standby generator powered by the Kubota V3300-E3BG-CHN-1 naturally aspirated four-cylinder engine (3.3 L displacement) with a Leroy Somer LSA42.3VS3 alternator. It carries UL2200 listing and is configured as three-phase only (30 kW at 277/480V, 120/208V, or 120/240V). No single-phase configuration is available on this model.

The unit uses a Deep Sea Electronics controller (DSE4520 or DSE4510 standard, with DSE73XX/74XX autostart and DSE86XX synchronization models available). Fuel consumption is 9.1 L/hr (2.40 GPH) at full load, dropping to 4.6 L/hr (1.22 GPH) at half load.

Our service experience#

The Kubota V3300 engine platform is a proven workhorse in the 25-40 kW class, shared across many generator brands. Its naturally aspirated design means fewer emission-control components compared to turbocharged alternatives, which translates to simpler maintenance in the field. In Northern California, 30 kW three-phase units serve small commercial buildings, restaurants, and branch offices. The Kubota engine's reputation for reliability and the global parts availability through Kubota dealers make this a solid choice for budget-conscious standby installations.

Engineering specifications

Physical

Length
80 in
Width
32 in
Height
53 in
Dry weight
2,017 lb

Acoustic

Sound @ 7m, full load
64 dBA

Fuel system & runtime

Integral fuel tank
55.5 gal
Fuel use @ full load
2.4 GPH
Fuel use @ 75% load
1.56 GPH
Fuel use @ 50% load
1.22 GPH

Ready to order this model?

Configure your Triton Power TP-K30-T4i-UL

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Configure & Quote →Just request a quote

Estimate runtime for the Triton Power TP-K30-T4i-UL

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

30.0 hours(1.2 days)

Fuel consumption ≈ 1.85 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Frequently Asked Questions

What engine does the Triton TP-K30-T4i-UL use?
The TP-K30-T4i-UL uses a Kubota V3300-E3BG-CHN-1 naturally aspirated four-cylinder diesel engine with 3.3 L displacement (98 mm bore x 110 mm stroke), producing 39 kWm (53.3 HP) at 1800 RPM.
What is the emissions tier rating of the TP-K30-T4i-UL?
Despite the T4i in the model designation, the Kubota V3300 engine in this configuration is rated as Non Rated per the manufacturer's spec sheet. The generator carries UL2200 listing for emergency standby applications.
Is the TP-K30-T4i-UL available in single-phase?
No, the TP-K30-T4i-UL is a three-phase-only unit. It is available at 277/480V, 120/208V, and 120/240V configurations, all rated at 30 kW standby.
What alternator does the TP-K30-T4i-UL use?
The unit is equipped with a Leroy Somer LSA42.3VS3 brushless alternator with Class H insulation, self-excited excitation, and 2/3 pitch stator winding.

Why we recommend Triton Power

Triton Power is our value brand for mobile and portable diesel generators, and an emerging option for industrial standby. When MQ Power's pricing is a stretch or lead times are too long, Triton delivers comparable capability at a lower price point with faster availability.

We are developing our Triton Power sales relationship and building fleet experience. Every engine platform Triton uses — Perkins, John Deere, Kubota, Scania, Volvo — is one we already service daily across other brands. Triton's open architecture means our technicians can maintain these units with standard tooling and widely available parts.

See all Triton Powergenerators →

Similar models

Triton Power Triton Power TP-P20-T4i-UL 20 kW liquid-cooled standby generator

Triton Power

Triton Power TP-P20-T4i-UL

20 kW standby · Diesel · Liquid-cooled

20 kW Tier 4 Interim diesel generator with Perkins 404D-22G engine. UL2200-listed for small commercial and light industrial standby applications.

Tier 4 Interim3-phasecommercial-standbysmall-business

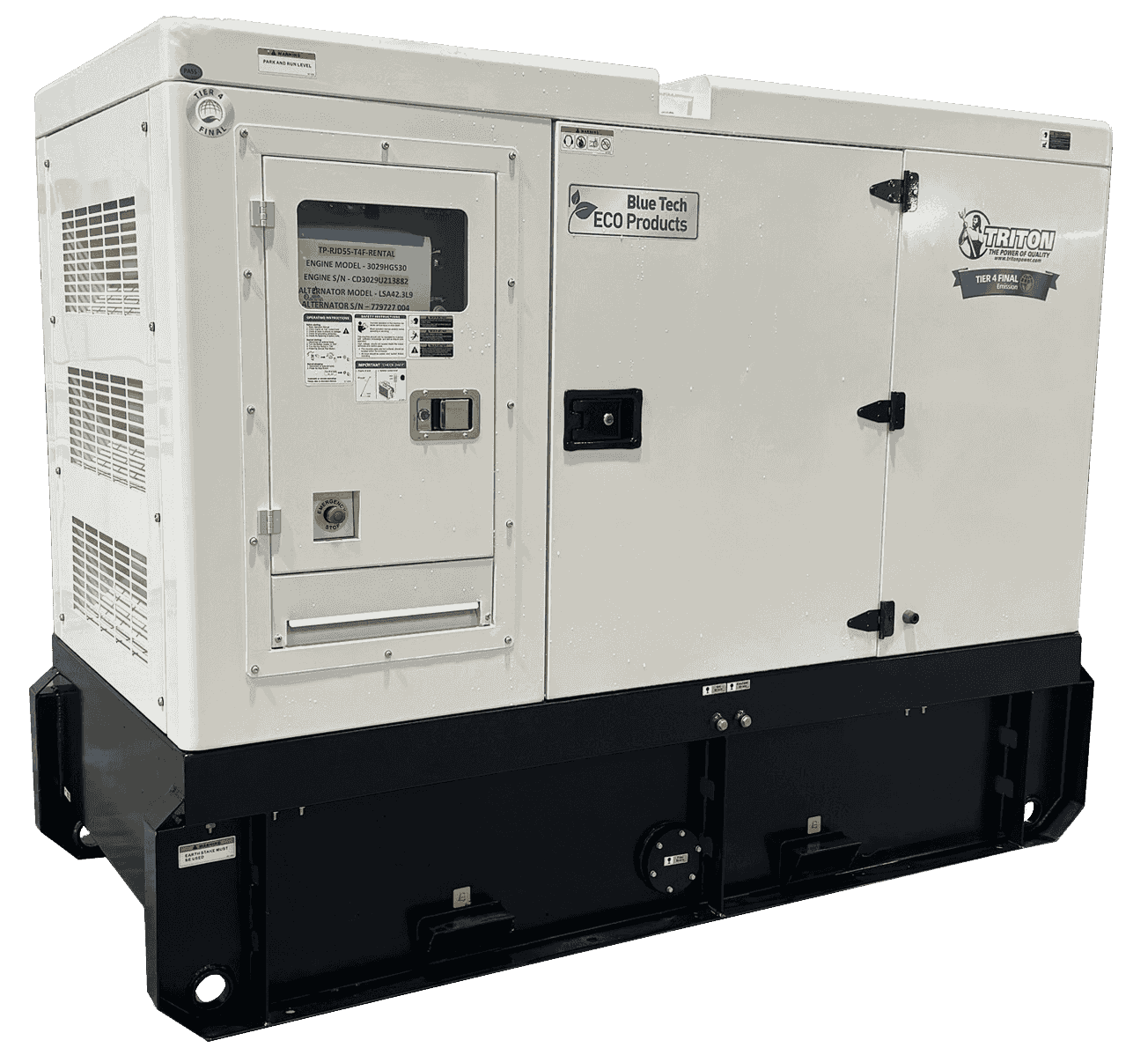

Triton Power Triton Power TP-JD50-T4F 50 kW liquid-cooled standby generator

Triton Power

Triton Power TP-JD50-T4F

50 kW standby · Diesel · Liquid-cooled

50 kW Tier 4 Final diesel generator with John Deere 3029HG530 engine. UL2200-listed for commercial standby with 92.5-gallon integral fuel tank.

Tier 4 Final3-phasecommercial-standbyretail-large

Triton Power

Triton Power TP-K30-T4F

30 kW standby · Diesel · Liquid-cooled

30 kW Tier 4 Final diesel generator with Kubota V2403-CR-TIE4BG engine. Turbocharged four-cylinder unit for commercial standby and light industrial applications.

Tier 4 Final3-phasecommercial-standbyindustrial

Need service or parts for the Triton Power TP-K30-T4i-UL?

We service every major OEM and stock genuine parts for the most common models.

Get A QuoteOr call (209) 229-1990

Last reviewed:
