SDMO

SDMO J88

70 kW standby · Diesel · Liquid-cooled

SDMO J88 diesel generator — 70 kW standby power with John Deere 4045HF120 engine. Specs, features, and service information.

Standby power
70 kW
Voltage options
277/480V
Frequency / Phase
60 Hz · 3-phase
Engine
John Deere 4045HF120 · 4.5L
Commercial
Configure & Quote

Overview#

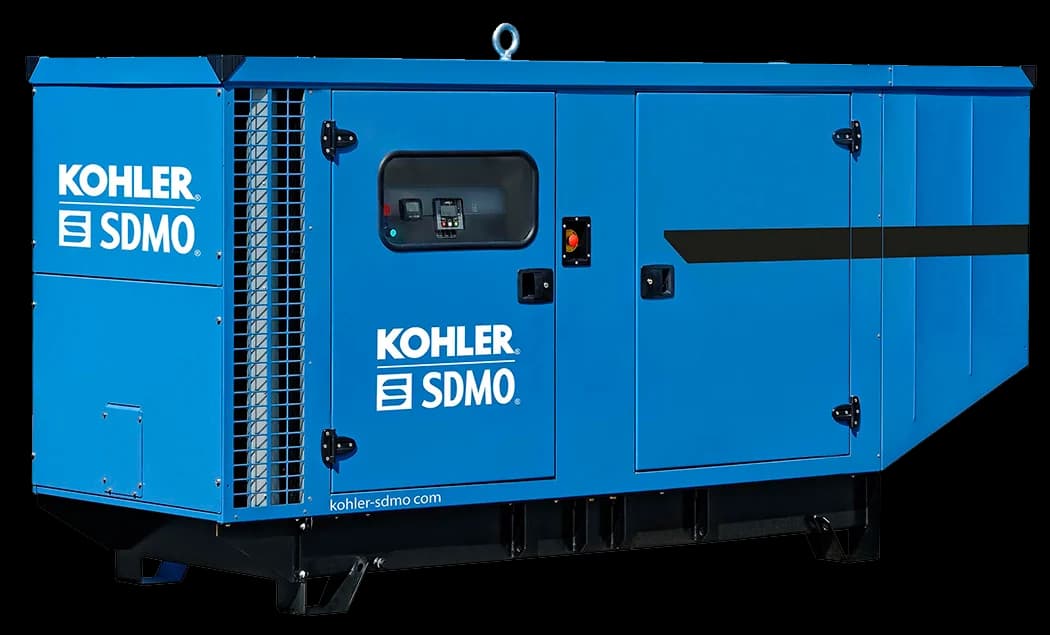

The SDMO J88 is a compact diesel generator rated at 88 kVA (70 kW) standby, powered by the John Deere 4045HF120 four-cylinder engine. The 4.5-liter PowerTech engine is mechanically governed and widely supported through John Deere's North American dealer network. This unit is well suited for small commercial buildings, retail locations, and light industrial facilities that need reliable standby power in a compact footprint.

SDMO packages the J88 with a brushless alternator, digital controller with automatic mains failure detection, and optional sound-attenuated enclosure. The generator delivers three-phase power at 277/480V and 60 Hz, with sub-base fuel tank options for extended runtime without refueling.

Ready to order this model?

Configure your SDMO J88

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Configure & Quote →Just request a quote

Estimate runtime for the SDMO J88

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

52.9 hours(2.2 days)

Fuel consumption ≈ 3.78 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Service intervals

Manufacturer-recommended intervals for the SDMO J88 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.

Oil & filter
Every 500 hours or 12 months
Coolant change
Every 6000 hours
Air filter
Every 1000 hours
Fuel filter
Every 500 hours
Major overhaul
≈ 20,000 hours
Load bank test
Every 12 months

Common failure modes

What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.

ComponentSymptomTypical hoursSeverity
Fuel quality / tank contaminationHard starting, filter clogging, injector fouling4,380+moderate
BatteryFailed to start, slow crank8,760+minor
Coolant hosesSlow coolant loss, weeping at clamps8,000+minor

Frequently Asked Questions

What is the kW rating of the SDMO J88?
The SDMO J88 is rated at 88 kVA / 70 kW standby. It uses the John Deere 4045HF120, a mechanically governed 4.5-liter four-cylinder diesel engine. The kVA rating reflects apparent power at 0.8 power factor.
Are parts readily available for the SDMO J88?
Yes. The John Deere 4045 engine has one of the strongest parts networks in North America through John Deere's dealer system and independent aftermarket suppliers. SDMO generator-end components use standard industrial alternators with wide availability.

More in the SDMO J-Series (John Deere)

John Deere-powered diesel gensets from 33 to 275 kW

View all 3models in this series →

Similar models

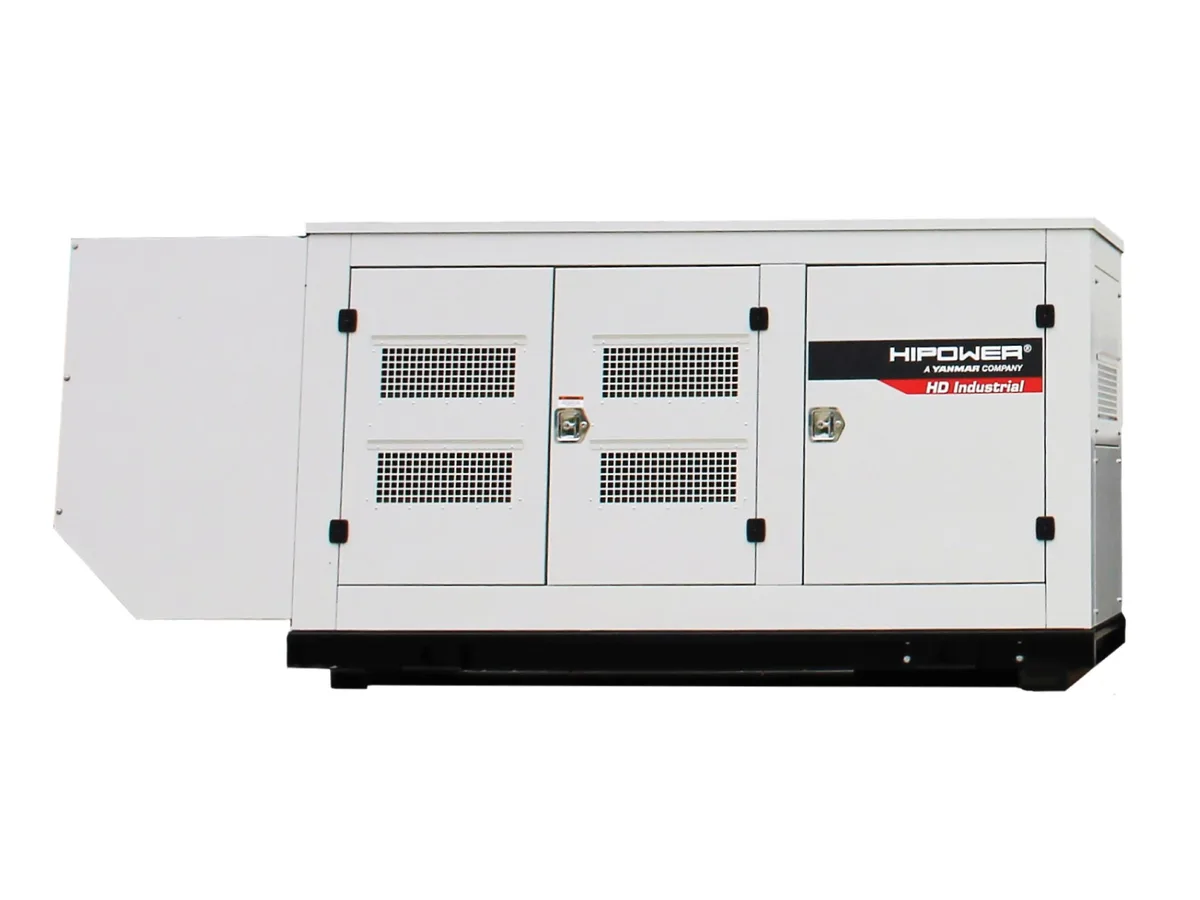

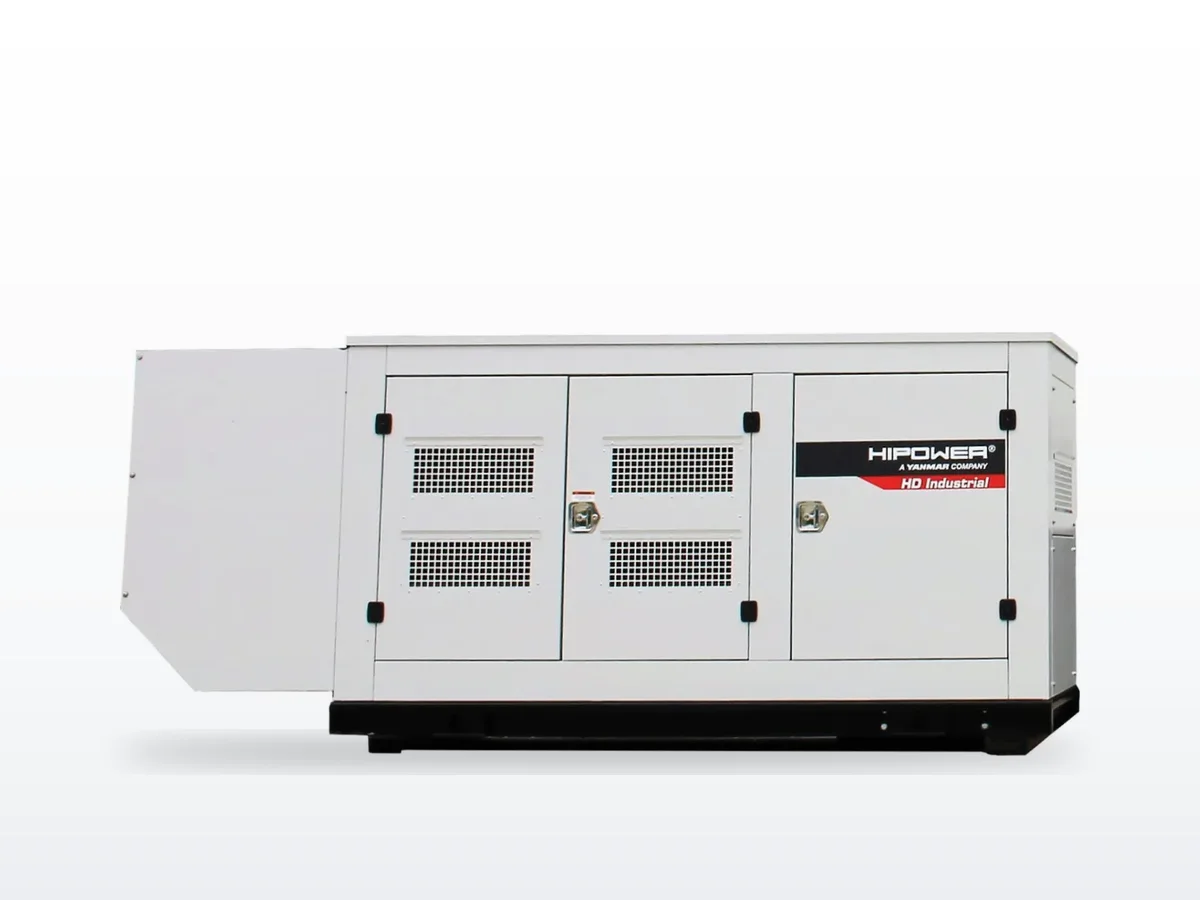

Hipower Systems Hipower HJW-65 65 kW liquid-cooled standby generator
